Check Accelerator Pedal Modification - AP86.20-P-8656C
Model 156, 169, 172, 176, 177, 204, 205, 206, 207, 212, 213, 218, 221, 222, 223, 238, 243, 245, 246, 247, 253, 257, 293 with code 45P (Disability conversion - Sales control code)

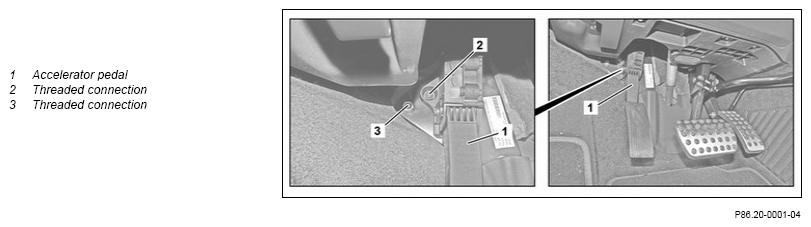

Shown in model 246
| Check | |||
| 1 | Check that the threaded connections (2, 3) on the accelerator pedal (1) are firmly seated. | If the threaded connections (2, 3) are not adequately fastened. ↓ Retighten threaded connections (2, 3). |
