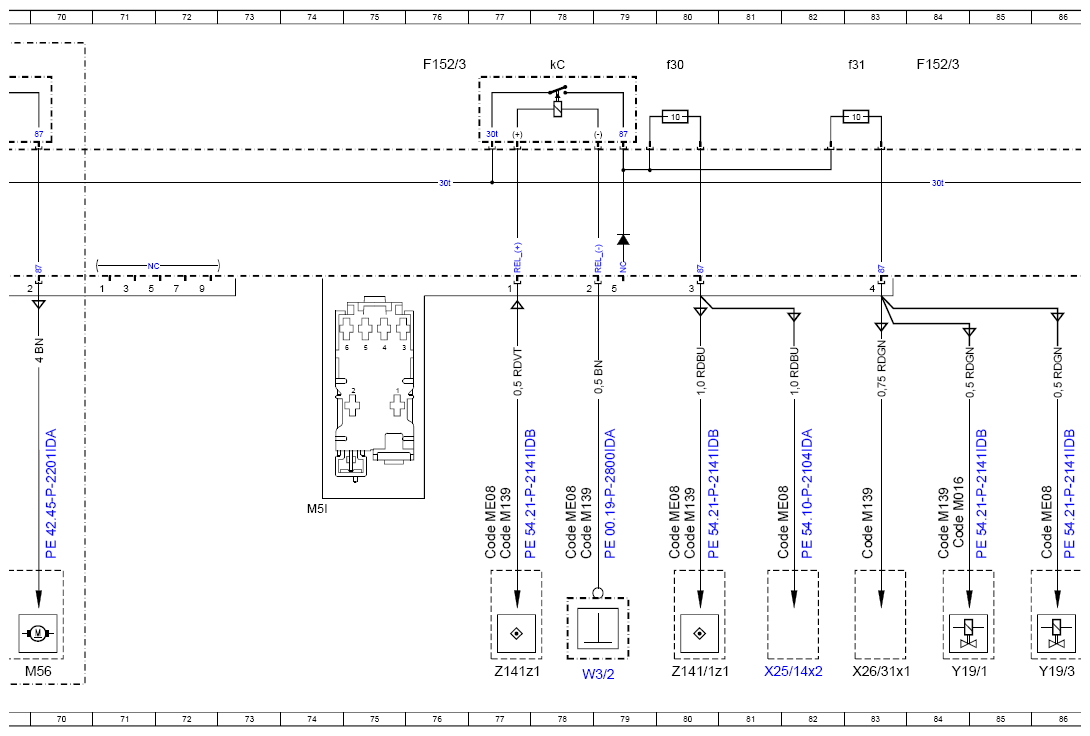

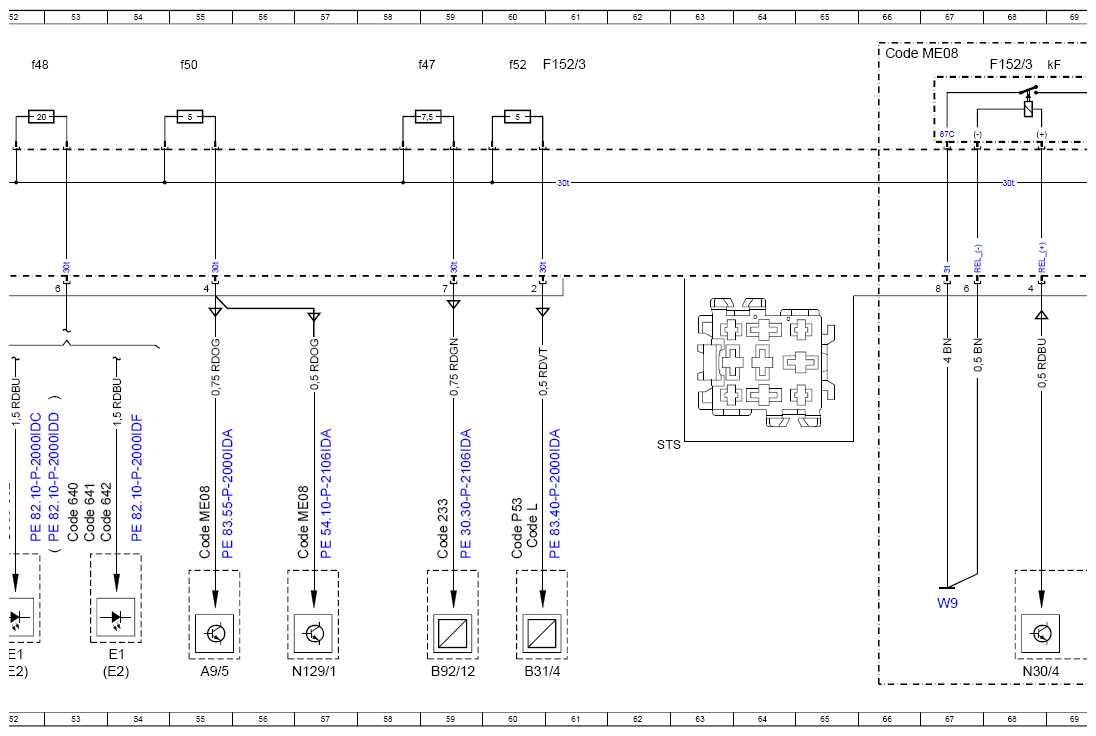

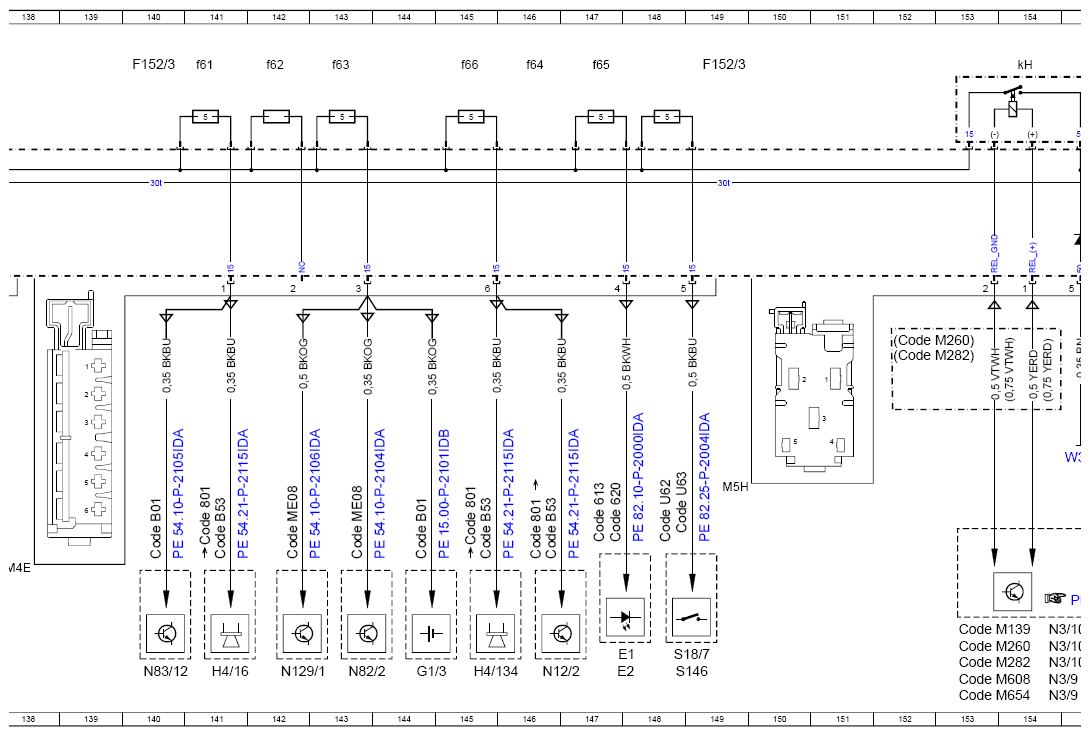

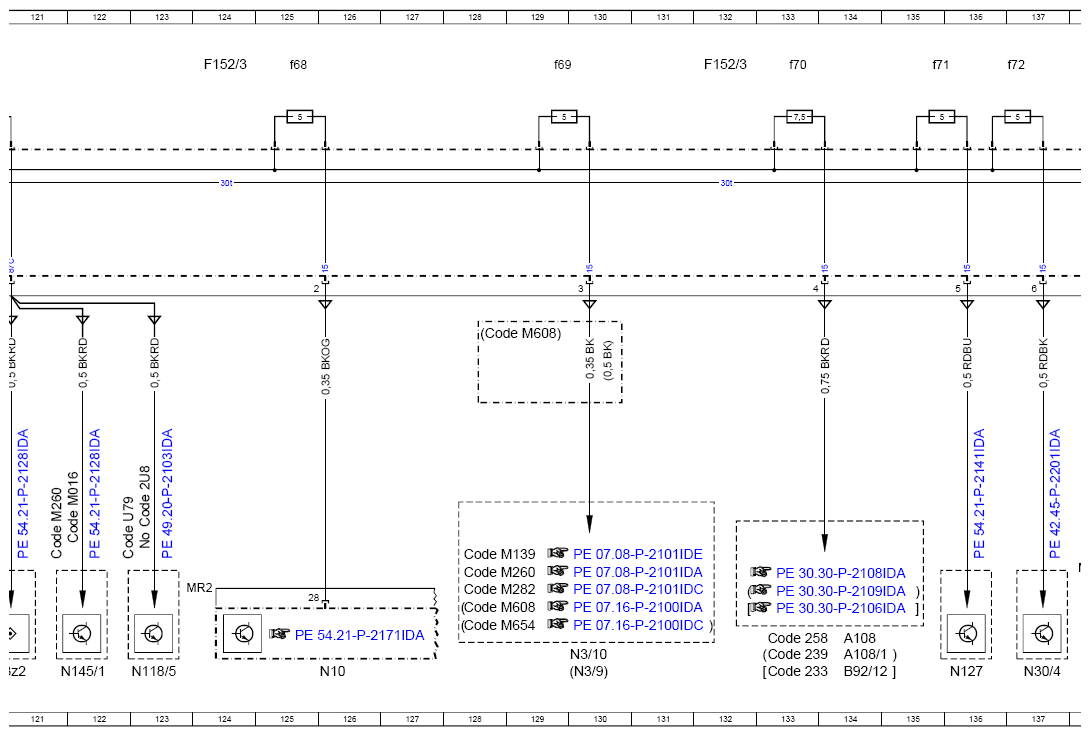

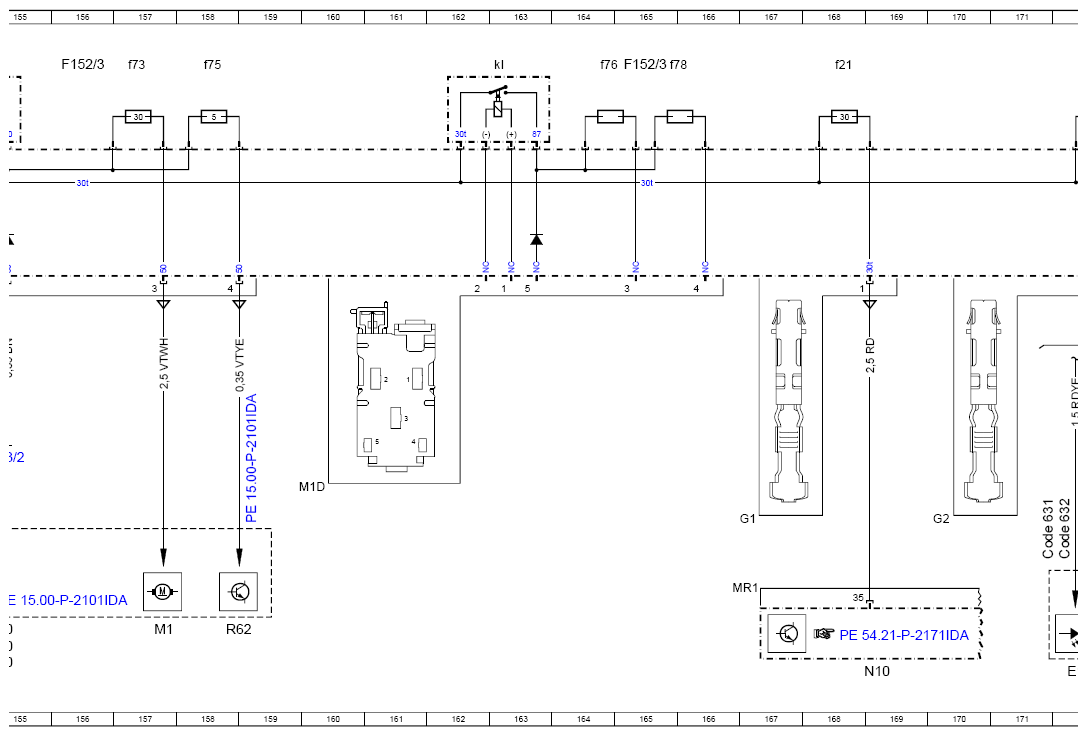

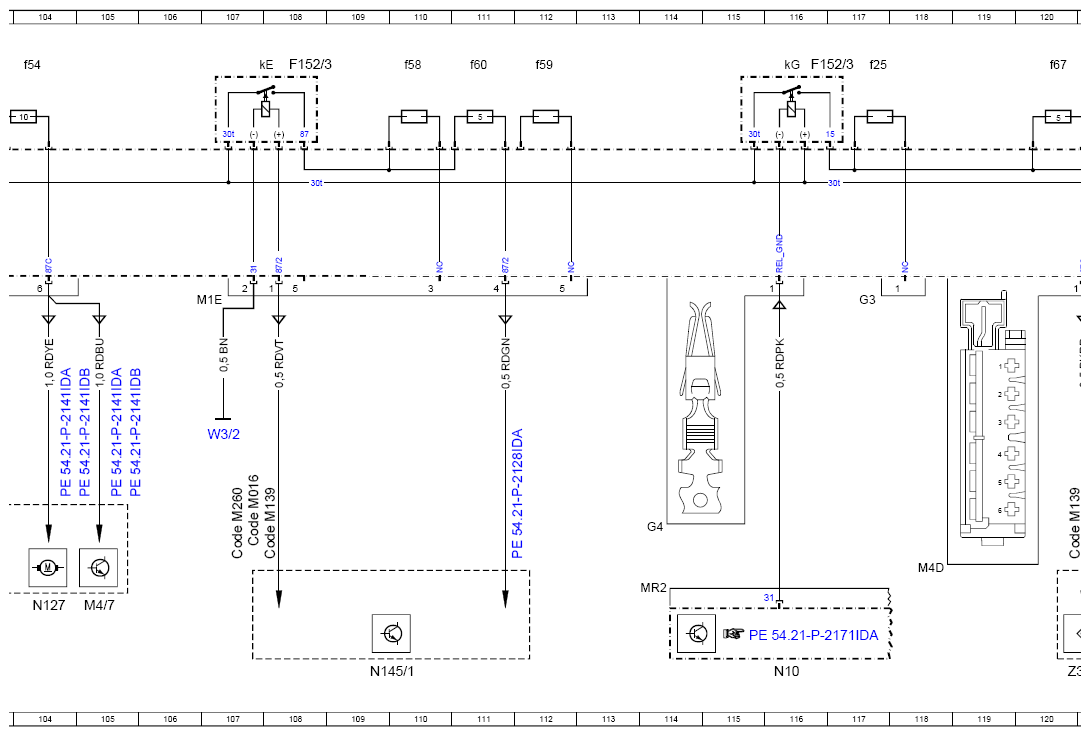

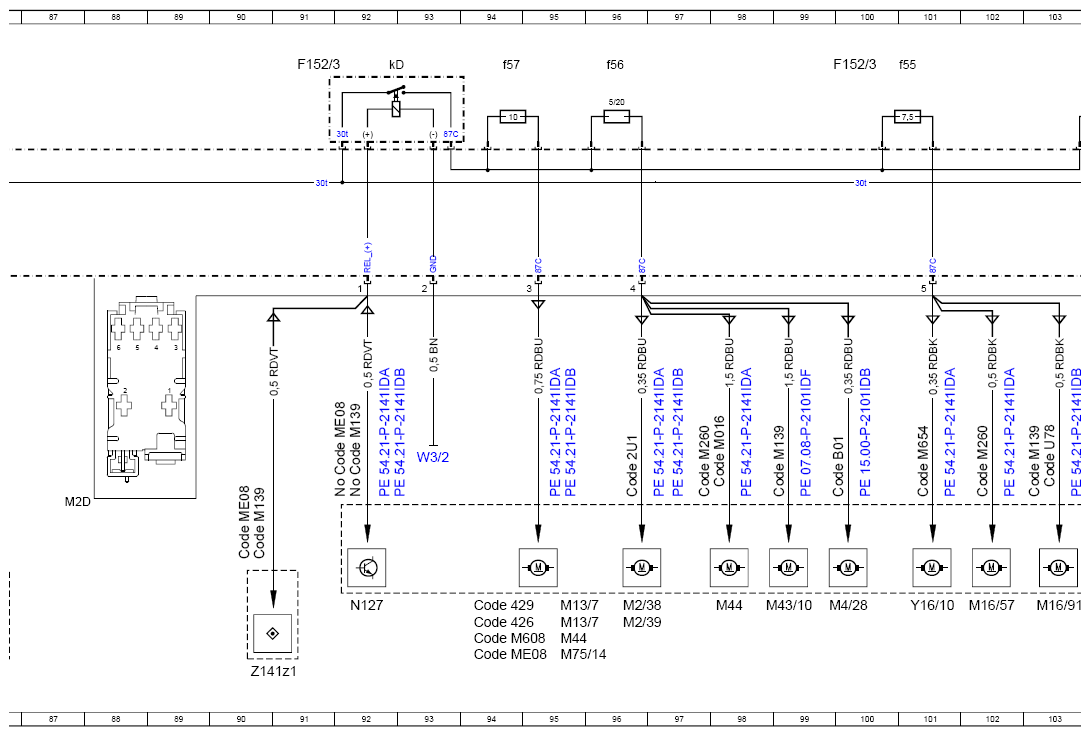

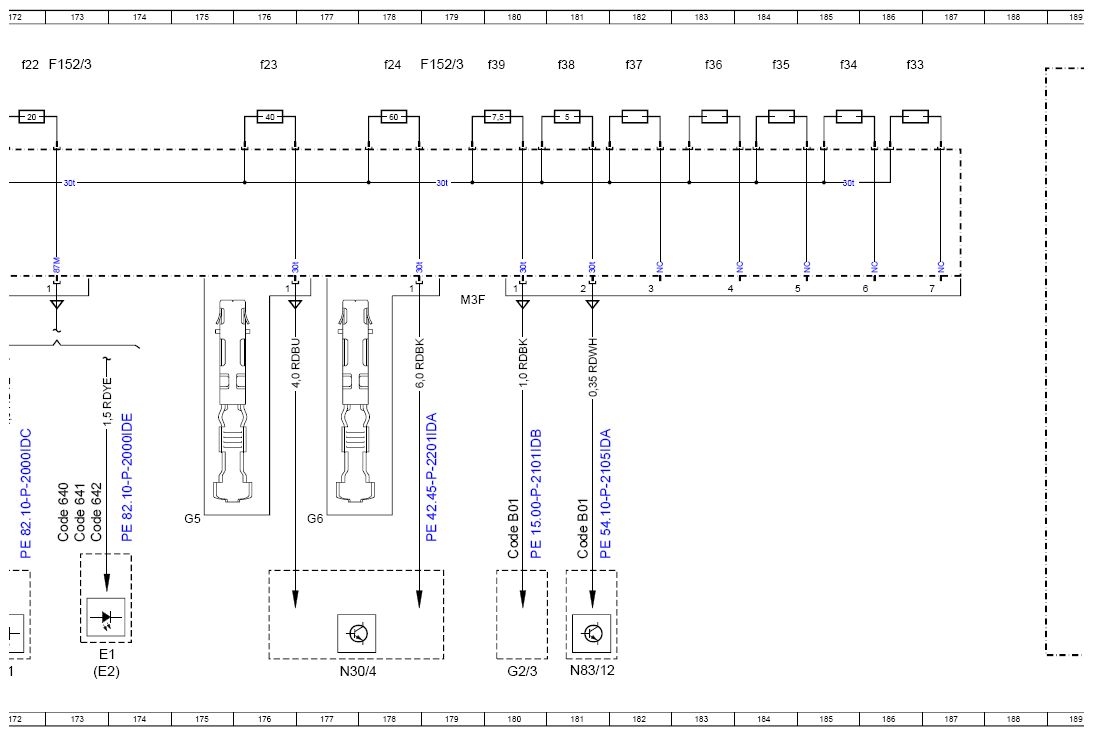

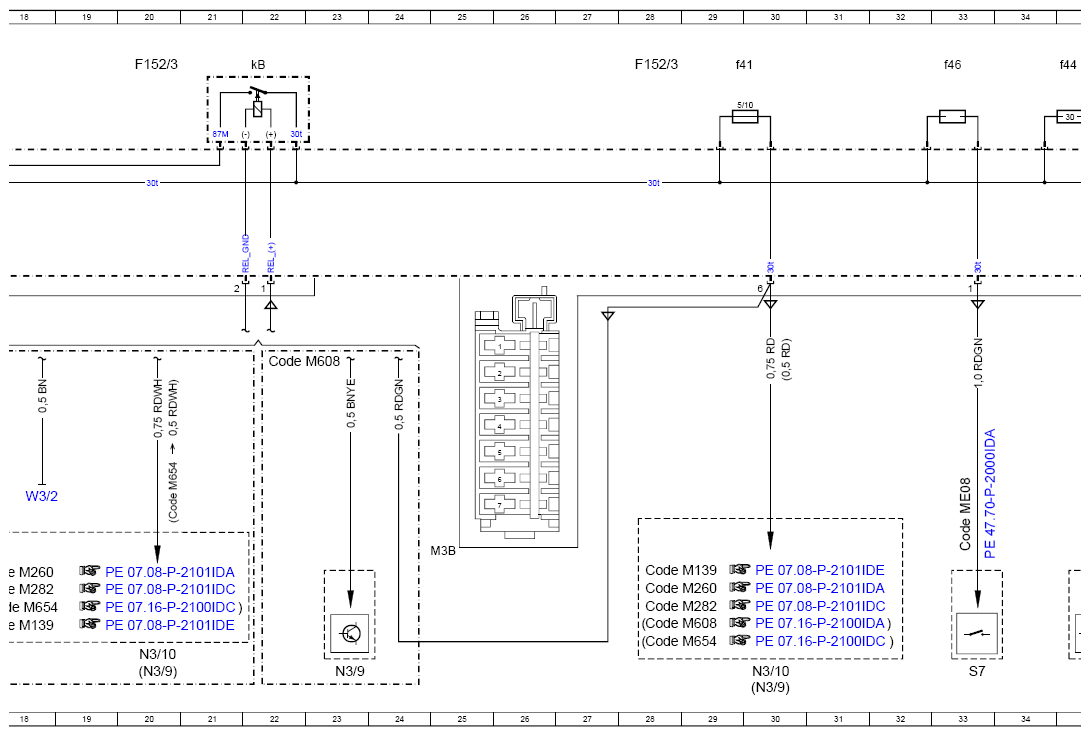

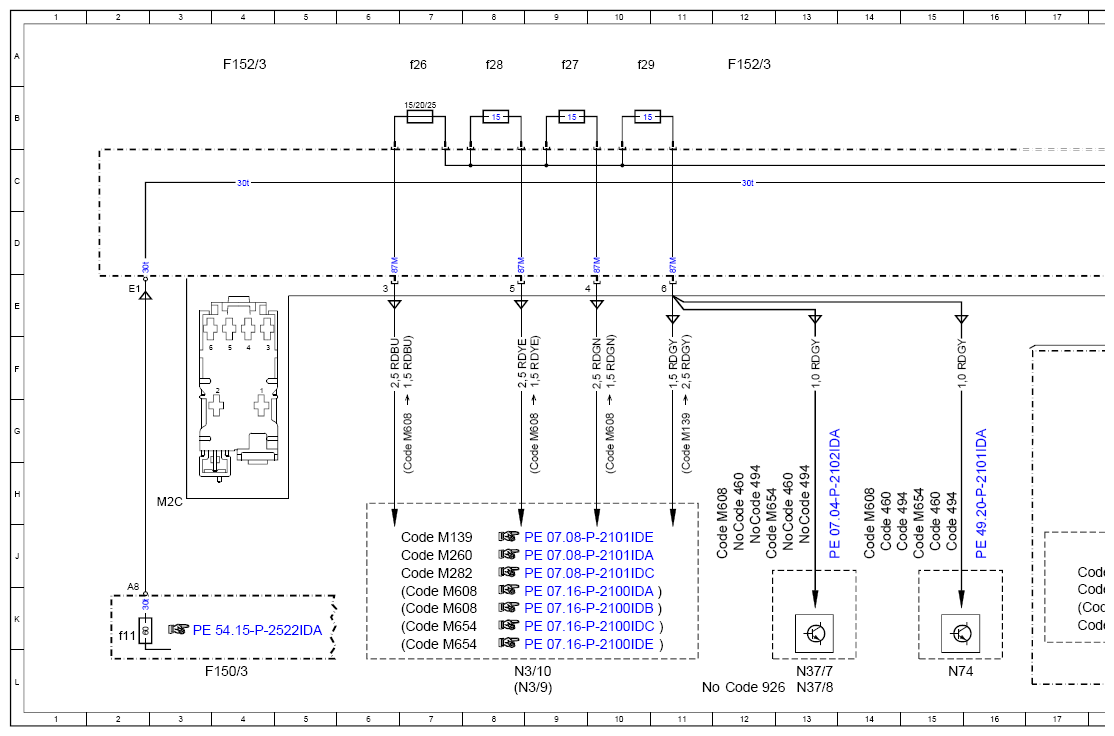

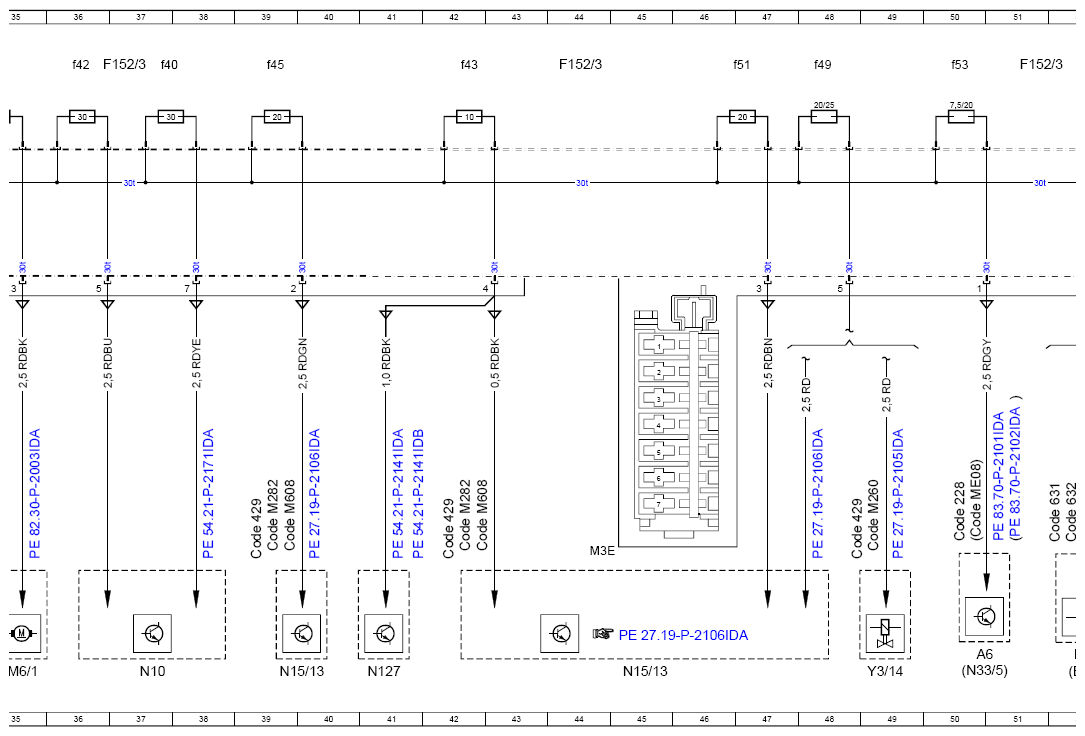

Wiring Diagram For Engine Compartment Fuse And Relay Module - PE54.15-P-2106-97IDA
Model 247
Module F152/3
| Code: | Designation: | Position: |
|---|---|---|

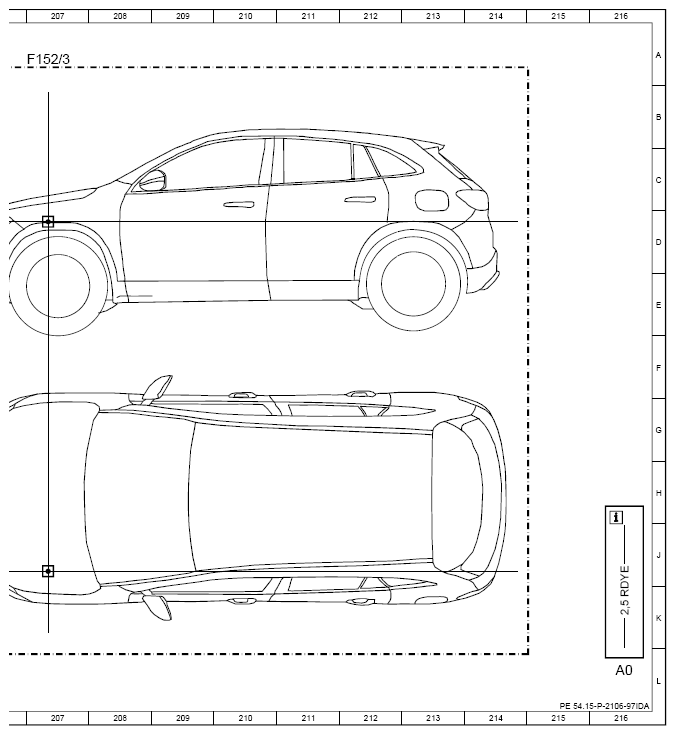

| A0 | Use of wiring diagrams | 216L |
| A108 | Active Brake Assist controller unit | 134K |
| A10/1 | Active Distance Assist DISTRONIC electric controller unit | 134L |
| A6 | Stationary heater unit | 50L |
| A9/5 | Electric refrigerant compressor | 55L |
| B31/4 | Fine particle sensor | 60L |
| B92/12 | Short and long-range radar sensor | 59L |
| B92/12 | Short and long-range radar sensor | 134L |
| Code 228 | Stationary heater | 50J |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 59J |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 133L |
| Code 239 | Active Distance Assist DISTRONIC | 133L |
| Code 258 | Active Brake Assist | 133K |
| Code 2U1 | Radiator shutters | 96H |
| Code 2U8 | Alternative refrigerant | 123J |
| Code 426 | 8G-DCT | 94K |
| Code 429 | 7G-DCT | 94K |
| Code 429 | 7G-DCT | 49J |
| Code 429 | 7G-DCT | 39J |
| Code 429 | 7G-DCT | 42J |
| Code 460 | Canada version | 13J |
| Code 460 | Canada version | 12J |
| Code 460 | Canada version | 15J |
| Code 460 | Canada version | 14J |
| Code 494 | USA version | 13H |
| Code 494 | USA version | 12H |
| Code 494 | USA version | 15J |
| Code 494 | USA version | 15J |
| Code 613 | Left-hand traffic headlamps | 147J |
| Code 620 | Right-hand traffic headlamps | 147J |
| Code 631 | Static LED headlamp, left-hand traffic | 52J |
| Code 631 | Static LED headlamp, left-hand traffic | 171J |
| Code 632 | Static LED headlamp, right-hand traffic | 52J |
| Code 632 | Static LED headlamp, right-hand traffic | 172J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 53J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 173J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 53J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 173J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 54J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 173J |
| Code 926 | Low-emission EURO4 | 12L |
| Code B01 | 48V technology | 181J |
| Code B01 | 48V technology | 140J |
| Code B01 | 48V technology | 180J |
| Code B01 | 48V technology | 100H |
| Code B01 | 48V technology | 144J |
| Code B53 | Acoustic ambient protection | 145J |
| Code B53 | Acoustic ambient protection | 146J |
| Code B53 | Acoustic ambient protection | 141J |
| Code L | LEFT-HAND DRIVE | 60J |
| Code M016 | Uprated high-performance engine | 122J |
| Code M016 | Uprated high-performance engine | 84J |
| Code M016 | Uprated high-performance engine | 98H |
| Code M016 | Uprated high-performance engine | 107J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 128J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 7J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 28J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 153K |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 83J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 78J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 80J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 84J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 90J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 92H |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 99H |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 103H |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 121J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 77J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 108J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 17K |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 7J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 28K |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 153L |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 128J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 49J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 102H |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 121J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 97H |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 152F |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 107J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 17J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 28K |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 7J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 128K |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 153L |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 39J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 42J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 152F |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 17K |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 7K |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 28K |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 94K |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 22F |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 128K |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 153L |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 39J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 12J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 14J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 43J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 128F |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 7K |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 7K |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 128K |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 153L |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 28K |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 101H |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 13J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 15J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 7K |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 17K |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 94L |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 50J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 33J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 55J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 143J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 142J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 57J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 66A |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 78J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 80J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 82J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 86J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 90J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 92H |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 77J |
| Code P53 | Air purification package | 60J |
| Code U62 | Light and vision package | 148J |
| Code U63 | Driving school package | 149J |
| Code U78 | AMG Sport exhaust system | 103H |
| Code U79 | BLUETEC (SCR) diesel exhaust treatment Generation 3 | 123J |
| E1 | Left front lamp unit | 52L |
| E1 | Left front lamp unit | 54L |
| E1 | Left front lamp unit | 147L |
| E1 | Left front lamp unit | 172L |
| E1 | Left front lamp unit | 173L |
| E2 | Right front lamp unit | 54L |
| E2 | Right front lamp unit | 147L |
| E2 | Right front lamp unit | 173L |
| E2 | Right front lamp unit | 52L |
| F150/3 | Engine compartment pre-fuse box | 4L |
| F150/3f11 | Fuse 11 | 2K |

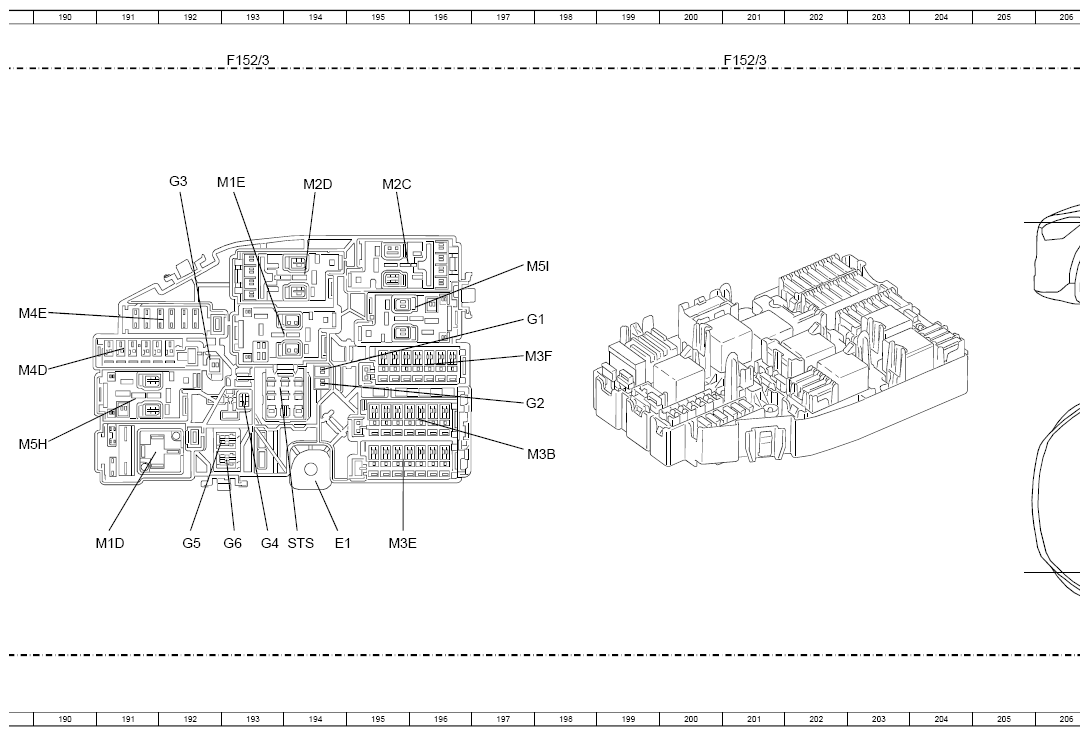

| F152/3 | Engine compartment fuse and relay module | 4A |
| F152/3 | Engine compartment fuse and relay module | 12A |
| F152/3 | Engine compartment fuse and relay module | 20A |
| F152/3 | Engine compartment fuse and relay module | 28A |
| F152/3 | Engine compartment fuse and relay module | 37A |
| F152/3 | Engine compartment fuse and relay module | 44A |
| F152/3 | Engine compartment fuse and relay module | 51A |
| F152/3 | Engine compartment fuse and relay module | 100A |
| F152/3 | Engine compartment fuse and relay module | 116A |
| F152/3 | Engine compartment fuse and relay module | 124A |
| F152/3 | Engine compartment fuse and relay module | 132A |
| F152/3 | Engine compartment fuse and relay module | 140A |
| F152/3 | Engine compartment fuse and relay module | 149A |
| F152/3 | Engine compartment fuse and relay module | 156A |
| F152/3 | Engine compartment fuse and relay module | 165A |
| F152/3 | Engine compartment fuse and relay module | 173A |
| F152/3 | Engine compartment fuse and relay module | 201A |
| F152/3 | Engine compartment fuse and relay module | 207A |
| F152/3 | Engine compartment fuse and relay module | 193A |
| F152/3 | Engine compartment fuse and relay module | 76A |
| F152/3 | Engine compartment fuse and relay module | 61A |
| F152/3 | Engine compartment fuse and relay module | 84A |
| F152/3 | Engine compartment fuse and relay module | 91A |
| F152/3 | Engine compartment fuse and relay module | 179A |
| F152/3 | Engine compartment fuse and relay module | 108A |
| F152/3 | Engine compartment fuse and relay module | 68A |
| F152/3f21 | Fuse 21 | - |
| F152/3f22 | Fuse 22 | - |
| F152/3f23 | Fuse 23 | - |
| F152/3f24 | Fuse 24 | - |
| F152/3f25 | Fuse 25 | - |
| F152/3f26 | Fuse 26 | - |
| F152/3f27 | Fuse 27 | - |
| F152/3f28 | Fuse 28 | - |
| F152/3f29 | Fuse 29 | - |
| F152/3f30 | Fuse 30 | - |
| F152/3f31 | Fuse 31 | - |
| F152/3f33 | Fuse 33 | - |
| F152/3f34 | Fuse 34 | - |
| F152/3f35 | Fuse 35 | - |
| F152/3f36 | Fuse 36 | - |
| F152/3f37 | Fuse 37 | - |
| F152/3f38 | Fuse 38 | - |
| F152/3f39 | Fuse 39 | - |
| F152/3f41 | Fuse 41 | - |
| F152/3f42 | Fuse 42 | - |
| F152/3f43 | Fuse 43 | - |
| F152/3f44 | Fuse 44 | - |
| F152/3f44 | Fuse 44 | - |
| F152/3f45 | Fuse 45 | - |
| F152/3f46 | Fuse 46 | - |
| F152/3f47 | Fuse 47 | - |
| F152/3f48 | Fuse 48 | - |
| F152/3f49 | Fuse 49 | - |
| F152/3f50 | Fuse 50 | - |
| F152/3f51 | Fuse 51 | - |
| F152/3f52 | Fuse 52 | - |
| F152/3f53 | Fuse 53 | - |
| F152/3f54 | Fuse 54 | - |
| F152/3f55 | Fuse 55 | - |
| F152/3f56 | Fuse 56 | - |
| F152/3f57 | Fuse 57 | - |
| F152/3f58 | Fuse 58 | 110A |
| F152/3f59 | Fuse 59 | 112A |
| F152/3f60 | Fuse 60 | 111A |
| F152/3f61 | Fuse 61 | - |
| F152/3f62 | Fuse 62 | - |
| F152/3f63 | Fuse 63 | - |
| F152/3f64 | Fuse 64 | - |
| F152/3f65 | Fuse 65 | - |
| F152/3f66 | Fuse 66 | - |
| F152/3f67 | Fuse 67 | - |
| F152/3f68 | Fuse 68 | - |
| F152/3f69 | Fuse 69 | - |
| F152/3f70 | Fuse 70 | - |
| F152/3f71 | Fuse 71 | - |
| F152/3f72 | Fuse 72 | - |
| F152/3f73 | Fuse 73 | - |
| F152/3f75 | Fuse 75 | - |
| F152/3f76 | Fuse 76 | - |
| F152/3f78 | Fuse 78 | - |
| F152/3kB | Circuit 87M relay | 22A |
| F152/3kC | Backup relay | - |
| F152/3kD | Terminal 87C relay | - |
| F152/3kE | Backup relay | - |
| F152/3kF | AMG sports suspension relay | - |
| F152/3kG | Engine compartment terminal 15 relay | - |
| F152/3kH | Circuit 50 relay | - |
| F152/3kI | Backup relay | - |
| G1/3 | 48 V battery | 144L |
| G2/3 | Belt-driven starter alternator | 180L |
| H4/134 | Sound generator 2 | 145L |
| H4/16 | Sound generator | 141L |
| M1 | Starter | 157K |
| M13/7 | Transmission oil cooling coolant circulation pump | 95K |
| M13/7 | Transmission oil cooling coolant circulation pump | 95K |
| M16/57 | Exhaust flap controller | 102K |
| M16/91 | Exhaust flap actuator motor | 103K |
| M2/38 | Upper radiator trim flap actuator motor | 96K |
| M2/39 | Lower radiator trim flap actuator motor | 96K |
| M4/28 | 12 V fan for 48 V battery | 100K |
| M4/7 | Fan motor | 105K |
| M43/10 | High-temperature circuit coolant pump | 99K |
| M44 | Charge air cooler circulation pump | 95K |
| M44 | Charge air cooler circulation pump | 98K |
| M56 | Electric vacuum pump | 70L |
| M6/1 | Wiper motor | 35L |
| M75/14 | Power electronics/transmission coolant pump | 95L |
| N10 | Central control module | 116L |
| N10 | Central control module | 126L |
| N10 | Central control module | 169L |
| N10 | Central control module | 37L |
| N118/5 | AdBlue® control unit | 123L |
| N12/2 | Sound generator control unit | 146L |
| N127 | Drivetrain control unit | 104K |
| N127 | Drivetrain control unit | 92K |
| N127 | Drivetrain control unit | 136L |
| N127 | Drivetrain control unit | 41L |
| N129/1 | Power electronics control unit | 142L |
| N129/1 | Power electronics control unit | 57L |
| N145/1 | Drive unit control unit | 122L |
| N145/1 | Drive unit control unit | 109L |
| N15/13 | Double clutch transmission control unit | 45L |
| N15/13 | Double clutch transmission control unit | 39L |
| N3/10 | ME-SFI [ME] control unit | 20L |
| N3/10 | ME-SFI [ME] control unit | 30L |
| N3/10 | ME-SFI [ME] control unit | 130L |
| N3/10 | ME-SFI [ME] control unit | 154L |
| N3/10 | ME-SFI [ME] control unit | 154L |
| N3/10 | ME-SFI [ME] control unit | 8L |
| N3/10 | ME-SFI [ME] control unit | 154K |
| N3/9 | CDI control unit | 23L |
| N3/9 | CDI control unit | 130L |
| N3/9 | CDI control unit | 154L |
| N3/9 | CDI control unit | 154L |
| N3/9 | CDI control unit | 8L |
| N3/9 | CDI control unit | 30L |
| N3/9 | CDI control unit | 20L |
| N30/4 | Electronic Stability Program control unit | 137L |
| N30/4 | Electronic Stability Program control unit | 177L |
| N30/4 | Electronic Stability Program control unit | 68L |
| N33/5 | High-voltage PTC heater | 50L |
| N37/7 | Control unit of NOx sensor upstream of SCR catalytic converter | 13L |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 13L |
| N74 | Soot particulate sensor control unit | 15L |
| N82/2 | Battery management system control unit | 143L |
| N83/12 | 48 V on-board electrical system DC/DC converter control unit | 181L |
| N83/12 | 48 V on-board electrical system DC/DC converter control unit | 140L |
| R62 | Voltage dip limiter | 158K |
| S146 | Pedal operation monitor switch | 148L |
| S18/7 | Footwell illumination switch | 148L |
| S7 | High-voltage disconnect device | 33L |
| W3/2 | Left front wheel arch ground point | 18H |
| W3/2 | Left front wheel arch ground point | 93H |
| W3/2 | Left front wheel arch ground point | 155H |
| W3/2 | Left front wheel arch ground point | 78L |
| W3/2 | Left front wheel arch ground point | 107G |
| W9 | Left front ground point | 67K |
| X25/14x2 | Right engine compartment/vehicle interior electrical connector | 81L |
| X26/31x1 | Engine/engine compartment electrical connector | 83L |
| Y16/10 | Condensation prevention switchover valve | 101K |
| Y19/1 | High-voltage battery cooling system shutoff valve | 84L |
| Y19/3 | Front evaporator shutoff valve | 86L |
| Y3/14 | Dual clutch transmission fully integrated transmission control electrohydraulic controller unit | 49L |
| Z141/1z1 | Circuit 87 C1 connector sleeve | 80L |
| Z141z1 | Terminal 87C relay actuation end sleeve | 77L |
| Z141z1 | Terminal 87C relay actuation end sleeve | 90L |
| Z3z2 | Tml. 15 connector sleeve | 120L |
