Wiring Diagram For Drive Unit Control Unit - PE54.21-P-2128-97IDA
Model 247 with code M016 (Uprated engine)
with code M260 (Inline 4-cylinder spark ignition engine M260)
Control unit N145/1
Model 247
with code M139 (Inline 4-cylinder spark-ignition engine M139 - AMG)
Control unit N145/1
| Code: | Designation: | Position: |
|---|---|---|

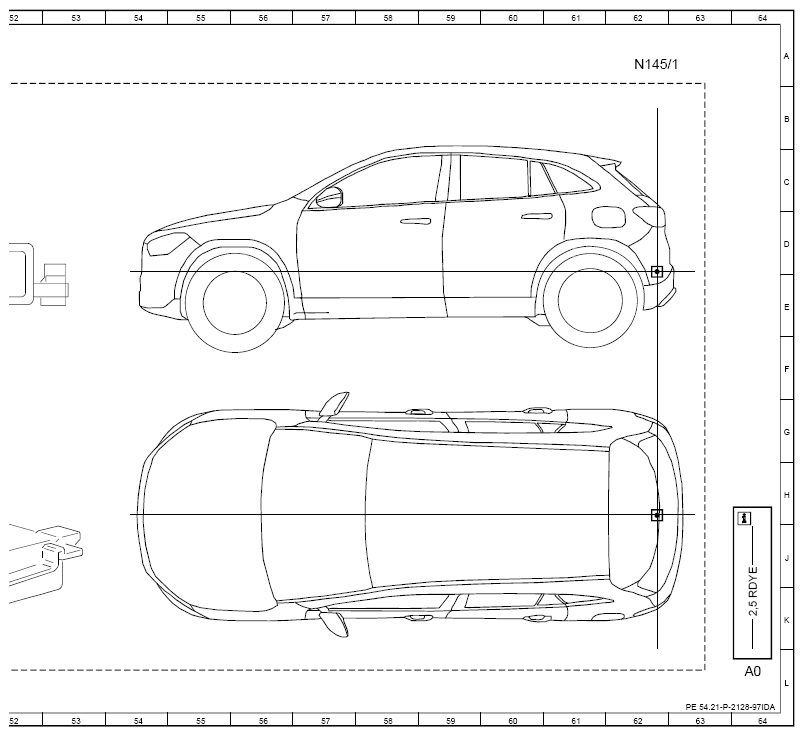

| A0 | Use of wiring diagrams | 64L |
| A105 | Touchpad | 23L |
| CAN C1 | Drive train CAN | 12K |
| CAN D | Diagnostic CAN | 16K |
| CAN HMI | User interface CAN | 9K |
| Code 802 | YoM 21/1 | 14D |
| Code M016 | Uprated high-performance engine | 4D |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 6D |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 4D |
| F152/3 | Engine compartment fuse and relay module | 5L |
| F152/3 | Engine compartment fuse and relay module | 39L |
| F152/3f60 | Fuse 60 | 36K |
| F152/3f67 | Fuse 67 | 4K |
| F152/4 | Vehicle interior fuse and relay module | 33L |
| F152/4f149 | Fuse 149 | 31K |
| Flex E | Chassis FlexRay | 26K |
| N145/1 | Drive unit control unit | 49A |
| N145/1 | Drive unit control unit | 62A |

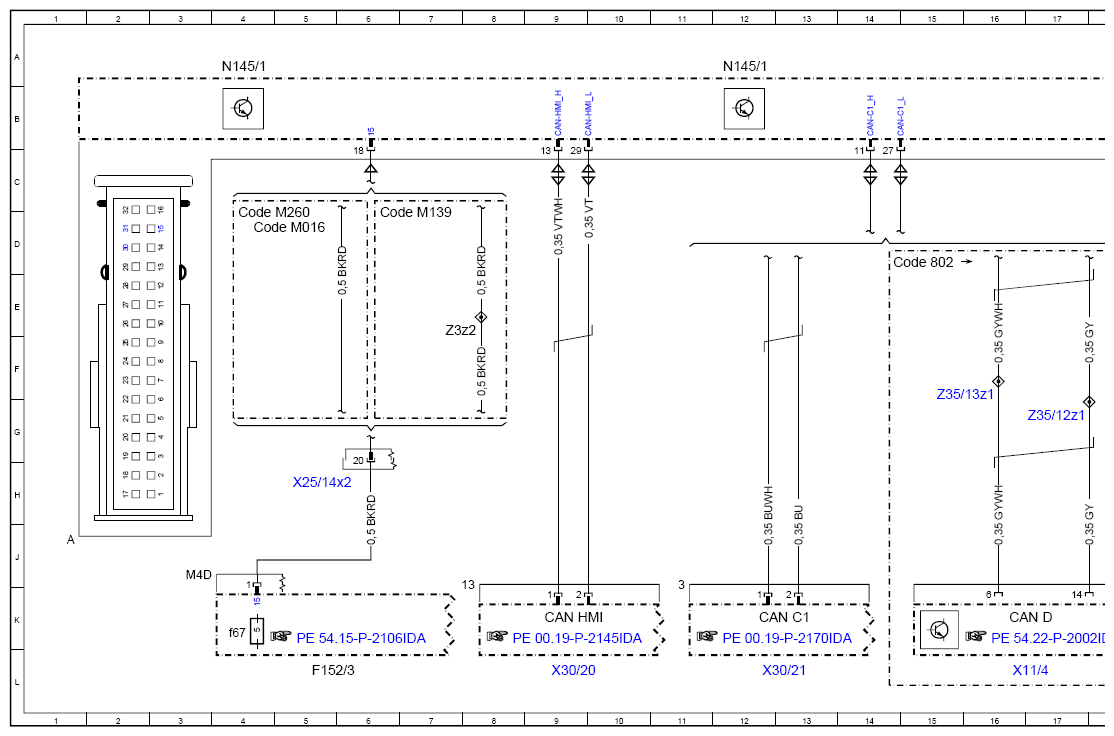

| N145/1 | Drive unit control unit | 4A |
| N145/1 | Drive unit control unit | 12A |

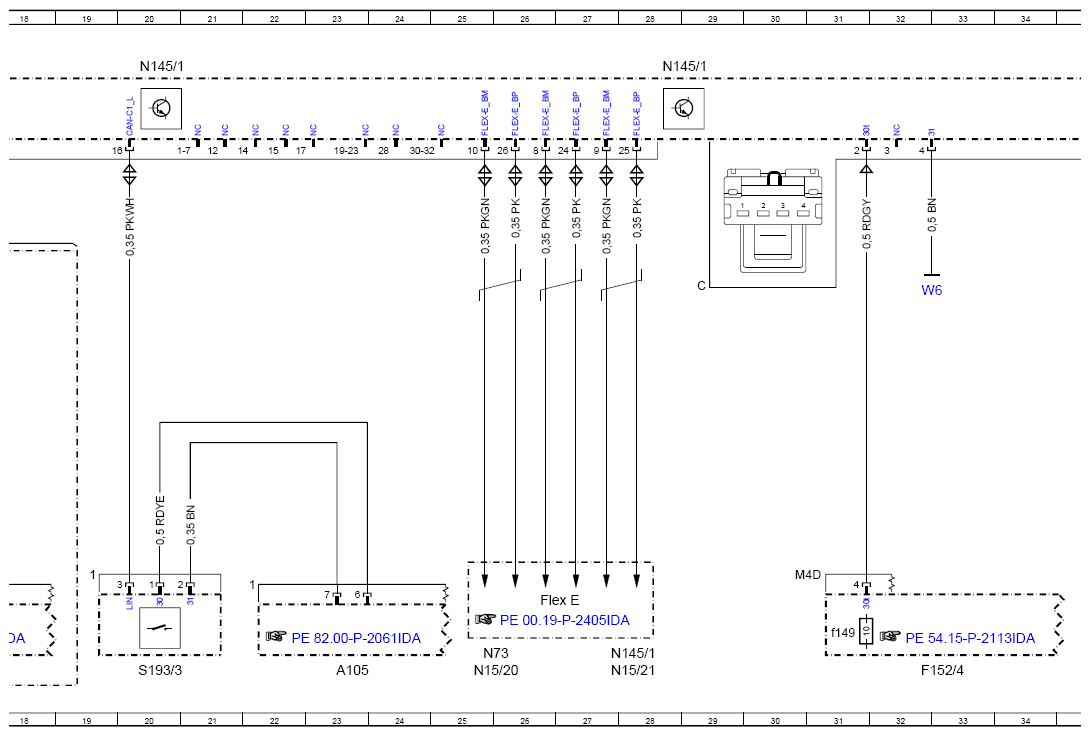

| N145/1 | Drive unit control unit | 20A |

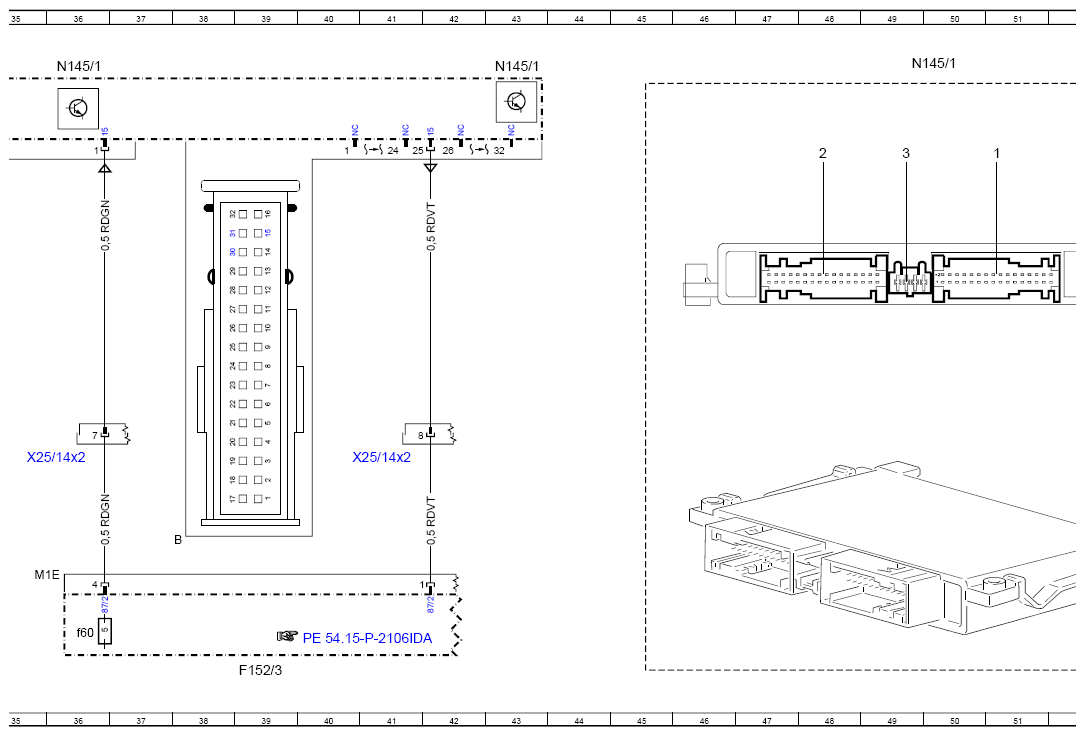

| N145/1 | Drive unit control unit | 36A |
| N145/1 | Drive unit control unit | 28A |
| N145/1 | Drive unit control unit | 28L |
| N145/1 | Drive unit control unit | 43A |
| N15/20 | Left rear axle differential control unit | 25L |
| N15/21 | Right rear axle differential control unit | 28L |
| N73 | Electronic ignition switch control unit | 25L |
| S193/3 | AMG button | 20L |
| W6 | Left wheel arch trunk ground point | 32E |
| X11/4 | Diagnostic connector | 16L |
| X25/14x2 | Right engine compartment/vehicle interior electrical connector | 5H |
| X25/14x2 | Right engine compartment/vehicle interior electrical connector | 36G |
| X25/14x2 | Right engine compartment/vehicle interior electrical connector | 41G |
| X30/20 | User interface CAN (CAN HMD potential distributor | 9L |
| X30/21 | Drive train CAN (CAN CD potential distributor | 12L |
| Z35/12z1 | Diagnostic CAN (CAN D) low connector sleeve | 17G |
| Z35/13z1 | Diagnostic CAN (CAN D) high connector sleeve | 16F |
| Z3z2 | Tml. 15 connector sleeve | 7E |
