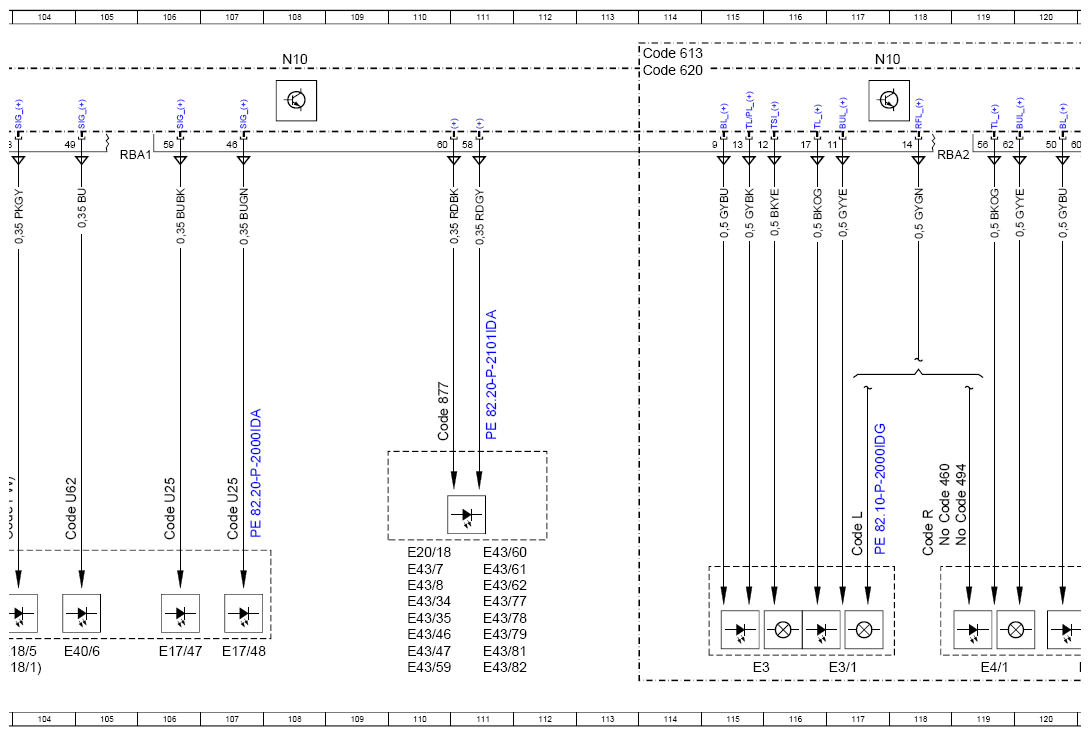

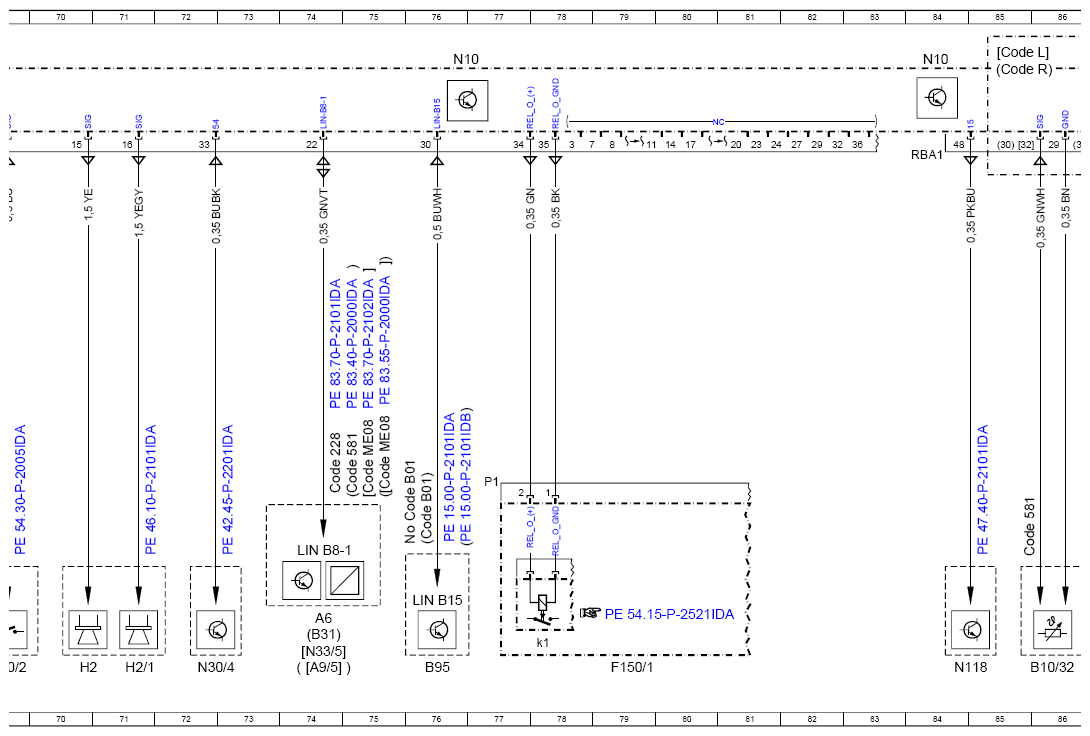

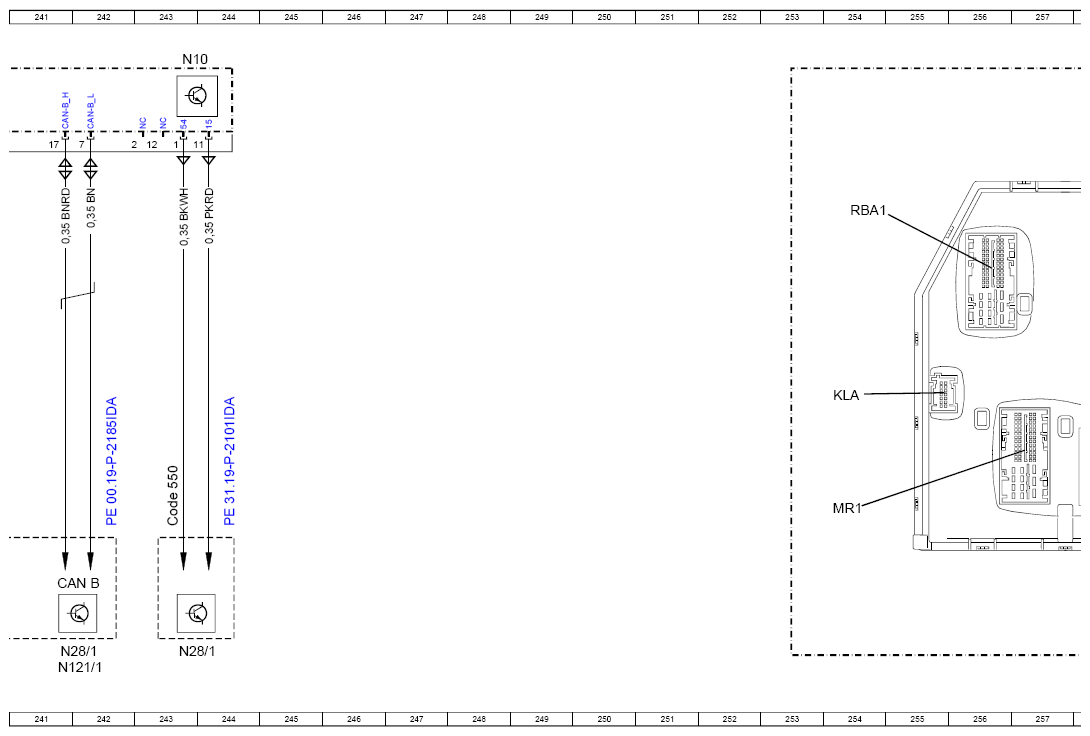

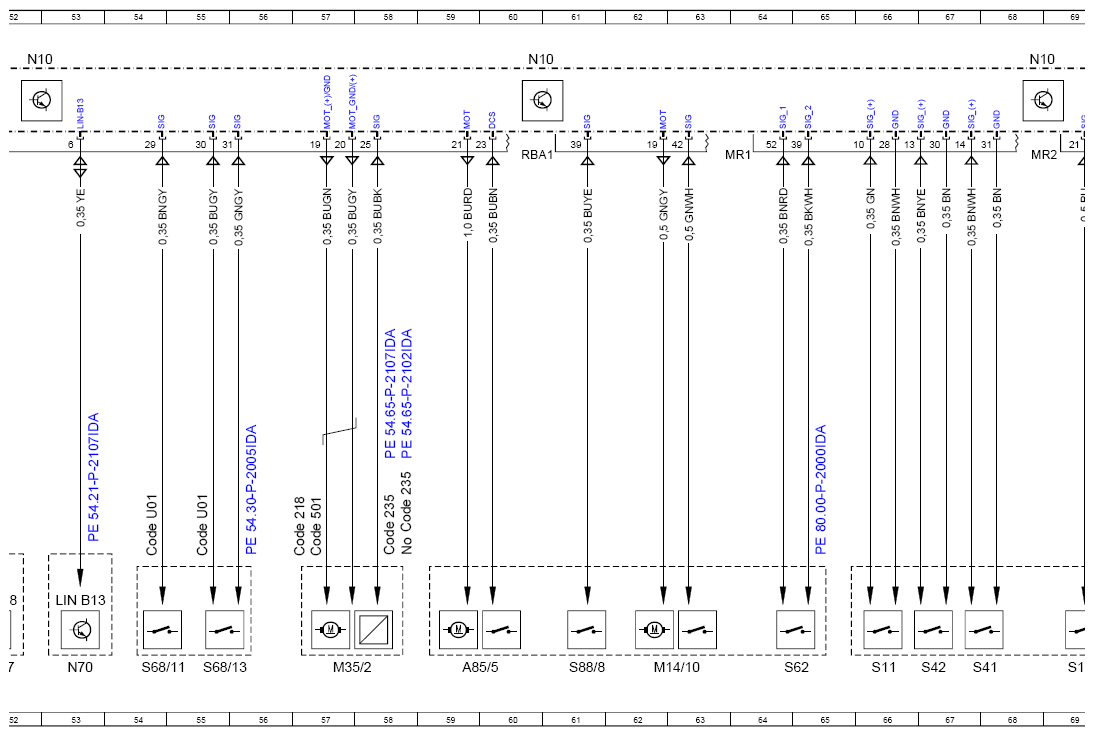

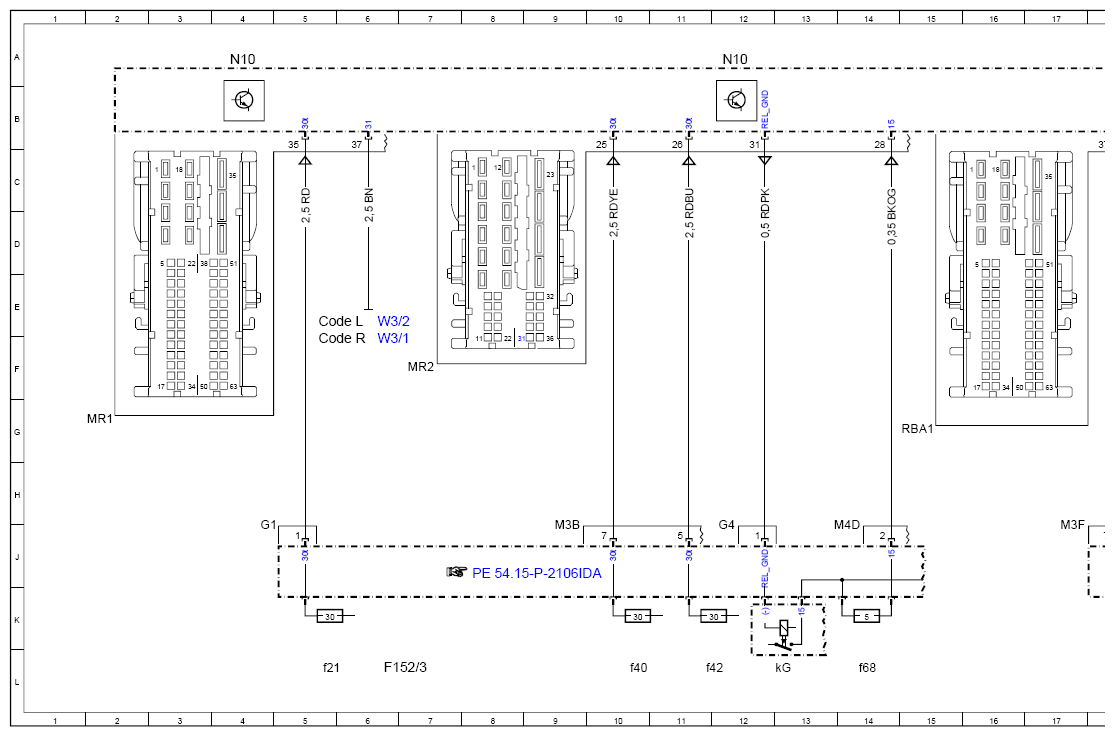

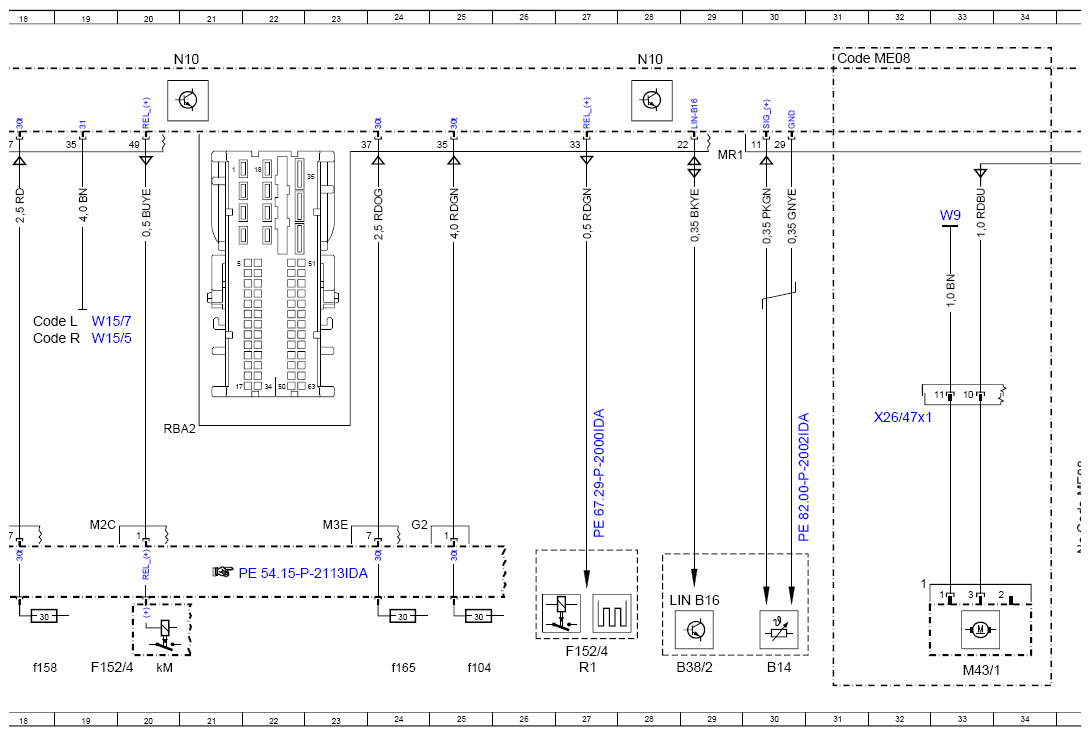

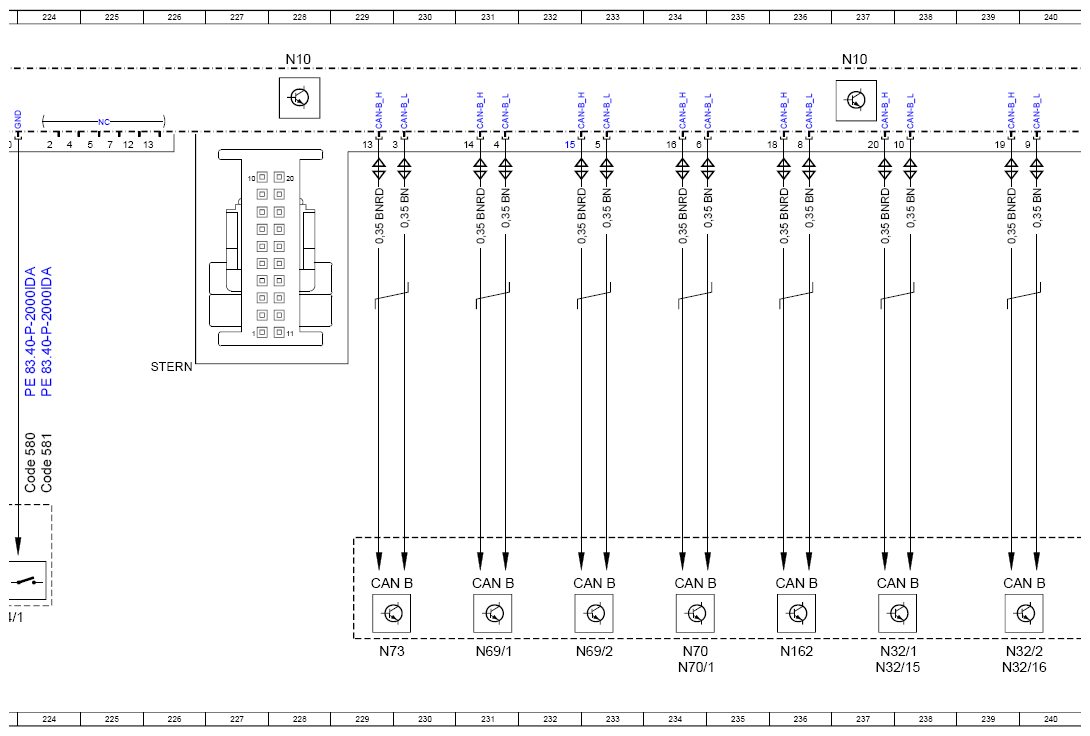

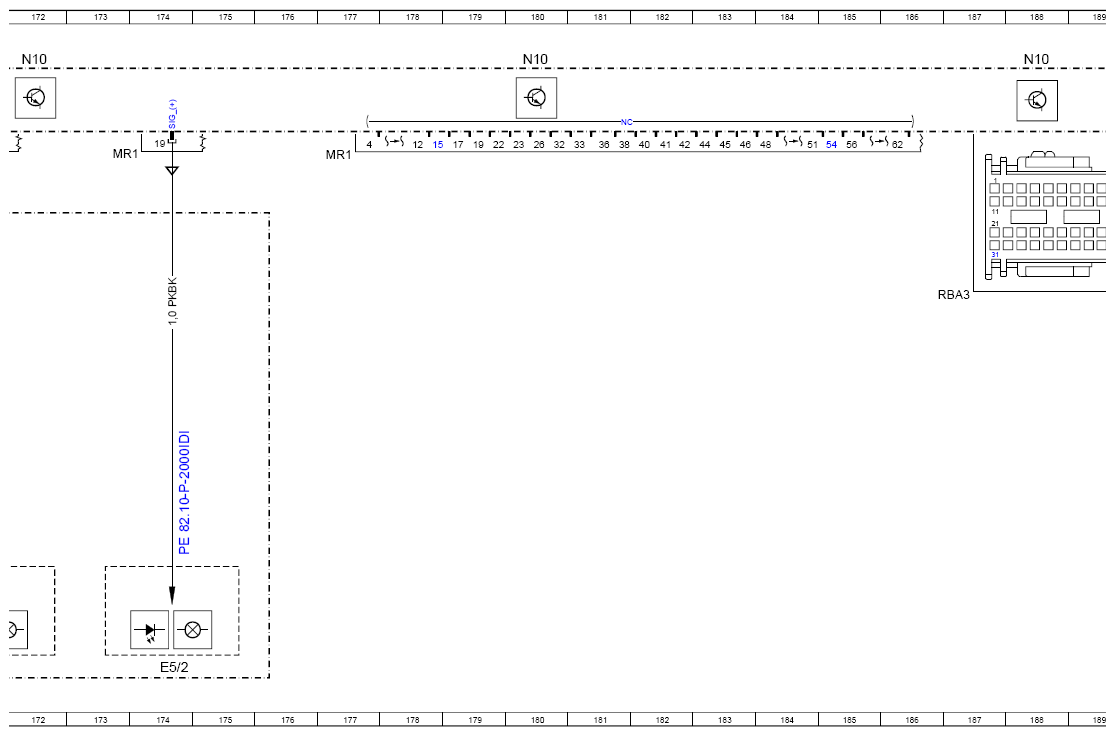

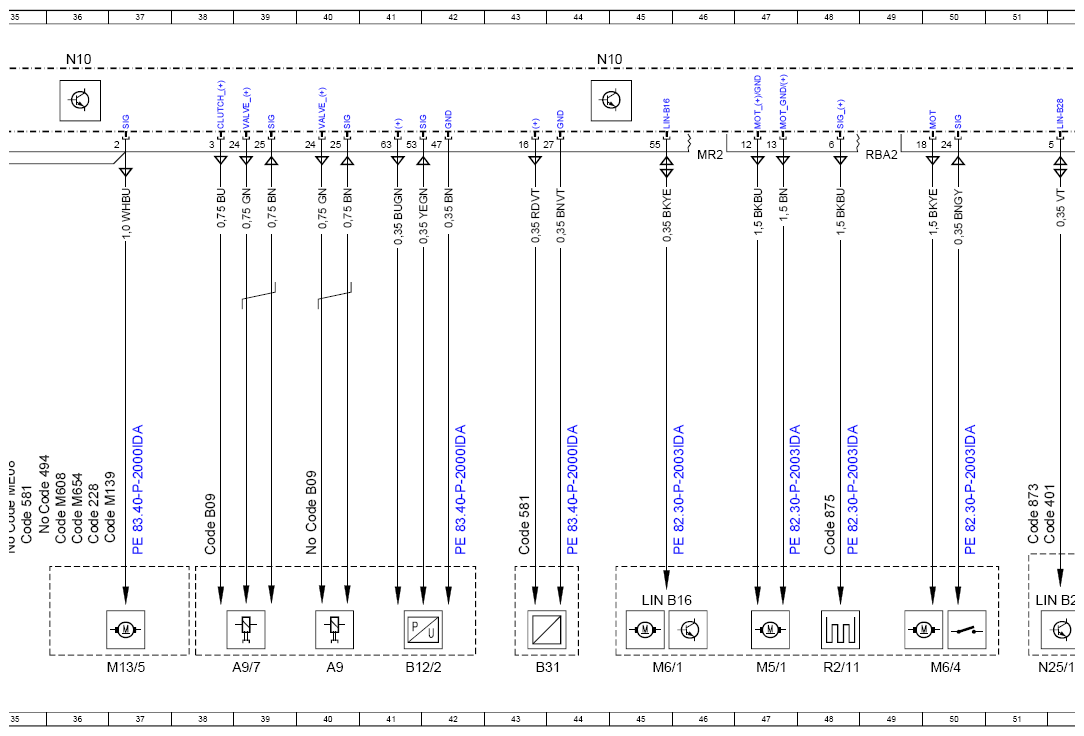

Wiring Diagram For Central Control Unit - PE54.21-P-2171-97IDA
Model 247
Control unit N10
| Code: | Designation: | Position: |
|---|---|---|

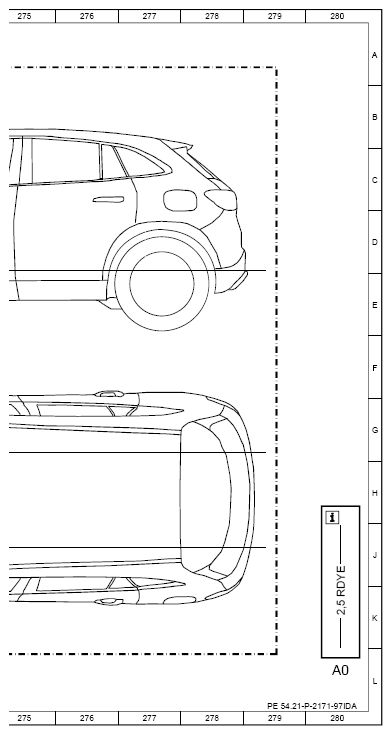

| A0 | Use of wiring diagrams | 280L |
| A32 | AC housing | 192L |
| A50/6 | Dedicated Short-Range Communications control unit | 88L |
| A6 | Stationary heater unit | 74K |
| A6/1 | Stationary heater radio remote control receiver | 194L |
| A85/5 | Trunk lid/1iftgate lock | 59L |
| A9 | Refrigerant compressor | 40L |
| A9/5 | Electric refrigerant compressor | 74L |
| A9/7 | Refrigerant compressor with magnetic clutch | 39L |

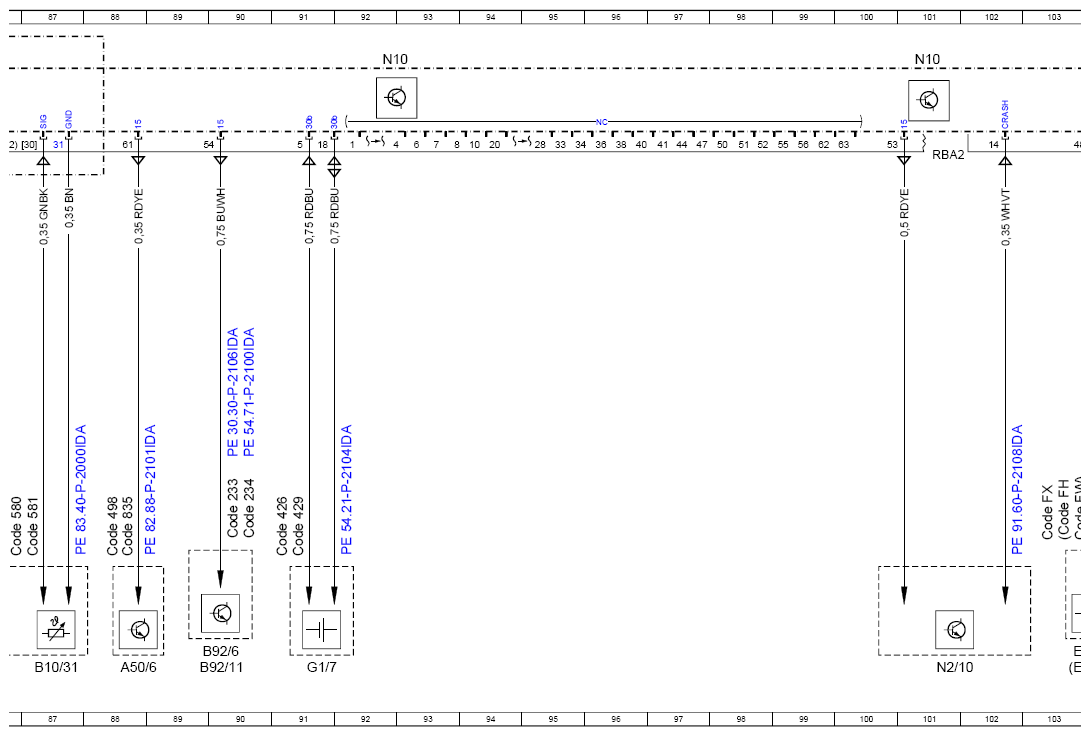

| B10/31 | Left side air vent air outlet temperature sensor | 87L |
| B10/32 | Right side air vent air outlet temperature sensor | 86L |

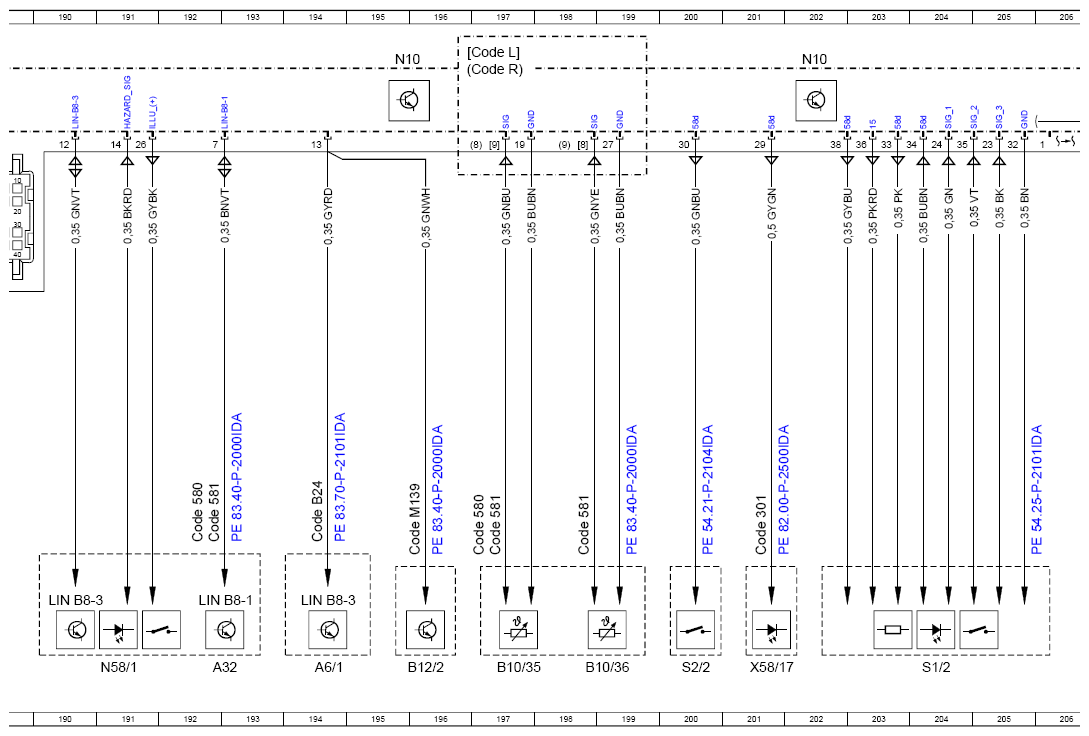

| B10/35 | Left footwell vent air outlet temperature sensor | 197L |
| B10/36 | Right footwell vent air outlet temperature sensor | 198L |
| B10/6 | Evaporator temperature sensor | 221K |
| B12/2 | Refrigerant pressure sensor | 41L |
| B12/2 | Refrigerant pressure sensor | 196L |
| B14 | Outside temperature sensor | 30L |
| B31 | Air quality sensor | 43L |
| B31 | Air quality sensor | 74K |
| B38/2 | Rain/light sensor with additional functions | 29L |
| B92/11 | Left outer rear integrated radar sensor | 89L |
| B92/6 | Right outer rear integrated radar sensor | 90L |
| B95 | Battery sensor | 76L |
| CAN B | Interior CAN | 229K |
| CAN B | Interior CAN | 231K |
| CAN B | Interior CAN | 241K |
| CAN B | Interior CAN | 239K |
| CAN B | Interior CAN | 237K |
| CAN B | Interior CAN | 234K |
| CAN B | Interior CAN | 233K |
| CAN B | Interior CAN | 236K |
| Code 218 | Backup camera | 57J |
| Code 228 | Stationary heater | 74H |
| Code 228 | Stationary heater | 36J |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 90J |
| Code 234 | Blind spot assist | 90J |
| Code 235 | Park-Pilot with PARKTRONIC | 58J |
| Code 235 | Park-Pilot with PARKTRONIC | 58J |
| Code 301 | Smoker"s package | 201J |
| Code 401 | Seat climate control for driver and front passenger | 52J |
| Code 426 | 8G-DCT | 91J |
| Code 429 | 7G-DCT | 91J |
| Code 460 | Canada version | 134B |
| Code 460 | Canada version | 134B |
| Code 460 | Canada version | 118H |
| Code 460 | Canada version | 123B |
| Code 460 | Canada version | 123B |
| Code 460 | Canada version | 123C |
| Code 460 | Canada version | 123D |
| Code 460 | Canada version | 157A |
| Code 460 | Canada version | 163A |
| Code 494 | USA version | 134B |
| Code 494 | USA version | 134A |
| Code 494 | USA version | 36H |
| Code 494 | USA version | 119H |
| Code 494 | USA version | 123A |
| Code 494 | USA version | 123B |
| Code 494 | USA version | 123C |
| Code 494 | USA version | 123C |
| Code 494 | USA version | 157B |
| Code 494 | USA version | 163B |
| Code 498 | Japan version | 88J |
| Code 501 | Surround View camera | 57J |
| Code 550 | Trailer hitch | 243J |
| Code 580 | Air conditioning | 224H |
| Code 580 | Air conditioning | 86J |
| Code 580 | Air conditioning | 192J |
| Code 580 | Air conditioning | 197J |
| Code 581 | Automatic air conditioning | 43J |
| Code 581 | Automatic air conditioning | 75H |
| Code 581 | Automatic air conditioning | 86J |
| Code 581 | Automatic air conditioning | 87J |
| Code 581 | Automatic air conditioning | 198J |
| Code 581 | Automatic air conditioning | 197J |
| Code 581 | Automatic air conditioning | 219L |
| Code 581 | Automatic air conditioning | 192J |
| Code 581 | Automatic air conditioning | 224H |
| Code 581 | Automatic air conditioning | 35J |
| Code 613 | Left-hand traffic headlamps | 114A |
| Code 613 | Left-hand traffic headlamps | 159A |
| Code 613 | Left-hand traffic headlamps | 165A |
| Code 620 | Right-hand traffic headlamps | 114A |
| Code 620 | Right-hand traffic headlamps | 159A |
| Code 620 | Right-hand traffic headlamps | 165A |
| Code 620 | Right-hand traffic headlamps | 157A |
| Code 620 | Right-hand traffic headlamps | 163A |
| Code 631 | Static LED headlamp, left-hand traffic | 122A |
| Code 632 | Static LED headlamp, right-hand traffic | 134A |
| Code 632 | Static LED headlamp, right-hand traffic | 122B |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 122C |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 134B |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 122C |
| Code 835 | Additional parts for South Korea vehicles | 88J |
| Code 873 | Seat heater for driver and front passenger | 51J |
| Code 875 | Heated windshield washer system | 48J |
| Code 877 | Ambiance illumination | 110G |
| Code 877 | Ambiance illumination | 216H |
| Code 877 | Ambiance illumination | 213H |
| Code 877 | Ambiance illumination | 212H |
| Code B01 | 48V technology | 76J |
| Code B01 | 48V technology | 76H |
| Code B09 | Refrigerant compressor with magnetic clutch | 40J |
| Code B09 | Refrigerant compressor with magnetic clutch | 38J |
| Code B24 | Remote control for stationary heater | 194J |
| Code FH | HATCHBACK | 138J |
| Code FH | HATCHBACK | 143J |
| Code FH | HATCHBACK | 170D |
| Code FH | HATCHBACK | 103J |
| Code FW | SEDAN | 103J |
| Code FX | Special version | 170E |
| Code FX | Special version | 103J |
| Code L | LEFT-HAND DRIVE | 5E |
| Code L | LEFT-HAND DRIVE | 18E |
| Code L | LEFT-HAND DRIVE | 117J |
| Code L | LEFT-HAND DRIVE | 128J |
| Code L | LEFT-HAND DRIVE | 85A |
| Code L | LEFT-HAND DRIVE | 196A |
| Code L | LEFT-HAND DRIVE | 269G |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 196J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 37J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE 0M608 | 36J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE 0M608 | 222H |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 222H |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 36J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 75H |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 75H |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 35J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 31A |
| Code R | RIGHT-HAND DRIVE | 5F |
| Code R | RIGHT-HAND DRIVE | 18F |
| Code R | RIGHT-HAND DRIVE | 130J |
| Code R | RIGHT-HAND DRIVE | 85A |
| Code R | RIGHT-HAND DRIVE | 196A |
| Code R | RIGHT-HAND DRIVE | 269J |
| Code R | RIGHT-HAND DRIVE | 118J |
| Code U01 | Rear seat belt status indicator in instrument cluster | 55J |
| Code U01 | Rear seat belt status indicator in instrument cluster | 54J |
| Code U25 | Illuminated door sills | 106J |
| Code U25 | illuminated door sills | 107J |
| Code U37 | Front fog lamp | 170D |
| Code U37 | Front fog lamp | 170E |
| Code U62 | Light and vision package | 215J |
| Code U62 | Light and vision package | 104 J |
| Code U62 | Light and vision package | 213J |
| Code U62 | Light and vision package | 213J |
| Code U62 | Light and vision package | 212J |
| Code U62 | Light and vision package | 210J |
| Code U63 | Driving school package | 214J |
| Code U63 | Driving school package | 211J |

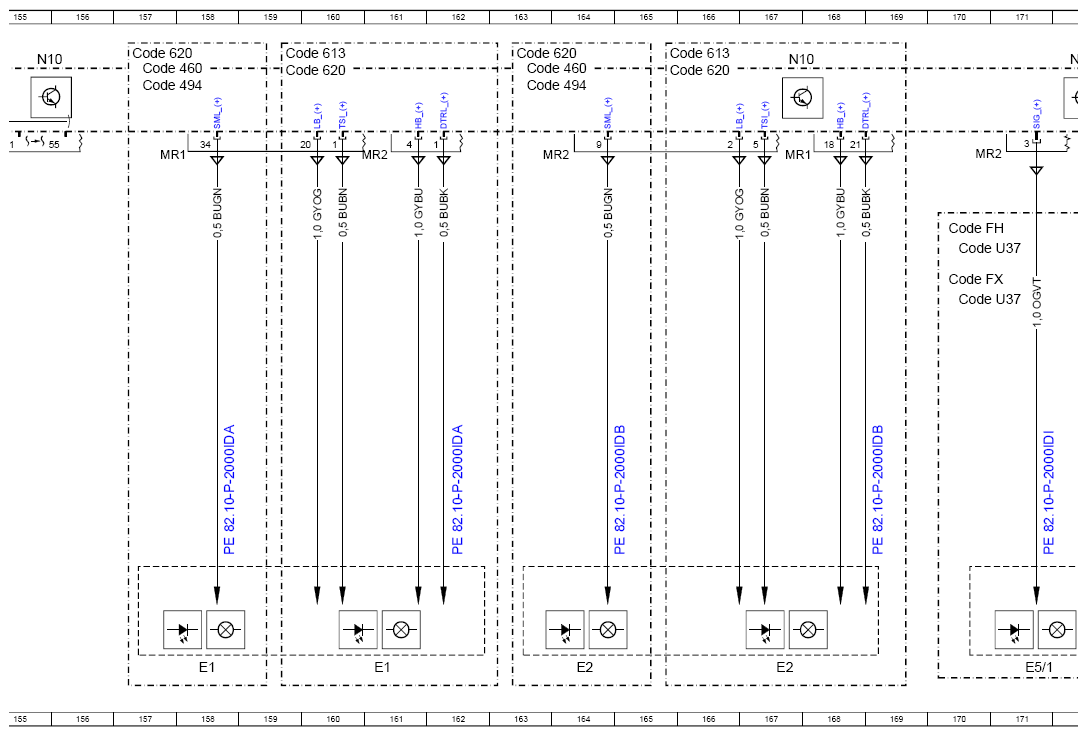

| E1 | Left front lamp unit | 161L |
| E1 | Left front lamp unit | 158L |

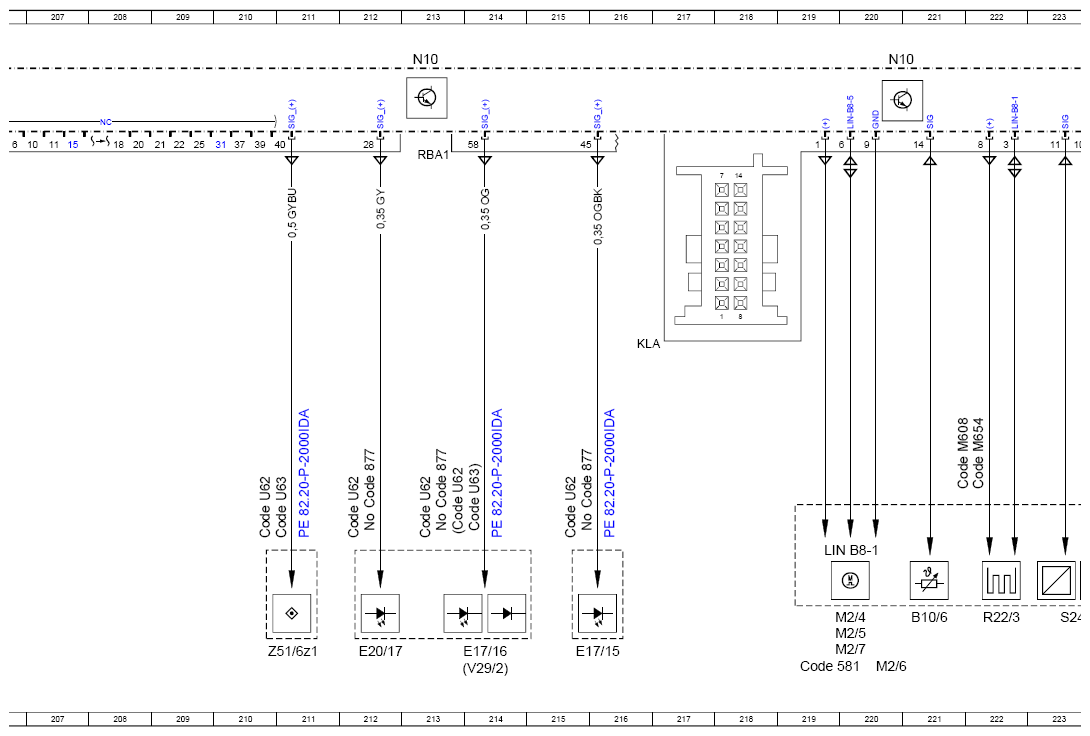

| E17/15 | Right front footwell lamp | 215L |
| E17/16 | Left front footwell lamp | 214L |
| E17/47 | Left front illuminated door sill molding | 106L |
| E17/48 | Right front illuminated door sill molding | 107L |
| E18/1 | Trunk/load compartment lamp | 103L |
| E18/5 | Left load compartment lamp | 103L |
| E19/1 | Left license plate lamp | 146L |
| E19/2 | Right license plate lamp | 148L |
| E2 | Right front lamp unit | 167L |
| E2 | Right front lamp unit | 164L |
| E20/17 | Center console cup holder illumination | 212L |
| E20/18 | Center console cup holder ambiance illumination | 110J |

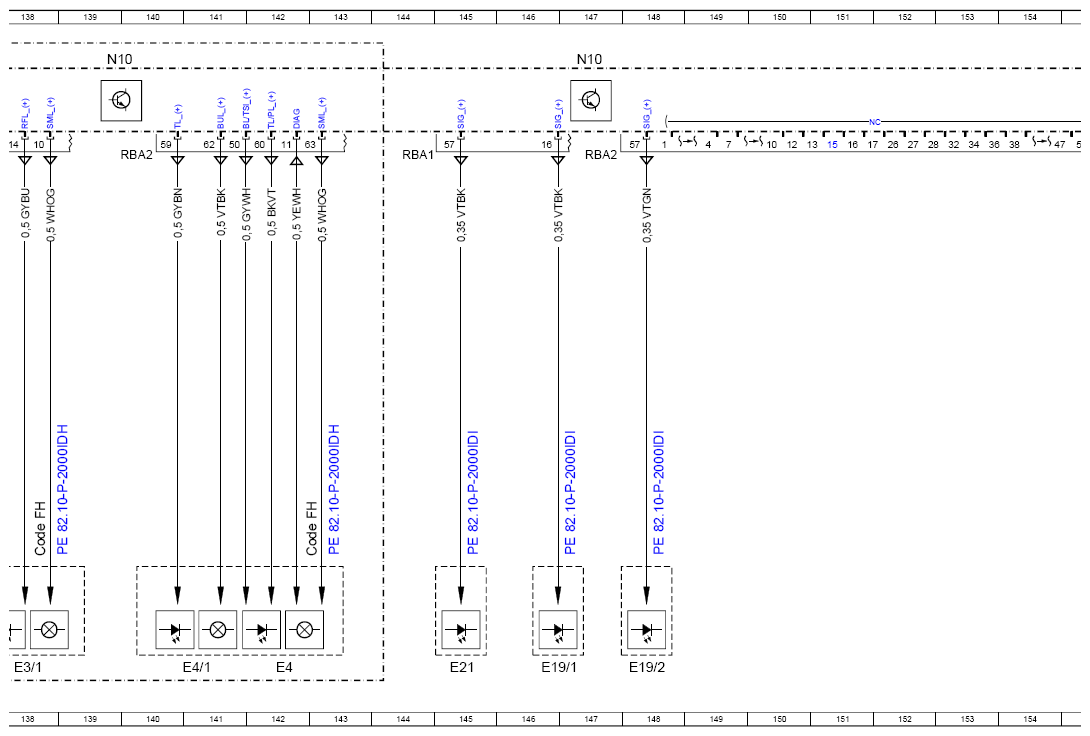

| E21 | Center stop lamp | 145L |

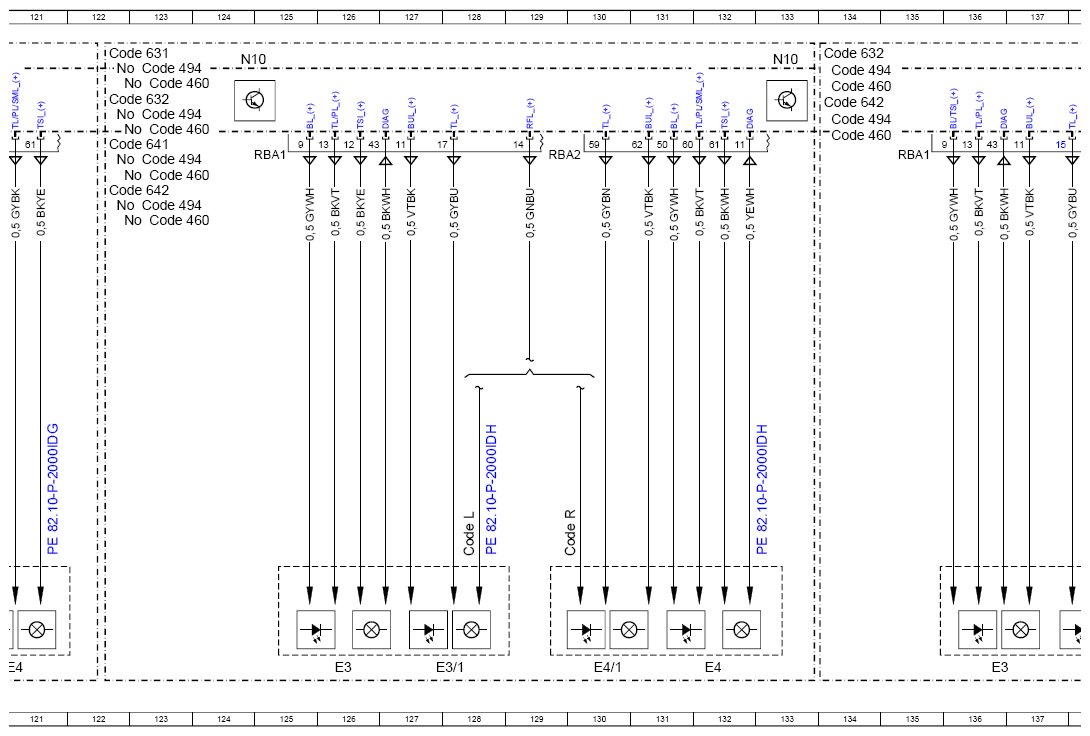

| E3 | Left rear lamp unit | 115L |
| E3 | Left rear lamp unit | 126L |
| E3 | Left rear lamp unit | 136L |
| E3/1 | Inner left rear lamp unit | 117L |
| E3/1 | Inner left rear lamp unit | 127L |
| E3/1 | Inner left rear lamp unit | 138L |
| E4 | Right rear lamp unit | 132L |
| E4 | Right rear lamp unit | 121L |
| E4 | Right rear lamp unit | 142L |
| E4/1 | Inner right rear lamp unit | 119L |
| E4/1 | Inner right rear lamp unit | 130L |
| E4/1 | Inner right rear lamp unit | 141L |
| E40/6 | Liftgate ambient lamp and warning lamp | 104L |
| E43/34 | Left rear footwell ambiance illumination | 110K |
| E43/35 | Right rear footwell ambiance illumination | 110K |
| E43/46 | Left center console ambiance illumination | 110K |
| E43/47 | Right center console ambiance illumination | 110L |
| E43/59 | Driver side air vent ambiance illumination | 110L |
| E43/60 | Front passenger side air vent ambiance illumination | 111J |
| E43/61 | Left center air vent ambiance illumination | 111J |
| E43/62 | Right center air vent ambiance illumination | 111K |
| E43/7 | Upper driver-side instrument panel ambiance illumination | 110J |
| E43/77 | Center air vent ambiance illumination | 111K |
| E43/78 | Lower driver-side instrument panel ambiance illumination | 111K |
| E43/79 | Lower passenger-side instrument panel ambiance illumination | 111K |
| E43/8 | Upper passenger-side instrument panel ambiance illumination | 110K |
| E43/81 | Left front footwell ambiance illumination | 111L |
| E43/82 | Right front footwell ambiance illumination | 111L |
| E5/1 | Left fog lamp | 171L |
| E5/2 | Right fog lamp | 174L |
| F150/1 | Starter battery pre-fuse box | 79L |
| F152/3 | Engine compartment fuse and relay module | 6L |
| F152/3f21 | Fuse 21 | 5L |
| F152/3f40 | Fuse 40 | 10L |
| F152/3f42 | Fuse 42 | 11L |
| F152/3f68 | Fuse 68 | 14L |
| F152/3kG | Engine compartment terminal 15 relay | 13L |
| F152/4 | Vehicle interior fuse and relay module | 19L |
| F152/4 | Vehicle interior fuse and relay module | 27L |
| F152/4f104 | Fuse 104 | 25L |
| F152/4f158 | Fuse 158 | 18L |
| F152/4f165 | Electrical fuse 165 | 24L |
| F152/4kM | Vehicle interior circuit 15R relay | 20L |
| G1/7 | Additional battery | 91L |
| H2 | Left fanfare horn | 70L |
| H2/1 | Right fanfare horn | 71L |
| LIN B13 | Roof LIN | 53K |
| LIN B15 | Battery sensor LIN | 76K |
| LIN B16 | Rain and light sensor LIN | 29K |
| LIN B16 | Rain and light sensor LIN | 45K |
| LIN B28 | Heater LIN | 51K |
| LIN B8-1 | Front air conditioning control LIN | 74J |
| LIN B8-1 | Front air conditioning control LIN | 192K |
| LIN B8-1 | Front air conditioning control LIN | 219J |
| LIN B8-3 | AC operation LIN | 190K |
| LIN B8-3 | AC operation LIN | 194K |
| M13/5 | Coolant circulation pump | 37L |
| Ml 4/10 | Tank cap central locking actuator | 62L |
| M2/4 | Central air distribution actuator motor | 220K |
| M2/5 | Fresh air/air recirculation flap actuator motor | 220K |
| M2/6 | Left blending air flap actuator | 220L |
| M2/7 | Right blending air flap actuator | 220L |
| M35/2 | Rear camera cover motor | 57L |
| 43/1 | Low temperature coolant pump | 33L |
| M5/1 | Windshield washer system pump | 47L |
| M6/1 | Wiper motor | 45L |
| M6/4 | Tail gate wiper motor | 50L |

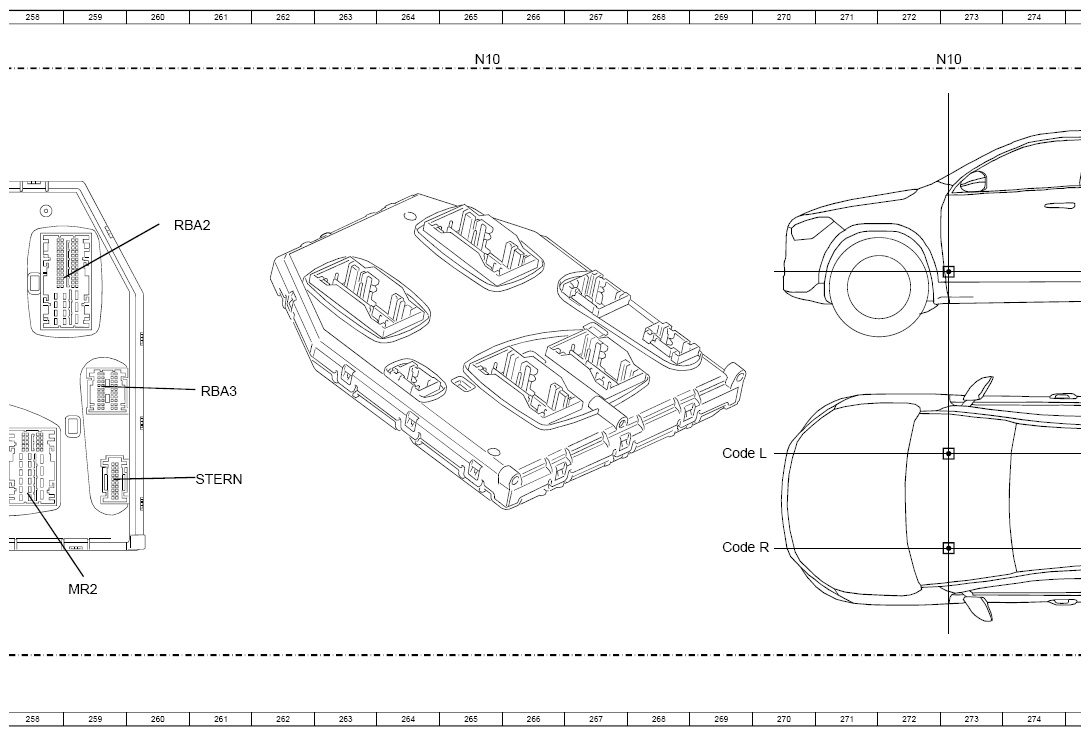

| N10 | Central control module | 4A |
| N10 | Central control module | 12A |
| N10 | Central control module | 21A |
| N10 | Central control module | 28A |
| N10 | Central control module | 60A |
| N10 | Central control module | 68A |
| N10 | Central control module | 76A |
| N10 | Central control module | 84A |
| N10 | Central control module | 92A |
| N10 | Central control module | 101A |
| N10 | Central control module | 172A |
| N10 | Central control module | 180A |
| N10 | Central control module | 228A |
| N10 | Central control module | 124A |
| N10 | Central control module | 147A |
| N10 | Central control module | 155A |
| N10 | Central control module | 195A |
| N10 | Central control module | 202A |
| N10 | Central control module | 213A |
| N10 | Central control module | 220A |
| N10 | Central control module | 265A |
| N10 | Central control module | 273A |
| N10 | Central control module | 167A |
| N10 | Central control module | 237A |
| N10 | Central control module | 243A |
| N10 | Central control module | 52A |
| N10 | Central control module | 108A |
| N10 | Central control module | 36A |
| N10 | Central control module | 44A |
| N10 | Central control module | 133A |
| N10 | Central control module | 117A |
| N10 | Central control module | 139A |
| N10 | Central control module | 188A |
| N118 | Fuel pump control unit | 84L |
| N121/1 | Trunk lid/liftgate control unit | 241L |
| N162 | Ambiance illumination control unit | 236L |
| N2/10 | Supplemental restraint system control unit | 101L |
| N25/17 | Front seat heater/seat ventilation control unit | 52L |
| N28/1 | Trailer recognition control unit | 241L |
| N28/1 | Trailer recognition control unit | 243L |
| N30/4 | Electronic Stability Program control unit | 72L |
| N32/1 | Driver seat control unit | 237L |
| N32/15 | Driver multicontour seat control unit | 237L |
| N32/16 | Front passenger multicontour seat control unit | 239L |
| N32/2 | Front passenger seat control unit | 239L |
| N33/5 | High-voltage PTC heater | 74L |
| N58/1 | Climate control operating unit | 191L |
| N69/1 | Driver door control unit | 231L |
| N69/2 | Front passenger door control unit | 233L |
| N70 | Overhead control panel control unit | 53L |
| N70 | Overhead control panel control unit | 234L |
| N70/1 | Panoramic sliding roof control unit | 234L |
| N73 | Electronic ignition switch control unit | 229L |
| R1 | Rear window heater | 27L |
| R2/11 | Spray nozzle hose heater | 48L |
| R22/3 | PTC heater booster | 222K |
| S1/2 | Exterior lights and electric parking brake switch group | 204L |
| S10/2 | Right front brake wear sensor | 69L |
| S11 | Brake fluid level switch | 66L |
| S2/2 | Start/stop button with ECO start/stop function button | 200L |
| S24/1 | Central air distribution position detection microswitch | 223K |
| S41 | Coolant level switch | 67L |
| S42 | Windshield washer fluid level indicator switch | 67L |
| S62 | Center engine hood contact switch | 64L |
| S68/11 | Left rear seat belt buckle switch | 54L |
| S68/13 | Center and right rear passenger compartment seat belt buckles | 55L |
| S88/8 | Trunk lid/liftgate external operation button | 61L |
| V29/2 | Footwell illumination diode 2 | 214L |
| W15/5 | Left front footwell ground point | 19F |
| W15/7 | Right front footwell ground point | 19E |
| W3/1 | Ground point (right front wheel well) | 6F |
| W3/2 | Left front wheel arch ground point | 6E |
| W9 | Left front ground point | 33D |
| X26/47x1 | Engine wiring harness/engine compartment electrical connector | 32G |
| X58/17 | Front vehicle interior power outlet | 201L |
| Z51/6z1 | Circuit 58d connector sleeve | 211L |
