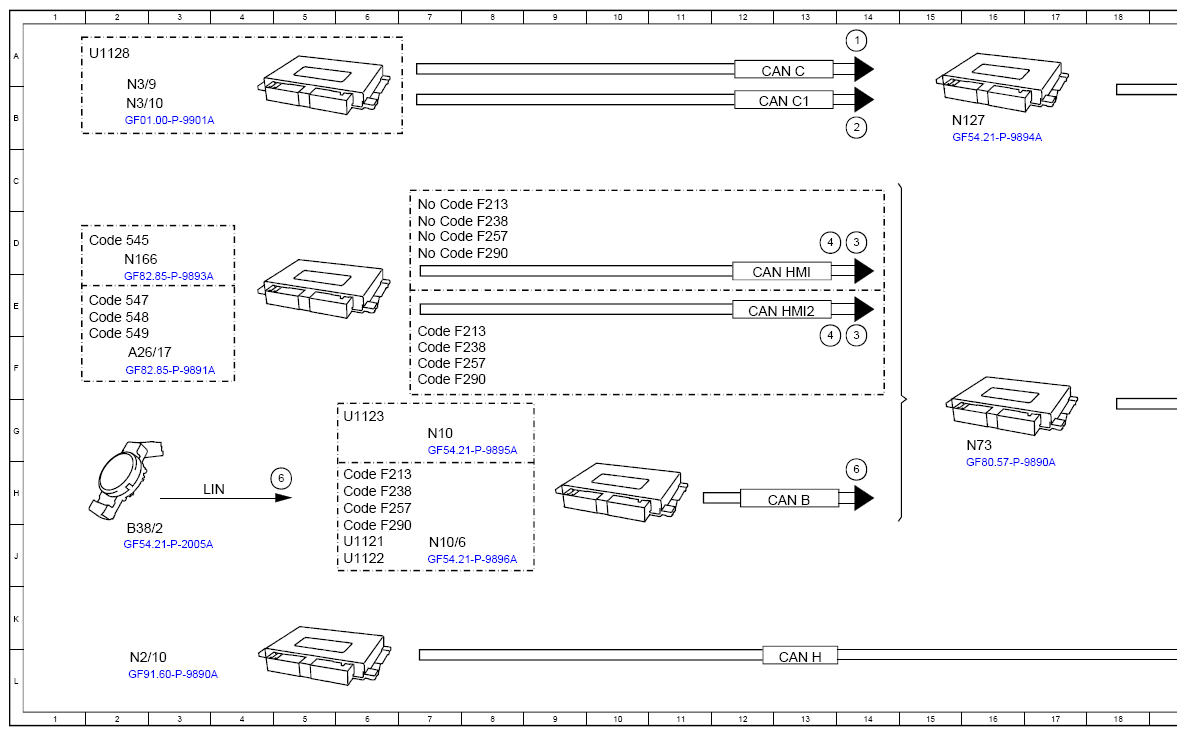

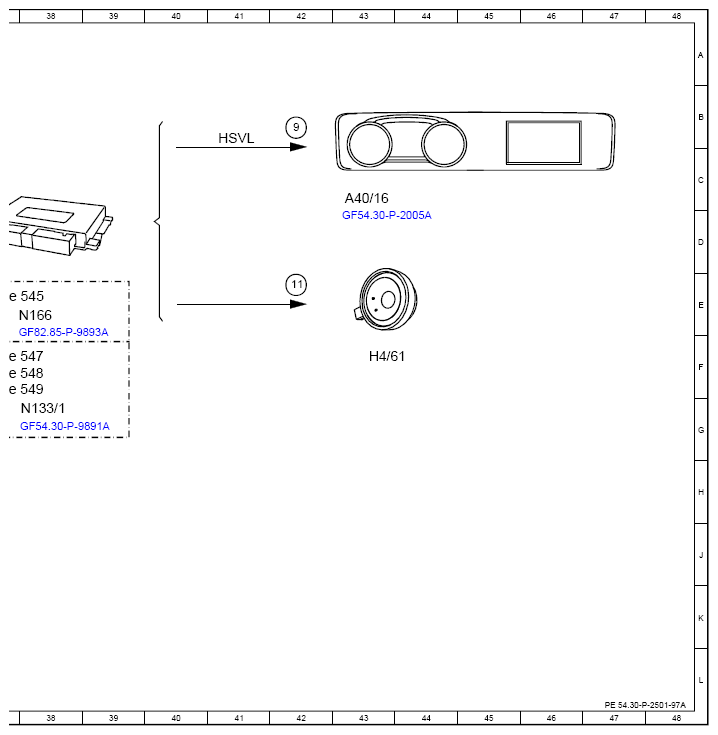

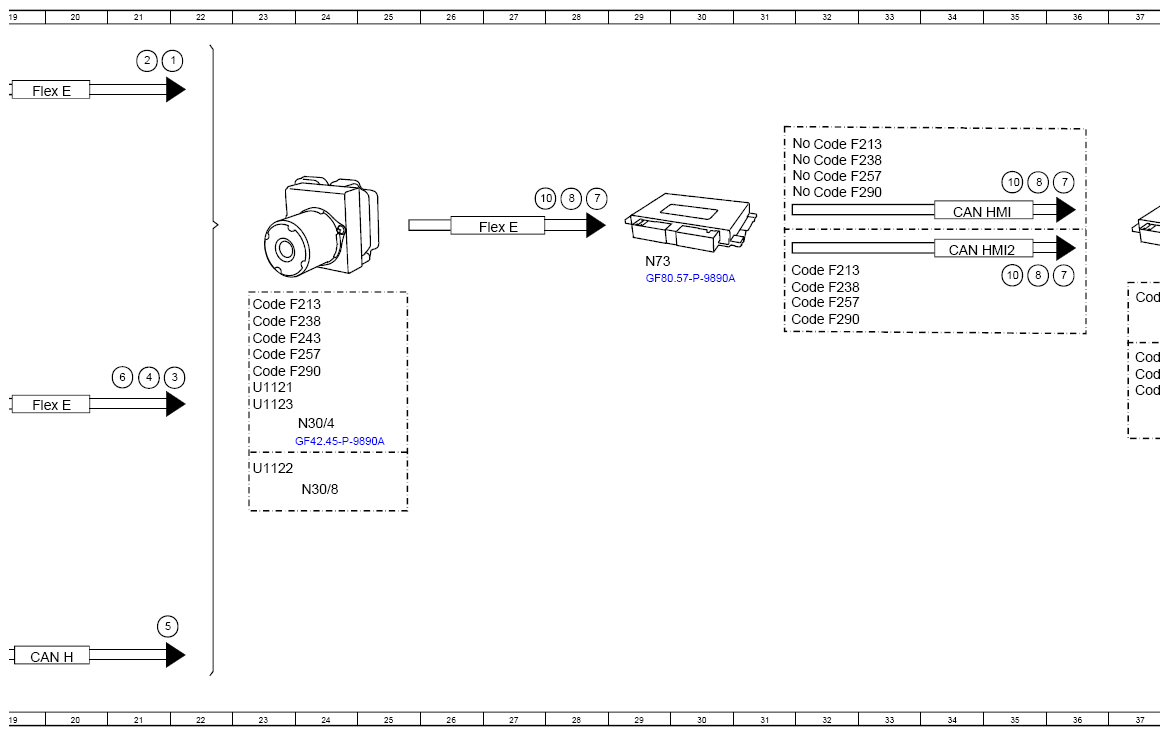

Monitor Attention, Function Schematic - PE54.30-P-2501-97A
Model 118, 167, 177, 243, 247, 293
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation | Position |
|---|---|---|
| 1 | Engine running, signal | 14A |
| 1 | Engine running, signal | 21A |
| 10 | Warning tone, request | 28D |
| 10 | Warning tone, request | 35C |
| 10 | Warning tone, request | 35E |
| 11 | Speaker, actuation | 42E |
| 2 | Drivetrain operational, signal | 14B |
| 2 | Drivetrain operational, signal | 21A |
| 3 | ATTENTION ASSIST, status | 14D |
| 3 | ATTENTION ASSIST, status | 21F |
| 3 | ATTENTION ASSIST, status | 14E |
| 4 | Time, signal | 20F |
| 4 | Time, signal | 13D |
| 4 | Time, signal | 13F |
| 5 | Speed, turn rate and lateral acceleration, signal | 21K |
| 6 | Light sensor, status | 14H |
| 6 | Light sensor, status | 20F |
| 6 | Light sensor, status | 5H |
| 7 | Instrument cluster message, request | 36C |
| 7 | Instrument cluster message, request | 38C |
| 7 | Instrument cluster message, request | 36D |
| 8 | Warning message issue, request | 28D |
| 8 | Warning message issue, request | 35C |
| 8 | Warning message issue, request | 35E |
| 9 | Image data, signal | 42B |
| A26/17 | Head unit | 2F |
| A40/16 | Head unit/instrument cluster display cluster | 43C |
| B38/2 | Rain/light sensor with additional functions | 2J |
| CAN B | Interior CAN | 13H |
| CAN C | Engine CAN | 13A |
| CAN C1 | Drive train CAN | 12B |
| CAN H | Vehicle dynamics CAN | 13L |
| CAN H | Vehicle dynamics CAN | 19L |
| CAN HMI | User interface CAN | 12E |
| CAN HMI | User interface CAN | 34D |
| CAN HMI2 | User interface CAN 2 | 12E |
| CAN HMI2 | User interface CAN 2 | 34D |
| Code 545 | Connect 5 (NTG6) | 2D |
| Code 545 | Connect 5 (NTG6) | 37E |
| Code 547 | Connect 20 Entry (NTG6) | 2E |
| Code 547 | Connect 20 Entry (NTG6) | 37F |
| Code 548 | Connect 20 MID (NTG6) | 2E |
| Code 548 | Connect 20 MID (NTG6) | 37F |
| Code 549 | Connect 20 HIGH (NTG6) | 2F |
| Code 549 | Connect 20 HIGH (NTG6) | 37F |
| Code F213 | Model series 213 | 6H |
| Code F213 | Model series 213 | 23E |
| Code F213 | Model series 213 | 7C |
| Code F213 | Model series 213 | 7E |
| Code F213 | Model series 213 | 32B |
| Code F213 | Model series 213 | 31E |
| Code F238 | Model series 238 | 6H |
| Code F238 | Model series 238 | 23E |
| Code F238 | Model series 238 | 7D |
| Code F238 | Model series 238 | 7F |
| Code F238 | Model series 238 | 32C |
| Code F238 | Model series 238 | 31E |
| Code F243 | MODEL SERIES 243 | 23F |
| Code F257 | MODEL SERIES 257 | 6H |
| Code F257 | MODEL SERIES 257 | 23F |
| Code F257 | MODEL SERIES 257 | 7D |
| Code F257 | MODEL SERIES 257 | 7F |
| Code F257 | MODEL SERIES 257 | 32C |
| Code F257 | MODEL SERIES 257 | 31E |
| Code F290 | Model series 290 | 6J |
| Code F290 | Model series 290 | 23F |
| Code F290 | Model series 290 | 7D |
| Code F290 | Model series 290 | 7F |
| Code F290 | Model series 290 | 32C |
| Code F290 | Model series 290 | 31E |
| Flex E | Chassis FlexRay | 27D |
| Flex E | Chassis FlexRay | 19G |
| Flex E | Chassis FlexRay | 19B |
| H4/61 | Instrument cluster speaker | 43F |
| HSVL | High-speed video link | 41B |
| LIN | Local Interconnect Network | 3H |
| N10 | Signal acquisition and actuation module | 7G |
| N10/6 | Front SAM control unit | 7J |
| N127 | Drivetrain control unit | 15B |
| N133/1 | Instrument cluster control unit | 38G |
| N166 | Head unit/instrument cluster control unit | 2D |
| N166 | Head unit/instrument cluster control unit | 38E |
| N2/10 | Supplemental restraint system control unit | 2L |
| N3/10 | ME-SFI [ME] control unit | 2B |
| N3/9 | CDI control unit | 2B |
| N30/4 | Electronic Stability Program control unit | 24G |
| N30/8 | Regenerative braking system control unit | 24H |
| N73 | Electronic ignition switch control unit | 16G |
| N73 | Electronic ignition switch control unit | 29D |
| U1121 | Valid for model 167 | 23F |
| U1121 | Valid for model 167 | 6J |
| U1122 | Valid for model 293 | 23H |
| U1122 | Valid for model 293 | 6J |
| U1123 | Valid for model 118, 177, 247 | 6G |
| U1123 | Valid for model 118, 177, 247 | 23G |
| U1128 | Valid for combustion engine | 2A |
