Remove/Install Brake Fluid Reservoir - AR42.10-P-0308MFA
Model 118, 177, 243, 247
| Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. | Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. | AS42.50-Z-0002-01A | |
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Topical note | Notes on repairs to brake system | AH42.00-P-0003-01A | |
| Topical note | Brake fluid notes | AH42.50-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove master brake cylinder (2). | Model 118, 177, 247 | AR42.10-P-0300MFA |
| Model 243 | AR42.10-P-0300EQA | ||

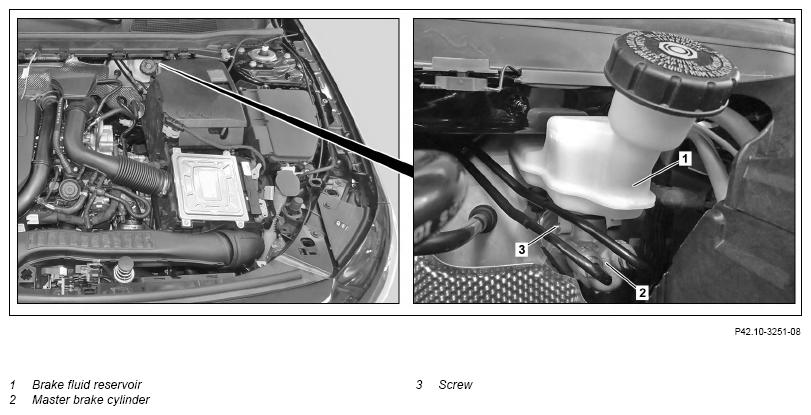

| 2 | Remove screw (3) from brake fluid reservoir (1). | *BA42.10-P-1002-05G | |
| 3 | Remove brake fluid reservoir (1) from master brake cylinder (2) and seal connections with suitable stop plugs. | Otherwise, the paint will be damaged. |
|
| Fig 2 | |||
| 4 | Install in the reverse order. |
MASTER BRAKE CYLINDER
| Number | Designation | Model 118 | Model 177 | |
|---|---|---|---|---|
| BA42.10-P-1002-05G | Screw/bolt, reservoir to master brake cylinder | Nm | 8 | 8 |
MASTER BRAKE CYLINDER
| Number | Designation | Model 243 | Model 247 | |
|---|---|---|---|---|
| BA42.10-P-1002-05G | Screw/bolt, reservoir to master brake cylinder | Nm | 8 | 8 |
