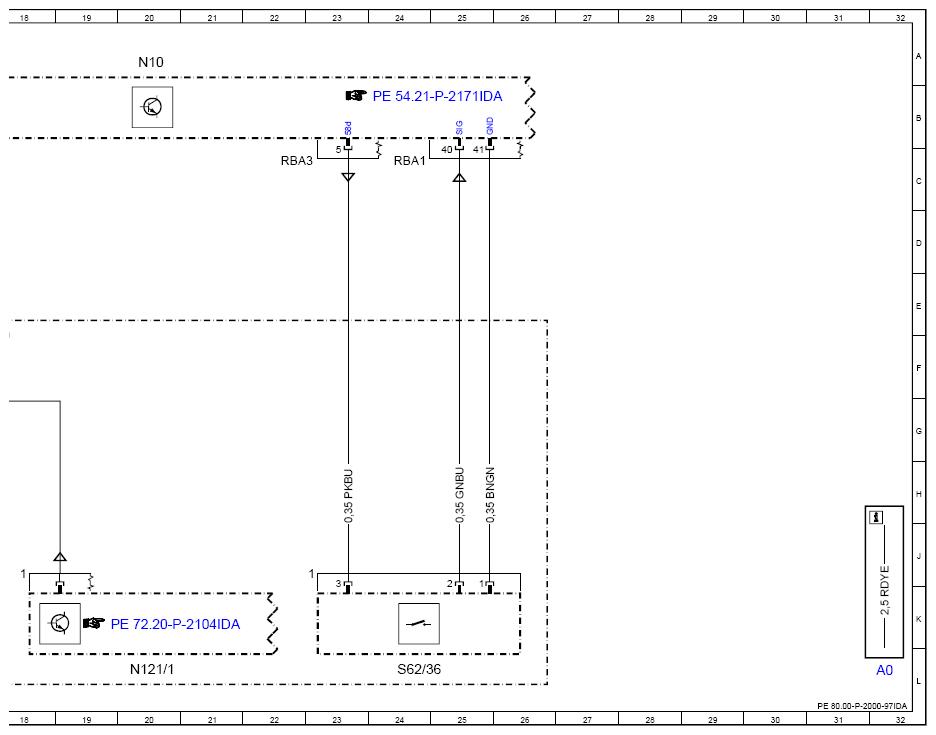

Wiring Diagram For Locking System - PE80.00-P-2000-97IDA
Model 247 Tailgate/fuel filler cap/hood
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A85/5 | Trunk lid/1iftgate lock | 15L |
| Code 890 | EASY-PACK liftgate | 17F |
| M14/10 | Tank cap central locking actuator | 7L |
| N10 | Central control module | 4A |
| N10 | Central control module | 12A |
| N10 | Central control module | 20A |
| N121/1 | Trunk lid/liftgate control control unit | 20L |
| S62 | Center engine hood contact switch | 3L |
| S62/36 | Trunk lid/liftgate control button | 24L |
| S88/8 | Trunk lid/liftgate external operation button | 11L |
| W3/1 | Ground point (right front wheel well) | 5H |
| W6 | Left wheel arch trunk ground point | 9H |
| W8/5 | Right tailgate ground point | 13H |
