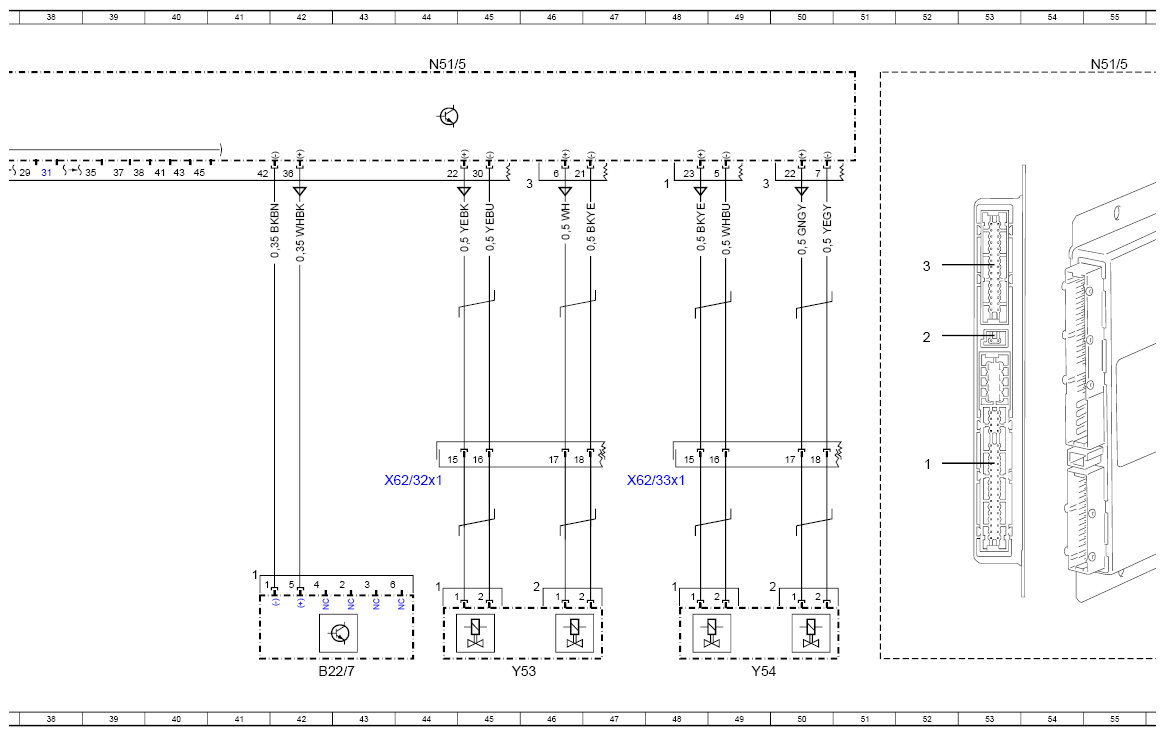

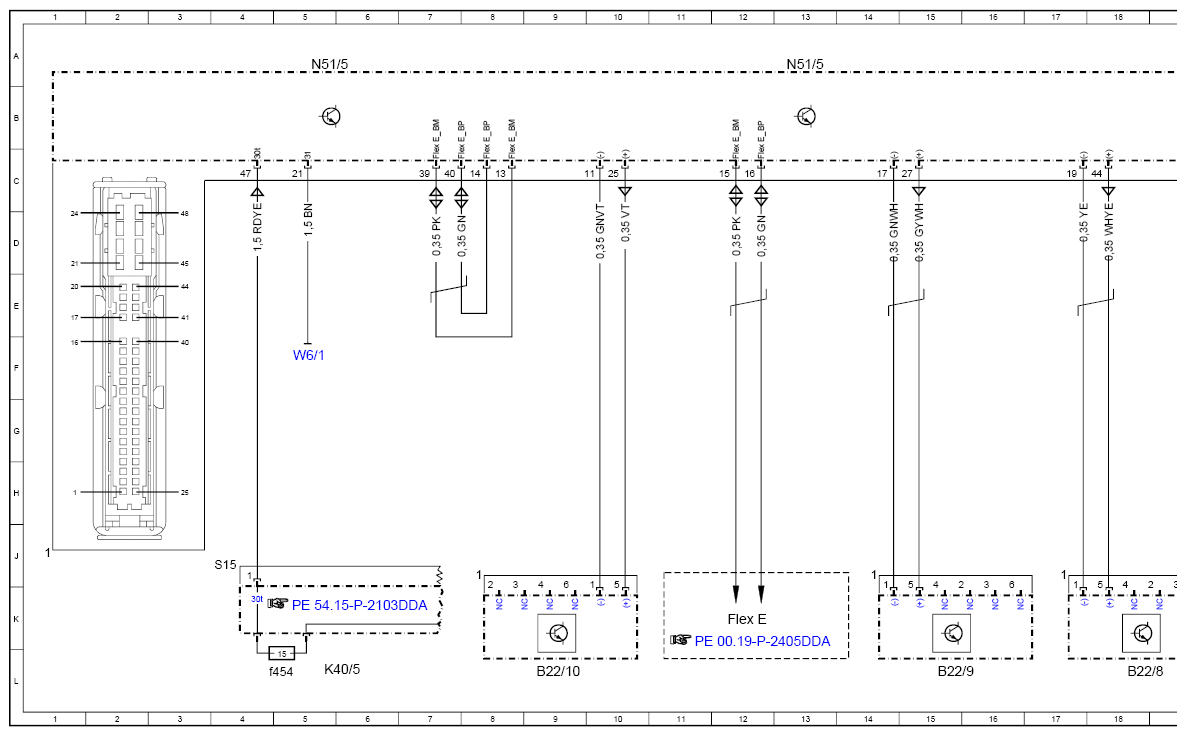

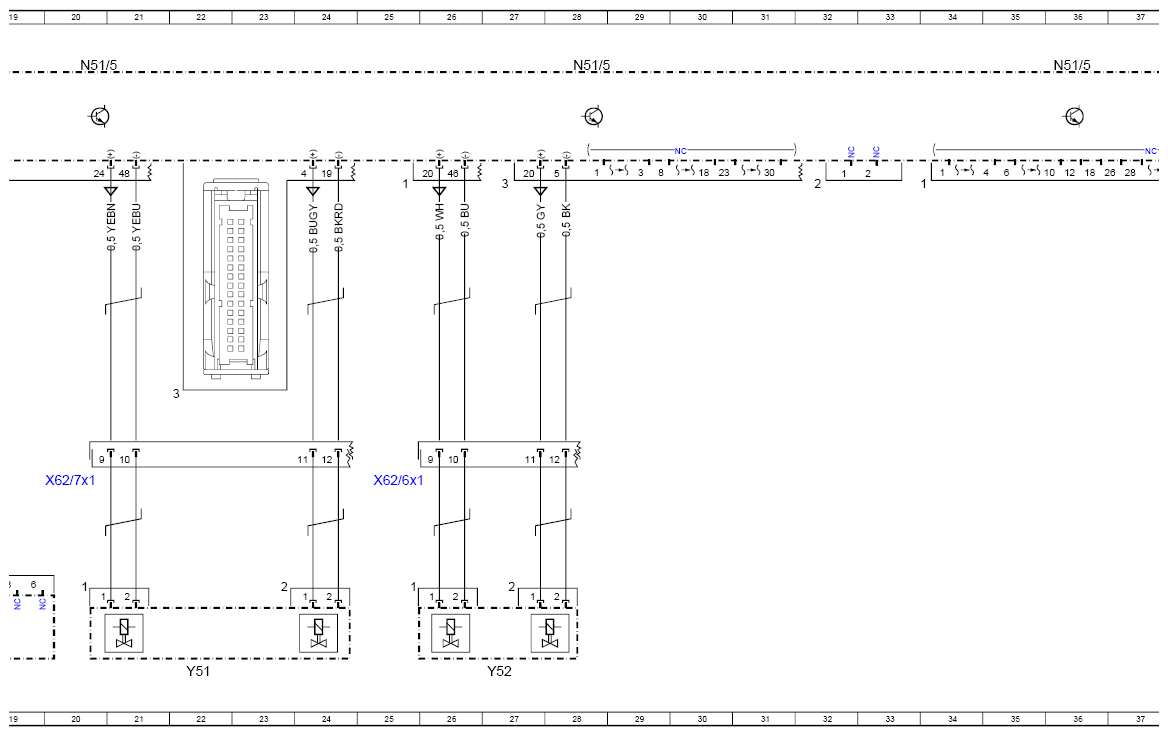

Wiring Diagram For Adaptive Damping System (ADS) Control Unit - PE32.32-P-2101-97DDA
Model 213 as of model year 2021
with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) Control unit N51/5
| Code: | Designation: | Position: |
|---|---|---|

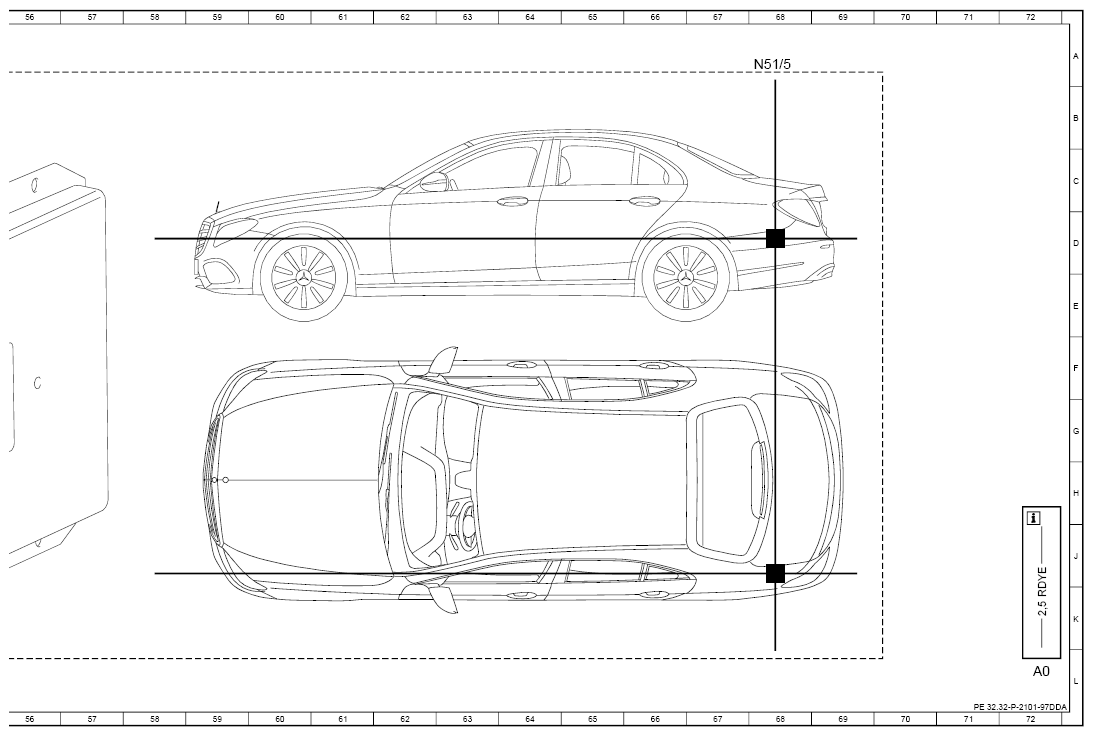

| A0 | Use of wiring diagrams | 72L |
| B22/10 | Right rear level sensor | 9L |
| B22/7 | Left rear level sensor | 42L |
| B22/8 | Left front level sensor | 18L |
| B22/9 | Right front level sensor | 15L |
| Code 459 | Steel suspension with adjustable damping | |
| Flex E | Chassis FlexRay | 12K |
| K40/5 | Rear fuse and relay module | 5L |
| K40/5f454 | Fuse 454 | 5L |
| N51/5 | Adaptive damping system control unit | 5A |
| N51/5 | Adaptive damping system control unit | 13A |
| N51/5 | Adaptive damping system control unit | 36A |
| N51/5 | Adaptive damping system control unit | 44A |
| N51/5 | Adaptive damping system control unit | 20A |
| N51/5 | Adaptive damping system control unit | 28A |
| N51/5 | Adaptive damping system control unit | 68A |
| N51/5 | Adaptive damping system control unit | 55A |
| W6/1 | Left tail lamp trunk ground point | 5F |
| X62/32x1 | Rear axle electrical connector, left distributor | 44H |
| X62/33x1 | Rear axle electrical connector, right distributor | 48H |
| X62/6x1 | Front axle electrical connector, right distributor | 25H |
| X62/7x1 | Front axle electrical connector, left distributor | 20H |
| Y51 | Left front axle damping valve unit | 22L |
| Y52 | Right front axle damping valve unit | 27L |
| Y53 | Left rear axle damping valve unit | 45L |
| Y54 | Right rear axle damping valve unit | 49L |
