Overview Of System Components For Adaptive Damping System (ADS) - GF32.32-P-9997FG
Model 213
up to model year 2021
with code 459 (Steel suspension with adjustable damping)

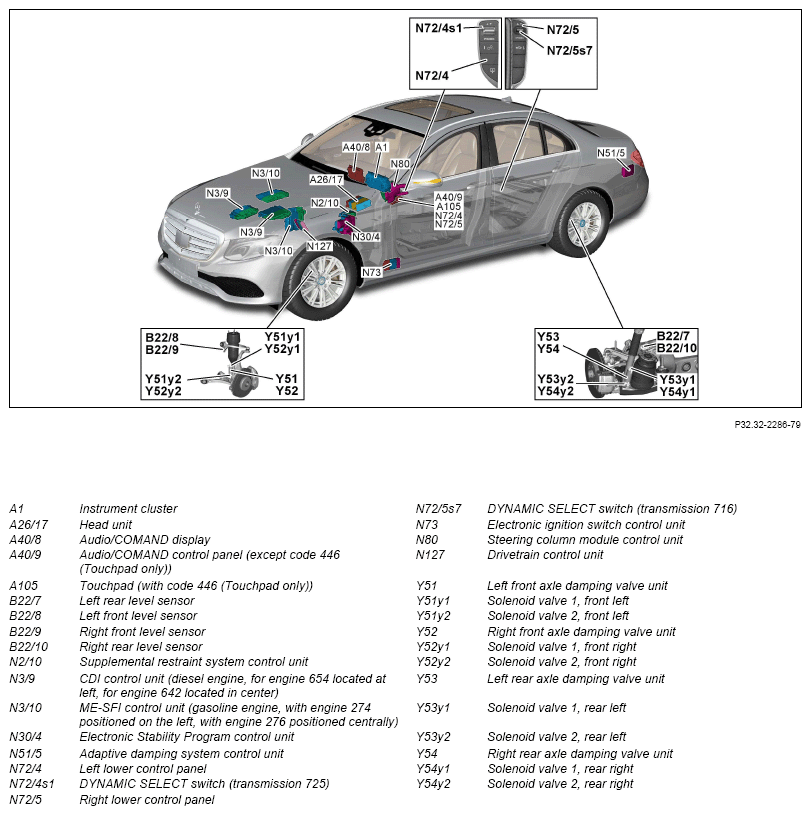

Shown on model 213.0
| Component description for instrument cluster A1 | GF54.30-P-6000FG | ||
| Head unit, component description | Model 213 up to model year 2021 with code 459 (Steel suspension with adjustable damping) with code 520 (Audio 20 USB) except code 506 (Audio 20 NTG 5.5 radio) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140FG | |
| Model 213 up to model year 2021 with code 459 (Steel suspension with adjustable damping) with code 522 (Audio 20 radio) except code 506 (Audio 20 NTG 5.5 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140FGA | ||
| Model 213 up to model year 2021 with code 459 (Steel suspension with adjustable damping) with code 506 (Audio 20 NTG 5.5 radio) Model 213 up to model year 2021 with code 459 (Steel suspension with adjustable damping) with code 531 (COMAND APS) A26/17 |
GF82.85-P-3140FGB | ||
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150FG | |
| Component description for Audio/COMAND control panel | Model 213 up to model year 2021 with code 459 (Steel suspension with adjustable damping) except code 446 (Touchpad only) A40/9 | GF54.21-P-4501FG | |
| Touchpad, component description | Model 213 up to model year 2021 with code 446 (Touchpad only) with code 459 (Steel suspension with adjustable damping) Model 213 up to model year 2021 with code 448 (Touchpad) with code 459 (Steel suspension with adjustable damping) A105 |
GF54.21-P-4511FG | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FG | |
| Component description for CDI control unit | Model 213 with engine 642.8 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N3/9 | GF07.16-P-6000OGW | |
| Model 213 (except 213.016/216) with engine 654.9 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N3/9 | GF07.16-P-6000ORC | ||
| Model 213.016/216 with engine 654.9 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N3/9 | GF07.16-P-6000ORE | ||
| Model 213 with engine 656.9 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N3/9 | GF07.16-P-6000OIA | ||
| Component description for ME-SFI (ME) control unit | Model 213 with engine 177.9 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N3/10 | GF07.61-P-6000MNA | |
| Model 213 (except 213.050/053/153) with engine 274.9 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N3/10 | GF07.61-P-6000MRD | ||
| Model 213.050/053/153 with engine 274.9 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N3/10 | GF07.61-P-6000MRP | ||
| Model 213 with engine 276.8 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N3/10 | GF07.61-P-6000MND | ||
| Model 213 with engine 264.9 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N3/10 | GF07.61-P-6000MRG | ||
| Model 213 with engine 256.9 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N3/10 | GF07.61-P-6000MRT | ||
| Component description for Electronic Stability Program control unit | Model 213 (except 213.016/050/053/153/216) up to model year 2021 with code 459 (Steel suspension with adjustable damping) N30/4 | GF42.45-P-5119FG | |
| Model 213.016/050/216 up to model year 2021 with code 459 (Steel suspension with adjustable damping) Model 213.053 with engine 274.9 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N30/4 |
GF42.45-P-5119FGH | ||
| Component description for adaptive damping system control unit | N51/5 | GF32.32-P-1010FG | |
| Lower control panel, component description | N72/4, N72/5 | GF54.25-P-4270FG | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FG | |
| Component description for steering column tube module control unit | Model 213 up to model year 2019 with code 459 (Steel suspension with adjustable damping) N80 | GF54.21-P-6051FG | |
| Model 213 as of model year 2019 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N80 | GF54.21-P-6051FGA | ||
| Drivetrain control unit, component description | Model 213 with engine 177.9 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N127 | GF54.21-P-2141MNA | |
| Model 213 with engine 264.9, 274.9, 276.8 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N127 | GF54.21-P-2141MRP | ||
| Model 213 (except 213.016/216) with engine 654.9 up to model year 2021 with code 459 (Steel suspension with adjustable damping) Model 213 with engine 642.8 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N127 |
GF54.21-P-2141ORC | ||
| Model 213.016/216 with engine 654.9 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N127 | GF54.21-P-2141ORE | ||
| Model 213 with engine 256.9 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N127 | GF54.21-P-2141LF | ||
| Model 213 with engine 656.9 up to model year 2021 with code 459 (Steel suspension with adjustable damping) N127 | GF54.21-P-2141OGS | ||
| Table of contents for function description of adaptive damping system (ADS) | GF32.32-P-0998FG |
