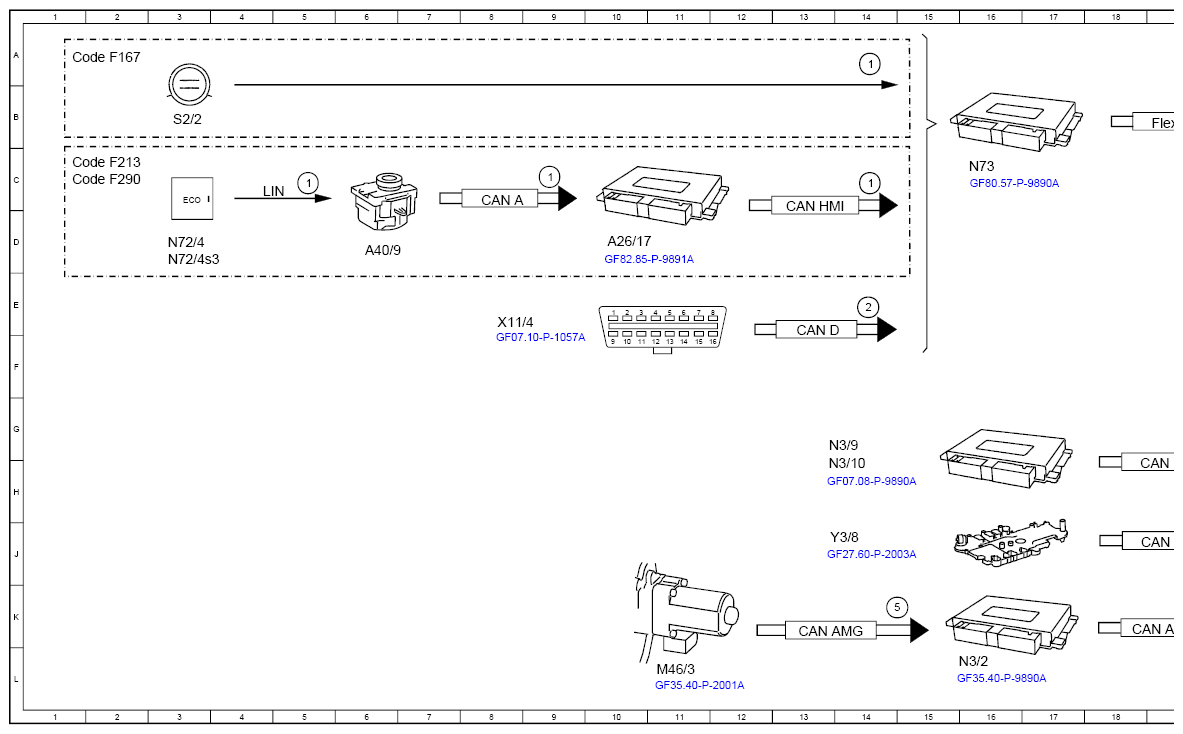

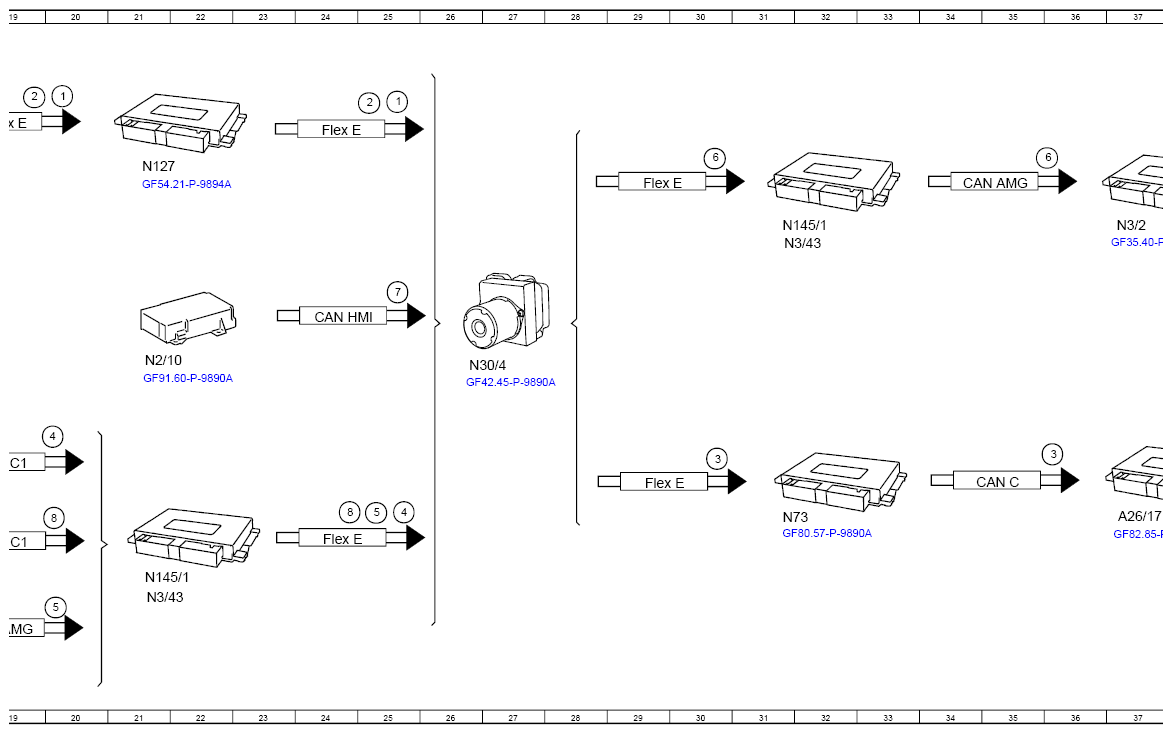

Function Schematic For Electric Differential Lock - PE35.40-P-2500-97A
Model 167, 213, 290 with transmission 725
with code 467 (Electronic locking differential)
with code M005 (Vehicles with 4MATIC/all-wheel drive)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | ECO start/stop function button, status | 5C |
| 1 | ECO start/stop function button, status | 25B |
| 1 | ECO start/stop function button, status | 14A |
| 1 | ECO start/stop function button, status | 9C |
| 1 | ECO start/stop function button, status | 14C |
| 1 | ECO start/stop function button, status | 20B |
| 2 | Engine management diagnosis, communication | 14E |
| 2 | Engine management diagnosis, communication | 19B |
| 2 | Engine management diagnosis, communication | 25B |
| 3 | Instrument cluster, message | 30H |
| 3 | Instrument cluster, message | 41H |
| 3 | Instrument cluster, message | 36H |
| 4 | Engine stop enable, status | 25H |
| 4 | Engine stop enable, status | 20G |
| 5 | Differential lock, request | 14K |
| 5 | Differential lock, request | 20K |
| 5 | Differential lock, request | 25H |
| 6 | Differential lock, request | 30C |
| 6 | Differential lock, request | 36C |
| 6 | Differential lock, request | 41C |
| 7 | Engine hood contact switch, status | 25E |
| 8 | Gear range, status | 24H |
| 8 | Gear range, status | 20H |
| A26/17 | Head unit | 10D |
| A26/17 | Head unit | 37H |
| A40/16 | Head unit/instrument cluster display cluster | 43J |
| A40/9 | Audio/COMAND control panel | 6D |
| CAN A | Telematics CAN | 8C |
| CAN AMG | AMG CAN | 13K |
| CAN AMG | AMG CAN | 19K |
| CAN AMG | AMG CAN | 35C |
| CAN C | Engine CAN | 35H |
| CAN C1 | Drive train CAN | 19H |
| CAN C1 | Drive train CAN | 19J |
| CAN D | Diagnostic CAN | 13F |
| CAN HMI | User interface CAN | 13D |
| CAN HMI | User interface CAN | 24E |
| Code F167 | Model series 167 | 1A |
| Code F213 | Model series 213 | 1C |
| Code F290 | Model series 290 | 1C |
| Flex E | Chassis FlexRay | 24B |
| Flex E | Chassis FlexRay | 19B |
| Flex E | Chassis FlexRay | 24J |
| Flex E | Chassis FlexRay | 29C |
| Flex E | Chassis FlexRay | 29H |
| HSVL | High-speed video I ink | 40H |
| LIN | Local Interconnect Network | 4C |

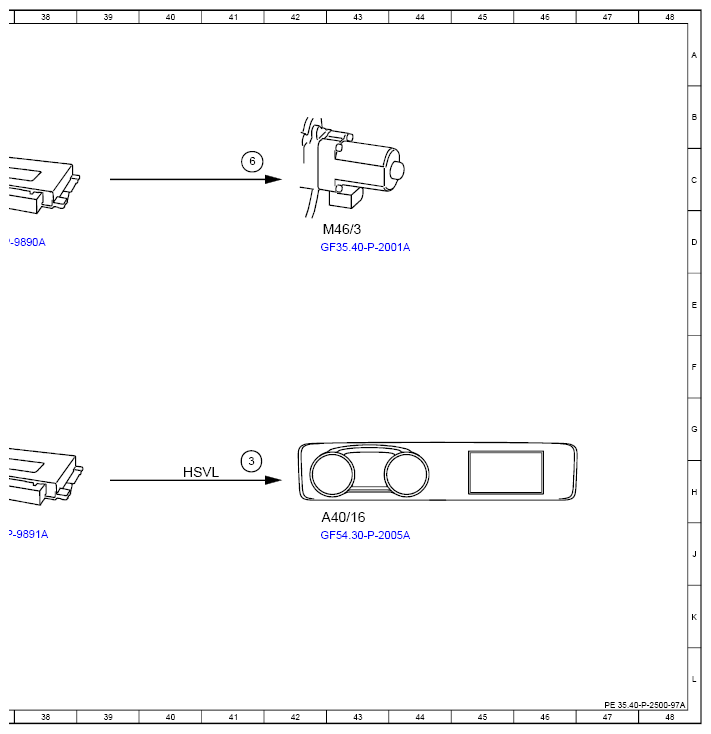

| M46/3 | Differential lock actuator | 11L |
| M46/3 | Differential lock actuator | 43D |
| N127 | Drivetrain control unit | 21C |
| N145/1 | Drive unit control unit | 21J |
| N145/1 | Drive unit control unit | 31D |
| N2/10 | Supplemental restraint system control unit | 21F |
| N3/10 | ME-SFI [ME] control unit | 14H |
| N3/2 | Electric differential lock control unit | 16L |
| N3/2 | Electric differential lock control unit | 37D |
| N3/43 | AMG suspension control unit | 21K |
| N3/43 | AMG suspension control unit | 31D |
| N3/9 | CDI control unit | 14G |
| N30/4 | Electronic Stability Program control unit | 26F |
| N72/4 | Left lower control panel | 3D |
| N72/4s3 | ECO start/stop function button | 3D |
| N73 | Electronic ignition switch control unit | 31H |
| N73 | Electronic ignition switch control unit | 16C |
| S2/2 | Start/stop button | 3B |
| X11/4 | Diagnostic connector | 8E |
| Y3/8 | Fully integrated transmission control controller unit | 14J |
