Pulling Off Joint Flange - AR35.31-P-0550-06CWC

Model 204, 205, 212, 213, 253

with code 700 (Vehicle production location China)

Fig 1: Identifying Puller (124 589 04 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Pin Wrench (129 589 01 07 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Socket Wrench Bit (204 589 01 09 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Adapter (100 589 02 59 00)

Courtesy of MERCEDES-BENZ USA

1. Mark position of joint flange (1) relative to groove (arrow) on drive pinion (2) with colored pencil.

   Courtesy of MERCEDES-BENZ USA

2. Plug Allen wrench (010) into joint flange (1).
3. Unscrew collar nut (3) with connection piece and socket.

   Courtesy of MERCEDES-BENZ USA

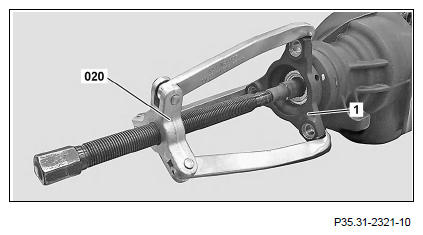

4. Detach joint flange (1) using puller (020).

   Courtesy of MERCEDES-BENZ USA
