Remove/Install Rear Elastomer Bearing For Rear Axle Differential Mounting - AR35.10-P-0052OLC
Model 213 (except 213.088/089/288/289), 238

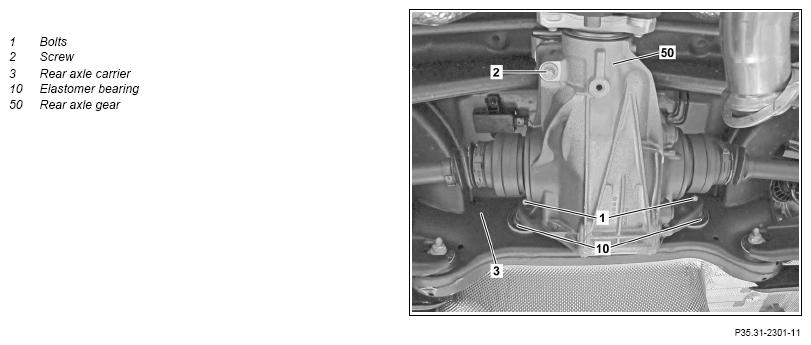

Fig 1: Rear Axle Differential Mounting Elastomer Bearing Components Location - Model 213 (Except 213.088/089/288/289)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Put transmission into neutral position. | ||
| 2 | Perform power disconnect of high-voltage on-board electrical system. | Model 213.016/050/216 | AR54.10-P-1150LHV |
| 3 | Secure vehicle on vehicle lift. | AR00.60-P-0100CW | |
| 4 | Remove exhaust system. | Model 213, 238 with engine 256.9 | AR49.10-P-7142MSA |
| Model 213, 238 with engine 642 | AR49.10-P-7142OGW | ||
| Model 213, 238 with engine 654 | AR49.10-P-7142OLC | ||
| Model 238 with engine 274.9 | AR49.10-P-7142MRC | ||
| Model 213 with engine 274.9 | AR49.10-P-7142MRD | ||
| Model 213, 238 with engine 276.8 except code 598 (Gasoline particulate filter (OPF) with sensor system) | AR49.10-P-7142MND | ||
| Model 213 with engine 276.8 with code 598 (Gasoline particulate filter (OPF) with sensor system) Model 238 with engine 276.8 with code 598 (Gasoline particulate filter (OPF) with sensor system) |
AR49.10-P-7142MNF | ||
| Model 213, 238 with engine 264 | AR49.10-P-7142MRH | ||
| Model 213, 238 with engine 656 | AR49.10-P-7142OIB | ||
| 5 | Support rear axle differential (50) with major assembly mount and support plate. | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 6 | Remove bolts (1). | *BA35.10-P-1006-01H | |
| 7 | Remove bolt (2). | *BA35.10-P-1005-01H | |
| 8 | Lower rear axle differential (50) until elastomer bearings (10) are accessible. | Otherwise the drive shafts will be damaged. |
|
| 9 | Press elastomer bearings (10) of rear axle differential (50) out of rear axle carrier (3). | AR35.10-P-0050-02LW | |
| Fig 6 | |||
| Fig 4 | |||
| Fig 3 | |||
| Fig 5 | |||
| Fig 2 | |||
| 10 | Install in the reverse order. |
REAR AXLE CARRIER
| Number | Designation | Model 213 | Model 238 | |||
|---|---|---|---|---|---|---|
| BA35.10-P-1005-01H | Rear axle differential to front adapter | Rear axle differential (steel) | Nm | 65 | - | |
| Rear axle differential (aluminum) | Stage 1 | Nm | 40 | 40 | ||
| Stage 2 | ∠° | 45 | 45 | |||
REAR AXLE CARRIER
| Number | Designation | Model 213 | Model 238 | |
|---|---|---|---|---|
| BA35.10-P-1006-01H | Bolt, rear axle differential to rear transverse bridge | Nm | 170 | 170 |
