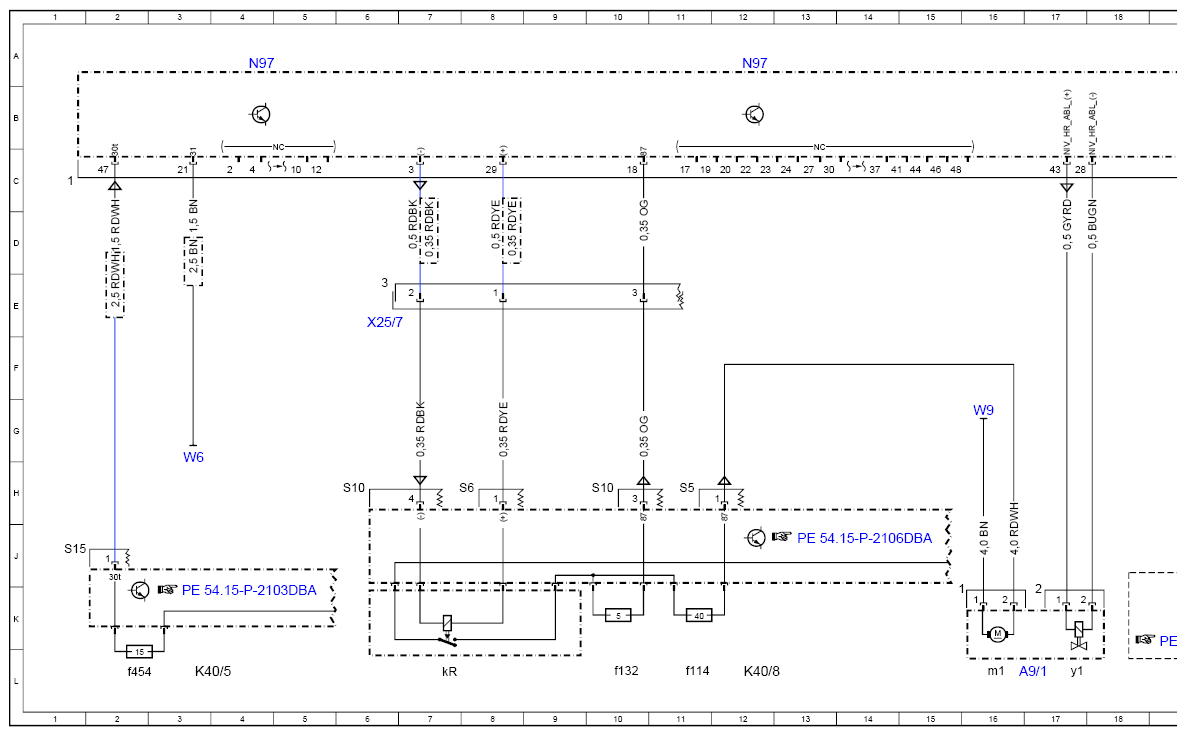

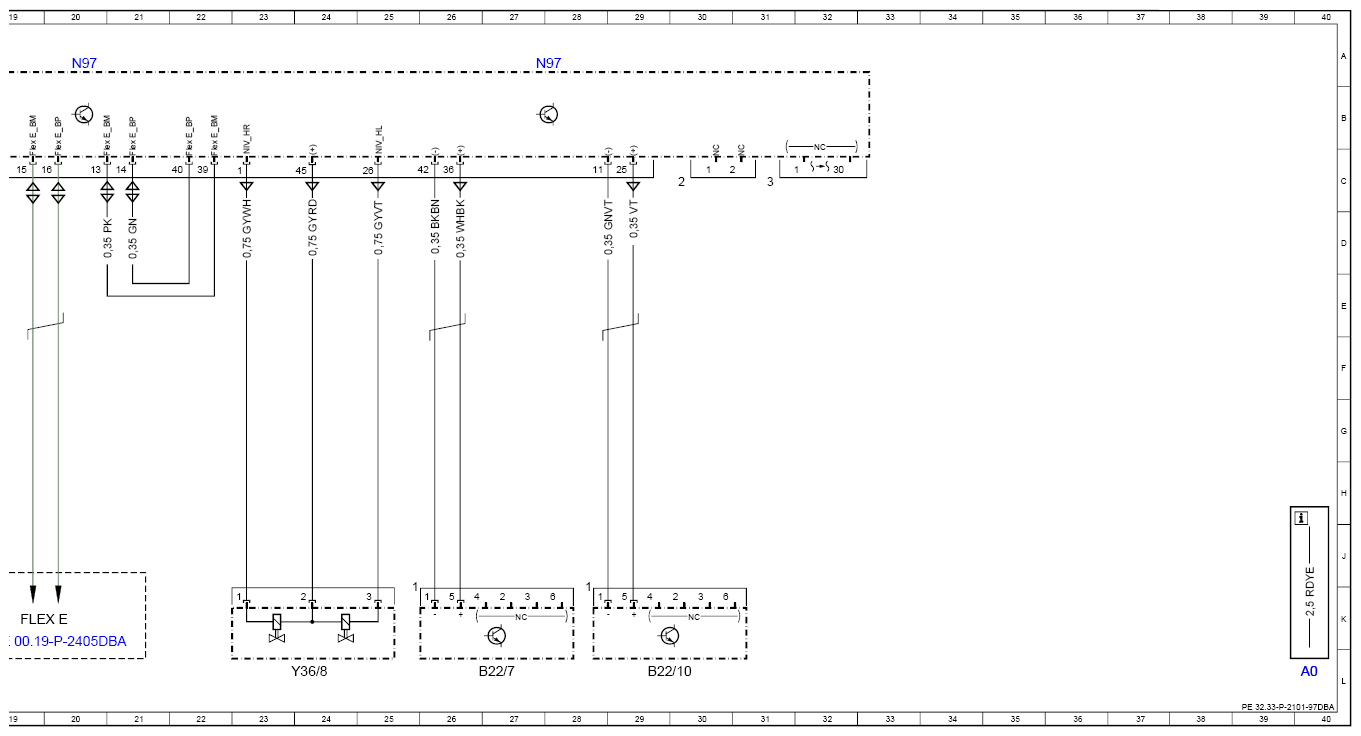

Wiring Diagram For Level Control (NR) Control Unit - PE32.33-P-2101-97DBA
Model 213.2 up to model year 2021 except code 489 (AIR BODY CONTROL) Control unit N97
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| A9/1 | AIR BODY CONTROL compressor | 17L |
| A9/1m1 | Compressor | 16L |
| A9/1y1 | AIR BODY CONTROL pressure relief valve | 17L |
| B22/10 | Right rear level sensor | 29L |
| B22/7 | Left rear level sensor | 27L |
| K40/5 | Rear fuse and relay module | 3L |
| K40/5f454 | Fuse 454 | 2L |
| K40/8 | Engine fuse and relay module | 12L |
| K40/8f114 | Fuse 114 | 11L |
| K40/8f132 | Fuse 132 | 10L |
| K40/8kR | AIR BODY CONTROL relay | 7L |
| N97 | Rear axle electronic level control unit | 4A |
| N97 | Rear axle electronic level control unit | 12A |
| N97 | Rear axle electronic level control unit | 20A |
| N97 | Rear axle electronic level control unit | 27A |
| W6 | Left wheel arch trunk ground point | 3G |
| W9 | Left front ground point (at lamp unit) | 16G |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 6E |
| Y36/8 | Rear axle electronic level control valve unit | 24L |
