Remove/Install Rear Stabilizer Bar Linkage - AR32.35-P-3329MNE

Model 213

Shown on torsion bar linkage (1) at left on model 213.064

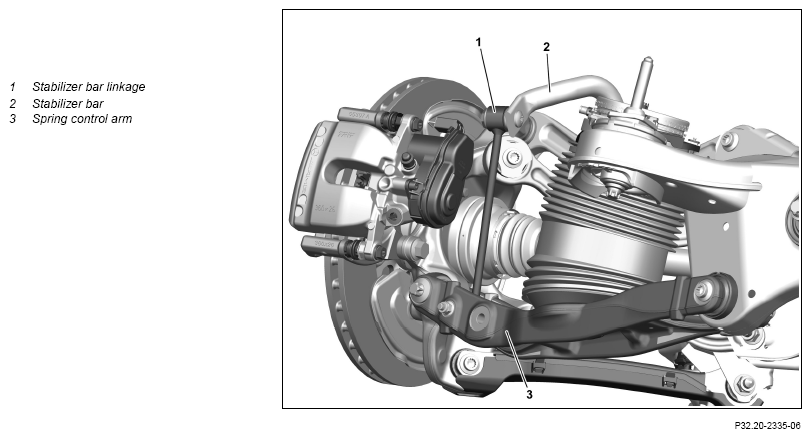

Fig 1: Rear Stabilizer Bar Linkage Components Location - Model 213

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove
1	Remove rear shock absorber		AR32.25-P-0110LW
2	Remove torsion bar linkage (1) from stabilizer bar (2)	Set of Torx wrench	Fig 3
		Socket wrench	Fig 2
3.1	Remove torsion bar linkage (1) from wheel carrier and take out	Model 213.088/089/288/289
3.2	Remove torsion bar linkage (1) from spring link (3) and take out	Model 213 (except 213.088/089/288/289)
	Install
4	Check stabilizer linkage (1) for damage and wear	If there are problems ↓ Replace torsion bar linkage (1).
5	Clean inside thread of torsion bar linkage (1) using a tap M10	When reinstalling torsion bar linkage (1) with inside thread.
6.1	Mount torsion bar linkage (1) onto spring link (3)	Model 213 (except 213.088/089/288/289) Nut torsion bar linkage to spring control arm	*BA32.20-P-1003-04S
6.2	Mount torsion bar linkage (1) onto wheel carrier	Model 213.088/089/288/289) Bolt, torsion bar linkage to wheel carrier	*BA32.20-P-1004-04S
7	Mount torsion bar linkage (1) onto stabilizer bar (2)	Replace bolts and lock in place using Loctite 243. Bolt, torsion bar linkage to torsion bar	*BA32.20-P-1001-04S
		Thread locking agent, Loctite 243 (10 ml)	*BR00.45-Z-1133-02A
		Set of Torx wrench	Fig 3
		Socket wrench	Fig 2
8	Install rear shock absorber		AR32.25-P-0110LW

Fig 2: Identifying Socket Wrench (205 589 00 09 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Set Of Torx Wrench (211 589 02 09 00)

Courtesy of MERCEDES-BENZ USA
