(Remove/Install Rear Stabilizer Bar Linkage - AR32.35-P-3329LWX)

Model 205, 253

MODIFICATION NOTES

21.06.2017 Bolt, torsion bar linkage to torsion bar   BA32.20-P-1001-04T

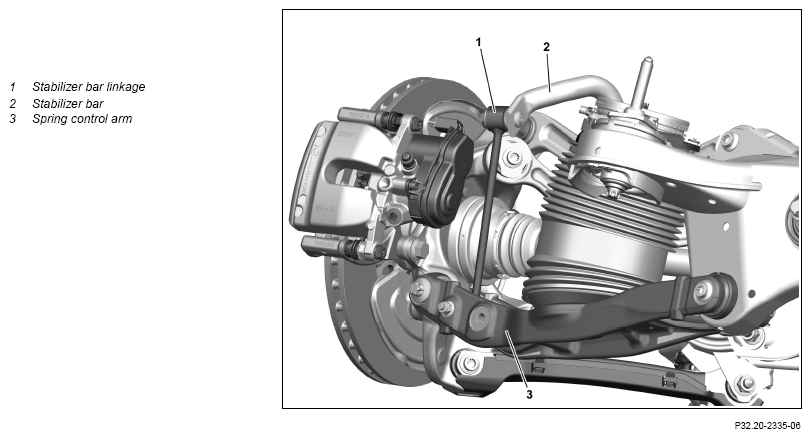

Shown on left side of vehicle on model 253.903

G13771815Courtesy of MERCEDES-BENZ USA

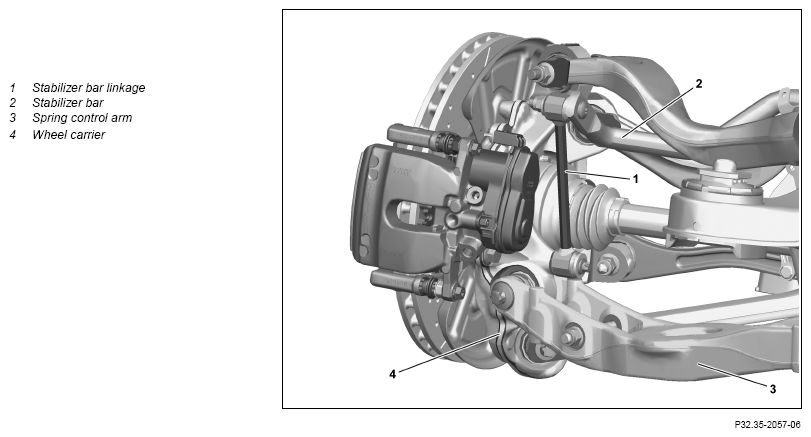

Shown on left side of vehicle on mode 253.388

G13771816Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating area of mechanical components when moving components. AS00.00-Z-0009-01A
  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
  Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
  Notes on handling, transport and storage of ceramic brake disks   AH42.10-P-9406-13A
  Notes on handling, transport and storage of composite brake disks   AH42.10-P-9406-12LF
  Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVING Remove
1 Remove rear shock absorber   AR32.25-P-0110LW
2 Remove torsion bar linkage (1) from stabilizer SPECIAL TOOL Set of Torx wrench Fig 2
SPECIAL TOOL Socket wrench Fig 1
3.1 Detach and remove torsion bar linkage (1) from wheel carrier (4) Model 205.086/087/286/287/386/387/486/487 Model 253.388/389/988/989
3.2 Remove torsion bar linkage (1) from spring link (3) and take out Model 205 (except 205.086/087/286/287/386/387/486/487) Model 253 (except 253.388/389/988/989)
TORQUE SPECIFICATION Install
4 Clean inside thread of torsion bar linkage (1) using a tap M10 When reinstalling torsion bar linkage (1) with inside thread.
5.1 Attach torsion bar linkage (1) onto springlink (3) Model 205 (except 205.086/087/286/287/386/387/486/487)
Model 253 (except 253.388/389/988/989)
TORQUE SPECIFICATION Model 205 (except 205.086/087/286/287/386/387/486/487) except code 489 (AIRMATIC) Model 205 (except 205.086/087/286/287/386/387/486/487) with code 489 (AIRMATIC) Nut, torsion bar linkage to spring control arm		 *BA32.20-P-1003-04S
TORQUE SPECIFICATION Model 253 (except 253.388/389/988/989) except code 489 (AIR BODY CONTROL)
Model 253 (except 253.388/389/988/989) with code 489 (AIR BODY CONTROL) Nut, torsion bar linkage to spring control arm		 *BA32.20-P-1003-04T
5.2 Attach torsion bar linkage (1) onto wheel carrier (4) Model 205.086/087/286/287/386/387/486/487 Model 253.388/389/988/989
TORQUE SPECIFICATION Model 253.388/389/988/989Bolt, torsion bar linkage to wheel carrier *BA32.20-P-1004-04T
TORQUE SPECIFICATION Model 205.086/087/286/287/386/387/486/487Bolt, torsion bar linkage to wheel carrier *BA32.20-P-1004-04S
6 Mount torsion bar linkage (1) onto stabilizerbar (2) IMPORTANT Replace bolts and lock in place using Loctite 243.
TORQUE SPECIFICATION Model 205 (except 205.086/087/286/287/386/387/486/487)
except code 489 (AIRMATIC) Model 205 (except 205.086/087/286/287/386/387/486/487)
with code 489 (AIRMATIC) Model 205.086/087/286/287/386/387/486/487Bolt, torsion bar linkage to torsion bar		 *BA32.20-P-1001-04S
TORQUE SPECIFICATION Model 253
except code 489 (AIR BODY CONTROL)
Model 253
with code 489 (AIR BODY CONTROL) Bolt, torsion bar linkage to torsion bar		 *BA32.20-P-1001-04T
Thread locking agent, Loctite 243 (10 ml) *BR00.45-Z-1133-02A
SPECIAL TOOL Set of Torx wrench Fig 2
SPECIAL TOOL Socket wrench Fig 1
7 Install rear shock absorber   AR32.25-P-0110LW
REAR AXLE TORSION BAR

Number Designation Model 205 (except 205.086/087/286/287/386/387/486/487) except code 489 (AIRMATIC) Model 205 (except 205.086/087/286/28 7/386/387/486/487)
with code 489 (AIRMATIC)
BA32.20-P-1001-04S Bolt, torsion bar linkage to torsion bar Stage 1 Nm 63 63
Stage 2 ∠° - -
REAR AXLE TORSION BAR

Number Designation Model 205.086/087/286/28 7/386/387/486/487
BA32.20-P-1001-04S Bolt, torsion bar linkage to torsion bar Stage 1 Nm 30
Stage 2 ∠° 90
REAR AXLE TORSION BAR

Number Designation Model 253 (except 253.388/389/988/989)
except code 489 (AIR BODY CONTROL)		 Model 253 (except 253.388/389/988/989)
with code 489 (AIR BODY CONTROL)
BA32.20-P-1001-04T Bolt, torsion bar linkage to torsion bar Stage 1 Nm 60 60
Stage 2 ∠° - -
REAR AXLE TORSION BAR

Number Designation Model 253.388/389/988/989
BA32.20-P-1001-04T Bolt, torsion bar linkage to torsion bar Stage 1 Nm 30
Stage 2 ∠° 90
REAR AXLE TORSION BAR

Number Designation Model 205 (except 205.086/087/286/287/386/387/486/487) except code 489 (AIRMATIC) Model 205 (except 205.086/087/286/287/386/387/486/487) with code 489 (AIRMATIC)
BA32.20-P-1003-04S Nut, torsion bar linkage to spring control arm Stage 1 Nm 20 35
Stage 2   180 120
REAR AXLE TORSION BAR

Number Designation Model 253 (except 253.388/389/988/989)
except code 489 (AIR BODY CONTROL)		 Model 253 (except 253.388/389/988/989)
with code 489 (AIR BODY CONTROL)
BA32.20-P-1003-04T Nut, torsion bar linkage to spring control arm Stage 1 Nm 20 35
Stage 2 ∠° 180 120
REAR AXLE TORSION BAR

Number Designation Model 205.086/087/286/28 7/386/387/486/487
BA32.20-P-1004-04S Bolt, torsion bar linkage to wheel carrier Nm 50
REAR AXLE TORSION BAR

Number Designation Model 253.388/389/988/989
BA32.20-P-1004-04T Bolt, torsion bar linkage to wheel carrier Nm 50
Fig 1: Identifying Socket Wrench (205 589 00 09 00)
G12817675Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Set Of Torx Wrench (211 589 02 09 00)
G12817676Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1133-02A Thread locking agent, Loctite 243 (10 ml) A 613 989 09 71 09
