(Remove Suspension Travel Limiter - AP32.25-P-3270B)
Model 253.99
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||
| 1 | Lift vehicle with lifting platform. | ||
| AR00.60-P-1006A | |||

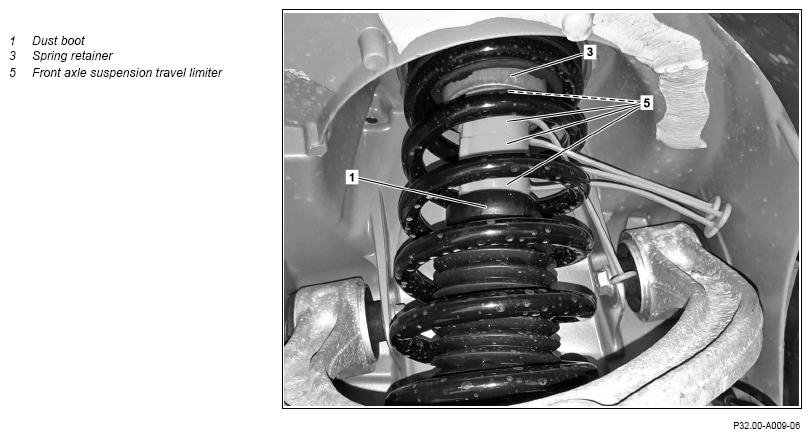

| 2 | Remove front axle suspension travel limiter (5) between dust boots (1) and spring retainers (3). | It must be ensured that all 4 installed front axle suspension travel limiters (5) at each damper are removed. Otherwise the suspension may be damaged. |
|

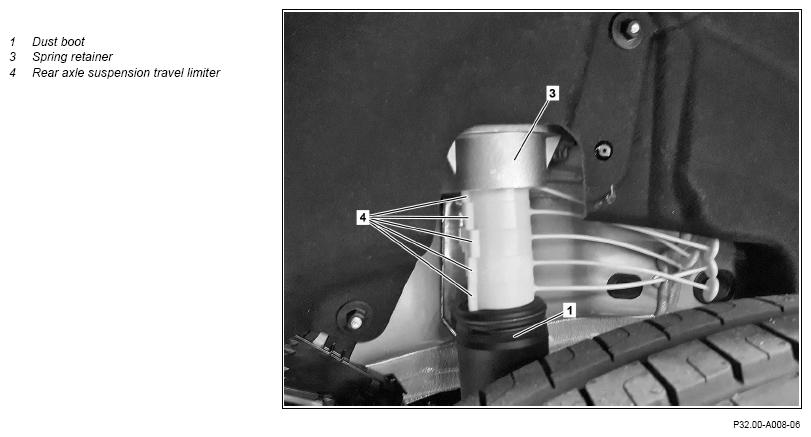

| 3 | Remove rear axle suspension travel limiter (4) between dust boots (1) and spring retainers (3). | It must be ensured that all 5 installed rear axle suspension travel limiters (4) at each damper are removed. Otherwise the suspension may be damaged. |
|

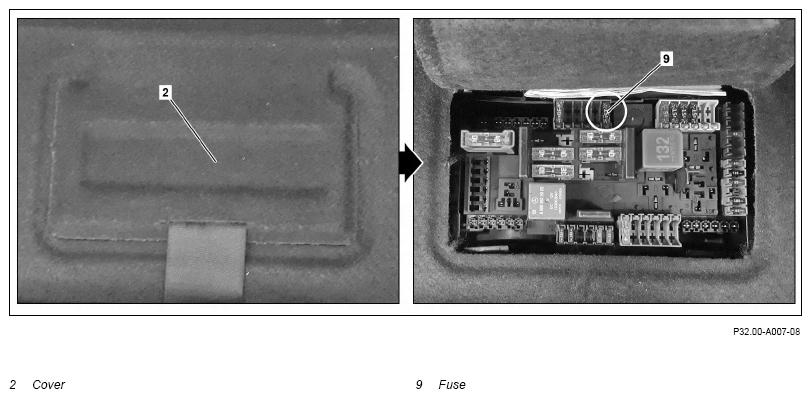

| 4 | Lower vehicle completely with vehicle lift. | ||
| AR00.60-P-1006A | |||
| Install | |||
| 5 | Open tailgate. | ||
| 6 | Fold up trim (2). | ||
| 7 | Install retainer (9). | ||
| 8 | Fold down trim (2). | ||
| 9 | Close liftgate. | ||
| Read out the fault memory | |||
| 10 | Switch electronic ignition lock control unit to position "2" (circuit 15). | ||
| 11 | Connect diagnostic device and read out and delete fault memory. | ||
| AD00.00-P-2000-04B | |||
| 12 | Switch electronic ignition lock control unit to position "0". | ||
| Remove | |||

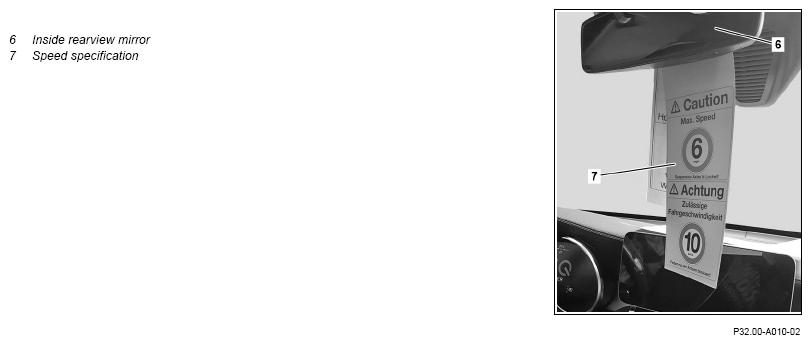

| 13 | Remove speed specification (7) from inside rearview mirror (6). |
