Remove/Install CO2 Pressure And Temperature Sensor Upstream Of Gas Cooler - AR83.30-P-5433LWB
Model 213 with code 1U6 (R744 refrigerant)

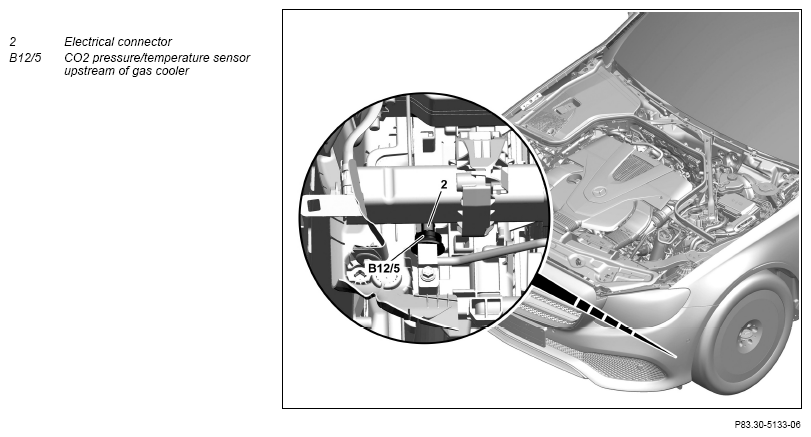

Fig 1: CO2 Pressure And Temperature Sensor Upstream Of Gas Cooler Components Location - Model 213 With Code 1U6
| Risk of injury when working on air conditioning systems due to R744 refrigerant escaping under pressure. Risk of suffocation from inhaling R744 refrigerant in high concentrations. Health hazard caused by inhalation of R744 refrigerant | Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. | AS83.00-Z-0008-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-N-0005-01A | ||
| Notes on handling refrigerant R744 | AH83.30-P-0003-03A | ||
| Remove/install | |||
| 1 | Drain air conditioning system | AR83.30-P-1760LW | |
| 2 | Remove the bottom, left front engine compartment paneling | AR61.20-P-1105LWE | |
| 3 | Unlock and disconnect the electrical plug connection (2) at the CO2 pressure and temperature sensor (B12/5) | ||
| 4 | Unscrew the CO2 pressure/temperature sensor upstream of the gas cooler (B12/5) | When replacing the CO2 pressure/temperature sensor upstream of the gas cooler (B12/5). | |
| Note on calculation of tightening torque when using insertion or socket tools with various effective lengths | AH00.00-P-0015-01CW | ||
| *BA83.30-P-1019-01R | |||
| Fig 2 | |||
| 5 | Install in the reverse order |
AIR CONDITIONING
| Number | Designation | Model 213 with code 1U6 (R744 refrigerant) | ||
|---|---|---|---|---|
| BA83.30-P-1019-01R | Pressure and temperature sensor to refrigerant line | Torque with sealing ring | Nm | 18 |
