Remove/Install Oxygen Sensor Upstream Of Catalytic Converter - AR07.04-P-0086MRH
Engine 264 in model 213, 238, 257
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. |
AS49.00-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Note on calculation of tightening torque when using insertion or socket tools with various effective lengths | AH00.00-P-0015-01CW | ||
| Remove/install | |||
| 1 | Remove upper engine cover. | AR01.10-P-2405MRH | |

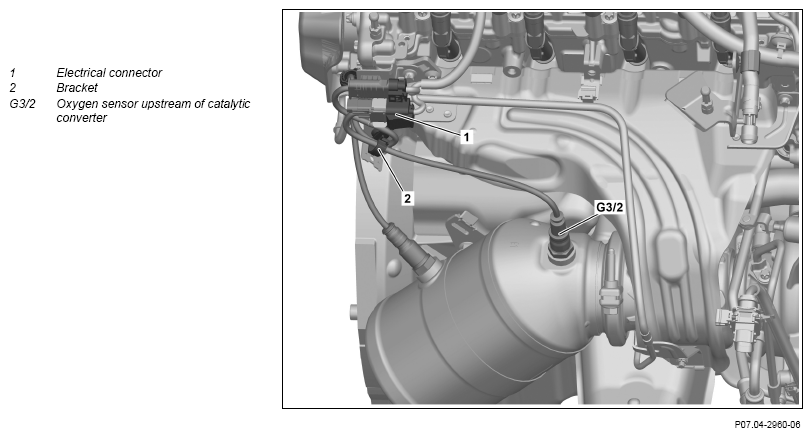

| 2 | Release electrical connector (1) and disconnect. | ||
| 3 | Unclip lambda sensor electric line upstream of the catalytic converter (G3/2) from the bracket (2). | ||
| 4 | Remove lambda sensor upstream of catalytic converter (G3/2) and seal threaded hole in catalytic converter with suitable stop plug. | ||
| *BA14.00-P-1001-02C | |||
| Paste, hot lubrication 1 kg, DBL 6879.20 | *BR00.45-Z-1005-06A | ||
| Fig 4 | |||
| Fig 2 | |||
| 5 | Seal lambda sensor upstream of the catalytic converter (G3/2) with protective cover. | When the oxygen sensor upstream of catalytic converter (G3/2) is reused. | |
| Fig 3 | |||
| 6 | Install in the reverse order. | ||
| 7 | Read out and delete fault memory. | ||
| Engine 264 in model 238 | AD00.00-P-2000-06LWO | ||
| Engine 264 in model 257 | AD00.00-P-2000-06FR | ||
| Engine 264 in model 213 | AD00.00-P-2000-04B | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform an engine test run; check the engine for proper operation and the exhaust system for leaks. |
OXYGEN SENSOR
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA14.00-P-1001-02C | Oxygen sensor upstream of catalytic converter | Nm | 50 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1005-06A | Paste, hot lubrication 1 kg, DBL 6879.20 | A 000 989 76 51 |
