Disconnect/Connect Engine Wiring Harness To Remove Engine - AR15.18-P-1000-05MND
Engine 276.8 in model 213, 238
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.10-P-1009-04H | Screw/bolt, heat shield to oil pan | Nm | 9 |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.10-P-1024-04H | Bolt, ground line to transmission housing | Nm | 20 |
WIRING HARNESS
| Number | Designation | Model 213 | Model 238 | ||
|---|---|---|---|---|---|
| BA54.18-P-1001-02C | Nut, positive line to busbar on firewall | M6 | Nm | 8 | 8 |
| M8 | Nm | 16 | 16 | ||

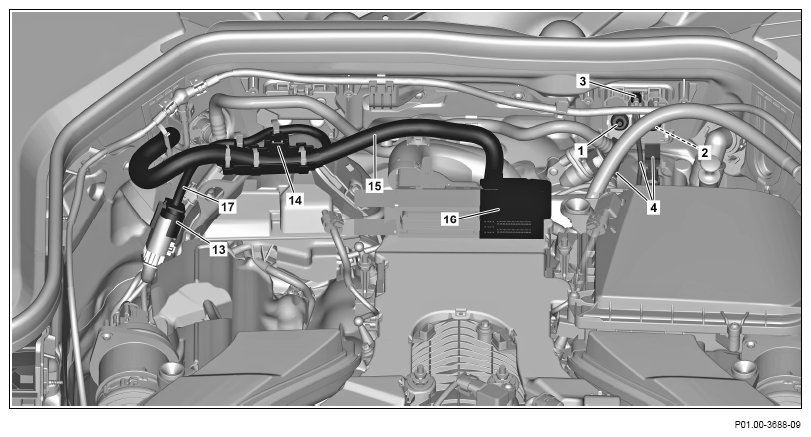

Shown on engine 276.823
- Release and disconnect electrical connection (16) for electrical wiring harness (15) at engine management control unit.
- Release and disconnect electrical connection (13) of electrical wiring harness (17).
- Unclip electrical wiring harness (15, 17) with bracket (14) and place to one side.
- Unclip cover over nuts (1, 2, 3).
- Unscrew nuts (1, 2, 3)
.
- Remove electrical lines (4) and lay on engine.

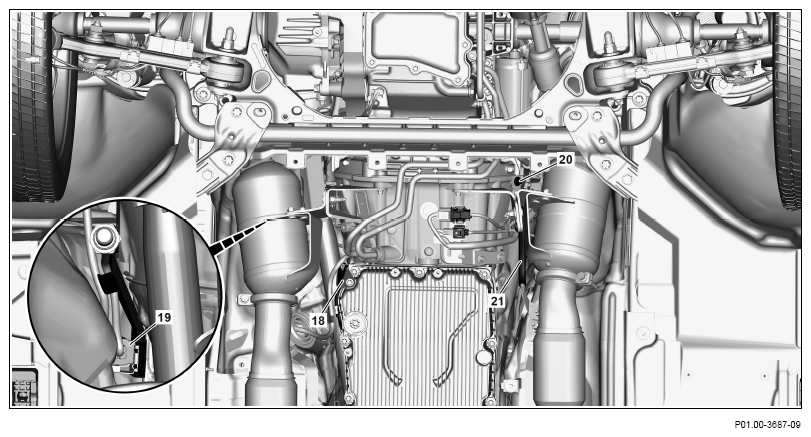

Shown on engine 276.8 in model 213 with transmission 725.0 and code M005 (4MATIC)
- Remove screw/bolt (20), disconnect ground line (21) from transmission and place to one side
- Remove screw/bolt and remove heat shield (18) from transmission
- Release and disconnect electrical connection on transmission electric controller unit.
- Connect in reverse order.
