Remove/Install The Purge Valve - AR47.30-P-8252MSA

Engine 256.9 in model 213, 238, 257, 290

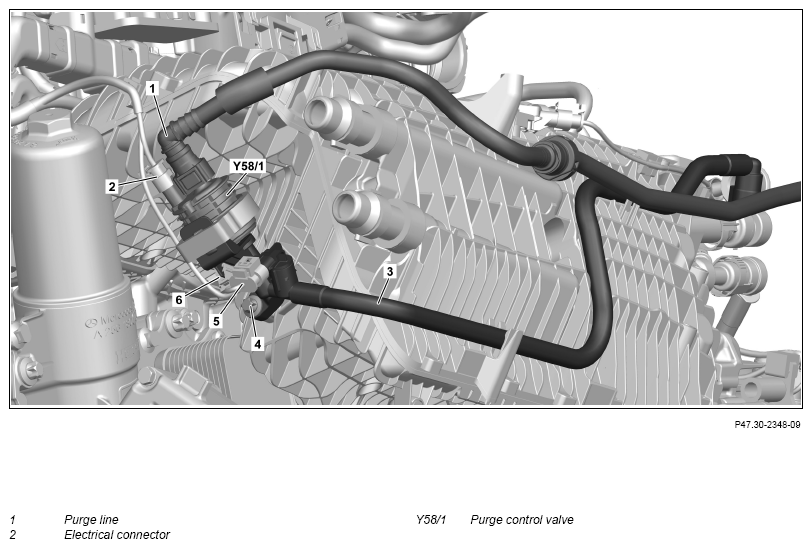

Fig 1: Purge Valve Components Location - Engine 256.9 In Model 213

Courtesy of MERCEDES-BENZ USA

	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove upper engine cover.		AR01.10-P-2405MSA
2	Remove air intake pipe upstream of air filter.
3	Remove purge line (1) from purge control valve (Y58/1) and place to one side.
4	Release and disconnect electrical connector (2).
5	Remove purge control valve (Y58/1).
6	Install in the reverse order.
