Remove/Install Rear Engine Mount - AR22.10-P-1160MSA
Engine 256.9 in model 213, 238, 257, 290
Shown with CODE M005 (4MATIC)
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on bolted connections with self tapping screws | AH00.00-P-0007-01SF | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Remove center and rear lower engine compartment lining. | Engine 256.9 in model 213, 238 | AR61.20-P-1105LWE |
| Engine 256.9 in model 290 | AR61.20-P-1105FRX | ||
| Engine 256.9 in model 257 | AR61.20-P-1105FR | ||
| 2 | Support transmission (4). | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 3 | Remove engine carrier (2). | AR22.10-P-4360MSA | |

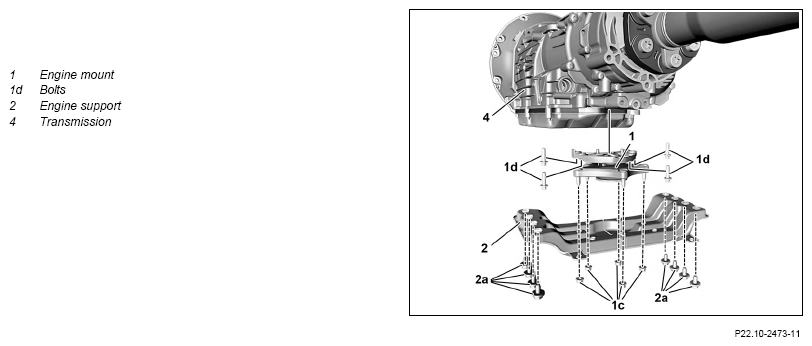

| 4 | Remove screws (1d) and remove engine mount (1). | Engine 256.9 in model 238 with code M005 (4MATIC) Bolt, rear engine mount to bracket/transmission |
*BA22.10-P-1003-03O |
| *BA22.10-P-1003-03N | |||
| 5 | Install in the reverse order. |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 213 with engine 256, 264, 274, 276, 642, 654, 656 | Model 257 | ||
|---|---|---|---|---|---|
| BA22.10-P-1003-03N | Bolt, rear engine mount to bracket/transmission | M8 | Nm | 30 | 30 |
| M10 | Nm | 50 | 50 | ||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 290 with engine 256 | ||
|---|---|---|---|---|
| BA22.10-P-1003-03N | Bolt, rear engine mount to bracket/transmission | M8 | Nm | 30 |
| M10 | Nm | 50 | ||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 238 except code M005 (4MATIC) | Model 238 with code M005 (4MATIC) | |
|---|---|---|---|---|
| BA22.10-P-1003-03O | Bolt, rear engine mount to bracket/transmission | Nm | 50 | 30 |
