Remove/Install Divert Air Switchover Valve - AR09.40-P-3000MRH
Engine 264 in model 213, 238, 257
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||

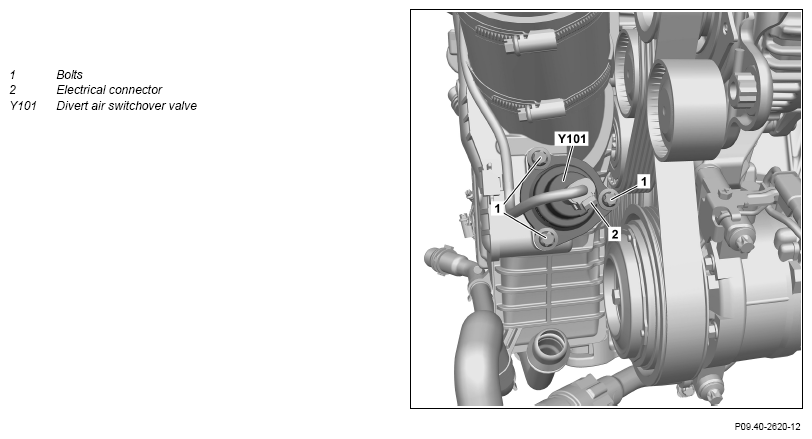

| 1 | Remove engine air intake duct upstream of air filter. | ||
| 2 | Release and disconnect electrical connector (2). | ||
| 3 | Remove bolts (1). | *BA09.41-P-1003-03F | |
| 4 | Remove overrun mode bypass air switchover valve (Y101). | ||
| 5 | Install in the reverse order. | ||
| 6 | Read out and delete fault memory. | ||
| Engine 264 in model 257 | AD00.00-P-2000-06FR | ||
| Engine 264 in model 213 | AD00.00-P-2000-04B | ||
| Engine 264 in model 238 | AD00.00-P-2000-06LWO | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Carry out engine test run and check engine for proper leaktightness and leaktightness. |
CHARGE AIR COOLER
| Number | Designation | Engine 264 | ||
|---|---|---|---|---|
| BA09.41-P-1003-03F | Screw/bolt, bypass air switchover valve to charge air cooler | M6 | Nm | 9 |
