Remove/Install Charge Air Pressure And Temperature Sensor Upstream Of Throttle Valve - AR09.41-P-2011MSA
Engine 256.9 in model 213, 238, 257, 290

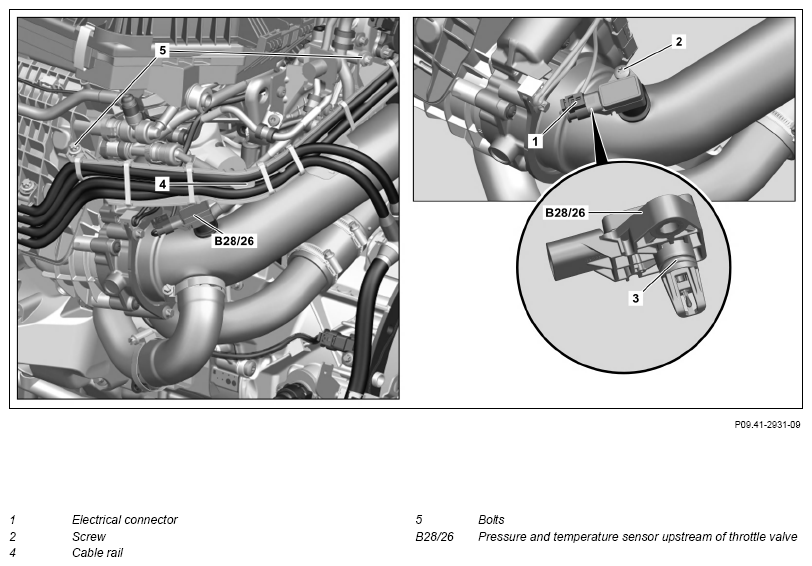

Fig 1: Charge Air Pressure And Temperature Sensor Upstream Of Throttle Valve Components Location - Engine 256.9 In Model 213
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove air filter housing. | AR09.10-P-1150MSA | |
| 2 | Remove screws (5) and place cable rail (4) to one side. | *BA00.10-P-1002-04A | |
| 3 | Release electrical connector (1) and disconnect. | ||
| 4 | Remove screw (2). | *BA09.41-P-1007-01MR T |
|
| 5 | Remove pressure and temperature sensor upstream of throttle valve (B28/26). | ||
| 6 | Install in the reverse order. | ||
| 7 | Read out and delete fault memory. | ||
| Engine 256.9 in model 213 | AD00.00-P-2000-04B | ||
| Engine 256.9 in model 238 | AD00.00-P-2000-06LWO | ||
| Engine 256.9 in model 257, 290 | AD00.00-P-2000-06FR | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Carry out engine test run and check engine for proper leaktightness and leaktightness. |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6 x 1 | Nm | 9 | 13 |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 256.9 | |
|---|---|---|---|
| BA09.41-P-1007-01MRT | Screw, pressure transducer to charge air line | Nm | 8 |
