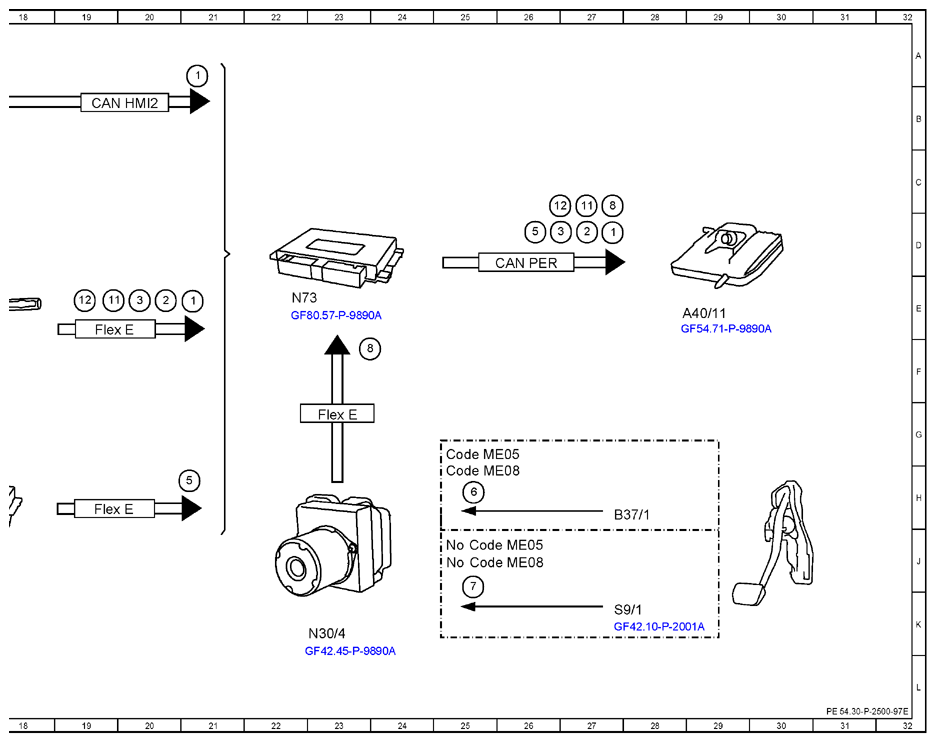

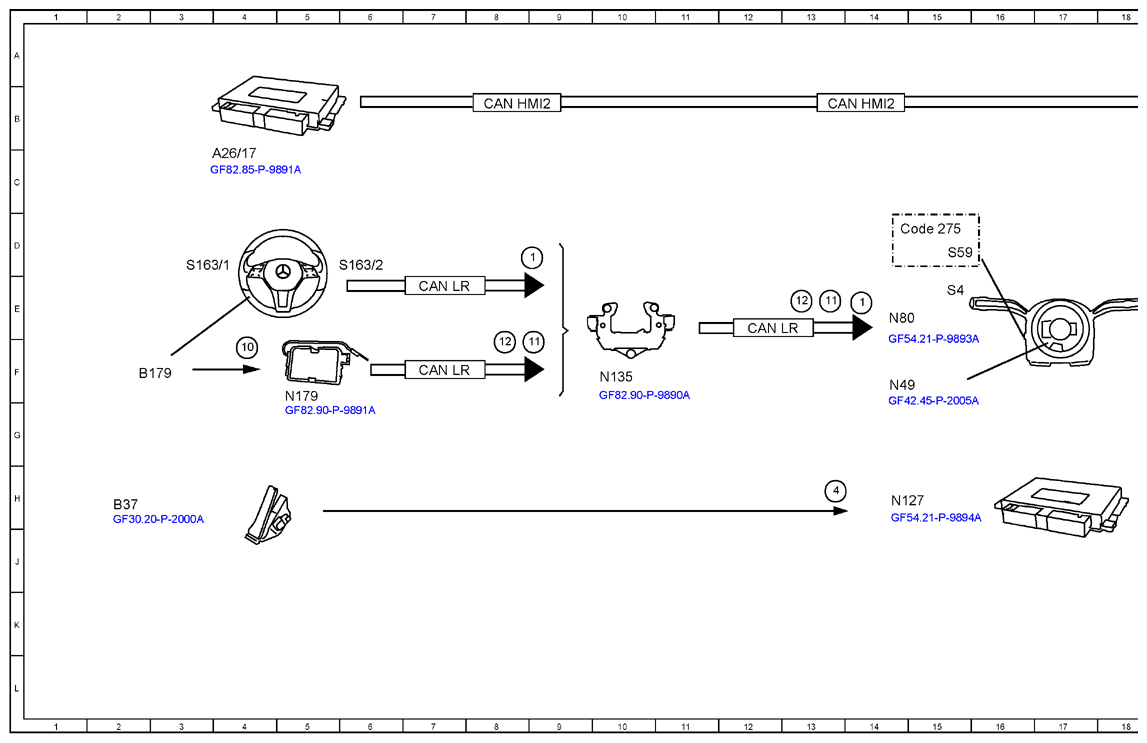

Recognize Driver Activity, Function Schematic - PE54.30-P-2500-97E
Model 213, 238, 257, 290 as of model year 2021 with code 234 (Blind Spot Assist) except code 51B (Rating, country group EURO-NCAP)
Model 213, 238, 257, 290 as of model year 2021 with code 243 (Active Lane Keeping Assist (camera)) except code 51B (Rating, country group EURO-NCAP)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 21B |
| 1 | Operation, signal | 21D |
| 1 | Operation, signal | 14E |
| 1 | Operation, signal | 9D |
| 1 | Operation, signal | 27D |
| 10 | Hand-detection sensor, signal | 4F |
| 11 | Hands-on detection, status | 20E |
| 11 | Hands-on detection, status | 27D |
| 11 | Hands-on detection, status | 9F |
| 11 | Hands-on detection, status | 14E |
| 12 | Hands-Off-Detection, status | 19D |
| 12 | Hands-Off-Detection, status | 27D |
| 12 | Hands-Off-Detection, status | 8F |
| 12 | Hands-Off-Detection, status | 13E |
| 2 | Steering wheel angle, signal | 20E |
| 2 | Steering wheel angle, signal | 27D |
| 3 | Steering wheel velocity, signal | 20E |
| 3 | Steering wheel velocity, signal | 27D |
| 4 | Accelerator pedal sensor, signal | 14H |
| 5 | Accelerator pedal position, signal | 21H |
| 5 | Accelerator pedal position, signal | 25D |
| 6 | Pedal angle sensor, signal | 25H |
| 7 | Brake light switch, status | 25K |
| 8 | Service brake, status | 23F |
| 8 | Service brake, status | 27D |
| A26/17 | Head unit | 4C |
| A40/11 | Mono multifunction camera | 29E |
| B179 | Hand-detection sensor | 2F |
| B37 | Accelerator pedal sensor | 2H |
| B37/1 | Pedal angle sensor | 27H |
| CAN HMI2 | User interface CAN 2 | 8B |
| CAN HMI2 | User interface CAN 2 | 19B |
| CAN HMI2 | User interface CAN 2 | 14B |
| CAN LR | Steering wheel CAN | 12E |
| CAN LR | Steering wheel CAN | 7E |
| CAN LR | Steering wheel CAN | 7F |
| CAN PER | Peripherals CAN | 26D |
| Code 275 | Memory package | 14D |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 25J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 25G |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 25J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 25H |
| Flex E | Chassis FlexRay | 19E |
| Flex E | Chassis FlexRay | 19H |
| Flex E | Chassis FlexRay | 23G |
| N127 | Drivetrain control unit | 14H |
| N135 | Steering wheel electronics | 10F |
| N179 | Hand detection system control unit | 5F |
| N30/4 | Electronic Stability Program control unit | 23K |
| N49 | Steering wheel angle sensor | 14F |
| N73 | Electronic ignition switch control unit | 22E |
| N80 | Steering column module control unit | 14E |
| S163/1 | Instrument cluster multifunction steering wheel button group | 3D |
| S163/2 | Head unit multifunction steering wheel button group | 5D |
| S4 | Combination switch | 15E |
| S59 | Steering column adjustment switch | 15D |
| S9/1 | Stop lamp switch | 27K |
