Hand Motion Sensor Wiring Diagram - PE54.21-P-2166-97DDA

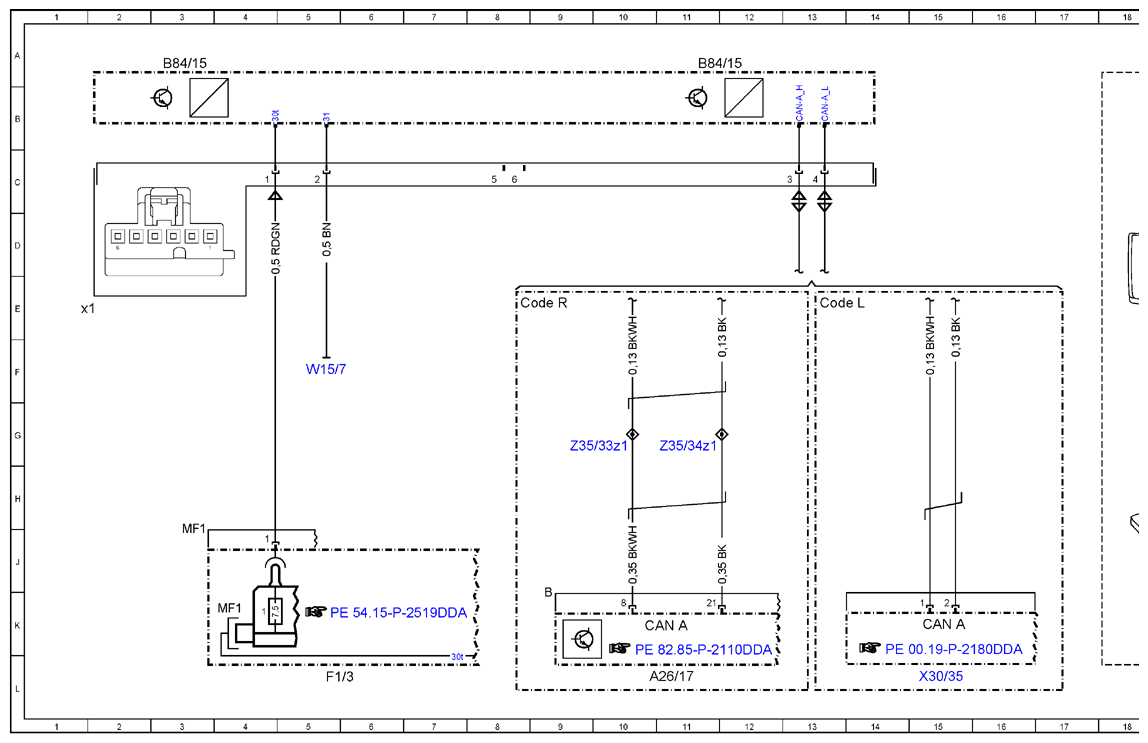

Model 213 as of model year 2021 with code 77B (Contactless gesture control at front) Hand motion sensor B84/15

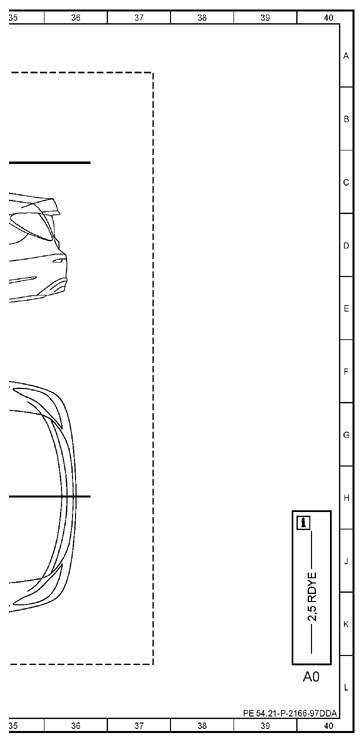

| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| A26/17 | Head unit | 11L |

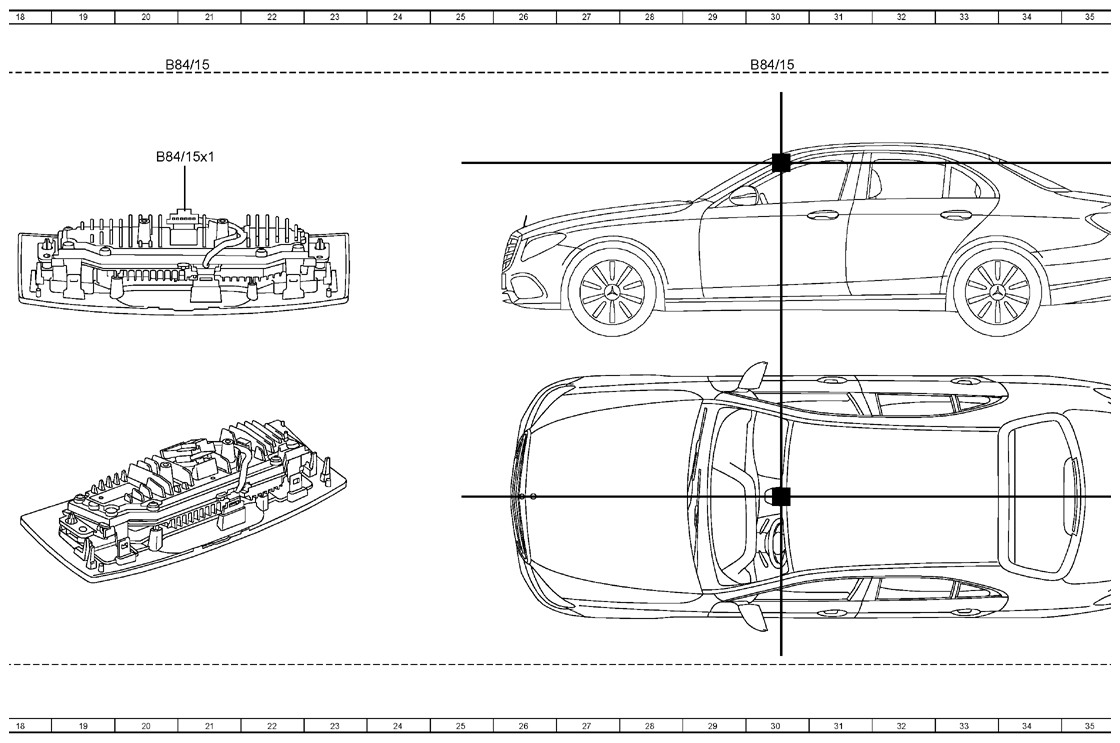

| B84/15 | Hand motion sensor | 3A |
| B84/15 | Hand motion sensor | 30A |
| B84/15 | Hand motion sensor | 20A |
| B84/15 | Hand motion sensor | 11A |
| B84/15x1 | 1E | |
| CAN A | Telematics CAN | 11K |
| CAN A | Telematics CAN | 15K |
| Code L | LEFT-HAND DRIVE | 13E |
| Code R | RIGHT-HAND DRIVE | 8E |
| F1/3 | Passenger-side A-pillar fuse box | 5L |
| F1/3MF1 | Multiple fuse 1 | 4K |
| W15/7 | Right front footwell ground point | 5F |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 15L |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 10G |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 11G |
