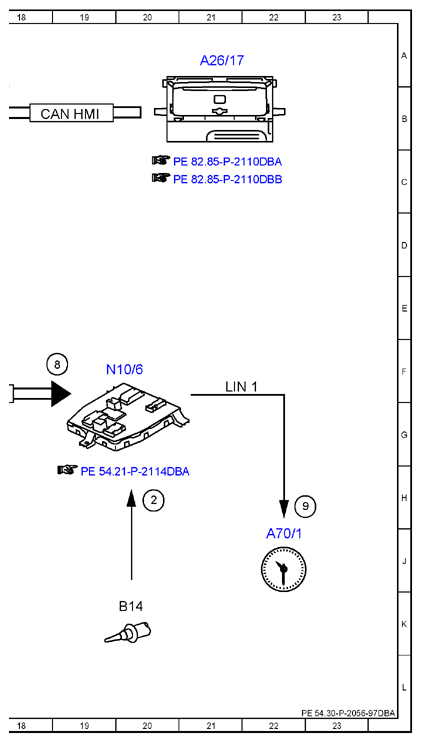

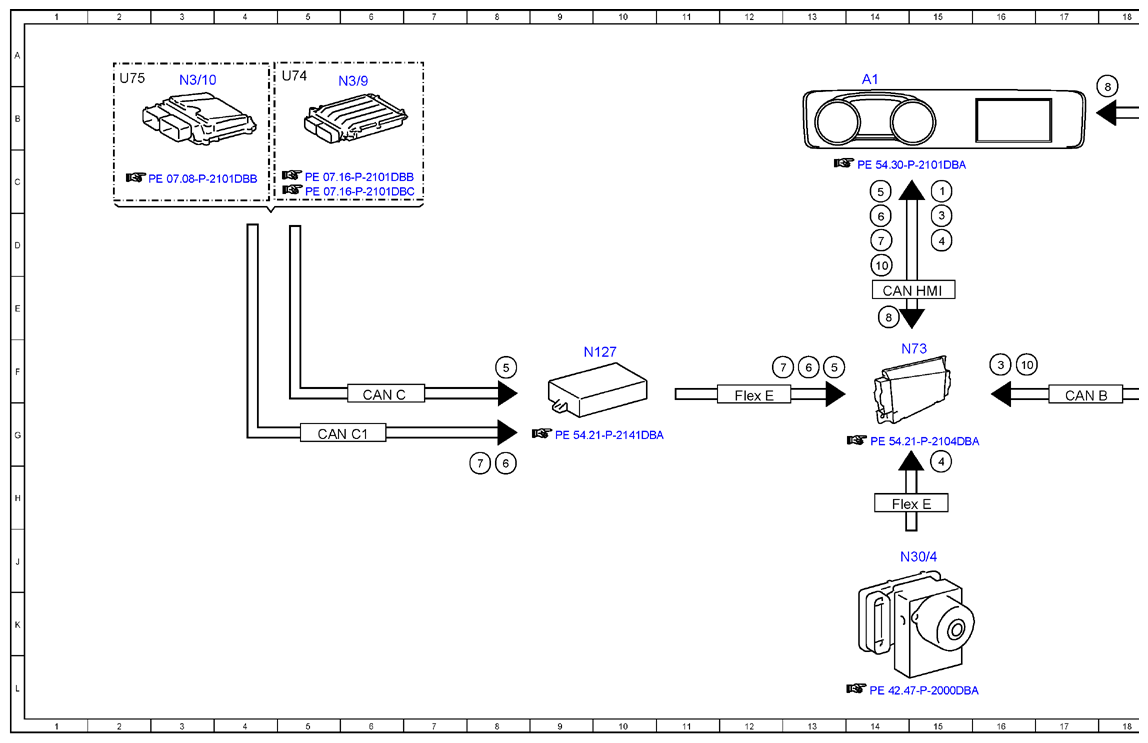

Electrical Function Schematic Of Instrument Cluster, Comfort Display - PE54.30-P-2056-97DBA
Model 213 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 15C |
| 10 | Instrument illumination brightness control, status | 16F |
| 10 | Instrument illumination brightness control, status | 14D |
| 2 | Outside temperature sensor, signal | 20H |
| 3 | Outside temperature, signal | 16F |
| 3 | Outside temperature, signal | 15D |
| 4 | Vehicle speed, signal | 15G |
| 4 | Vehicle speed, signal | 15D |
| 5 | Coolant temperature, signal | 8F |
| 5 | Coolant temperature, signal | 14C |
| 5 | Coolant temperature, signal | 13F |
| 6 | Engine running, signal | 8H |
| 6 | Engine running, signal | 14D |
| 6 | Engine running, signal | 13F |
| 7 | Drivetrain operational, signal | 8H |
| 7 | Drivetrain operational, signal | 14D |
| 7 | Drivetrain operational, signal | 12F |
| 8 | Time, signal | 19F |
| 8 | Time, signal | 18B |
| 8 | Time, signal | 14E |
| 9 | Analog clock, actuation | 22H |
| A1 | Instrument cluster | 14A |
| A26/17 | Head unit | 21A |
| A70/1 | Analog clock | 22J |
| B14 | Outside temperature sensor | 20K |
| CAN B | Interior CAN | 17F |
| CAN C | Engine CAN | 6F |
| CAN C1 | Drive train CAN | 5G |
| CAN HMI | User interface CAN | 14E |
| CAN HMI | User interface CAN | 19B |
| Flex E | Chassis FlexRay | 12F |
| Flex E | Chassis FlexRay | 14H |
| LIN 1 | Instrument panel LIN | 21F |
| N10/6 | Front SAM control unit | 20F |
| N127 | Drivetrain control unit | 9F |
| N3/10 | ME-SFI [ME] control unit | 3A |
| N3/9 | CDI control unit | 6A |
| N30/4 | Electronic Stability Program control unit | 15J |
| N73 | Electronic ignition switch control unit | 14F |
| U74 | Valid for diesel engines | 5A |
| U75 | Valid for gasoline engines | 2A |
