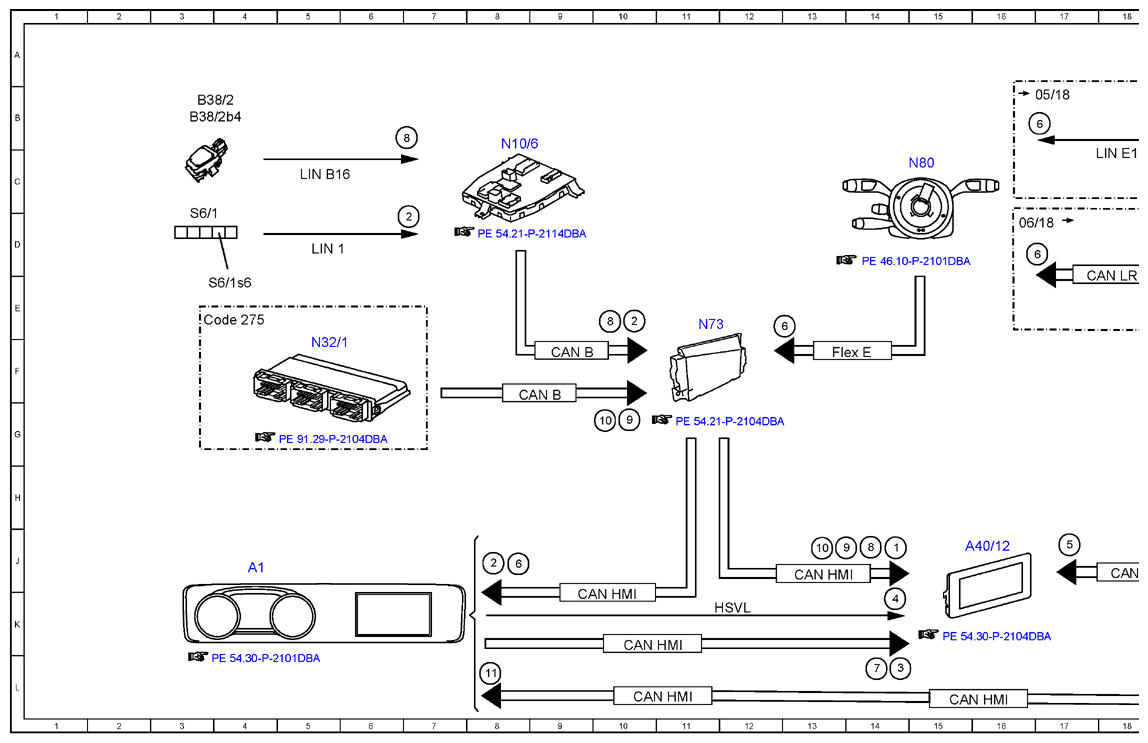

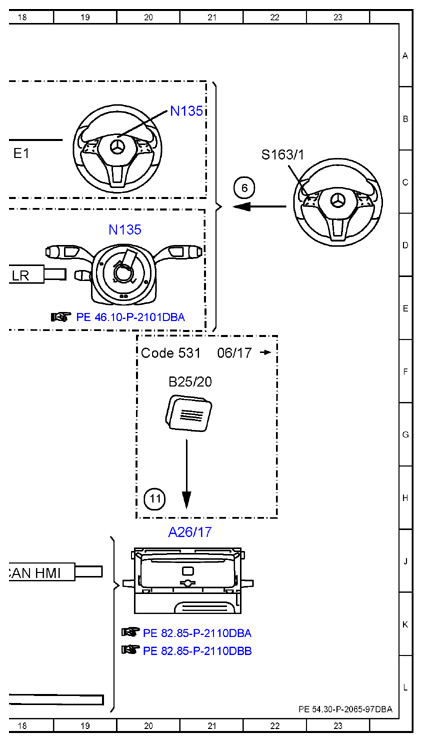

Electrical Function Schematic For Head-Up Display - PE54.30-P-2065-97DBA
Model 213 up to model year 2021 with code 463 (Head-up display)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 14J |
| 10 | Adopt memory position, request | 10F |
| 10 | Adopt memory position, request | 13J |
| 11 | Voice input, signal | 8L |
| 11 | Voice input, signal | 20H |
| 2 | Head-up display button, status | 7D |
| 2 | Head-up display button, status | 10E |
| 2 | Head-up display button, status | 8J |
| 3 | Head-up display ON/OFF, request | 14L |
| 4 | High-speed video link video signal data transfer, signal | 14K |
| 5 | Navigation data, signal | 17J |
| 6 | Multifunction steering wheel button group, signal | 21C |
| 6 | Multifunction steering wheel button group, signal | 13E |
| 6 | Multifunction steering wheel button group, signal | 8J |
| 6 | Multifunction steering wheel button group, signal | 17B |
| 6 | Multifunction steering wheel button group, signal | 17D |
| 7 | Head-up display settings, request | 14L |
| 8 | Head-up display light sensor, signal | 14J |
| 8 | Head-up display light sensor, signal | 10D |
| 8 | Head-up display light sensor, signal | 7C |
| 9 | Store memory position, request | 10G |
| 9 | Store memory position, request | 13J |
| A1 | Instrument cluster | 4J |
| A26/17 | Head unit | 20J |
| A40/12 | Head-up display | 16J |
| B25/20 | Driver hands-free system microphone | 20F |
| B38/2 | Rain/light sensor with additional functions | 3B |
| B38/2b4 | Head-up display light sensor | 3B |
| CAN B | Interior CAN | 9F |
| CAN B | Interior CAN | 9F |
| CAN HMI | User interface CAN | 10K |
| CAN HMI | User interface CAN | 13J |
| CAN HMI | User interface CAN | 10K |
| CAN HMI | User interface CAN | 18J |
| CAN HMI | User interface CAN | 10L |
| CAN HMI | User interface CAN | 15L |
| CAN LR | Steering wheel CAN | 18E |
| Code 275 | Memory package | 3E |
| Code 531 | COMMAND APS | 20F |
| Flex E | Chassis FlexRay | 13F |
| HSVL | High-speed video link | 12K |
| LIN 1 | Instrument panel LIN | 5D |
| LIN B16 | Rain and light sensor LIN | 5C |
| LIN E1 | Steering LIN | 18C |
| N10/6 | Front SAM control unit | 8B |
| N135 | Steering wheel electronics | 20D |
| N135 | Steering wheel electronics | 20B |
| N32/1 | Driver seat control unit | 5F |
| N73 | Electronic ignition switch control unit | 11E |
| N80 | Steering column module control unit | 15C |
| S163/1 | Instrument cluster multifunction steering wheel button group | 22C |
| S6/1 | Driver-side instrument panel button group | 3D |
| S6/1s6 | Head-up display button | 3E |
