Remove/Install Lower Control Panel - AR54.25-P-0005LWE

Model 213, 238

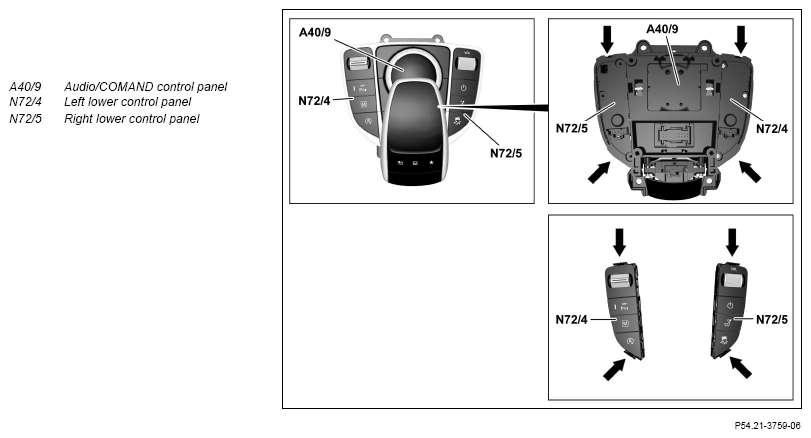

Shown on model 213 with transmission 725 and with code 448 (Touchpad)

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1.1	Remove Audio/COMAND control panel (A40/9)	Model 213, 238 with transmission 725 except code 446 (Touchpad only) except code 448 (Touchpad) Model 213, 238 with transmission 725 with code 448 (Touchpad) except code 446 (Touchpad only)	AR54.21-P-0501LWE
1.2	Remove touchpad	Model 213, 238 with transmission 725 with code 446 (Touchpad only) except code 448 (Touchpad)	AR54.21-P-0503LWA
1.3	Remove cover on center console	Model 213, 238 with transmission 716 Model 238 with transmission 716	AR68.20-P-2350LWP
		Model 213 with transmission 716	AR68.20-P-2350LWA
2.1	Unclip left lower control panel (N72/4) or right lower control panel (N72/5) on Audio/COMAND control panel (A40/9) (arrows)	Model 213 238 with transmission 725 except code 446 (Touchpad only) except code 448 (Touchpad) Model 213 238 with transmission 725 with code 448 (Touchpad) except code 446 (Touchpad only) Clip remover	Fig 1
2.2	Unclip left lower control panel (N72/4) or right lower control panel (N72/5) on touchpad	Model 213 238 with transmission 725 with code 446 (Touchpad only) except code 448 (Touchpad) Clip remover	Fig 1
2.3	Unclip left lower control panel (N72/4) or right lower control panel (N72/5) from cover of center console	Model 213, 238 with transmission 716
		Clip remover	Fig 1
3	Install in the reverse order

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
