Remove/Install Control Unit For Windshield Heater - AR54.21-P-0122LWE
Model 213
with code 597 (Heated windscreen)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of windshield heater control unit (N61) | When replacing windshield heater control unit (N61). | |
| AD00.00-P-2000-04B | |||
| 2 | Remove on-board electrical system battery | AR54.10-P-0005LW | |

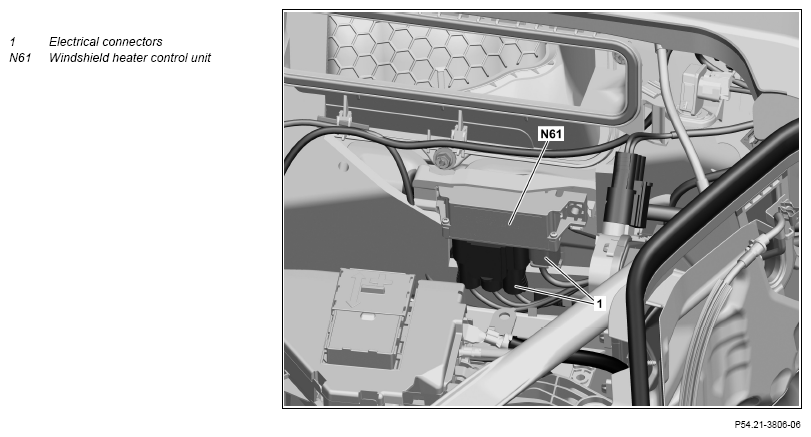

| 3 | Separate electrical connections (1) | ||
| 4 | Remove windshield heater control unit (N61) | ||
| 5 | Install in the reverse order |
