Remove/Install Active Brake Assist Electric Controller Unit - AR54.21-P-0700LWE
Model 213, 238
with code 258 (COLLISION PREVENTION ASSIST)

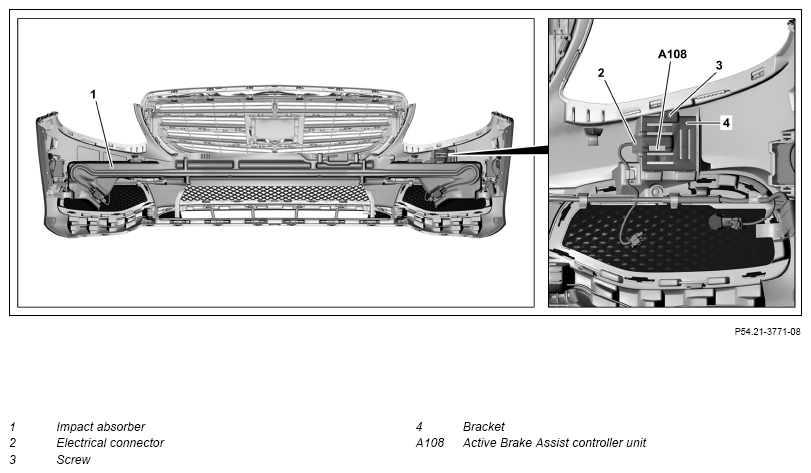

Shown on bumper of model 213
| Notes on preventing damage to electronic components due to a magnetic tool | AH54.00-P-0002-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission Active Brake Assist controller unit (A108) | When replacing Active Brake Assist controller unit (A108). | |
| Model 238 with code 258 (COLLISION PREVENTION ASSIST) | AD00.00-P-2000-06LWO | ||
| Model 213 with code 258 (COLLISION PREVENTION ASSIST) | AD00.00-P-2000-04B | ||
| 2 | Remove front bumper | AR88.20-P-2000LWE | |
| 3.1 | Remove impact absorber (1) from front bumper | Model 213, 238 with code 258 (COLLISION PREVENTION ASSIST) except code U60 (Active Bonnet (Pedestrian protection)) | |
| General information on the impact absorber | AH88.20-P-1000-01A | ||
| 3.2 | Remove pedestrian protection sensors together with impact absorber (1) from front bumper | Model 213, 238 with code 258 (COLLISION PREVENTION ASSIST) with code U60 (Active Bonnet (Pedestrian protection)) | AR91.60-P-0950LWE |
| 4 | Disconnect electrical connection (2) | ||
| 5 | Unscrew bolt (3) and remove bracket (4) | ||
| 6 | Remove Active Brake Assist controller unit (A108) from front bumper | ||
| 7 | Install in the reverse order |
