(Bleed Brake System - AR42.10-P-0010LW)

Model 205

Model 253

Model 293

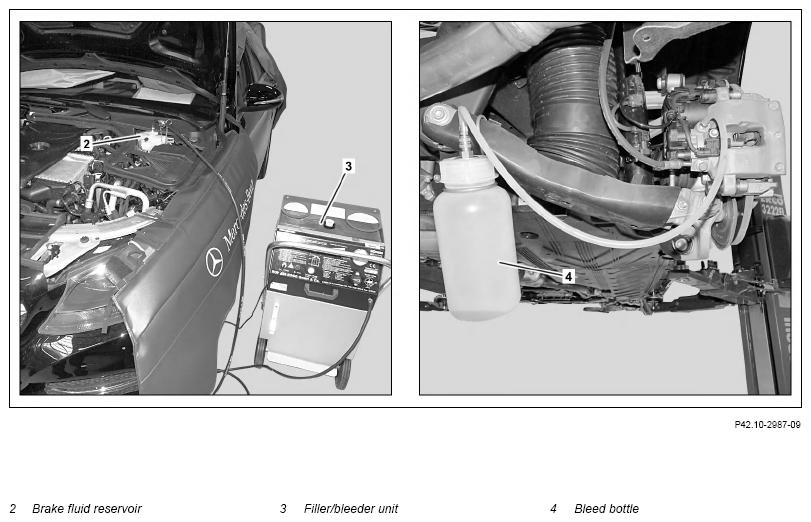

Shown on model 205

Courtesy of MERCEDES-BENZ USA

	Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove
1	Remove cover over brake fluid reservoir (2).
2	Clean area around cap of brake fluid reservoir (2).	Assembly cleaner	*BR00.45-Z-1028-04A
3	Unscrew cap of brake fluid reservoir (2).
4	Fill brake fluid reservoir (2) with new brake fluid up to the MAX mark. Brake fluids (DOT 4 plus)		BB00.40-P-0331-00A
	General brake fluid		BB00.40-P-0330-01A
5	Connect filler/bleeder unit (3) to brake fluid reservoir (2). 000 588 01 82 00 Filling unit		WS25.00-P-0016B
	Brake fluids (DOT 4 plus)	Observe manufacturer's operating instructions.	BB00.40-P-0331-00A
	General brake fluid		BB00.40-P-0330-01A
6	Remove front wheels.		AR40.10-P-1102A
	Bleeding
7	Switch on filler/bleeder unit (3).
8	Bleed the system.		AR42.10-P-0010-02LW
	000 588 01 82 00 Filling unit		WS25.00-P-0016B
		Bleed screw to brake caliper	*BA42.10-P-1002-12V
		Bleed screw at brake caliper	*BA42.10-P-1003-10W
9	Switch off filler/bleeder unit (3) and disconnect from brake fluid reservoir (2).
10	Correct fluid level in brake fluid reservoir (2).	Model 205	AP42.10-P-4210CAA
		Model 253	AP42.10-P-4210B
		Model 293	AP42.10-P-4210F
	Check
11	Check brake system for leaks.		AR42.10-P-0100-01V
	Install
12	Install front wheels.		AR40.10-P-1102A
13	Screw cap onto brake fluid reservoir (2).
14	Install cover over brake fluid reservoir (2).
