Remove/Install Cover On Stowage Box - AR68.20-P-1020LWE
Model 213, 238 with transmission 725

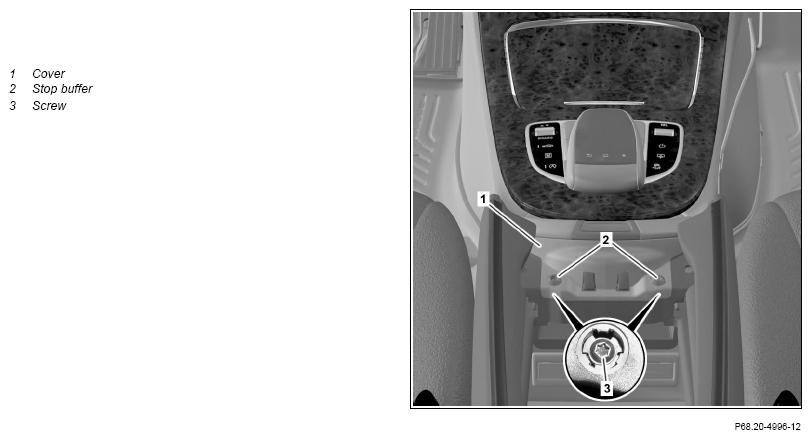

Shown on model 238.3

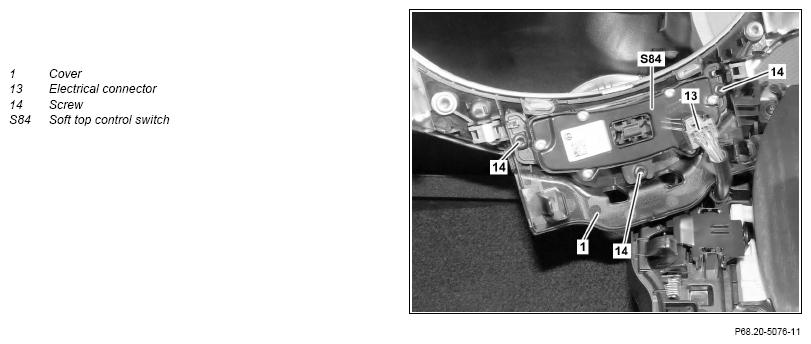

Shown on model 238.4
| Remove/install | |||
| 1 | Open armrest cover | ||
| 2 | Remove stop buffer (2) | ||
| 3 | Remove bolts (3) | ||
| 4 | Remove cover (1) until electrical connector (13) can be accessed | Model 238.4 with transmission 725 | |
| 5 | Disconnect electrical connection (13) | Model 238.4 with transmission 725 | |
| 6 | Take off cover (1) | ||
| 7 | Unscrew bolts (14) and remove soft top control switch (S84) | Model 238.4 with transmission 725 When replacing cover (1). | |
| 8 | Install in the reverse order |
