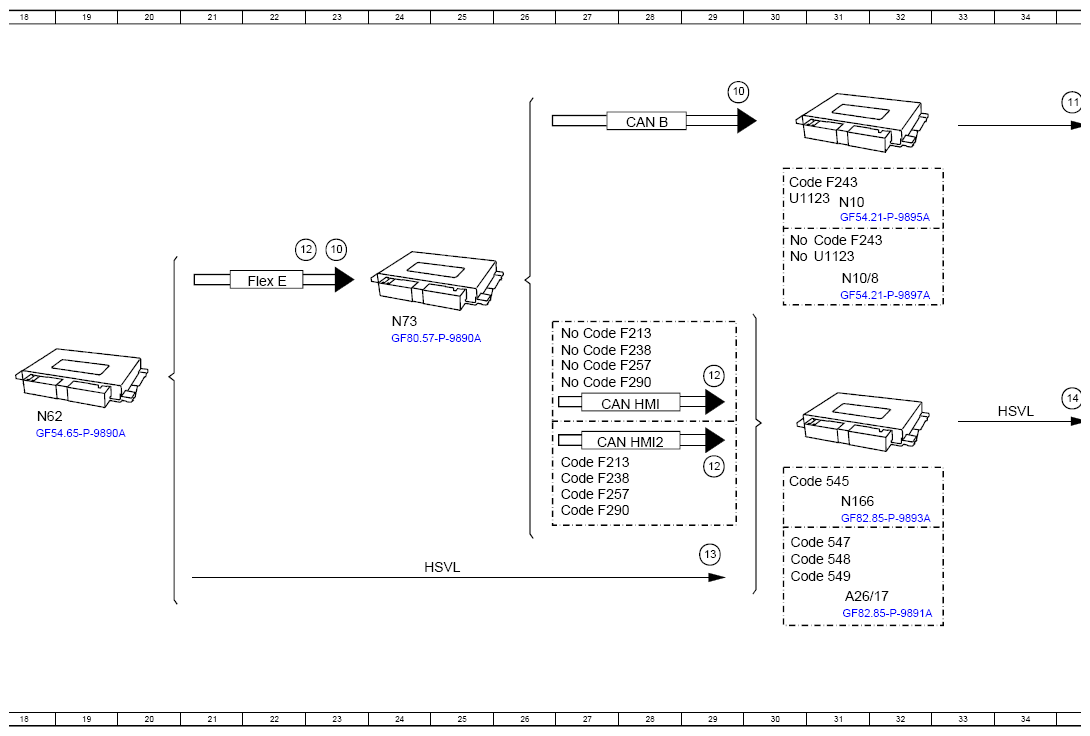

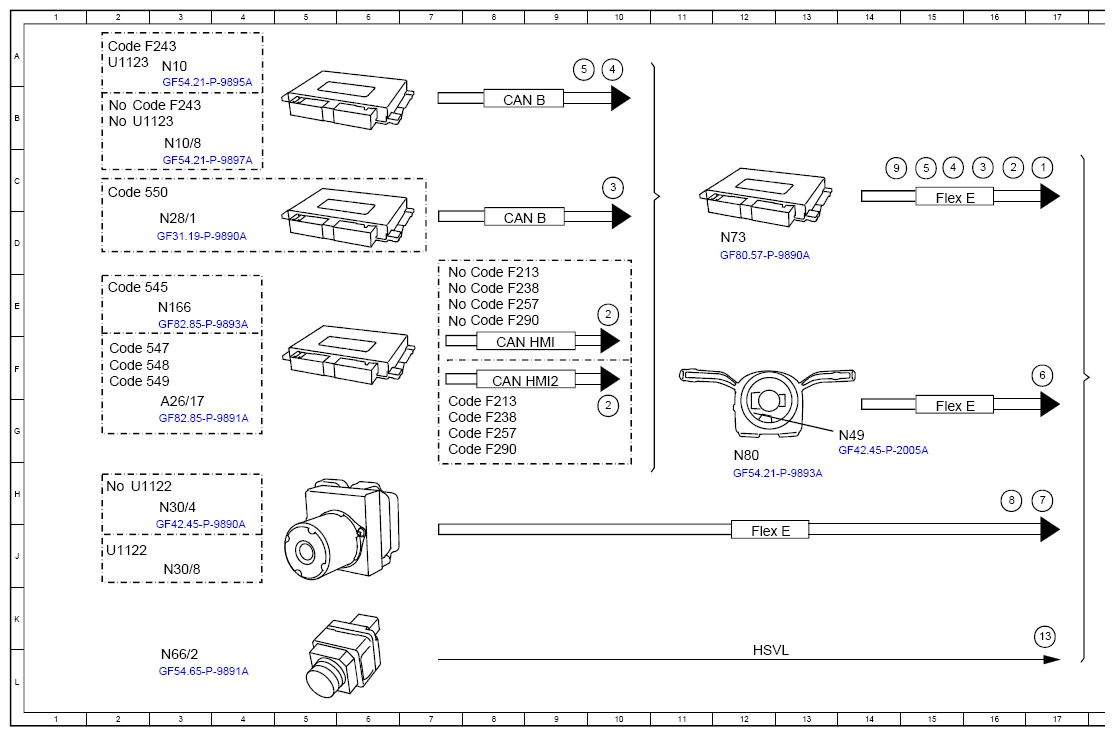

Reversing Camera Picture Display, Function Schematic - PE54.65-P-2503-97B
Model 118, 167, 177, 243, 247, 293 with code 218 (Rear view camera) with code 235 (Active Parking Assist)
Model 213, 238, 257, 290 as of model year 2021 with code 218 (Rear view camera) with code 235 (Active Parking Assist)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 17C |
| 10 | "Open" rear camera cover, request | 23D |
| 10 | "Open" rear camera cover, request | 29B |
| 11 | Rear camera cover motor, actuation | 35B |
| 12 | Reversing camera display, request | 23D |
| 12 | Reversing camera display, request | 29H |
| 12 | Reversing camera display, request | 29H |
| 13 | Camera image, signal | 17L |
| 13 | Camera image, signal | 29J |
| 14 | Image data, signal | 35G |
| 2 | Backup camera function, status | 16C |
| 2 | Backup camera function, status | 10F |
| 2 | Backup camera function, status | 10G |
| 3 | Trailer recognition, status | 16C |
| 3 | Trailer recognition, status | 10D |
| 4 | Trunk lid/liftgate lock main catch switch, status | 10A |
| 4 | Trunk lid/liftgate lock main catch switch, status | 15C |
| 5 | Rear camera cover motor switch, status | 15C |
| 5 | Rear camera cover motor switch, status | 9A |
| 6 | Steering wheel angle, signal | 17G |
| 7 | Wheel speed, signal | 17J |
| 8 | Wheel rotation direction, signal | 16J |
| 9 | Reverse gear, status | 14C |
| A26/17 | Head unit | 3G |
| A26/17 | Head unit | 31K |
| A40/16 | Head unit/instrument cluster display cluster | 37H |
| CAN B | Interior CAN | 8D |
| CAN B | Interior CAN | 8B |
| CAN B | Interior CAN | 28B |
| CAN HMI | User interface CAN | 27G |
| CAN HMI | User interface CAN | 8F |
| CAN HMI2 | User interface CAN 2 | 27G |
| CAN HMI2 | User interface CAN 2 | 8F |
| Code 545 | Connect 5 (NTG6) | 2E |
| Code 545 | Connect 5 (NTG6) | 30H |
| Code 547 | Connect 20 Entry (NTG6) | 2F |
| Code 547 | Connect 20 Entry (NTG6) | 30J |
| Code 548 | Connect 20 MID (NTG6) | 2F |
| Code 548 | Connect 20 MID (NTG6) | 30J |
| Code 549 | Connect 20 HIGH (NTG6) | 2F |
| Code 549 | Connect 20 HIGH (NTG6) | 30J |
| Code 550 | Trailer hitch | 2C |
| Code F213 | Model series 213 | 27F |
| Code F213 | Model series 213 | 27H |
| Code F213 | Model series 213 | 8E |
| Code F213 | Model series 213 | 7G |
| Code F238 | Model series 238 | 27F |
| Code F238 | Model series 238 | 27H |
| Code F238 | Model series 238 | 8E |
| Code F238 | Model series 238 | 7G |
| Code F243 | MODEL SERIES 243 | 30C |
| Code F243 | MODEL SERIES 243 | 31D |
| Code F243 | MODEL SERIES 243 | 2A |
| Code F243 | MODEL SERIES 243 | 2B |
| Code F257 | MODEL SERIES 257 | 27F |
| Code F257 | MODEL SERIES 257 | 27H |
| Code F257 | MODEL SERIES 257 | 8E |
| Code F257 | MODEL SERIES 257 | 7G |
| Code F290 | Model series 290 | 27F |
| Code F290 | Model series 290 | 27H |
| Code F290 | Model series 290 | 8E |
| Code F290 | Model series 290 | 7G |
| Flex E | Chassis FlexRay | 15C |
| Flex E | Chassis FlexRay | 22E |
| Flex E | Chassis FlexRay | 12J |
| Flex E | Chassis FlexRay | 15G |
| HSVL | High-speed video link | 34G |
| HSVL | High-speed video link | 12L |
| HSVL | High-speed video link | 25J |
| M35/2 | Rear camera cover motor | 37C |
| N10 | Signal acquisition and actuation module | 31C |
| N10 | Signal acquisition and actuation module | 3A |
| N10/8 | Rear SAM control unit | 31E |
| N10/8 | Rear SAM control unit | 3B |
| N166 | Head unit/instrument cluster control unit | 3E |
| N166 | Head unit/instrument cluster control unit | 31H |
| N28/1 | Trailer recognition control unit | 3D |
| N30/4 | Electronic Stability Program control unit | 3H |
| N30/8 | Regenerative braking system control unit | 3J |
| N49 | Steering wheel angle sensor | 14G |
| N62 | Parking system control unit | 18G |
| N66/2 | Backup camera control unit | 3L |
| N73 | Electronic ignition switch control unit | 12D |
| N73 | Electronic ignition switch control unit | 24E |
| N80 | Steering column module control unit | 12G |
| U1122 | Valid for model 293 | 2J |
| U1122 | Valid for model 293 | 2H |
| U1123 | Valid for model 118, 177, 247 | 30C |
| U1123 | Valid for model 118, 177, 247 | 31D |
| U1123 | Valid for model 118, 177, 247 | 2A |
| U1123 | Valid for model 118, 177, 247 | 2B |
