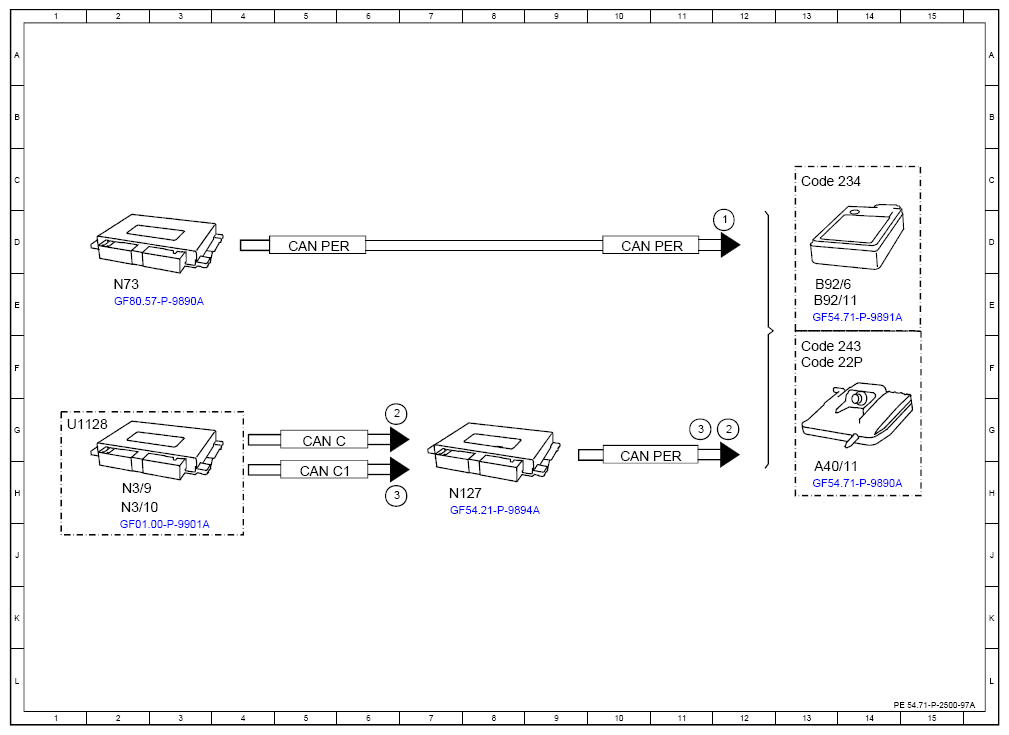

Monitor Traffic Situation, Function Schematic - PE54.71-P-2500-97A
Model 118, 167, 177, 243, 247, 293 with code 234 (Blind Spot Assist) except code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) except code 51B (Rating, country group EURO-NCAP)
Model 118, 167, 177, 243, 247, 293 with code 243 (Active Lane Keeping Assist (camera)) except code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) except code 51B (Rating, country group EURO-NCAP)
Model 213, 238, 257, 290 as of model year 2021 with code 234 (Blind Spot Assist) except code 233 (Adaptive cruise control Plus (DISTRONIC PLUS))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 12D |
| 2 | Engine running, signal | 12G |
| 2 | Engine running, signal | 6G |
| 3 | Drivetrain operational, signal | 7H |
| 3 | Drivetrain operational, signal | 12G |
| A40/11 | Mono multifunction camera | 13H |
| B92/11 | Left outer rear bumper integrated radar sensor | 13E |
| B92/6 | Right outer rear bumper integrated radar sensor | 13E |
| CAN C | Engine CAN | 5G |
| CAN C1 | Drivetrain CAN | 5H |
| CAN PER | Peripherals CAN | 10D |
| CAN PER | Peripherals CAN | 10G |
| CAN PER | Peripherals CAN | 5D |
| Code 22P | Track package | 13F |
| Code 234 | Blind spot assist | 13C |
| Code 243 | Active Lane Keeping Assist | 13F |
| N127 | Drivetrain control unit | 7H |
| N3/10 | ME-SFI [ME] control unit | 2H |
| N3/9 | CDI control unit | 2H |
| N73 | Electronic ignition switch control unit | 2E |
| U1128 | Valid for combustion engine | 1G |
