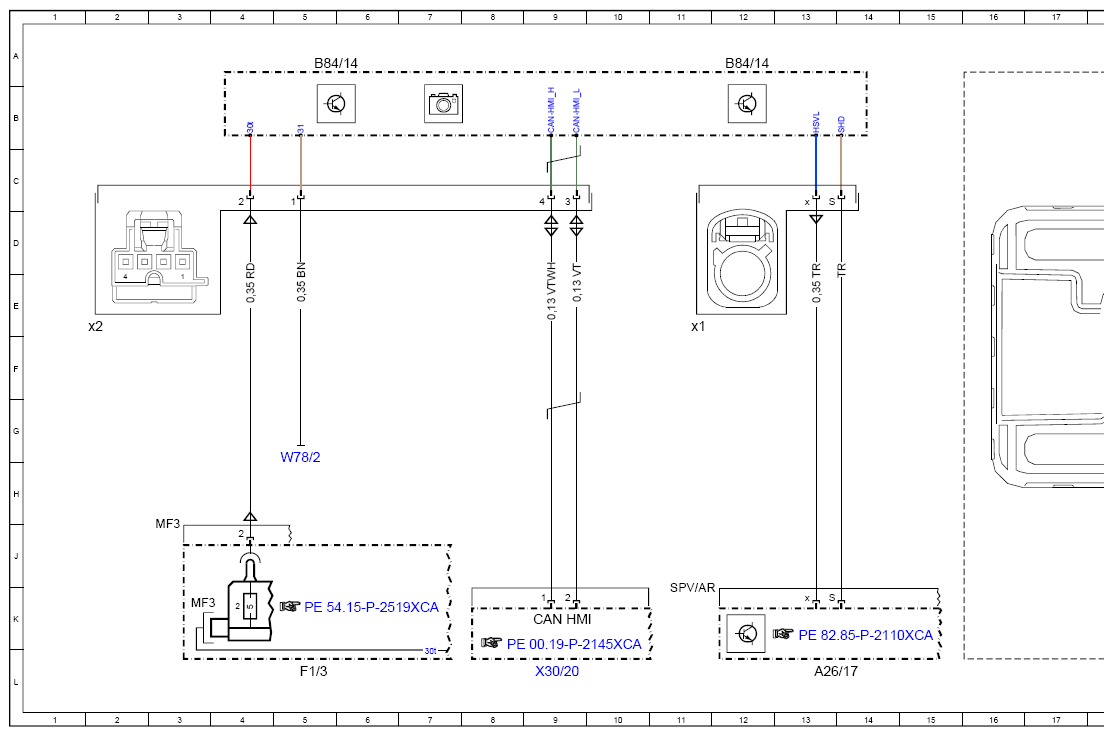

Wiring Diagram For Augmented Reality Camera - PE54.21-P-2159-97XCA
Model 257, 290 as of model year 2021 with code U19 (Augmented reality video) Camera B84/14
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| A26/17 | Head unit | 13L |

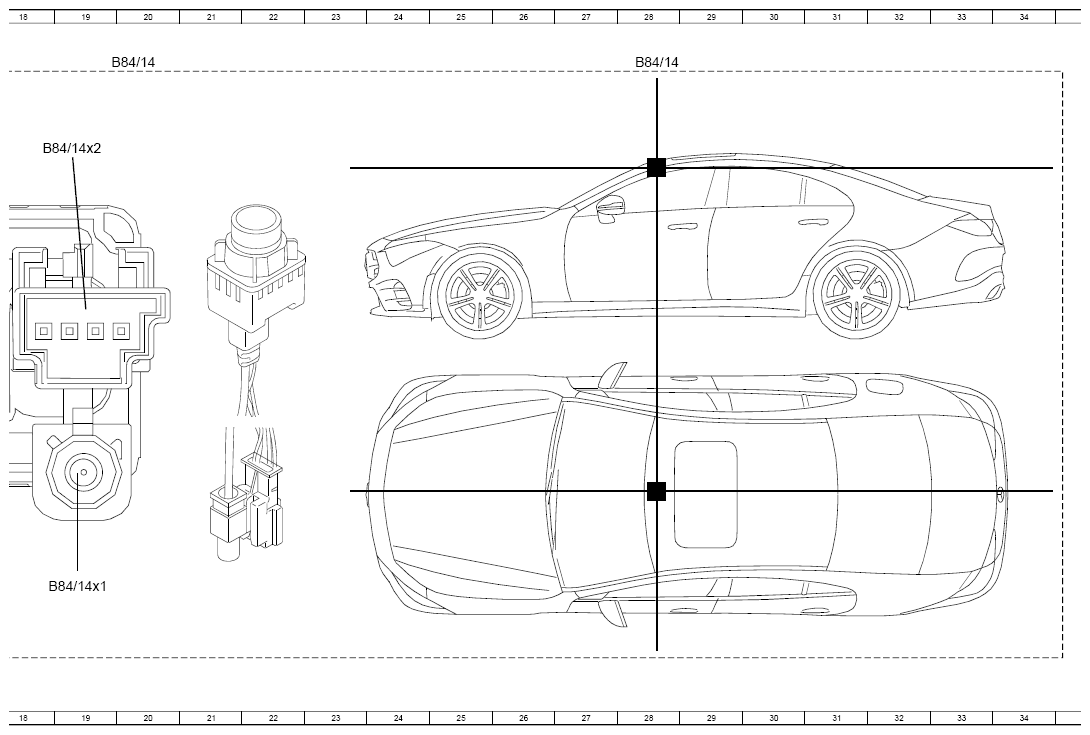

| B84/14 | Augmented reality camera | 5A |
| B84/14 | Augmented reality camera | 12A |
| B84/14 | Augmented reality camera | 20A |
| B84/14 | Augmented reality camera | 28A |
| B84/14x1 | Augmented reality camera electrical connector 1 | 11E |
| B84/14x1 | Augmented reality camera electrical connector 1 | 19K |
| B84/14x2 | Augmented reality camera electrical connector 2 | 2E |
| B84/14x2 | Augmented reality camera electrical connector 2 | 19C |
| CAN HMI | User interface CAN | 9K |
| F1/3 | Passenger-side A-pillar fuse box | 5L |
| F1/3MF3 | Multiple fuse 3 | 3K |
| W78/2 | Roof ground point 2 | 5H |
| X30/20 | User interface CAN (CAN HMI) potential distributor | 9L |
