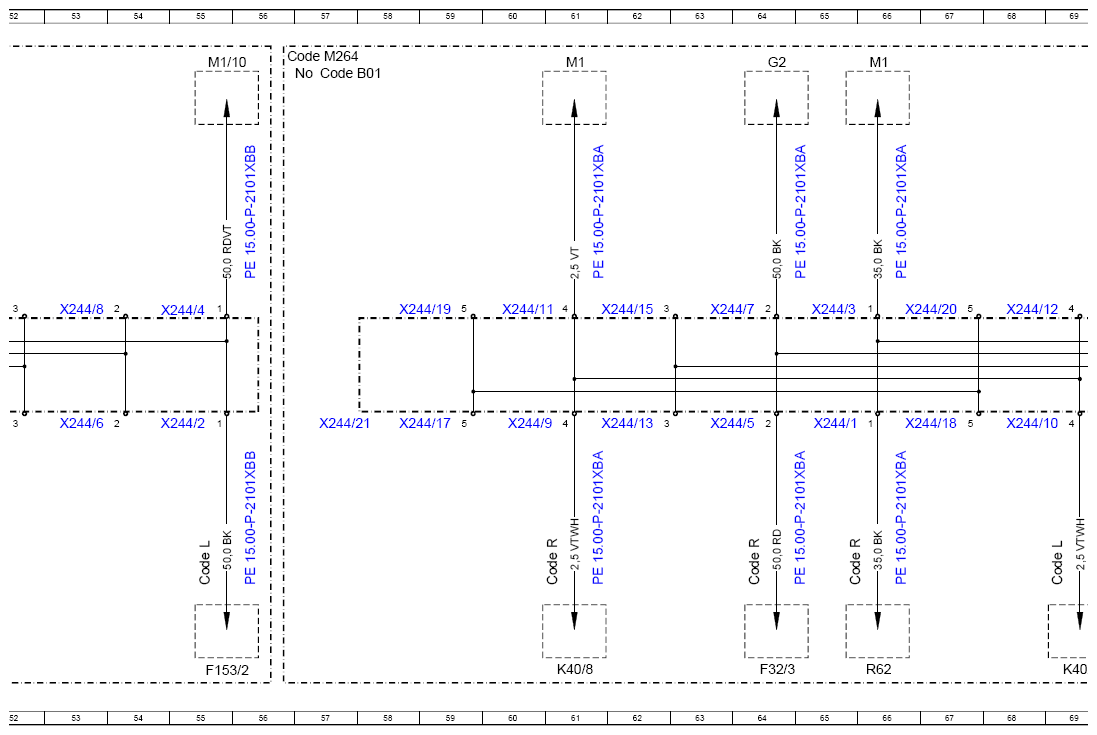

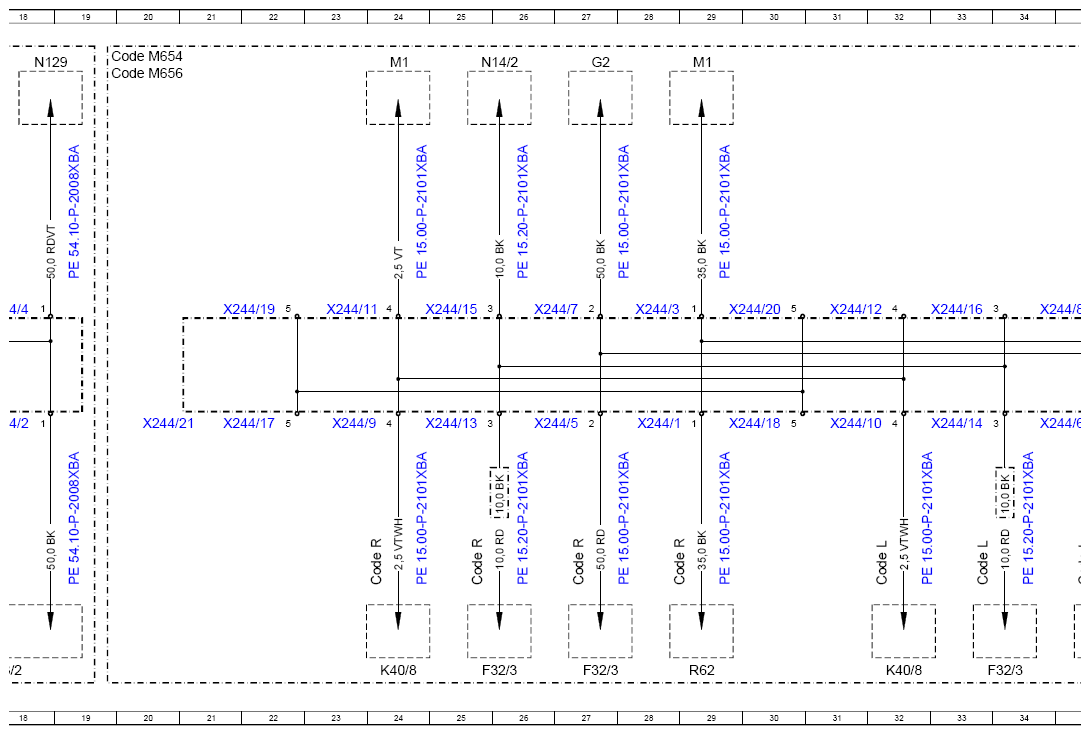

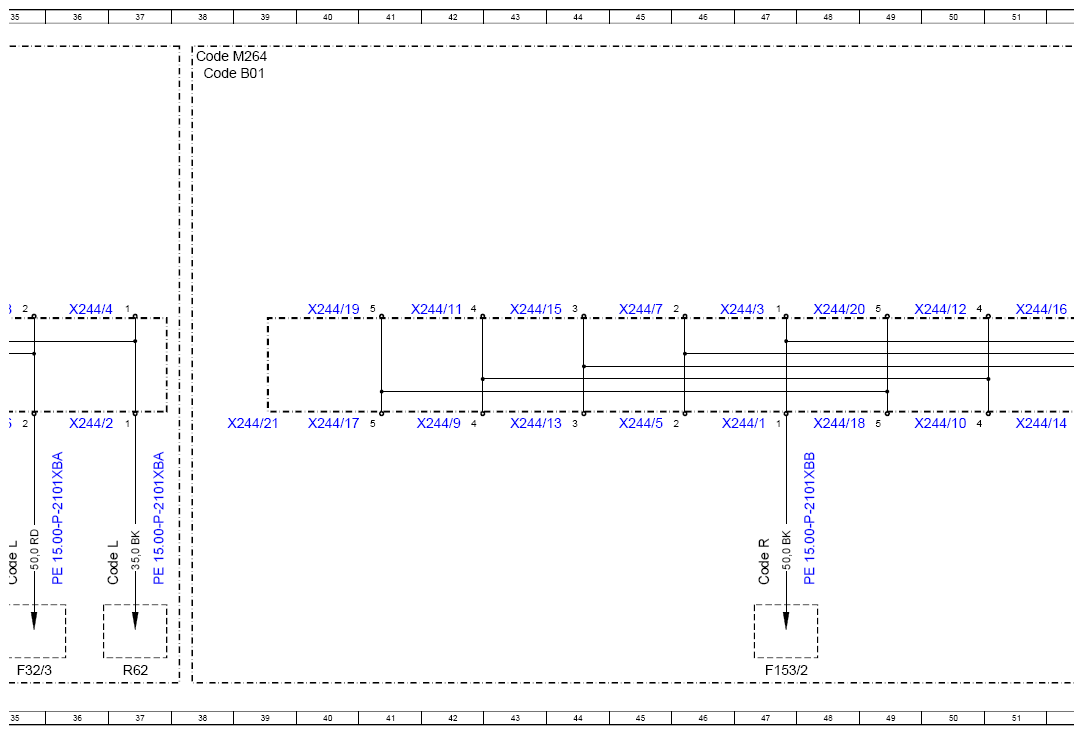

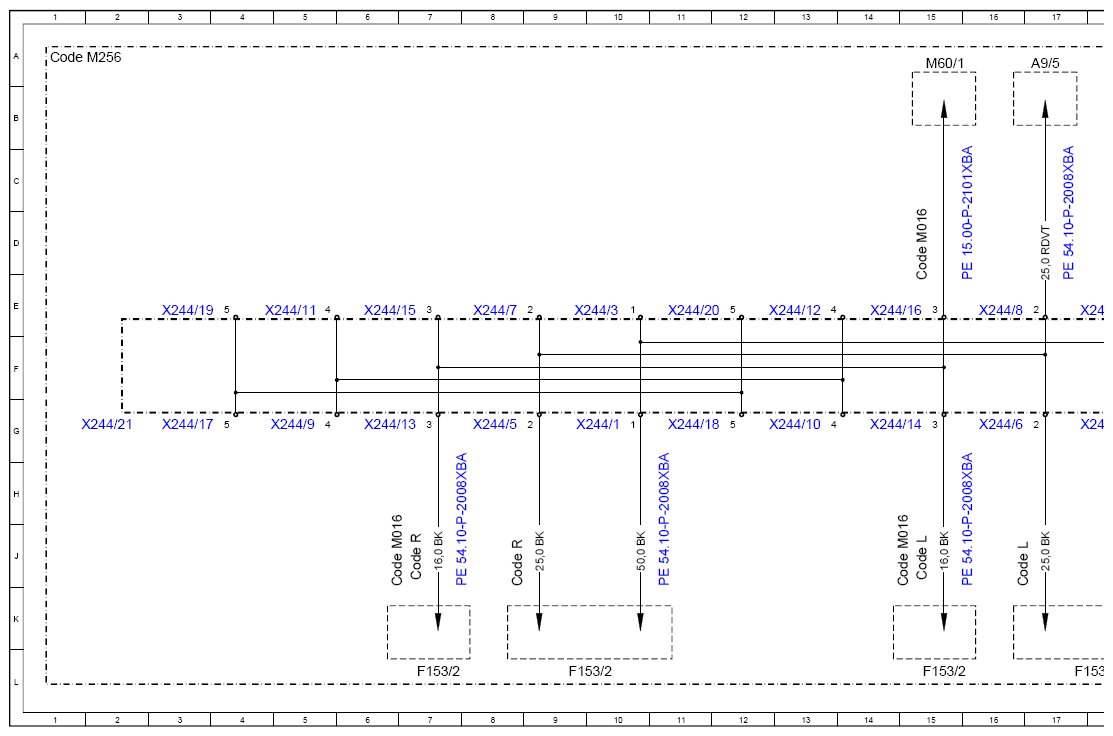

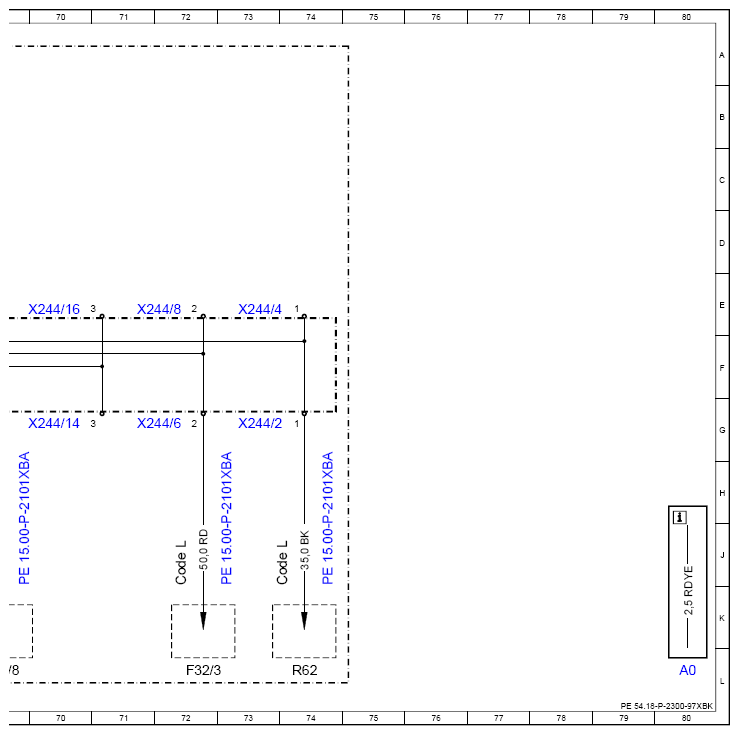

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97XBK
Model 257, 290 up to model year 2021 X244/21
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| A9/5 | Electric refrigerant compressor | 17A |
| Code B01 | 48V technology | 38A |
| Code B01 | 48V technology | 57A |
| Code L | LEFT-HAND DRIVE | 15J |
| Code L | LEFT-HAND DRIVE | 17J |
| Code L | LEFT-HAND DRIVE | 32J |
| Code L | LEFT-HAND DRIVE | 35J |
| Code L | LEFT-HAND DRIVE | 37J |
| Code L | LEFT-HAND DRIVE | 33J |
| Code L | LEFT-HAND DRIVE | 55J |
| Code L | LEFT-HAND DRIVE | 69J |
| Code L | LEFT-HAND DRIVE | 72J |
| Code L | LEFT-HAND DRIVE | 74J |
| Code M016 | Uprated high-performance engine | 15E |
| Code M016 | Uprated high-performance engine | 15J |
| Code M016 | Uprated high-performance engine | 7J |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 1A |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 38A |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 56A |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE M654 | 19A |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE M656 | 19A |
| Code R | RIGHT-HAND DRIVE | 7J |
| Code R | RIGHT-HAND DRIVE | 24J |
| Code R | RIGHT-HAND DRIVE | 27J |
| Code R | RIGHT-HAND DRIVE | 29J |
| Code R | RIGHT-HAND DRIVE | 25J |
| Code R | RIGHT-HAND DRIVE | 47J |
| Code R | RIGHT-HAND DRIVE | 61J |
| Code R | RIGHT-HAND DRIVE | 64J |
| Code R | RIGHT-HAND DRIVE | 66J |
| Code R | RIGHT-HAND DRIVE | 8J |
| F153/2 | Engine compartment 48V fuse box | 17L |
| F153/2 | Engine compartment 48V fuse box | 7L |
| F153/2 | Engine compartment 48V fuse box | 15L |
| F153/2 | Engine compartment 48V fuse box | 47L |
| F153/2 | Engine compartment 48V fuse box | 55L |
| F153/2 | Engine compartment 48V fuse box | 9L |
| F32/3 | Engine compartment prefuse box | 27L |
| F32/3 | Engine compartment prefuse box | 35L |
| F32/3 | Engine compartment prefuse box | 25L |
| F32/3 | Engine compartment prefuse box | 34L |
| F32/3 | Engine compartment prefuse box | 64L |
| F32/3 | Engine compartment prefuse box | 72L |
| G2 | Alternator | 27A |
| G2 | Alternator | 64A |
| K40/8 | Engine fuse and relay module | 32L |
| K40/8 | Engine fuse and relay module | 24L |
| K40/8 | Engine fuse and relay module | 69L |
| K40/8 | Engine fuse and relay module | 61L |
| M1 | Starter | 24A |
| M1 | Starter | 29A |
| M1 | Starter | 61A |
| M1 | Starter | 66A |
| M1/10 | Starter-alternator | 55A |
| M60/1 | Electric additional compressor | 15A |
| N129 | Starter generator control unit | 18A |
| N14/2 | Glow output stage | 25A |
| R62 | Voltage dip limiter | 29L |
| R62 | Voltage dip limiter | 37L |
| R62 | Voltage dip limiter | 66L |
| R62 | Voltage dip limiter | 74L |
| X244/1 | Left vehicle-end busbar stud 1 | 10G |
| X244/1 | Left vehicle-end busbar stud 1 | 28G |
| X244/1 | Left vehicle-end busbar stud 1 | 47G |
| X244/1 | Left vehicle-end busbar stud 1 | 65G |
| X244/10 | Right vehicle-end busbar stud 4 | 13G |
| X244/10 | Right vehicle-end busbar stud 4 | 31G |
| X244/10 | Right vehicle-end busbar stud 4 | 50G |
| X244/10 | Right vehicle-end busbar stud 4 | 68G |
| X244/11 | Left engine-end busbar stud 4 | 5E |
| X244/11 | Left engine-end busbar stud 4 | 23E |
| X244/11 | Left engine-end busbar stud 4 | 42E |
| X244/11 | Left engine-end busbar stud 4 | 60E |
| X244/12 | Right engine-end busbar stud 4 | 13E |
| X244/12 | Right engine-end busbar stud 4 | 31E |
| X244/12 | Right engine-end busbar stud 4 | 50E |
| X244/12 | Right engine-end busbar stud 4 | 68E |
| X244/13 | Left vehicle-end busbar stud 3 | 6G |
| X244/13 | Left vehicle-end busbar stud 3 | 25G |
| X244/13 | Left vehicle-end busbar stud 3 | 43G |
| X244/13 | Left vehicle-end busbar stud 3 | 62G |
| X244/14 | Right vehicle-end busbar stud 3 | 14G |
| X244/14 | Right vehicle-end busbar stud 3 | 33G |
| X244/14 | Right vehicle-end busbar stud 3 | 51G |
| X244/14 | Right vehicle-end busbar stud 3 | 70G |
| X244/15 | Left engine-end busbar stud 3 | 6E |
| X244/15 | Left engine-end busbar stud 3 | 25E |
| X244/15 | Left engine-end busbar stud 3 | 43E |
| X244/15 | Left engine-end busbar stud 3 | 62E |
| X244/16 | Right engine-end busbar stud 3 | 14E |
| X244/16 | Right engine-end busbar stud 3 | 33E |
| X244/16 | Right engine-end busbar stud 3 | 51E |
| X244/16 | Right engine-end busbar stud 3 | 70E |
| X244/17 | Left vehicle-end busbar stud 5 | 3G |
| X244/17 | Left vehicle-end busbar stud 5 | 22G |
| X244/17 | Left vehicle-end busbar stud 5 | 40G |
| X244/17 | Left vehicle-end busbar stud 5 | 59G |
| X244/18 | Right vehicle-end busbar stud 5 | 11G |
| X244/18 | Right vehicle-end busbar stud 5 | 30G |
| X244/18 | Right vehicle-end busbar stud 5 | 48G |
| X244/18 | Right vehicle-end busbar stud 5 | 67G |
| X244/19 | Left engine-end busbar stud 5 | 3E |
| X244/19 | Left engine-end busbar stud 5 | 22E |
| X244/19 | Left engine-end busbar stud 5 | 40E |
| X244/19 | Left engine-end busbar stud 5 | 59E |
| X244/2 | Right vehicle-end busbar stud 1 | 18G |
| X244/2 | Right vehicle-end busbar stud 1 | 36G |
| X244/2 | Right vehicle-end busbar stud 1 | 55G |
| X244/2 | Right vehicle-end busbar stud 1 | 73G |
| X244/20 | Right engine-end busbar stud 5 | 11E |
| X244/20 | Right engine-end busbar stud 5 | 30E |
| X244/20 | Right engine-end busbar stud 5 | 48E |
| X244/20 | Right engine-end busbar stud 5 | 67E |
| X244/21 | Partition wall busbar | 2G |
| X244/21 | Partition wall busbar | 20G |
| X244/21 | Partition wall busbar | 39G |
| X244/21 | Partition wall busbar | 57G |
| X244/3 | Left engine-end busbar stud 1 | 10E |
| X244/3 | Left engine-end busbar stud 1 | 28E |
| X244/3 | Left engine-end busbar stud 1 | 47E |
| X244/3 | Left engine-end busbar stud 1 | 65E |
| X244/4 | Right engine-end busbar stud 1 | 18E |
| X244/4 | Right engine-end busbar stud 1 | 36E |
| X244/4 | Right engine-end busbar stud 1 | 55E |
| X244/4 | Right engine-end busbar stud 1 | 73E |
| X244/5 | Left vehicle-end busbar stud 2 | 8G |
| X244/5 | Left vehicle-end busbar stud 2 | 27G |
| X244/5 | Left vehicle-end busbar stud 2 | 45G |
| X244/5 | Left vehicle-end busbar stud 2 | 64G |
| X244/6 | Right vehicle-end busbar stud 2 | 16G |
| X244/6 | Right vehicle-end busbar stud 2 | 35G |
| X244/6 | Right vehicle-end busbar stud 2 | 53G |
| X244/6 | Right vehicle-end busbar stud 2 | 72G |
| X244/7 | Left engine-end busbar stud 2 | 8E |
| X244/7 | Left engine-end busbar stud 2 | 27E |
| X244/7 | Left engine-end busbar stud 2 | 45E |
| X244/7 | Left engine-end busbar stud 2 | 64E |
| X244/8 | Right engine-end busbar stud 2 | 16E |
| X244/8 | Right engine-end busbar stud 2 | 35E |
| X244/8 | Right engine-end busbar stud 2 | 53E |
| X244/8 | Right engine-end busbar stud 2 | 72E |
| X244/9 | Left vehicle-end busbar stud 4 | 5G |
| X244/9 | Left vehicle-end busbar stud 4 | 23G |
| X244/9 | Left vehicle-end busbar stud 4 | 42G |
| X244/9 | Left vehicle-end busbar stud 4 | 60G |
