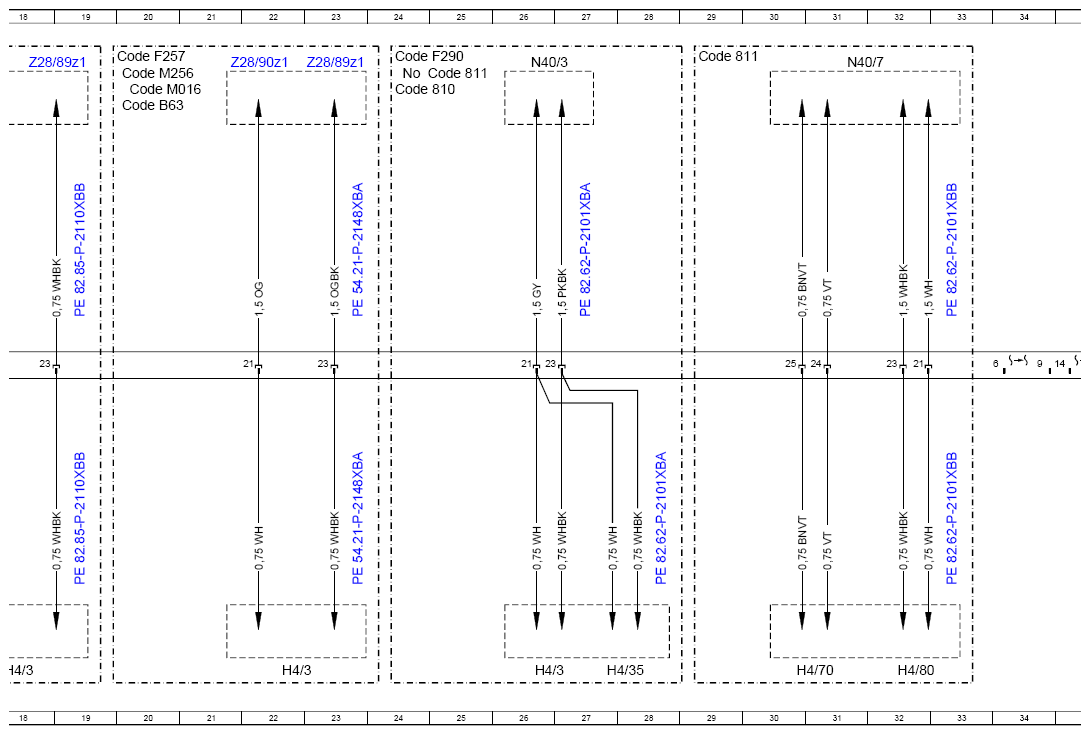

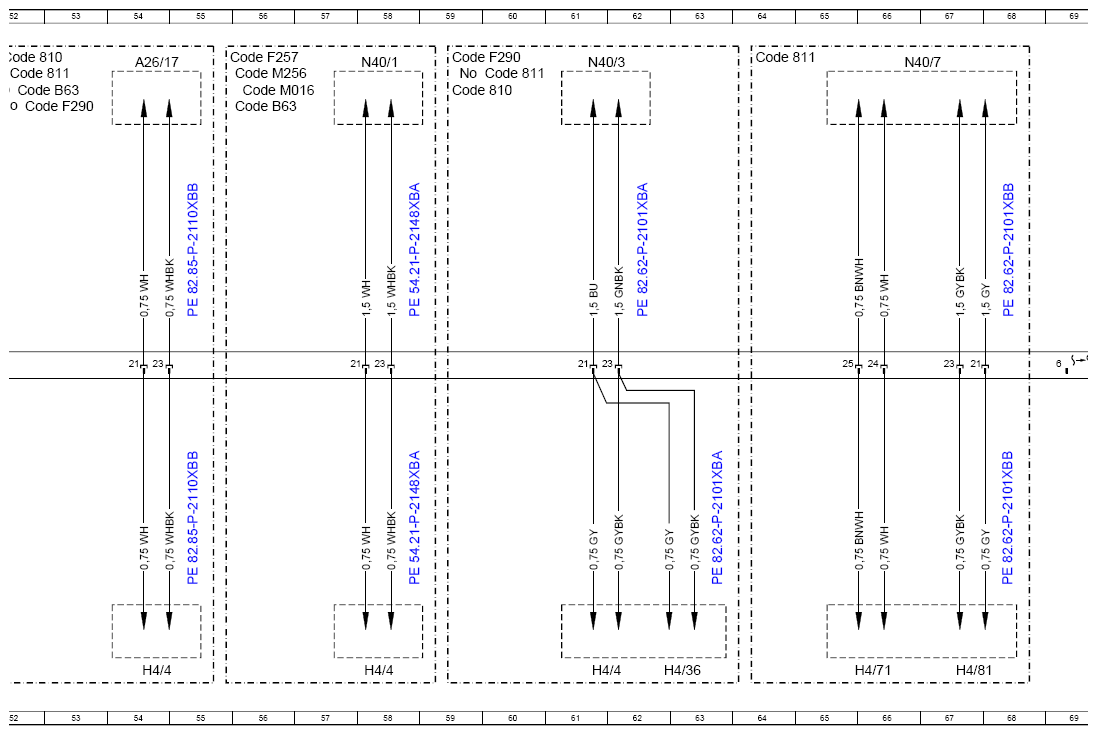

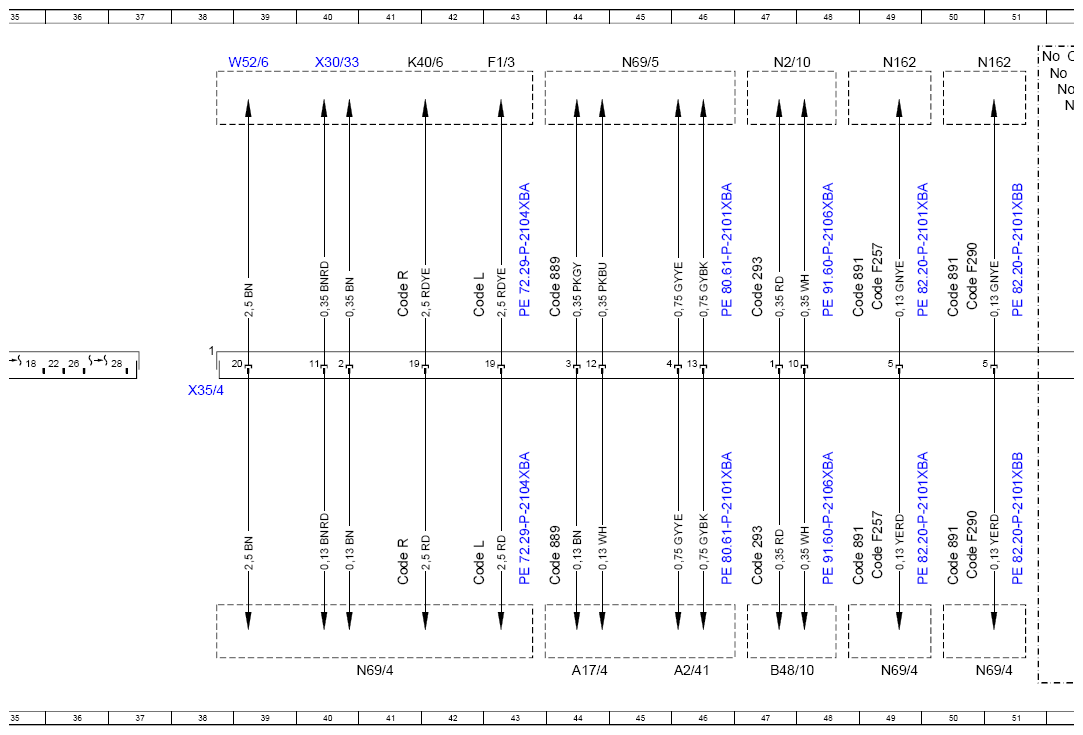

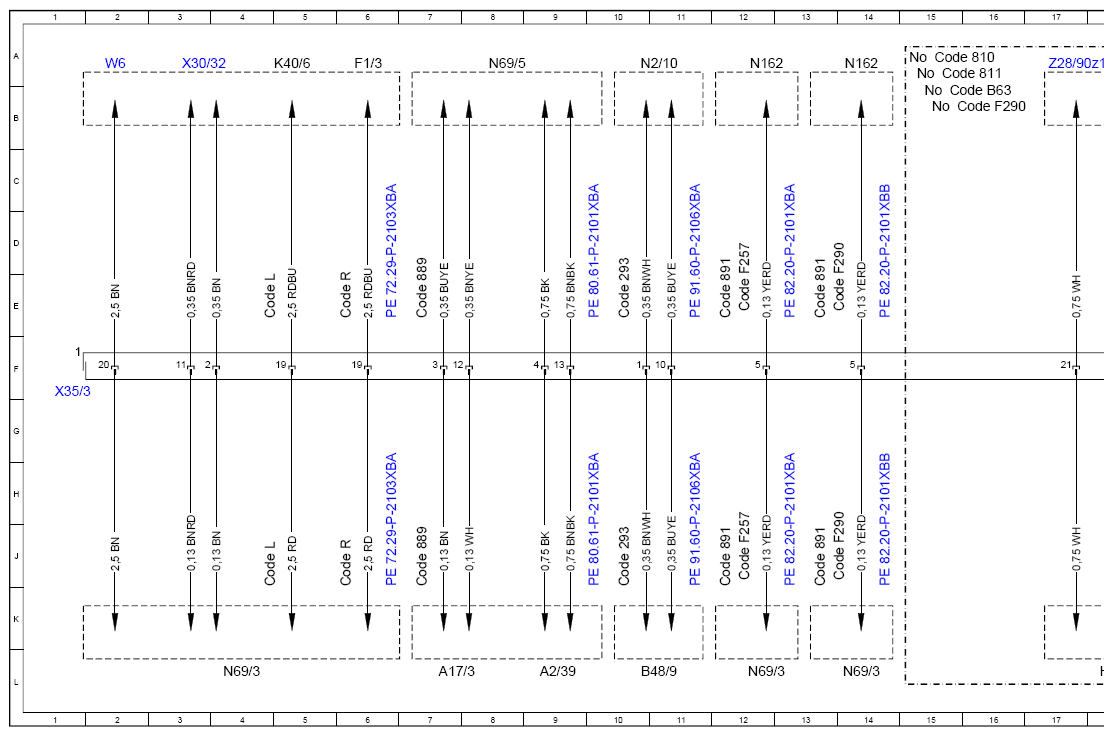

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97XBJ
Model 257, 290 up to model year 2021 X35/3, X35/4
| Code: | Designation: | Position: |
|---|---|---|

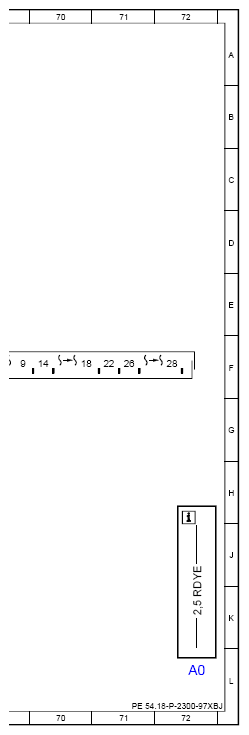

| A0 | Use of wiring diagrams | 72L |
| A17/3 | Left rear KEYLESS GO door handle | 7L |
| A17/4 | Right rear KEYLESS GO door handle | 44L |
| A2/39 | Left rear door KEYLESS GO antenna | 9L |
| A2/41 | Right rear door KEYLESS GO antenna | 46L |
| A26/17 | Head unit | 54A |
| B48/10 | Right rear door pressure sensor | 47L |
| B48/9 | Left rear door pressure sensor | 11L |
| Code 293 | Sidebags in the rear | 10E |
| Code 293 | Sidebags in the rear | 10J |
| Code 293 | Sidebags in the rear | 47J |
| Code 293 | Sidebags in the rear | 47E |
| Code 810 | Sound system | 15A |
| Code 810 | Sound system | 24B |
| Code 810 | Sound system | 52A |
| Code 810 | Sound system | 59B |
| Code 811 | Advanced sound system | 15A |
| Code 811 | Advanced sound system | 24A |
| Code 811 | Advanced sound system | 29A |
| Code 811 | Advanced sound system | 60A |
| Code 811 | Advanced sound system | 52A |
| Code 811 | Advanced sound system | 64A |
| Code 889 | KEYLESS-GO | 7E |
| Code 889 | KEYLESS-GO | 7J |
| Code 889 | KEYLESS-GO | 44J |
| Code 889 | KEYLESS-GO | 44E |
| Code 891 | Premium ambient lighting | 12E |
| Code 891 | Premium ambient lighting | 12J |
| Code 891 | Premium ambient lighting | 13J |
| Code 891 | Premium ambient lighting | 13E |
| Code 891 | Premium ambient lighting | 50J |
| Code 891 | Premium ambient lighting | 49J |
| Code 891 | Premium ambient lighting | 50E |
| Code 891 | Premium ambient lighting | 49E |
| Code B63 | Sporty engine sound | 15B |
| Code B63 | Sporty engine sound | 20B |
| Code B63 | Sporty engine sound | 52B |
| Code B63 | Sporty engine sound | 56B |
| Code F257 | MODEL SERIES 257 | 12E |
| Code F257 | MODEL SERIES 257 | 12J |
| Code F257 | MODEL SERIES 257 | 20A |
| Code F257 | MODEL SERIES 257 | 49J |
| Code F257 | MODEL SERIES 257 | 49E |
| Code F257 | MODEL SERIES 257 | 55A |
| Code F290 | Model series 290 | 14J |
| Code F290 | Model series 290 | 14E |
| Code F290 | Model series 290 | 15B |
| Code F290 | Model series 290 | 24A |
| Code F290 | Model series 290 | 50J |
| Code F290 | Model series 290 | 50E |
| Code F290 | Model series 290 | 52B |
| Code F290 | Model series 290 | 59A |
| Code L | LEFT-HAND DRIVE | 5E |
| Code L | LEFT-HAND DRIVE | 5J |
| Code L | LEFT-HAND DRIVE | 43J |
| Code L | LEFT-HAND DRIVE | 43E |
| Code M016 | Uprated high-performance engine | 20B |
| Code M016 | Uprated high-performance engine | 56B |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 20A |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 56A |
| Code R | RIGHT-HAND DRIVE | 6J |
| Code R | RIGHT-HAND DRIVE | 6E |
| Code R | RIGHT-HAND DRIVE | 41J |
| Code R | RIGHT-HAND DRIVE | 41E |
| F1/3 | Passenger-side A-pillar fuse box | 6A |
| F1/3 | Passenger-side A-pillar fuse box | 43A |
| H4/3 | Left rear door midrange speaker | 18L |
| H4/3 | Left rear door midrange speaker | 22L |
| H4/3 | Left rear door midrange speaker | 26L |
| H4/35 | Left rear door tweeter | 27L |
| H4/36 | Right rear door tweeter | 63L |
| H4/4 | Right rear door midrange speaker | 54L |
| H4/4 | Right rear door midrange speaker | 61L |
| H4/4 | Right rear door midrange speaker | 58L |
| H4/70 | Left rear door sound system tweeter | 31L |
| H4/71 | Right rear door sound system tweeter | 66L |
| H4/80 | Left rear door sound system midrange speaker | 32L |
| H4/81 | Right rear door sound system midrange speaker | 67L |
| K40/6 | Driver-side fuse and relay module | 5A |
| K40/6 | Driver-side fuse and relay module | 41A |
| N162 | Ambiance illumination control unit | 12A |
| N162 | Ambiance illumination control unit | 14A |
| N162 | Ambiance illumination control unit | 51A |
| N162 | Ambiance illumination control unit | 49A |
| N2/10 | Supplemental restraint system control unit | 11A |
| N2/10 | Supplemental restraint system control unit | 47A |
| N40/1 | Engine sound control unit | 58A |
| N40/3 | Sound system amplifier control unit | 26A |
| N40/3 | Sound system amplifier control unit | 61A |
| N40/7 | Advanced sound system amplifier control unit | 31A |
| N40/7 | Advanced sound system amplifier control unit | 66A |
| N69/3 | Left rear door control unit | 4L |
| N69/3 | Left rear door control unit | 12L |
| N69/3 | Left rear door control unit | 14L |
| N69/4 | Right rear door control unit | 51L |
| N69/4 | Right rear door control unit | 41L |
| N69/4 | Right rear door control unit | 49L |
| N69/5 | KEYLESS-GO control unit | 8A |
| N69/5 | KEYLESS-GO control unit | 45A |
| W52/6 | Right center longitudinal member ground point | 39A |
| W6 | Left wheel arch trunk ground point | 2A |
| X30/32 | Interior CAN (CAN B) potential distributor, left | 3A |
| X30/33 | Interior CAN (CAN B) potential distributor, right | 40A |
| X35/3 | Left rear door electrical connector | 1F |
| X35/4 | Right rear door electrical connector | 38F |
| Z28/89z1 | Audio signal LOW connector sleeve | 18A |
| Z28/89z1 | Audio signal LOW connector sleeve | 23A |
| Z28/90z1 | Audio signal HIGH connector sleeve | 17A |
| Z28/90z1 | Audio signal HIGH connector sleeve | 22A |
