Connector Separation Point Wiring Diagram - PE54.18-P-2300-97XBI
Model 257, 290 up to model year 2021 X35/2
| Code: | Designation: | Position: |
|---|---|---|

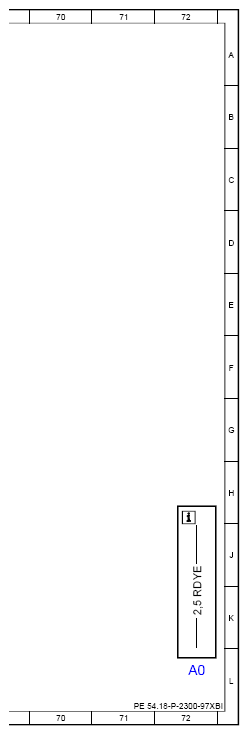

| A0 | Use of wiring diagrams | 72L |
| A17/6 | Front passenger door KEYLESS-GO door handle | 18L |
| A26/17 | Head unit | 32A |
| B48/7 | Left front door pressure sensor | 13L |
| B48/8 | Right front door pressure sensor | 15L |
| Code 810 | Sound system | 28A |
| Code 810 | Sound system | 44B |
| Code 811 | Advanced sound system | 28A |
| Code 811 | Advanced sound system | 44A |
| Code 811 | Advanced sound system | 52A |
| Code 889 | KEYLESS-GO | 16A |
| Code 891 | Premium ambient lighting | 19A |
| Code 891 | Premium ambient lighting | 23A |
| Code B63 | Sporty engine sound | 28B |
| Code B63 | Sporty engine sound | 36B |
| Code F257 | MODEL SERIES 257 | 19A |
| Code F257 | MODEL SERIES 257 | 36A |
| Code F290 | Model series 290 | 28B |
| Code F290 | Model series 290 | 23A |
| Code F290 | Model series 290 | 44A |
| Code L | LEFT-HAND DRIVE | 14J |
| Code L | LEFT-HAND DRIVE | 14E |
| Code L | LEFT-HAND DRIVE | 33J |
| Code L | LEFT-HAND DRIVE | 33E |
| Code L | LEFT-HAND DRIVE | 22J |
| Code L | LEFT-HAND DRIVE | 22E |
| Code L | LEFT-HAND DRIVE | 26J |
| Code L | LEFT-HAND DRIVE | 26E |
| Code L | LEFT-HAND DRIVE | 7A |
| Code L | LEFT-HAND DRIVE | 41J |
| Code L | LEFT-HAND DRIVE | 41E |
| Code L | LEFT-HAND DRIVE | 49J |
| Code L | LEFT-HAND DRIVE | 49E |
| Code L | LEFT-HAND DRIVE | 58J |
| Code L | LEFT-HAND DRIVE | 58E |
| Code M016 | Uprated high-performance engine | 36B |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 36A |
| Code R | RIGHT-HAND DRIVE | 13J |
| Code R | RIGHT-HAND DRIVE | 13E |
| Code R | RIGHT-HAND DRIVE | 30E |
| Code R | RIGHT-HAND DRIVE | 30J |
| Code R | RIGHT-HAND DRIVE | 21E |
| Code R | RIGHT-HAND DRIVE | 21J |
| Code R | RIGHT-HAND DRIVE | 25J |
| Code R | RIGHT-HAND DRIVE | 25E |
| Code R | RIGHT-HAND DRIVE | 2A |
| Code R | RIGHT-HAND DRIVE | 38J |
| Code R | RIGHT-HAND DRIVE | 38E |
| Code R | RIGHT-HAND DRIVE | 46J |
| Code R | RIGHT-HAND DRIVE | 46E |
| Code R | RIGHT-HAND DRIVE | 53E |
| Code R | RIGHT-HAND DRIVE | 53J |
| F1/3 | Passenger-side A-pillar fuse box | 3A |
| F1/3 | Passenger-side A-pillar fuse box | 9A |
| H4/1 | Left front door midrange speaker | 30L |
| H4/1 | Left front door midrange speaker | 38L |
| H4/1 | Left front door midrange speaker | 47L |
| H4/2 | Right front door midrange speaker | 33L |
| H4/2 | Right front door midrange speaker | 41L |
| H4/2 | Right front door midrange speaker | 49L |
| H4/33 | Left front door tweeter | 32L |
| H4/33 | Left front door tweeter | 40L |
| H4/33 | Left front door tweeter | 48L |
| H4/34 | Right front door tweeter | 34L |
| H4/34 | Right front door tweeter | 42L |
| H4/34 | Right front door tweeter | 51L |
| H4/68 | Left front door sound system tweeter | 54L |
| H4/69 | Right front door sound system tweeter | 58L |
| H4/72 | Left front door sound system woofer/midrange speaker | 57L |
| H4/73 | Right front door sound system woofer/midrange speaker | 62L |
| H4/86 | Left front door midrange speaker | 55L |
| H4/87 | Right front door midrange speaker | 60L |
| N2/10 | Supplemental restraint system control unit | 14A |

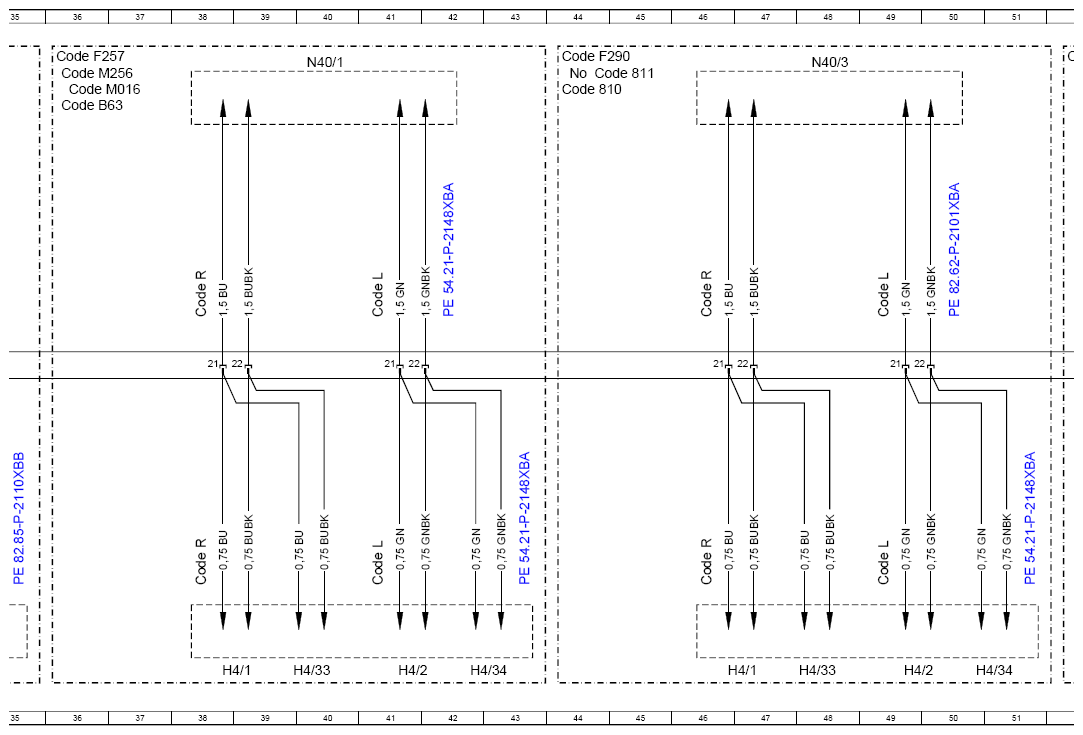

| N40/1 | Engine sound control unit | 40A |
| N40/3 | Sound system amplifier control unit | 48A |

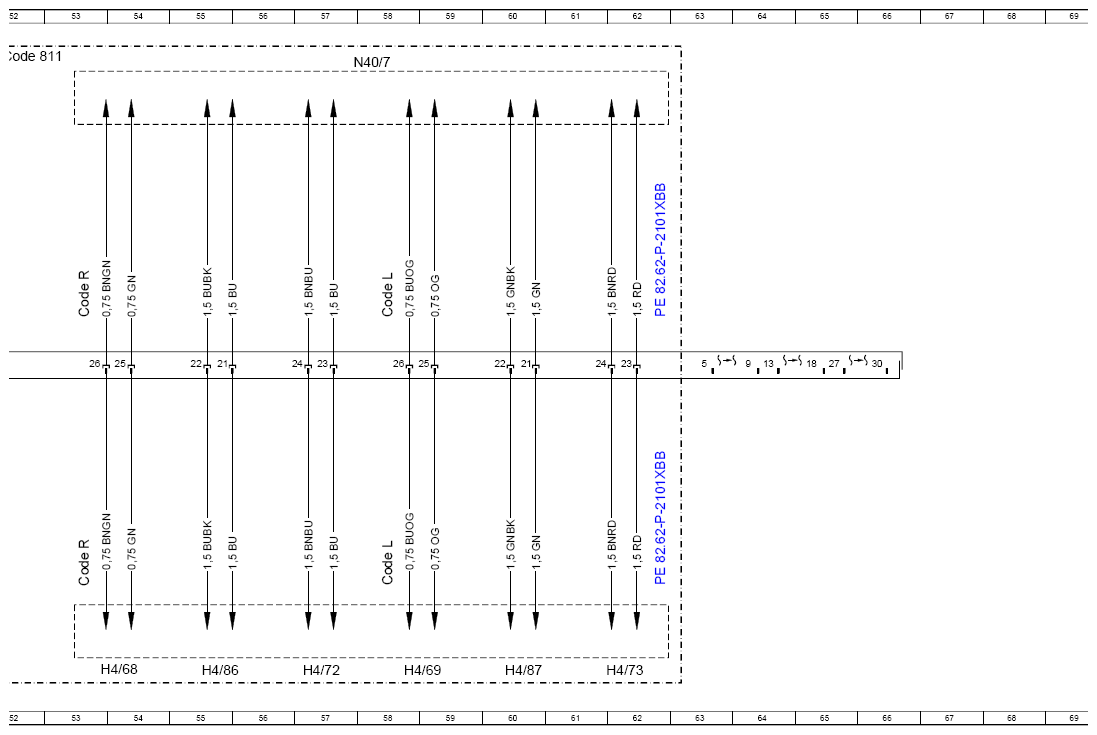

| N40/7 | Advanced sound system amplifier control unit | 58A |
| N69/1 | Left front door control unit | 21L |
| N69/1 | Left front door control unit | 25L |
| N69/1 | Left front door control unit | 5L |
| N69/2 | Right front door control unit | 22L |
| N69/2 | Right front door control unit | 26L |
| N69/2 | Right front door control unit | 10L |
| N69/5 | KEYLESS-GO control unit | 18A |
| W15/5 | Left front footwell ground point | 5A |
| W15/7 | Right front footwell ground point | 10A |

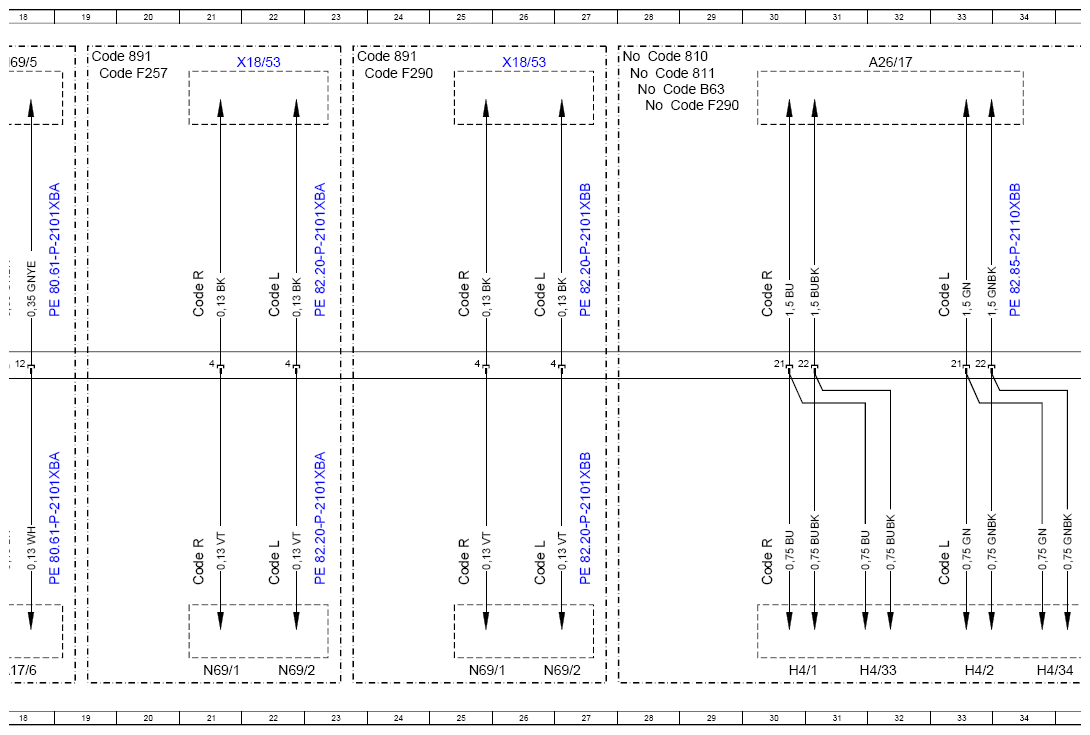

| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 22A |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 26A |
| X30/32 | Interior CAN (CAN B) potential distributor, left | 6A |
| X30/33 | Interior CAN (CAN B) potential distributor, right | 11A |

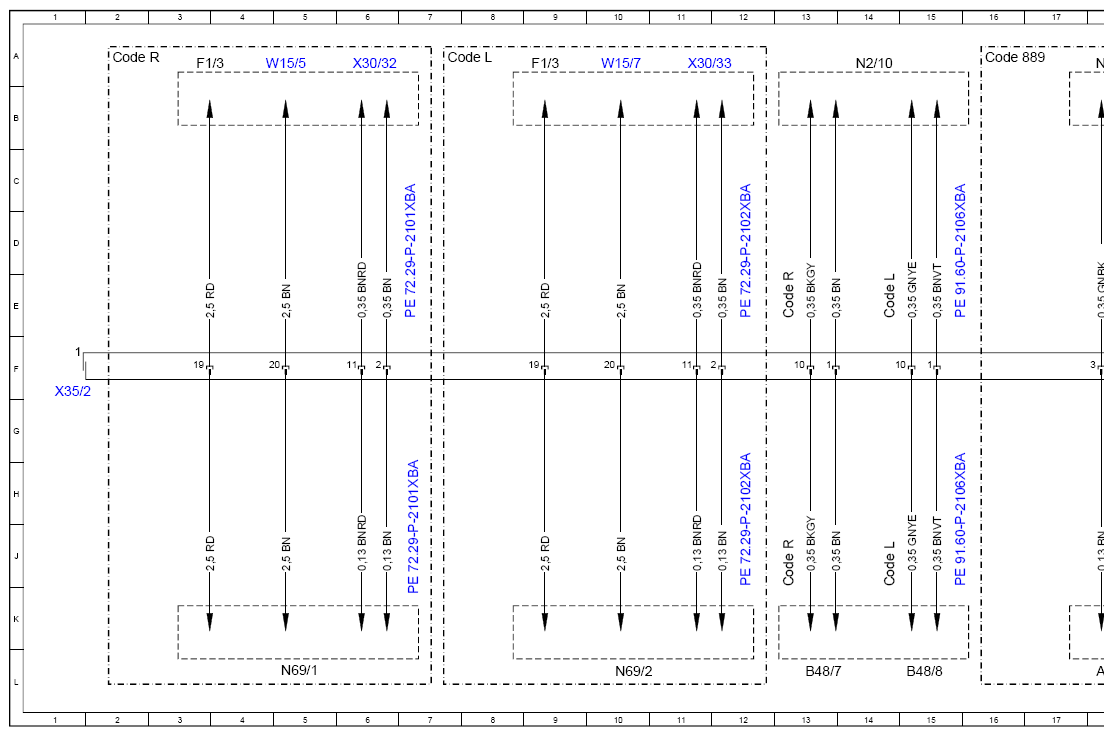

| X35/2 | Front passenger door electrical connector | 1F |
