Cavity Preservation Following Repair Work - Ar97.20-P-1500FR

Model 257

Variants of cavity preservation

Courtesy of MERCEDES-BENZ USA

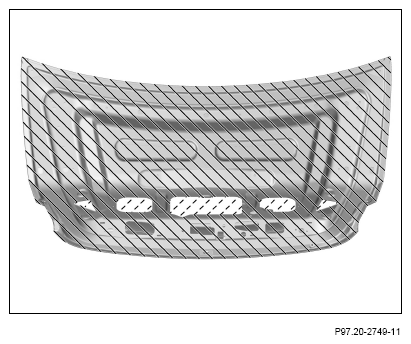

Engine hood

Courtesy of MERCEDES-BENZ USA

Trunk lid

Courtesy of MERCEDES-BENZ USA

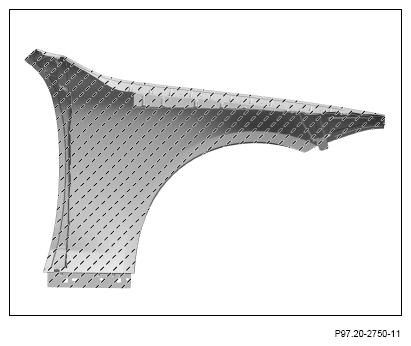

Front fender

Courtesy of MERCEDES-BENZ USA

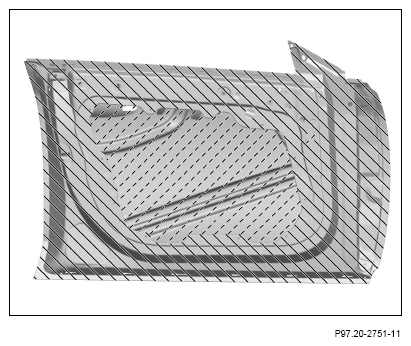

Front door

Courtesy of MERCEDES-BENZ USA

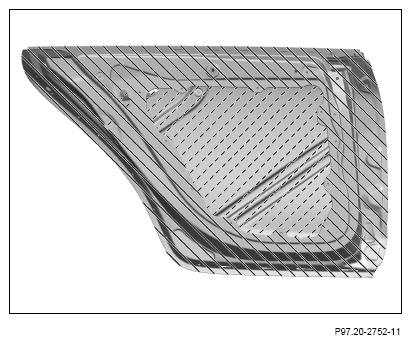

Rear door

Courtesy of MERCEDES-BENZ USA

Front longitudinal member

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

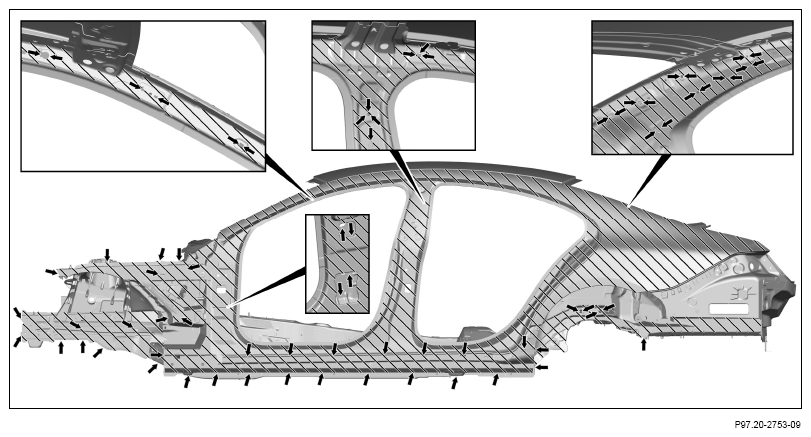

Upper front longitudinal member, A-pillar, B-pillar, C-pillar, side wall paneling and bottom side longitudinal member

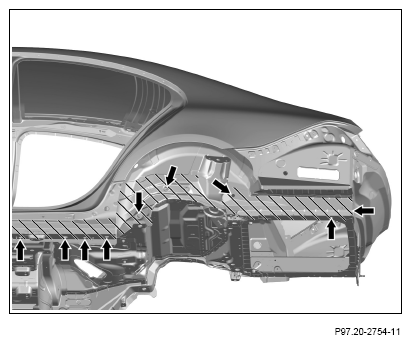

Rear longitudinal member

Courtesy of MERCEDES-BENZ USA

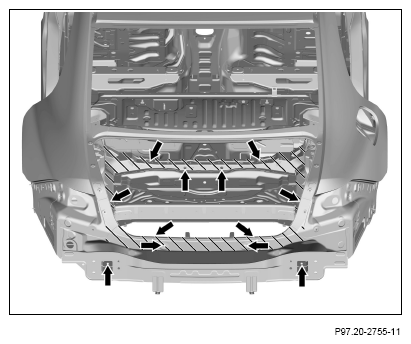

Rear area

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Underbody

Picture no., etc.	Work notes
	Risk of explosion and poisoning caused by solvent vapors and gasses. Risk of injury to skin and eyes when working with anticorrosion agents	Never spray corrosion protection on flames or hot, glowing objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection.	AS97.00-Z-0001-01A
Topical note	Notes on cavity preservation		AH97.20-P-0001-01B
A	Cavity preservation in folding areas and hollow cavities	Install from inside through openings (arrows) with hook probe. Apply cavity preservation with spraying hose and nozzle (spraying angle 360°) as far as possible into cavities. Cavity preservation (free of solvents), 1 liter	*BR00.45-Z-1003-05A
B	Cavity preservation for inner surfaces and gaps	Uniformly moisten cavity preservation. Cavity preservation (free of solvents), 1 liter	*BR00.45-Z-1003-05A

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-05A	Cavity preservation (free of solvents), 1 liter	A 000 986 72 70 10
