Prepare Rear Floor Assembly - AR64.20-P-1300-02FR

Model 257

Observe the higher-level service document as well as the safety information in the service document.

Courtesy of MERCEDES-BENZ USA

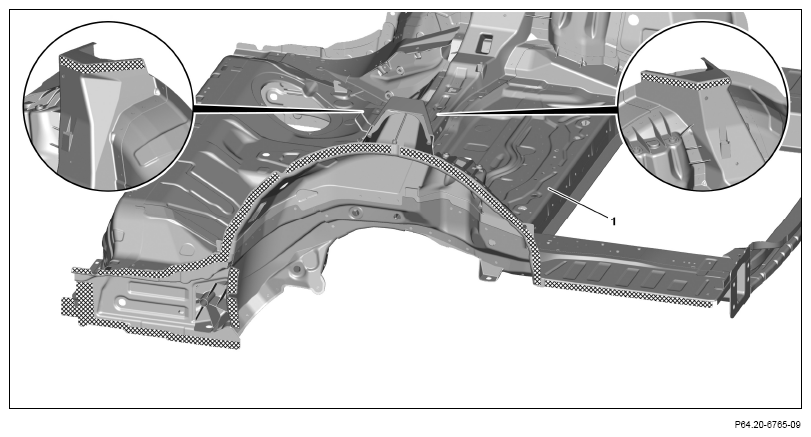

1. Grind mating surfaces on rear-end floor (1) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

2. Remove grinding dust.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

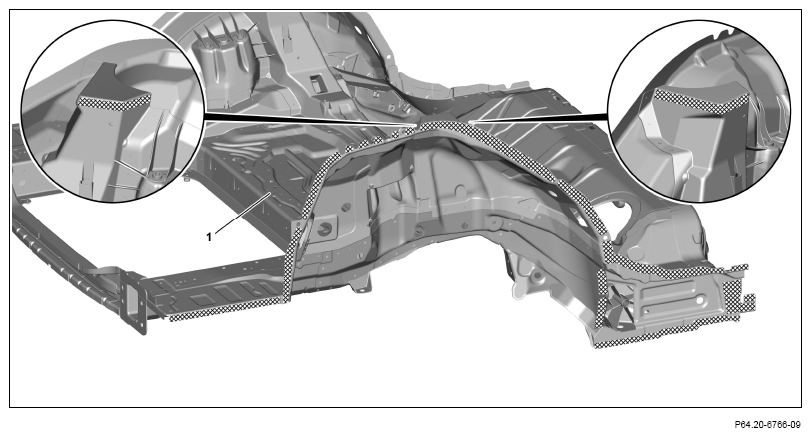

3. Grind mating surfaces on rear-end floor (1) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

4. Remove grinding dust.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

5. Grind mating surfaces on rear-end floor (1) down to bare metal in crosshatched areas.
6. Remove grinding dust.

   Observe pretreatment of bonding surfaces.
