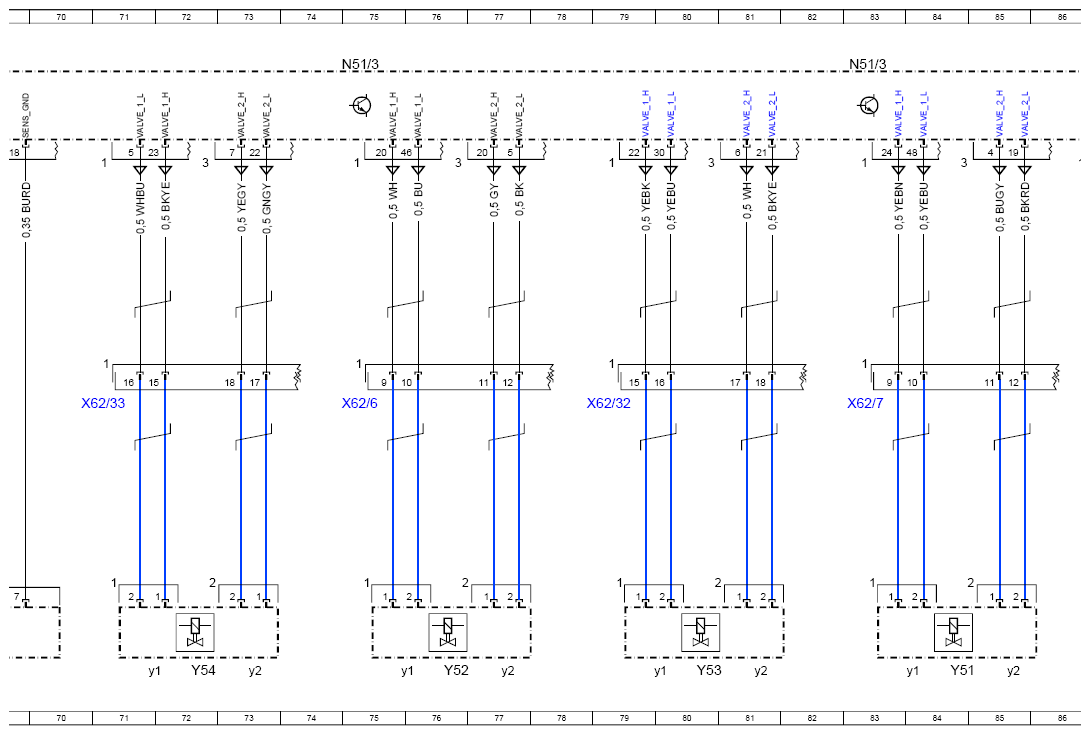

Wiring Diagram For Air Body Control Control Unit - PE32.32-P-2102-97XBA
Model 257, 290 up to model year 2021
with code 489 (AIR BODY CONTROL)
Control unit N51/3, N51/8
| Code: | Designation: | Position: |
|---|---|---|

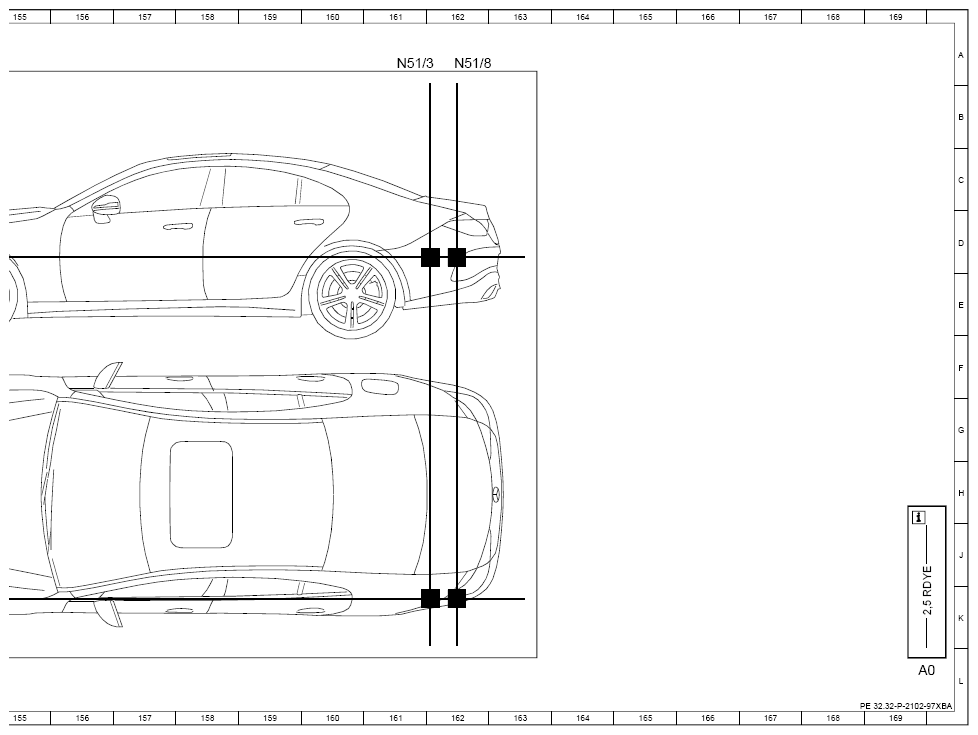

| A0 | Use of wiring diagrams | 169L |

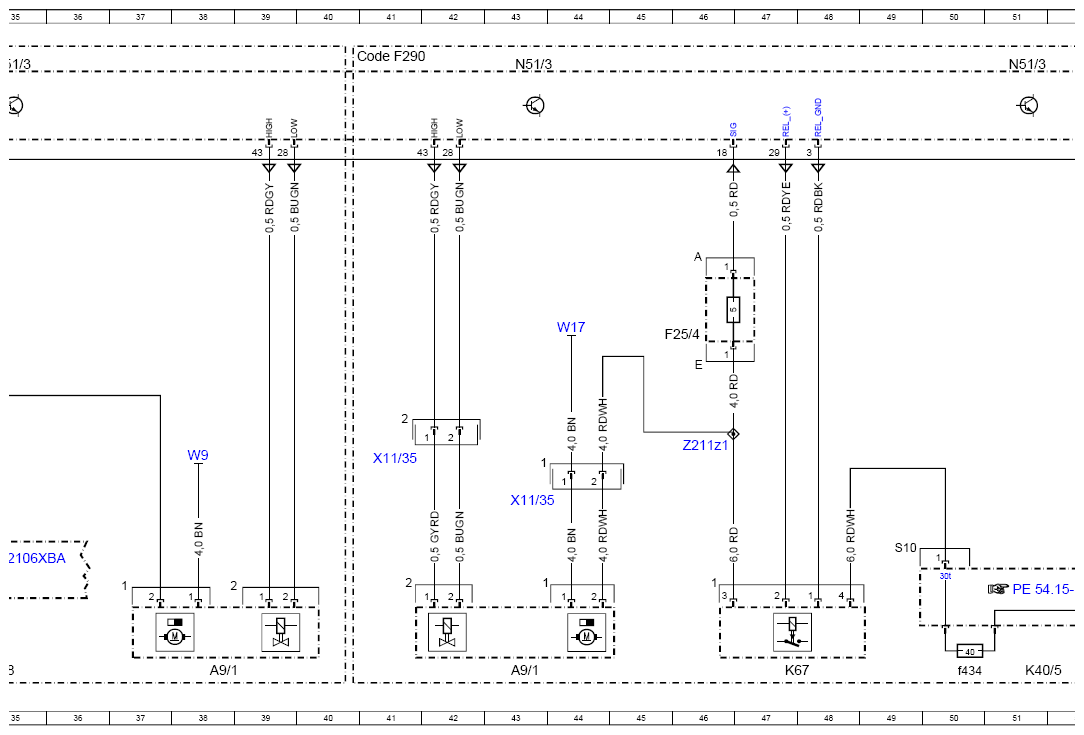

| A9/1 | AIR BODY CONTROL compressor | 38L |
| A9/1 | AIR BODY CONTROL compressor | 43L |

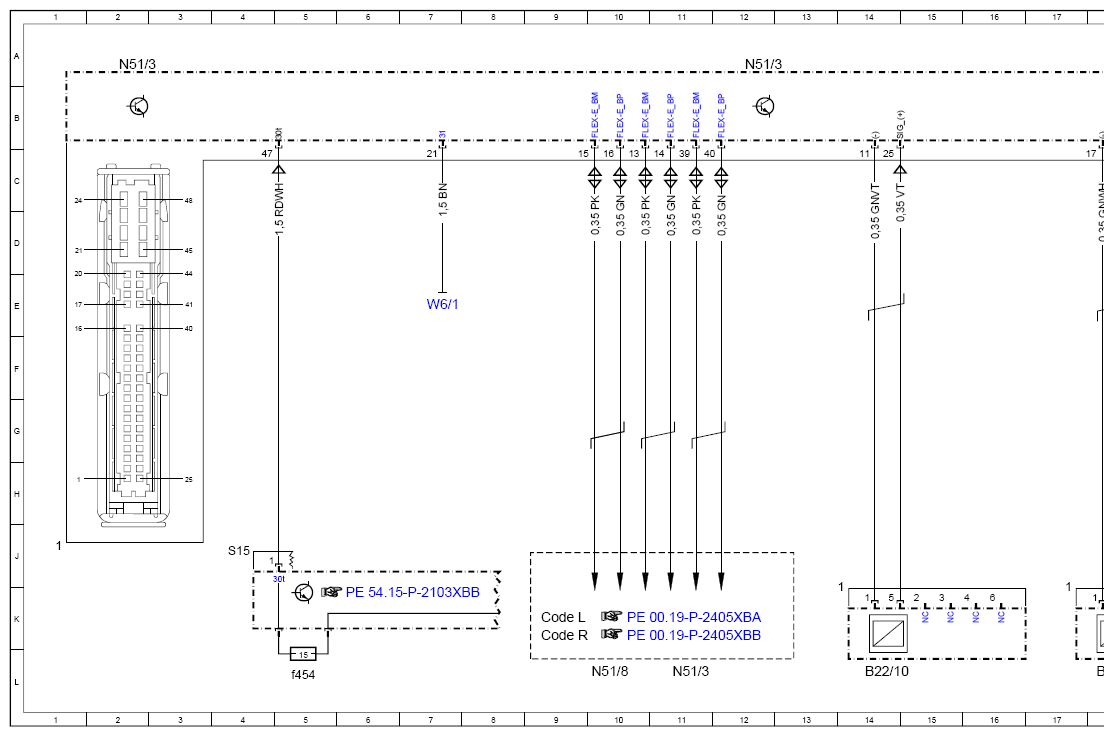

| B22/10 | Right rear level sensor | 14L |

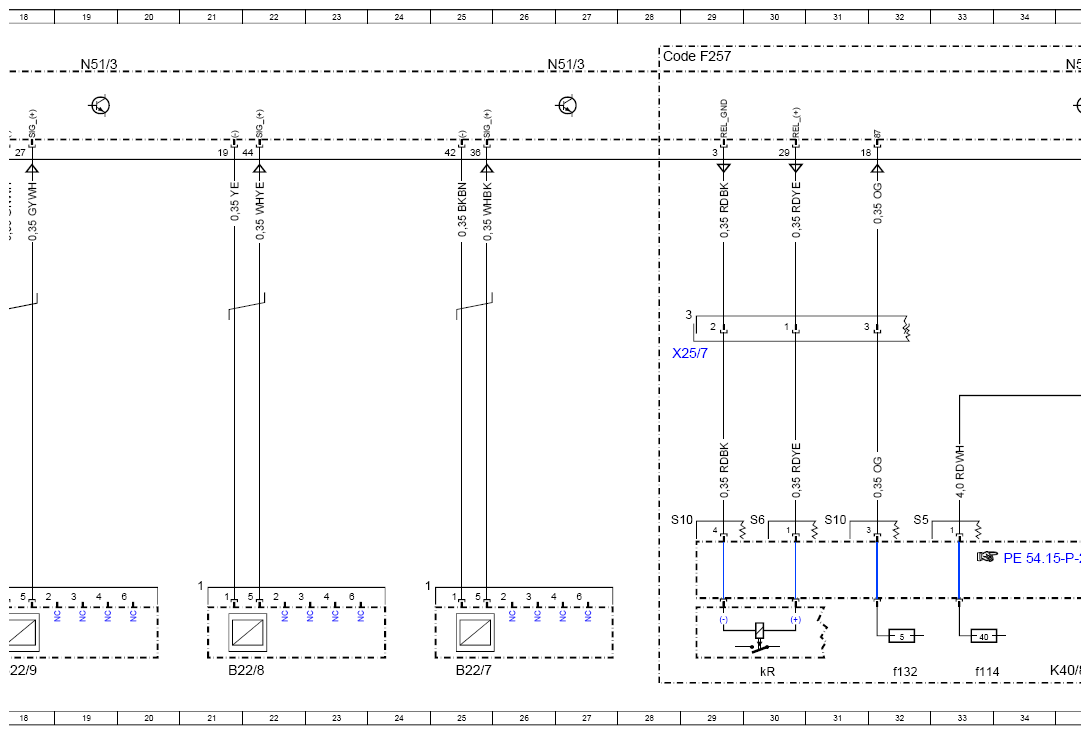

| B22/7 | Left rear level sensor | 25L |
| B22/8 | Left front level sensor | 21L |
| B22/9 | Right front level sensor | 18L |

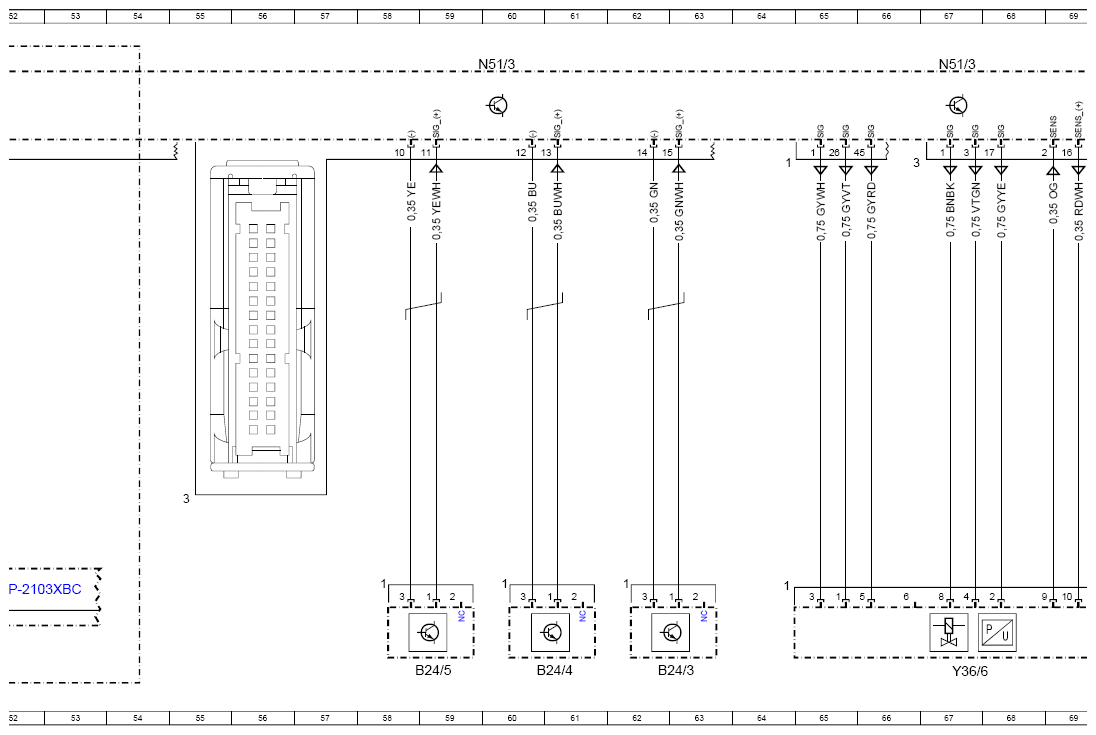

| B24/3 | Left front body lateral acceleration sensor | 62L |
| B24/4 | Right front body lateral acceleration sensor | 61L |
| B24/5 | Left rear body lateral acceleration sensor | 59L |
| Code F257 | MODEL SERIES 257 | 28A |
| Code F290 | Model series 290 | 40A |
| Code L | LEFT-HAND DRIVE | 9K |
| Code L | LEFT-HAND DRIVE | 104K |
| Code R | RIGHT-HAND DRIVE | 9K |
| Code R | RIGHT-HAND DRIVE | 104K |
| F25/4 | Compressor readback line terminal 30 additional fuse | 46F |
| Flex E | Chassis FlexRay | 104J |
| Flex E | Chassis FlexRay | 107J |
| K40/5 | Rear fuse and relay module | 101L |
| K40/5 | Rear fuse and relay module | 51L |
| K40/5f428 | Fuse 428 | 100L |
| K40/5f434 | Fuse 434 | 50L |
| K40/5f454 | Fuse 454 | 5L |
| K40/8 | Engine fuse and relay module | 35L |
| K40/8f114 | Fuse 114 | 33L |
| K40/8f132 | Fuse 132 | 32L |
| K40/8kR | Relay R | 30L |
| K67 | AIR BODY CONTROL relay | 47L |
| N51/3 | AIR BODY CONTROL control unit | 2A |

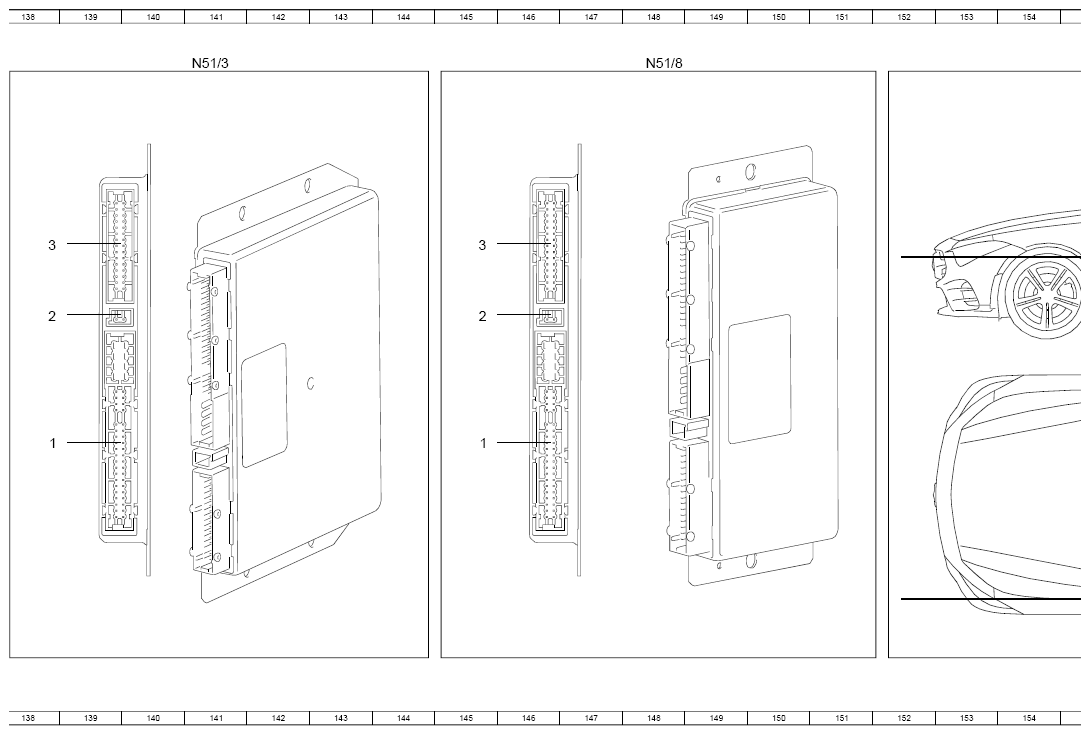

| N51/3 | AIR BODY CONTROL control unit | 141A |
| N51/3 | AIR BODY CONTROL control unit | 161A |
| N51/3 | AIR BODY CONTROL control unit | 107L |
| N51/3 | AIR BODY CONTROL control unit | 12A |
| N51/3 | AIR BODY CONTROL control unit | 19A |
| N51/3 | AIR BODY CONTROL control unit | 27A |
| N51/3 | AIR BODY CONTROL control unit | 35A |
| N51/3 | AIR BODY CONTROL control unit | 60A |
| N51/3 | AIR BODY CONTROL control unit | 67A |
| N51/3 | AIR BODY CONTROL control unit | 75A |
| N51/3 | AIR BODY CONTROL control unit | 83A |
| N51/3 | AIR BODY CONTROL control unit | 92A |
| N51/3 | AIR BODY CONTROL control unit | 11L |
| N51/3 | AIR BODY CONTROL control unit | 43A |
| N51/3 | AIR BODY CONTROL control unit | 51A |

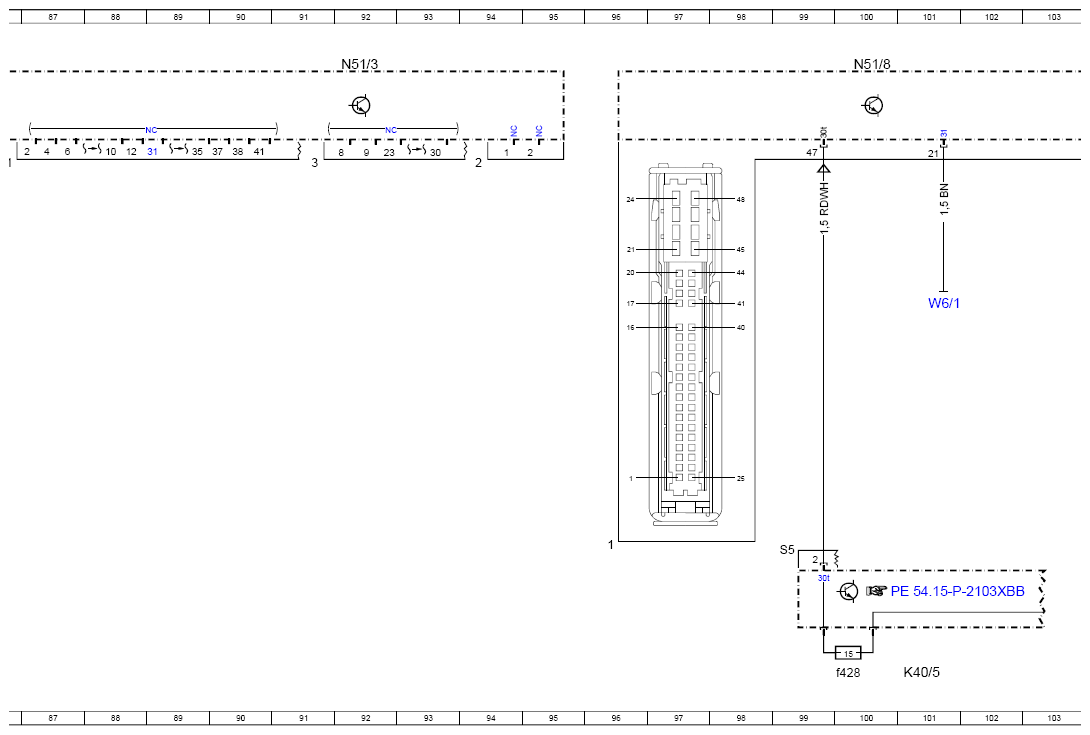

| N51/8 | AIR BODY CONTROL Plus control unit | 100A |
| N51/8 | AIR BODY CONTROL Plus control unit | 124A |
| N51/8 | AIR BODY CONTROL Plus control unit | 148A |
| N51/8 | AIR BODY CONTROL Plus control unit | 162A |
| N51/8 | AIR BODY CONTROL Plus control unit | 108A |
| N51/8 | AIR BODY CONTROL Plus control unit | 116A |
| N51/8 | AIR BODY CONTROL Plus control unit | 132A |
| N51/8 | AIR BODY CONTROL Plus control unit | 10L |
| N62 | Parking system control unit | 105L |
| N73 | Electronic ignition switch control unit | 105L |
| W17 | Right rear seat ground point | 44E |
| W6/1 | Left taillamp trunk ground point | 7E |
| W6/1 | Left taillamp trunk ground point | 101E |
| W9 | Left front ground point (at lamp unit) | 38G |
| X11/35 | AIR BODY CONTROL compressor electrical connector | 43H |
| X11/35 | AIR BODY CONTROL compressor electrical connector | 41H |
| X25/7 | Driver side engine compartment/frame floor assembly electrical connector | 29F |
| X62/10 | Right rear damper module spring valves electrical connector | 111H |
| X62/10 | Right rear damper module spring valves electrical connector | 110H |
| X62/32 | Rear axle electrical connector, left distributor | 79G |
| X62/33 | Rear axle electrical connector, right distributor | 71G |
| X62/6 | Front axle electrical connector, right distributor | 75G |
| X62/7 | Front axle electrical connector, left distributor | 83G |
| X62/9 | Left rear damper module spring valves electrical connector | 113H |
| X62/9 | Left rear damper module spring valves electrical connector | 115H |
| Y36/6 | AIR BODY CONTROL valve unit | 67L |
| Y51 | Left front axle damping valve unit | 84L |
| Y51/2 | Left front axle air suspension valve unit | 121L |
| Y51/2y1 | Air suspension valve 1, front left | 120L |
| Y51/2y2 | Air suspension valve 2, front left | 122L |
| Y51y1 | Solenoid valve 1, front left | 84L |
| Y51y2 | Solenoid valve 2, front left | 85L |
| Y52 | Right front axle damping valve unit | 76L |
| Y52/2 | Right front axle air suspension valve unit | 118L |
| Y52/2y1 | Air suspension valve 1, front right | 117L |
| Y52/2y2 | Air suspension valve 2, front right | 119L |
| Y52y1 | Solenoid valve 1, front right | 75L |
| Y52y2 | Solenoid valve 2, front right | 77L |
| Y53 | Left rear axle damping valve unit | 80L |
| Y53/2 | Left rear axle air suspension valve unit | 115L |
| Y53/2y1 | Air suspension valve 1, rear left | 116L |
| Y53/2y2 | Air suspension valve 2, rear left | 114L |
| Y53y1 | Solenoid valve 1, rear left | 80L |
| Y53y2 | Solenoid valve 2, rear left | 81L |
| Y54 | Right rear axle damping valve unit | 72L |

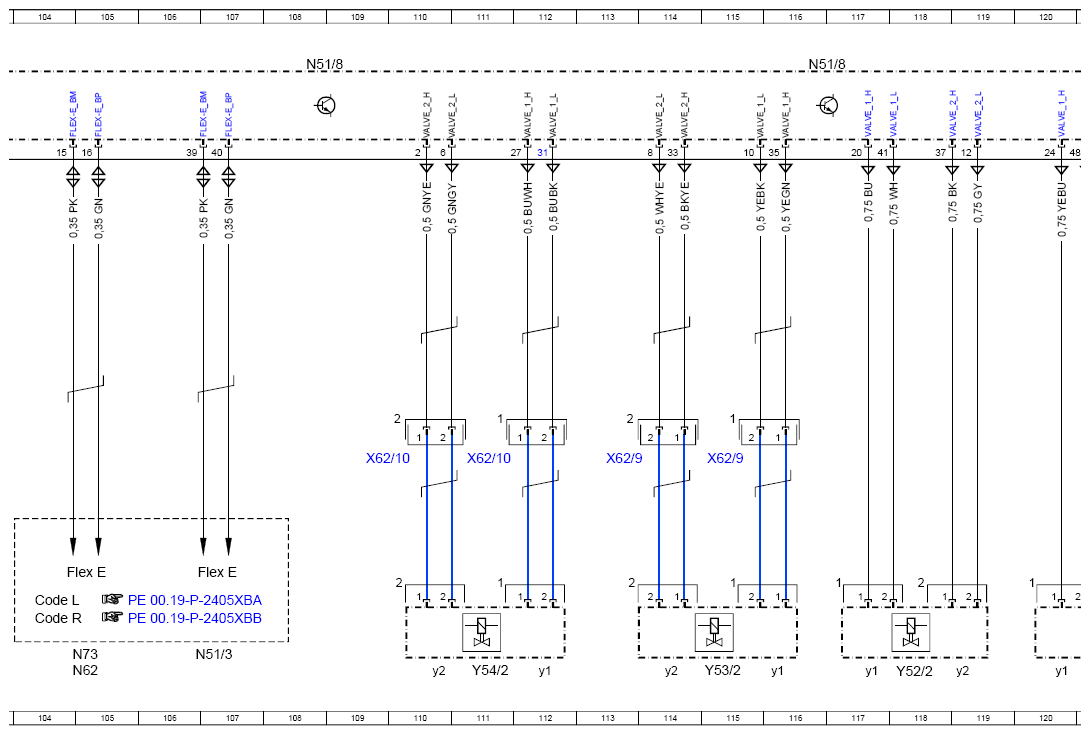

| Y54/2 | Right rear axle air suspension valve unit | 111L |
| Y54/2y1 | Air suspension valve 1, rear right | 112L |
| Y54/2y2 | Air suspension valve 2, rear right | 110L |
| Y54y1 | Solenoid valve 1, rear right | 71L |
| Y54y2 | Solenoid valve 2, rear right | 73L |
| Z211z1 | Voltage supply connector sleeve | 46G |
