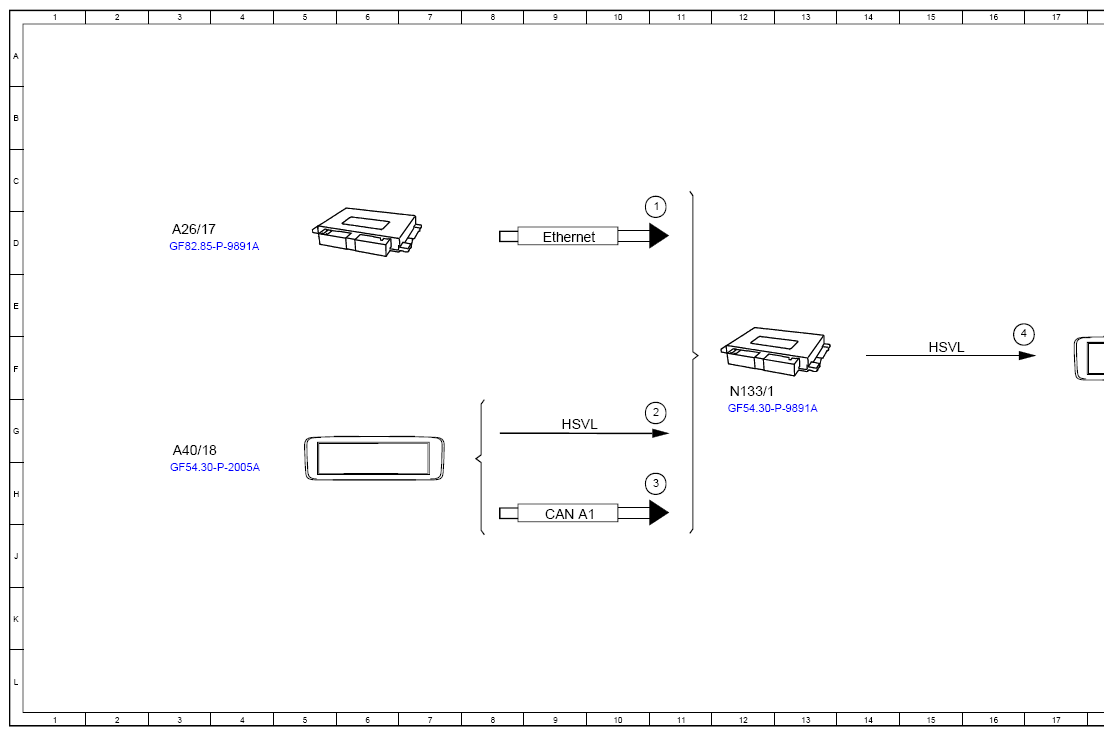

Function Schematic Of Instrument Cluster Picture Display - PE54.30-P-2506-97A
Model all (CAR) with code 451 (3D combination display)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Display settings, request | 11D |
| 2 | Driver camera head position, signal | 11G |
| 3 | Driver camera eye distance, signal | 11H |
| 4 | Image data, signal | 16F |
| A26/17 | Head unit | 3D |
| A40/18 | Instrument cluster display | 3G |
| A40/18 | Instrument cluster display | 20F |
| CAN A1 | CAN 1 for telematics | 9H |
| Ethernet | Ethernet | 9D |
| HSVL | High-speed video link | 9G |
| HSVL | High-speed video link | 15F |
| N133/1 | Instrument cluster control unit | 12F |
