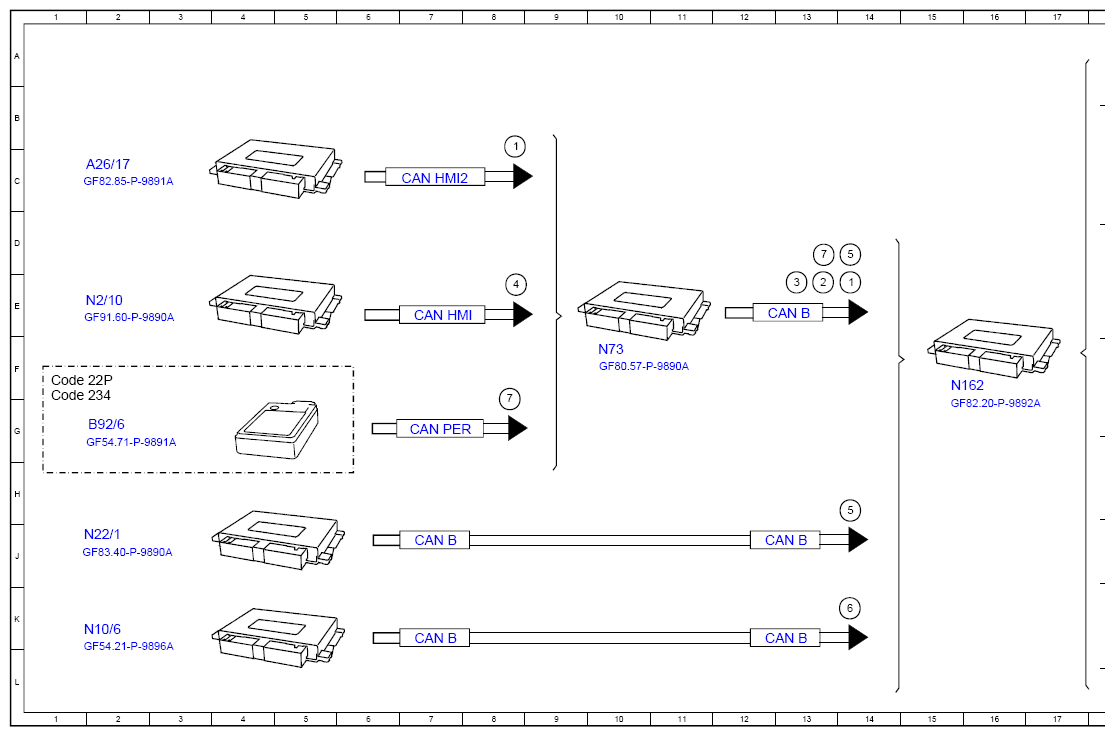

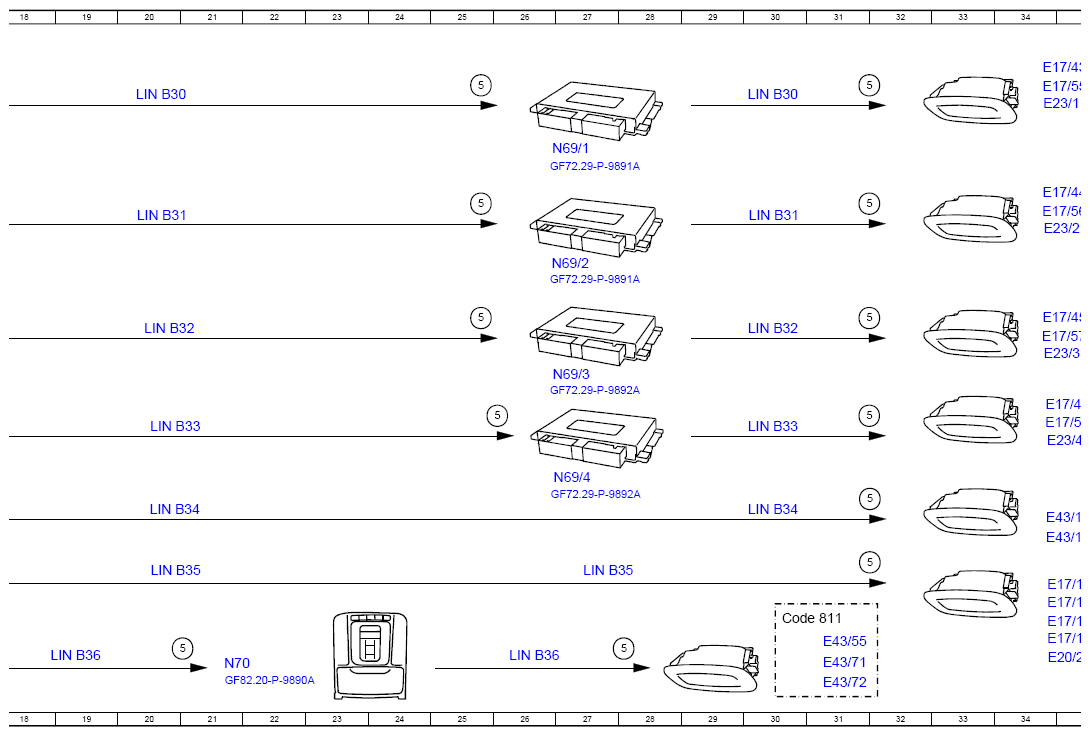

Function Schematic For Actuating Ambient Lighting - PE82.20-P-2504-97H
Model 257, 290 as of model year 2021 with code 877 (Ambient lighting)
Model 257, 290 as of model year 2021 with code 891 (Premium ambiance illumination)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Ambiance illumination settings, status | 14E |
| 1 | Ambiance illumination settings, status | 8B |
| 2 | Circuit 15, status | 13D |
| 3 | Central locking, status | 13E |
| 4 | Crash, signal | 8D |
| 5 | Ambience illumination, request | 25B |
| 5 | Ambience illumination, request | 31B |
| 5 | Ambience illumination, request | 14D |
| 5 | Ambience illumination, request | 26G |
| 5 | Ambience illumination, request | 14J |
| 5 | Ambience illumination, request | 32H |
| 5 | Ambience illumination, request | 32G |
| 5 | Ambience illumination, request | 26D |
| 5 | Ambience illumination, request | 26F |
| 5 | Ambience illumination, request | 32F |
| 5 | Ambience illumination, request | 32D |
| 5 | Ambience illumination, request | 21K |
| 5 | Ambience illumination, request | 28K |
| 5 | Ambience illumination, request | 32J |
| 6 | ATA [EDW] alarm, signal | 14K |
| 7 | Blind Spot Assist warning indicator, request | 13E |
| 7 | Blind Spot Assist warning indicator, request | 8G |
| A26/17 | Head unit | 2C |
| B92/6 | Right outer rear bumper integrated radar sensor | 2G |
| CAN B | Interior CAN | 13E |
| CAN B | Interior CAN | 13K |
| CAN B | Interior CAN | 7K |
| CAN B | Interior CAN | 7J |
| CAN B | Interior CAN | 13J |
| CAN MMI | User interface CAN | 7E |
| CAN HMI2 | User interface CAN 2 | 7C |
| CAN PER | Peripherals CAN | 7G |
| Code 22P | Track package | 1F |
| Code 234 | Blind spot assist | 1G |
| Code 464 | Digital instrument cluster full display | 37H |
| Code 811 | Advanced sound system | 30K |
| E17/15 | Right front footwell lamp | 34K |
| E17/16 | Left front footwell lamp | 34K |
| E17/17 | Left rear footwell lamp | 34K |
| E17/18 | Right rear footwell lamp | 34K |
| E17/43 | Left front door ambiance illumination | 34A |
| E17/44 | Right front door ambiance illumination | 34C |
| E17/45 | Left rear door ambiance illumination | 34E |
| E17/46 | Right rear door ambiance illumination | 34G |
| E17/55 | Left front door handle ambiance illumination | 34B |
| E17/56 | Right front door handle ambiance illumination | 34D |
| E17/57 | Left rear door handle ambiance illumination | 34F |
| E17/58 | Right rear door handle ambiance illumination | 34G |
| E20/2 | Front center console cup holder illumination | 34L |
| E23/1 | Left front door stowage compartment illumination | 34B |
| E23/2 | Right front door stowage compartment illumination | 34D |
| E23/3 | Left rear door stowage compartment illumination | 34F |
| E23/4 | Right rear door stowage compartment illumination | 34G |
| E43/100 | Left rear center console ambiance illumination | 36J |
| E43/102 | Right rear center console ambiance illumination | 36J |
| E43/14 | Left front center console ambiance illumination | 35H |
| E43/15 | Left rear center console ambiance illumination | 36H |
| E43/16 | Right front center console ambiance illumination | 35J |
| E43/17 | Right rear center console ambiance illumination | 36H |
| E43/18 | Driver-side ambiance illumination | 35K |
| E43/19 | Passenger-side interior ambiance illumination | 35K |
| E43/20 | Passenger-side exterior ambiance illumination | 35K |
| E43/25 | Inner upper digital instrument cluster full display ambient lighting | 38H |
| E43/26 | Outer upper digital instrument cluster full display ambient lighting | 38H |
| E43/27 | Inner lower digital instrument cluster full display ambient lighting | 38J |
| E43/28 | Outer lower digital instrument cluster full display ambient lighting | 38J |
| E43/55 | Roof center midrange speaker ambiance illumination | 31K |
| E43/59 | Driver side air vent ambiance illumination | 35K |
| E43/60 | Front passenger side air vent ambiance illumination | 35L |
| E43/71 | Left center headliner midrange speaker ambiance illumination | 31L |
| E43/72 | Right center headliner midrange speaker ambiance illumination | 31L |
| E43/85 | Driver outside center air vent ambiance illumination | 36K |
| E43/86 | Driver inside center air vent ambiance illumination | 36K |
| E43/87 | Front passenger outside center air vent ambiance illumination | 36K |
| E43/88 | Front passenger inside center air vent ambiance illumination | 36K |
| LIN B30 | Left front door ambiance illumination LIN | 20B |
| LIN B30 | Left front door ambiance illumination LIN | 30B |
| LIN B31 | Right front door ambiance illumination LIN | 20D |
| LIN B31 | Right front door ambiance illumination LIN | 30D |
| LIN B32 | Left rear door ambiance illumination LIN | 20E |
| LIN B32 | Left rear door ambiance illumination LIN | 30E |
| LIN B33 | Right rear door ambiance illumination LIN | 20G |
| LIN B33 | Right rear door ambiance illumination LIN | 30G |
| LIN B34 | Cockpit ambiance illumination LIN | 20H |
| LIN B34 | Cockpit ambiance illumination LIN | 30H |
| LIN B35 | Vehicle interior ambiance illumination LIN | 20J |
| LIN B35 | Vehicle interior ambiance illumination LIN | 27J |
| LIN B36 | Roof ambiance illumination LIN | 19L |
| LIN B36 | Roof ambiance illumination LIN | 26L |
| N10/6 | Front SAM control unit | 2K |
| N162 | Ambiance illumination control unit | 15F |
| N2/10 | Supplemental restraint system control unit | 2E |
| N22/1 | Climate control control unit | 2J |
| N69/1 | Left front door control unit | 27C |
| N69/2 | Right front door control unit | 27D |
| N69/3 | Left rear door control unit | 27F |
| N69/4 | Right rear door control unit | 27H |
| N70 | Overhead control panel control unit | 21L |
| N73 | Electronic ignition switch control unit | 10F |
| U2906 | Valid for model 290. 6 | 35H |
