Fabricate Adhesive Film Cutting Template For CD Drive - AZ82.64-P-0002-05LWE

Model 213.0 (except 213.088/089), 213.2 (except 213.288/289)

Model 213.088/089/288/289

except code 460 (Canada version)

except code 494 (US version)

Model 238.3

except code 460 (Canada version)

except code 494 (US version)

Model 257

except code 460 (Canada version)

except code 494 (US version)

Model 290

except code 460 (Canada version)

except code 494 (US version)

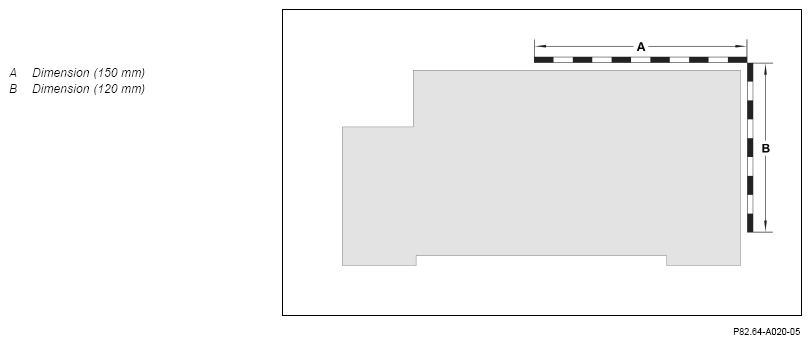

Adhesive film template

Courtesy of MERCEDES-BENZ USA

1. Print out adhesive film template drawing.
2. Determine dimensions (A, B) of print-out.
3. Determine scaling factor.

   Divide dimension specified (A) by dimension determined (A).

   Divide dimension specified (B) by dimension determined (B).

4. Copy printed adhesive film template to original size using the determined scaling factor.
5. Cut out adhesive film template.
