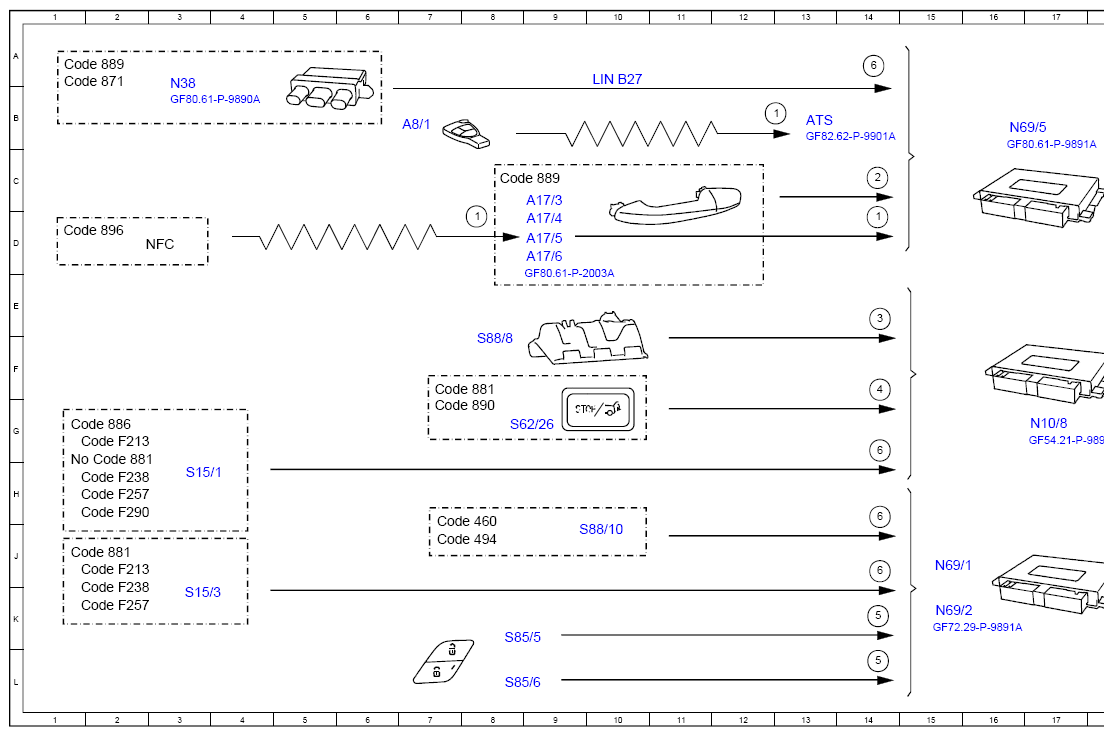

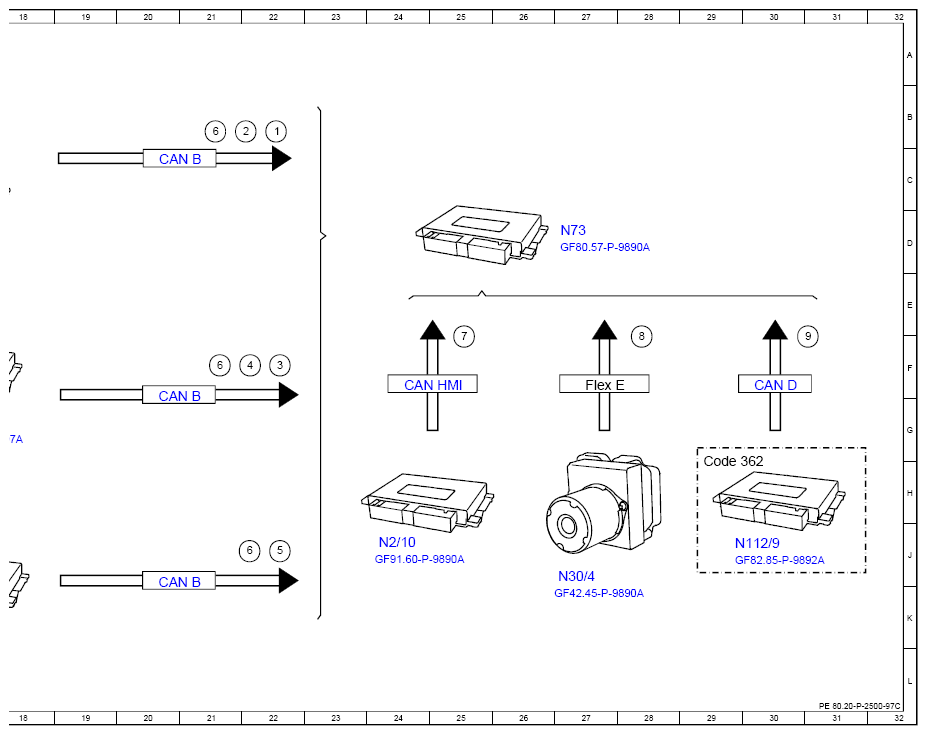

Function Schematic For Central Locking System Activation - PE80.20-P-2500-97C
Model 213, 238, 257, 290 as of Model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Access authorization code, signal | 12B |
| 1 | Access authorization code, signal | 8D |
| 1 | Access authorization code, signal | 14D |
| 1 | Access authorization code, signal | 22B |
| 2 | Door handle KEYLESS-GO, Status | 14C |
| 2 | Door handle KEYLESS-GO, Status | 22B |
| 3 | Exterior trunk lid/tailgate switch status | 14E |
| 3 | Exterior trunk lid/tailgate switch status | 22F |
| 4 | Trunk Lid/Tailgate Control Button Status | 14F |
| 4 | Trunk Lid/Tailgate Control Button Status | 21F |
| 5 | Central locking front door interior control switch, status | 14K |
| 5 | Central locking front door interior control switch, status | 14L |
| 5 | Central locking front door interior control switch, status | 22J |
| 6 | Open trunk lid/tailgate, request | 14A |
| 6 | Open trunk lid/tailgate, request | 14J |
| 6 | Open trunk lid/tailgate, request | 14H |
| 6 | Open trunk lid/tailgate, request | 14G |
| 6 | Open trunk lid/tailgate, request | 21F |
| 6 | Open trunk lid/tailgate, request | 22J |
| 6 | Open trunk lid/tailgate, request | 21B |
| 7 | Crash, Signal | 25F |
| 8 | vehicle speed, signal | 28E |
| 9 | Unlock/lock central locking, request | 30E |
| A17/3 | Door handle KEYLESS-GO rear left | 9C |
| A17/4 | Door handle KEYLESS-GO rear right | 9D |
| A17/5 | Door handle KEYLESS-GO Driver's door | 9D |
| A17/6 | Door handle KEYLESS-GO Passenger door | 9D |
| A8/1 | Transmitter key | 7B |
| ATS | antenna system | 13B |
| CAN B | Interior CAN | 20G |
| CAN B | Interior CAN | 20K |
| CAN B | Interior CAN | 20C |
| CAN D | Diagnose-CAN | 30F |
| CAN HMI | User interface CAN | 24F |
| Code 362 | HERMES LTE | 29H |
| Code 460 | Canada version | 7J |
| Code 494 | USA version | 7J |
| Code 871 | Sensor system for trunk lid opening/closing | 1A |
| Code 881 | Trunk lid/tailgate control | 7F |
| Code 881 | Trunk lid/tailgate control | 1J |
| Code 881 | Trunk lid/tailgate control | 2H |
| Code 886 | Trunk lid remote opening | 1G |
| Code 889 | KEYLESS-GO | 8C |
| Code 889 | KEYLESS-GO | 1A |
| Code 890 | Automatic rear door | 7G |
| Code 896 | Vehicle access and driving authorization via mobile phone | 1D |
| Code F213 | Model 213 | 1J |
| Code F213 | Model 213 | 1G |
| Code F238 | Model 238 | 1K |
| Code F238 | Model 238 | 1H |
| Code F257 | Model 257 | 1K |
| Code F257 | Model 257 | 1H |
| Code F290 | Model 290 | 1H |
| Flex E | FlexRay-suspension | 27F |
| LIN B27 | KEYLESS-GO LIN | 10A |
| N10/8 | Rear control unit SAM | 17G |
| N112/9 | HERMES Control Unit | 30J |
| N2/10 | Supplemental Restraint System, Control Unit | 24J |
| N30/4 | Electronic stability program control unit | 27J |
| N38 | rear switch module | 3B |
| N69/1 | Left front door control unit | 15J |
| N69/2 | Right front door control unit | 15K |
| N69/5 | KEYLESS GO control unit | 16B |
| N73 | Electronic ignition lock control unit | 27D |
| S15/1 | Trunk lid release button | 3H |
| S15/3 | Driver's Trunk Lid/Tailgate Control Button | 3K |
| S62/26 | Trunk lid/liftgate control button | 8G |
| S85/5 | Switch for inside operation of central locking, front door on the left | 8K |
| S85/6 | Switch for inside operation of central locking, front door on the right | 8L |
| S88/10 | Emergency trunk lid opening switch | 10J |
| S88/8 | External switch for trunk lid/tailgate | 8F |
