Remove/Install Seat Ventilation Motor On Front Seat Cushion - AR91.30-P-1951MFD
Model 118, 177, 247
with code 401 (Climatised front seats)
with code 555 (AMG-Performance Seat)
except code 7U1 (Manually adjustable front seats)
except code 7U2 (Luxury front seats)
except code 7U4 (Seat model variant 4)

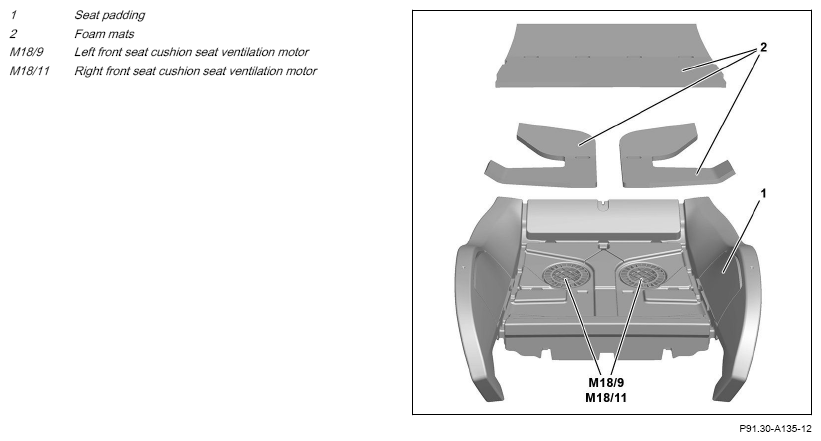

Fig 1: Seat Ventilation Motor On Front Seat Cushion Components Location - Model 118 With Code 401, 555
| Remove/install | |||
| 1 | Remove outer cover of seat padding (1). | AR91.18-P-1801MFD | |
| 2 | Carefully detach heat mat from seat padding (1). | ||
| 3 | Detach foam mats (2) from seat padding (1) and fold to one side. | ||
| 4 | Remove front left seat cushion seat ventilation motor (M18/9) or front right seat cushion seat ventilation motor (M18/11). | ||
| 5 | Install in the reverse order. |
