Assemble/Disassemble Engine On Engine Assembly Stand - AR01.00-P-0002-01MFG

Engine 139 in model 118, 177, 247

Engine 139 in model 206, 232, 254

	000 588 17 31 00 Adapter		WS01.00-P-0202C
	000 588 00 31 00 Assembly stand for cars		WS01.00-Z-3028KOB

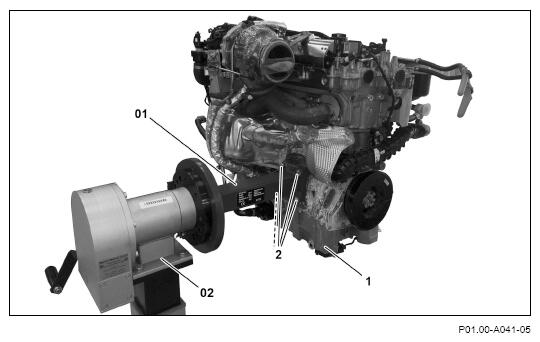

Shown on Engine 139.9

Courtesy of MERCEDES-BENZ USA

Mount Engine on Engine assembly stand

1. Attach adapter (01) to the Engine assembly stand (02).
2. Attach Engine (1) to the Engine assembly stand (02) with the screws (2) as shown.

   Remove Engine from the Engine assembly stand

3. Remove screws (2) and remove Engine (1) from the Engine assembly stand (02).
4. Remove adapter (01) from the Engine assembly stand (02).
