Notes On Coolant Level - AH20.00-P-1142-01CW
Model 117, 124, 129, 140, 156, 163, 164, 166, 168, 169, 170, 171, 172, 176, 177, 190, 197, 199, 201, 202, 203, 204, 205, 207, 208, 209, 210, 211, 212, 213, 215, 216
Model 118, 247 with engine 139, 260, 282, 608, 654
Model 167
Model 192, 206, 214, 217, 218, 219, 220, 221, 222, 223, 230, 231, 232, 236, 238, 240, 242, 246, 251, 254, 257, 290, 292
Model 245 with engine 266, 640
Model 253 with engine 177, 264, 274, 276, 642, 651, 654, 656
Model 415 with engine 200, 607, 608
Model 420 with engine 200, 608, 780
Model 447 with engine 274, 622, 651, 654.9
Model 448, 470, 471, 636
Model 461, 463 with engine 612
Model 461, 463 with engine 642
Model 463 with engine 112, 113, 157, 264, 273, 279, 628
Model 463 with engine 176, 177, 656
as of model year 2019
Model 463 with engine 176
up to model year 2019
Model 639 with engine 112, 272, 642, 646, 651
Model 900, 906, 907, 909
Model 910 with engine 651, 654.9, 780.703
Shown on model 166, 204, 207, 212, 218, 290.688, 292
When the engine is cold, the coolant level must be level with the marking (arrow) in the coolant expansion reservoir (1).
When coolant is warm: Approx. 1 cm above this mark (arrow).
Shown on model 117, 156, 167, 176, 177, 197, 213, 223, 238, 242, 246, 257, 290.65/66, 290.689
When the engine is cold, the coolant level must reach up to the upper edge of the web (arrow) in the coolant expansion reservoir (1).
When coolant is warm: Approx. 1 cm above the upper edge of the web (arrow).
Shown on model 168 with engine 668
When the engine is cold, the engine coolant level must reach up to the marking "MIN" at the coolant expansion reservoir.
The marking on the coolant expansion reservoir is stamped in as of approx. June 1999.
Shown on model 203 with engine 112
The coolant level on a cold engine must reach up to the marking (arrow) on the coolant expansion reservoir.
When coolant is warm: Coolant level approx. 1 cm over this mark.

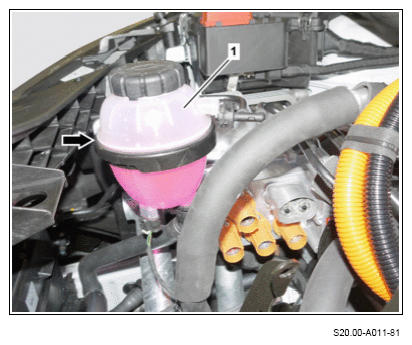

Shown on model 447 with engine 780.701, main circuit
When the coolant is cold, the coolant level must reach up to the marking (arrow) on the coolant expansion reservoir (1).
When the electric motor is at operating temperature, the coolant level must be slightly above the marking (arrow) on the coolant expansion reservoir (1).

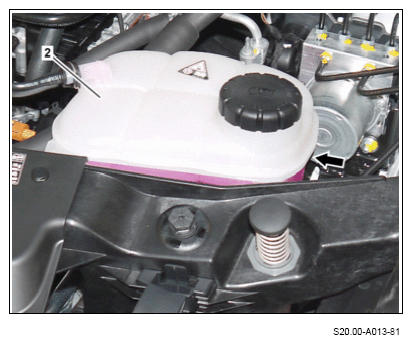

Shown on model 447 with engine 780.701, auxiliary circuit
When the coolant is cold, the coolant level must reach up to the marking (arrow) on the coolant expansion reservoir (2).
When the coolant is at operating temperature, the coolant level must be slightly above the marking (arrow) on the coolant expansion reservoir (2).
Shown on models 907, 910, previous coolant expansion reservoir

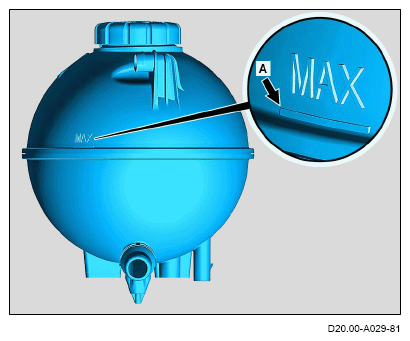

When the coolant is cold, the coolant level must reach up to the marking (arrow A).
Shown on models 907, 910, updated coolant expansion reservoir
Model 907 with engine 274, 642, 651, 654
Model 910 with engine 651, 654.9
When the coolant is cold, the coolant level must reach up to the marking (arrow A).
Model 907 with engine 780.6
Model 910 with engine 780.7

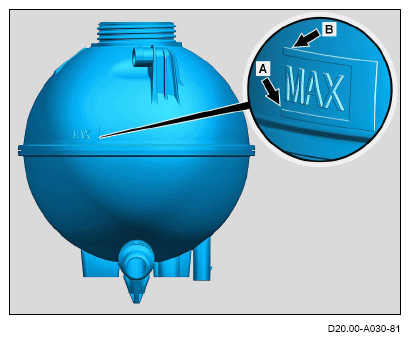

When the coolant is cold, the coolant level must reach up to the marking (arrow B).
