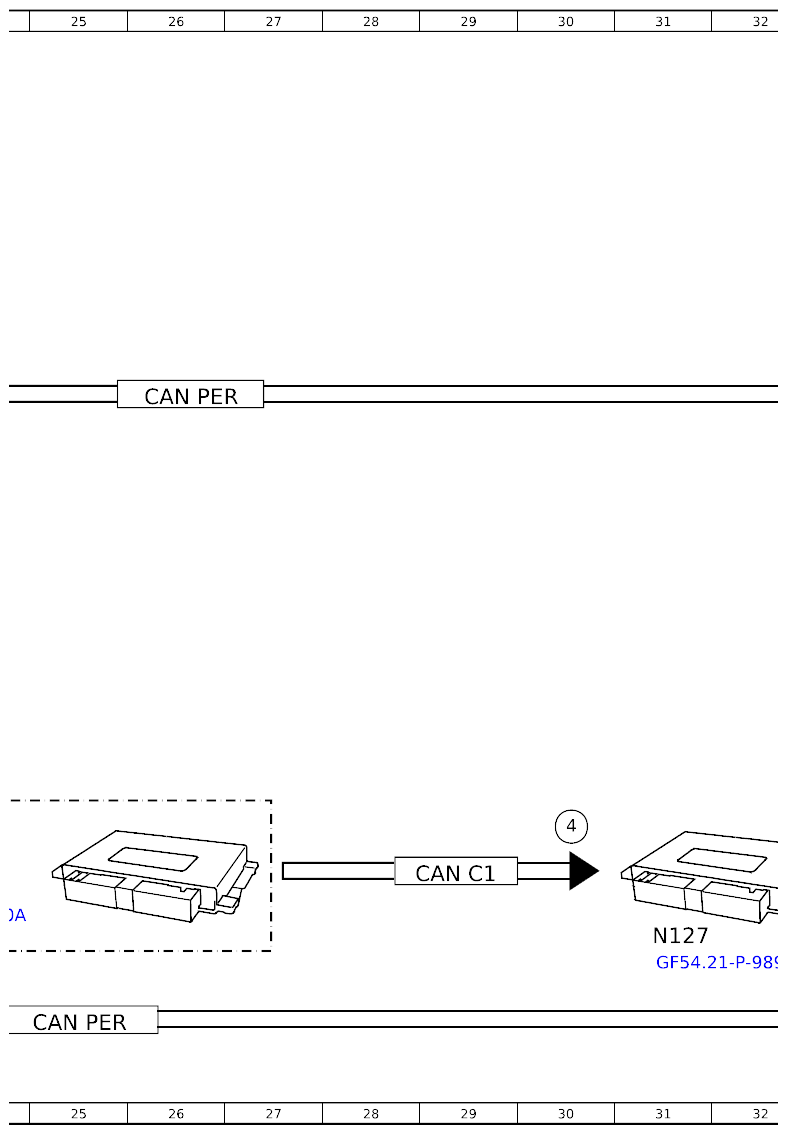

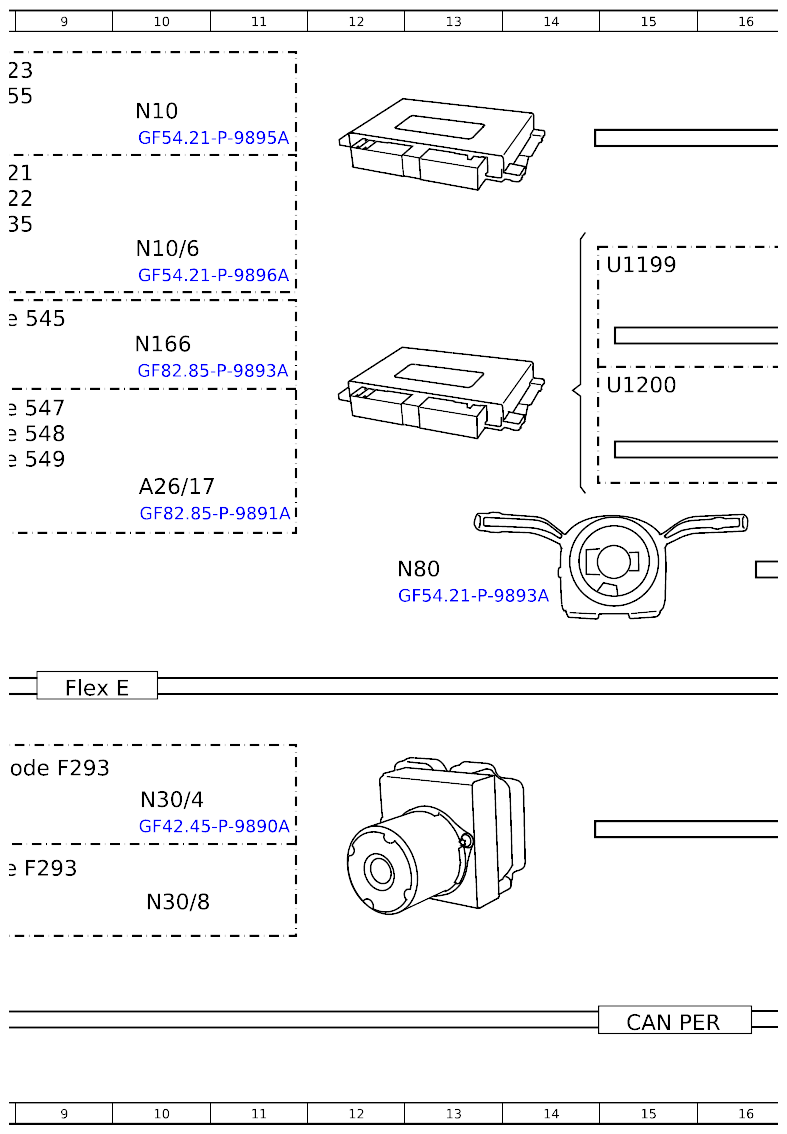

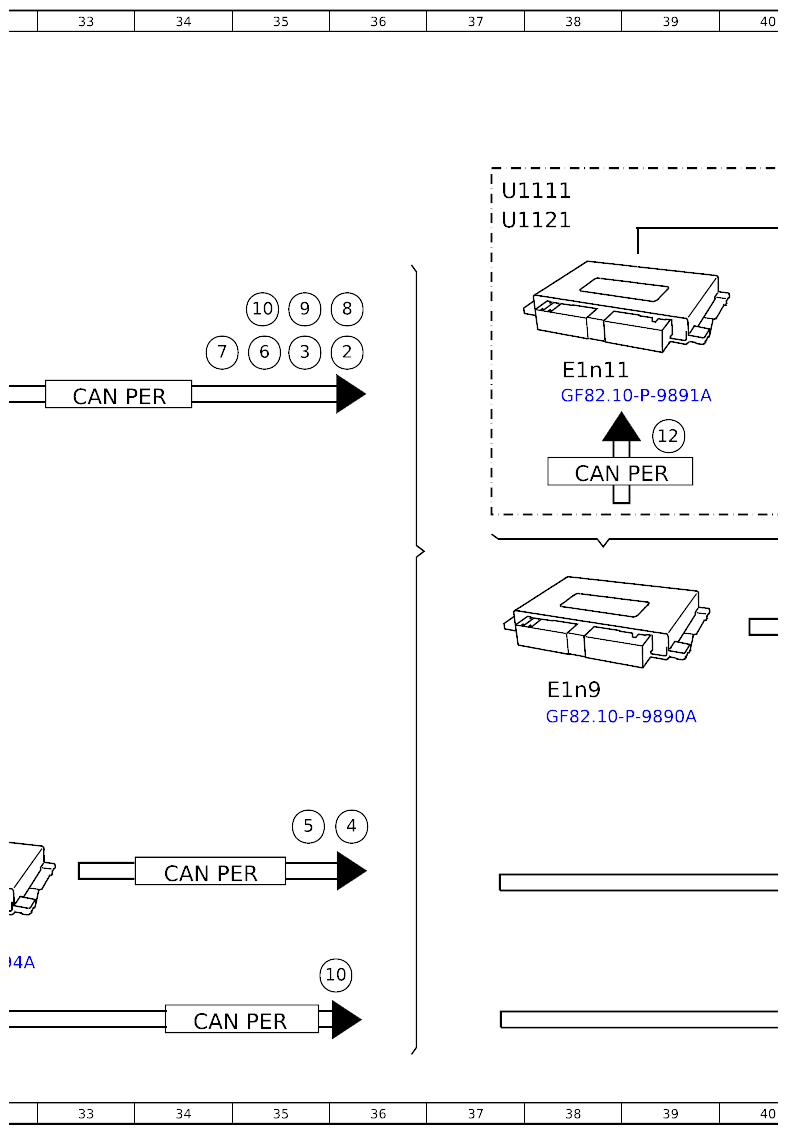

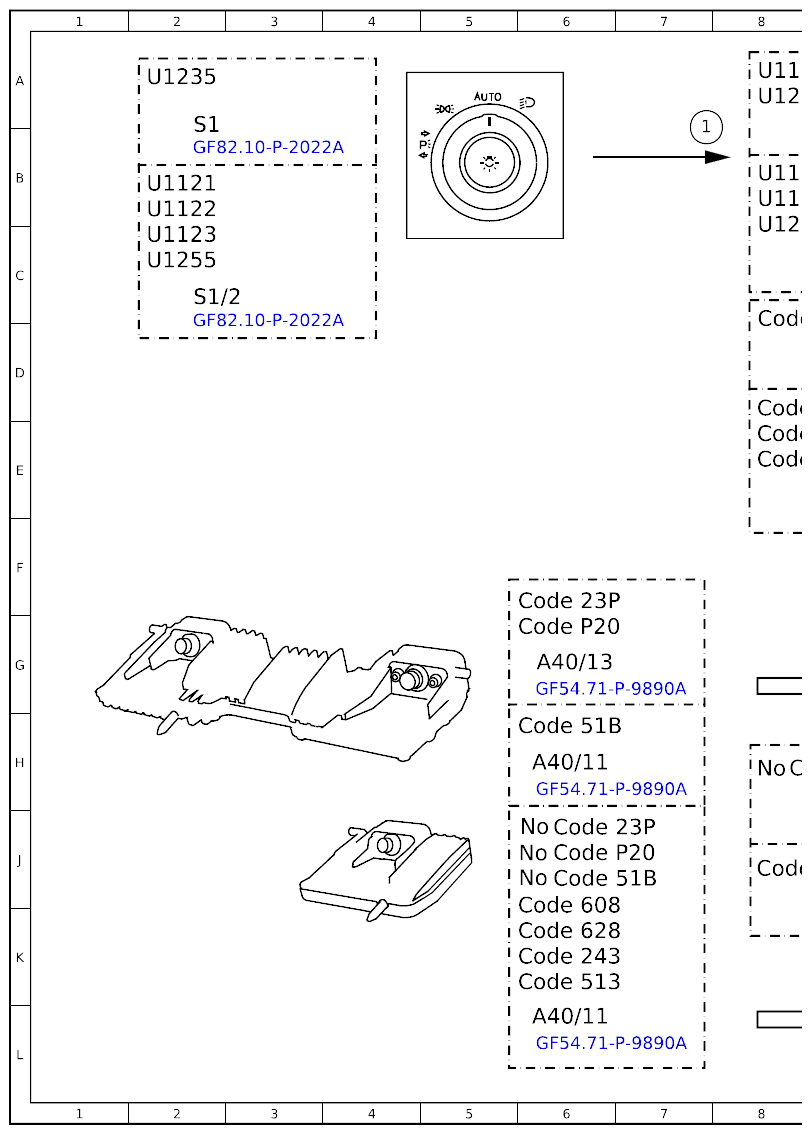

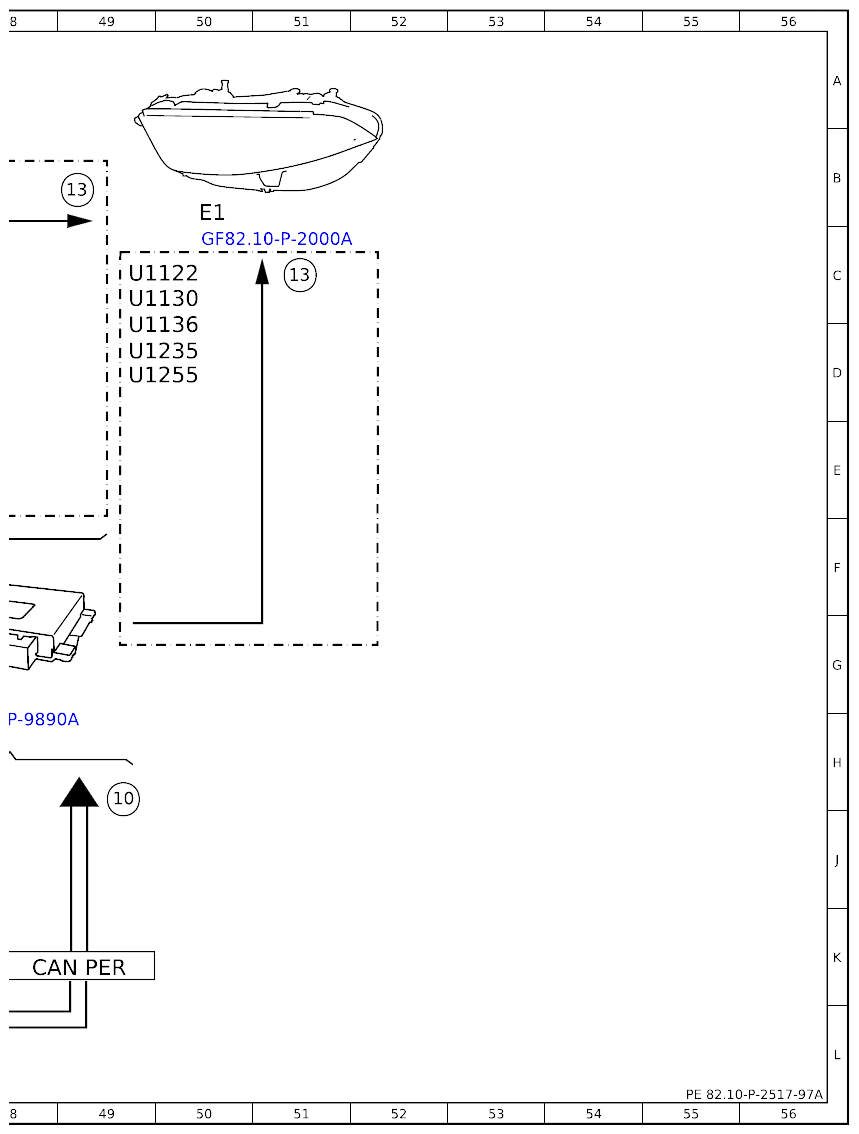

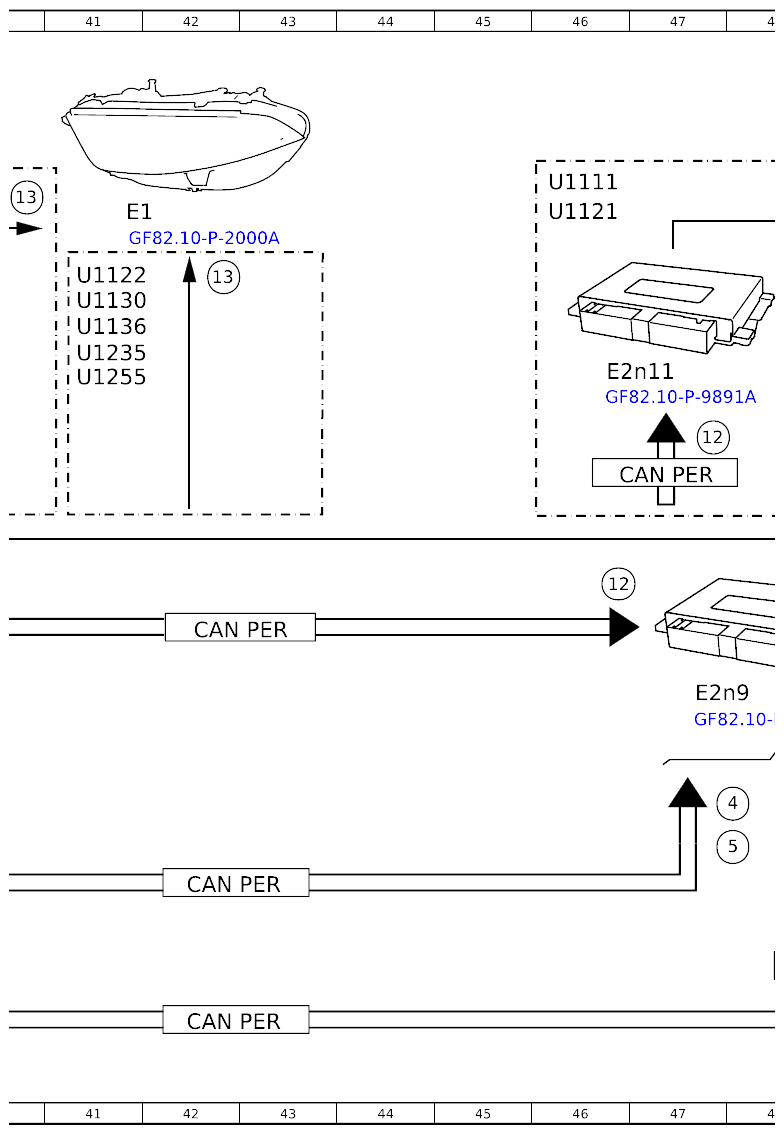

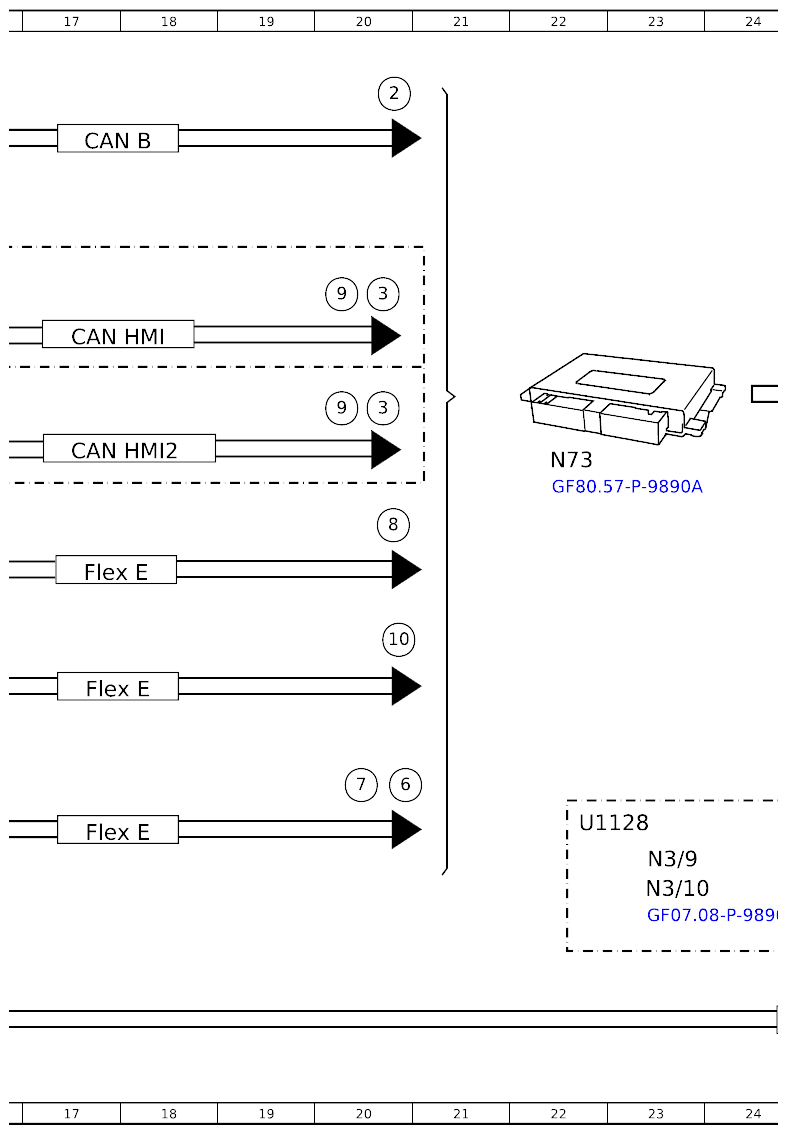

Function Schematic, Intelligent Light Distribution - PE82.10-P-2517-97A
Model 118, 167, 177, 247, 293
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| A26/17 | Head unit | 10E |
| A40/11 | Mono multifunction camera | 6L |
| A40/11 | Mono multifunction camera | 6H |
| A40/13 | Multifunction camera | 6G |
| Code 23P | Driver assistance package | 6J |
| Code 23P | Driver assistance package | 6F |
| Code 51B | EURO-NCAP | 6J |
| Code 51B | EURO-NCAP | 6H |
| Code 243 | Active Lane Keeping Assist | 6K |
| Code 513 | Speed Limit Assist | 6K |
| Code 545 | Connect 5 (NTG6) | 8D |
| Code 547 | Connect 20 Entry (NTG6) | 8D |
| Code 548 | Connect 20 MID (NTG6) | 8E |
| Code 549 | Connect 20 HIGH (NTG6) | 8E |
| Code 608 | Adaptive Highbeam Assist | 6K |
| Code 628 | AUTOMATIC HIGH BEAM CONTROL PLUS (IHC+) | 6K |
| Code F293 | Model series 293 | 8J |
| Code F293 | Model series 293 | 8H |
| Code P20 | Driver assistance package PLUS | 6J |
| Code P20 | Driver assistance package PLUS | 6G |
| E1 | Left front lamp unit | 41B |
| E1 | Left front lamp unit | 50B |
| E1n9 | Left headlamp control unit | 38G |
| E1n11 | Left front LED matrix lamp unit control unit | 38D |
| E2n9 | Right headlamp control unit | 47G |
| E2n11 | Right front LED matrix lamp unit control unit | 46D |
| N3/9 | CDI control unit | 23J |
| N3/10 | Engine management control unit | 23J |
| N10 | Central control module | 10A |
| N10/6 | Front SAM control unit | 10C |
| N30/4 | Electronic Stability Program (ESP®) control unit | 10H |
| N30/8 | Regenerative braking system control unit | 10K |
| N73 | EIS [EZS] control unit | 22E |
| N80 | Steering column module | 13F |
| N127 | Drivetrain control unit | 31K |
| N166 | Head unit/instrument cluster control unit | 10D |
| S1 | Exterior lights switch | 2B |
| S1/2 | Exterior lights and electric parking brake switch group | 2C |
| U1111 | Valid for model 177 | 37B |
| U1111 | Valid for model 177 | 46B |
| U1121 | Valid for model 167 | 37C |
| U1121 | Valid for model 167 | 46B |
| U1121 | Valid for model 167 | 2B |
| U1121 | Valid for model 167 | 8B |
| U1122 | Valid for model 293 | 41C |
| U1122 | Valid for model 293 | 2B |
| U1122 | Valid for model 293 | 8B |
| U1122 | Valid for model 293 | 49C |
| U1123 | Valid for model 118, 177, 247 | 2C |
| U1123 | Valid for model 118, 177, 247 | 8A |
| U1128 | Valid for combustion engine | 22J |
| U1130 | Valid for model 247 | 41C |
| U1130 | Valid for model 247 | 49C |
| U1136 | Valid for model 118 | 41D |
| U1136 | Valid for model 118 | 49D |
| U1199 | Valid for vehicles up to facelift | 15C |
| U1200 | Valid for vehicles as of facelift | 15D |
| U1235 | Valid for model 213, 238, 257, 290 | 41D |
| U1235 | Valid for model 213, 238, 257, 290 | 2A |
| U1235 | Valid for model 213, 238, 257, 290 | 8C |
| U1235 | Valid for model 213, 238, 257, 290 | 49D |
| U1255 | Valid for model 243 | 41D |
| U1255 | Valid for model 243 | 2C |
| U1255 | Valid for model 243 | 8A |
| U1255 | Valid for model 243 | 49D |
| CAN B | Interior CAN | 17B |
| CAN C1 | CAN 1 for drive | 29J |
| CAN HMI | User interface CAN | 17D |
| CAN HMI2 | CAN 2 for user interface | 17E |
| CAN PER | CAN for peripherals | 25L |
| CAN PER | CAN for peripherals | 15L |
| CAN PER | CAN for peripherals | 34L |
| CAN PER | CAN for peripherals | 34J |
| CAN PER | CAN for peripherals | 26D |
| CAN PER | CAN for peripherals | 33D |
| CAN PER | CAN for peripherals | 42L |
| CAN PER | CAN for peripherals | 42J |
| CAN PER | CAN for peripherals | 42G |
| CAN PER | CAN for peripherals | 49K |
| CAN PER | CAN for peripherals | 47E |
| CAN PER | CAN for peripherals | 38E |
| Flex E | Chassis FlexRay | 9G |
| Flex E | Chassis FlexRay | 17J |
| Flex E | Chassis FlexRay | 17G |
| Flex E | Chassis FlexRay | 17F |
| 1 | Exterior lights switch, status | 7B |
| 2 | Low beams, request | 20A |
| 2 | Low beams, request | 36D |
| 3 | Variable light distribution function, status | 35D |
| 3 | Variable light distribution function, status | 20D |
| 3 | Variable light distribution function, status | 20C |
| 4 | Engine running, signal | 30J |
| 4 | Engine running, signal | 36J |
| 4 | Engine running, signal | 48H |
| 5 | Drivetrain operational, signal | 35J |
| 5 | Drivetrain operational, signal | 48J |
| 6 | Combination switch, status | 35D |
| 6 | Wheel speed, signal | 20H |
| 7 | Steering angle, signal | 34D |
| 7 | Speed, turn rate and lateral acceleration, signal | 20H |
| 8 | Wheel speed, signal | 36C |
| 8 | Steering angle, signal | 20F |
| 9 | Map data, signal | 35C |
| 9 | Map data, signal | 20D |
| 9 | Map data, signal | 20C |
| 10 | Ambient information, data | 20G |
| 10 | Ambient information, data | 36K |
| 10 | Ambient information, data | 35C |
| 10 | Ambient information, data | 49H |
| 12 | Synchronization, signal | 46F |
| 12 | Variable light distribution, request | 39E |
| 12 | Variable light distribution, request | 47E |
| 13 | Headlamp range adjustment actuator motor, actuation | 42C |
| 13 | Headlamp range adjustment actuator motor, actuation | 51C |
| 13 | Variable light distribution, actuation | 40B |
| 13 | Variable light distribution, actuation | 49B |
