Function Schematic For Media Mode - PE82.60-P-2501-97A
Model 118, 177, 243, 247
| Code: | Designation: | Position: |
|---|---|---|
| Code 549 | Connect 20 HIGH (NTG6) | 1H |
| Code 549 | Connect 20 HIGH (NTG6) | 19K |
| Code 549 | Connect 20 HIGH (NTG6) | 1G |
| Code 549 | Connect 20 HIGH (NTG6) | 1E |
| Code 549 | Connect 20 HIGH (NTG6) | 19F |
| Code 549 | Connect 20 HIGH (NTG6) | 19J |
| Code 549 | Connect 20 HIGH (NTG6) | 16H |
| Code 897 | Wireless mobile phone charging | 1C |
| Code 897 | Wireless mobile phone charging | 1B |
| Code 897 | Wireless mobile phone charging | 20D |
| Code 897 | Wireless mobile phone charging | 20E |
| Code 899 | Wireless phone charging at front and antenna | 1D |
| Code 899 | Wireless phone charging at front and antenna | 2C |
| Code 899 | Wireless phone charging at front and antenna | 20D |
| Code 899 | Wireless phone charging at front and antenna | 20E |
| HSVL | High-speed video link | 22B |

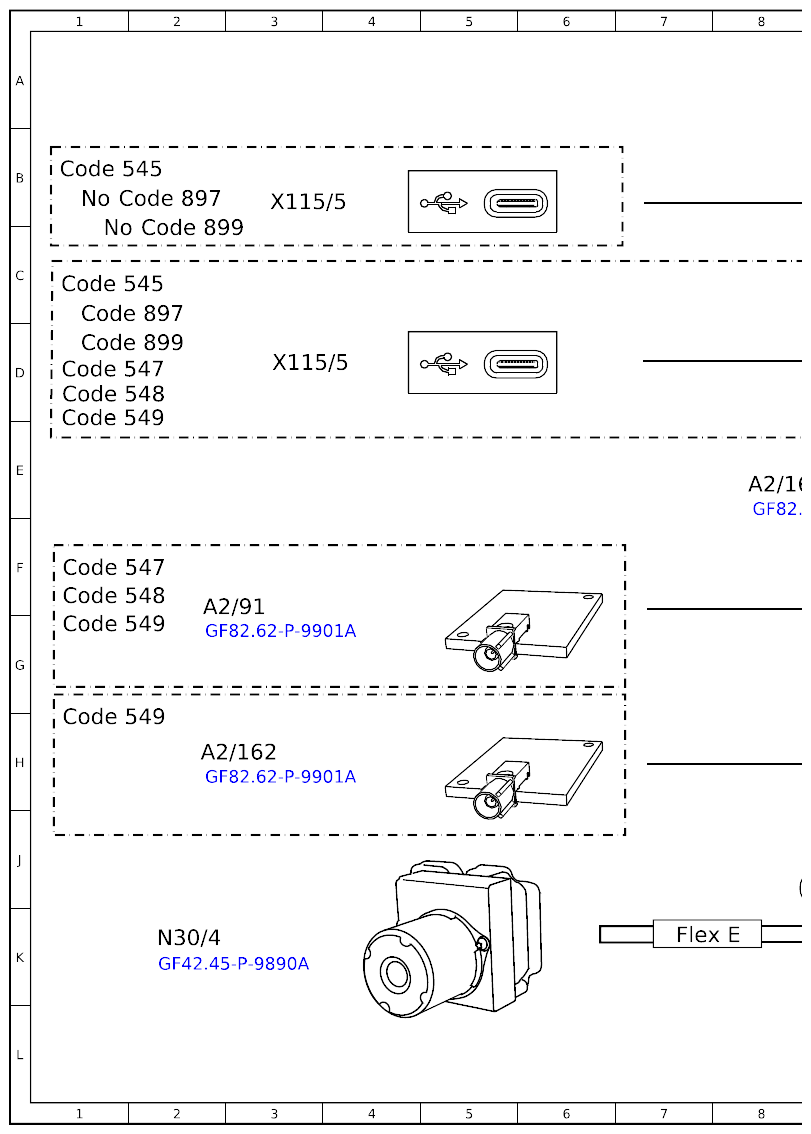

| N30/4 | Electronic Stability Program (ESP®) control unit | 2K |

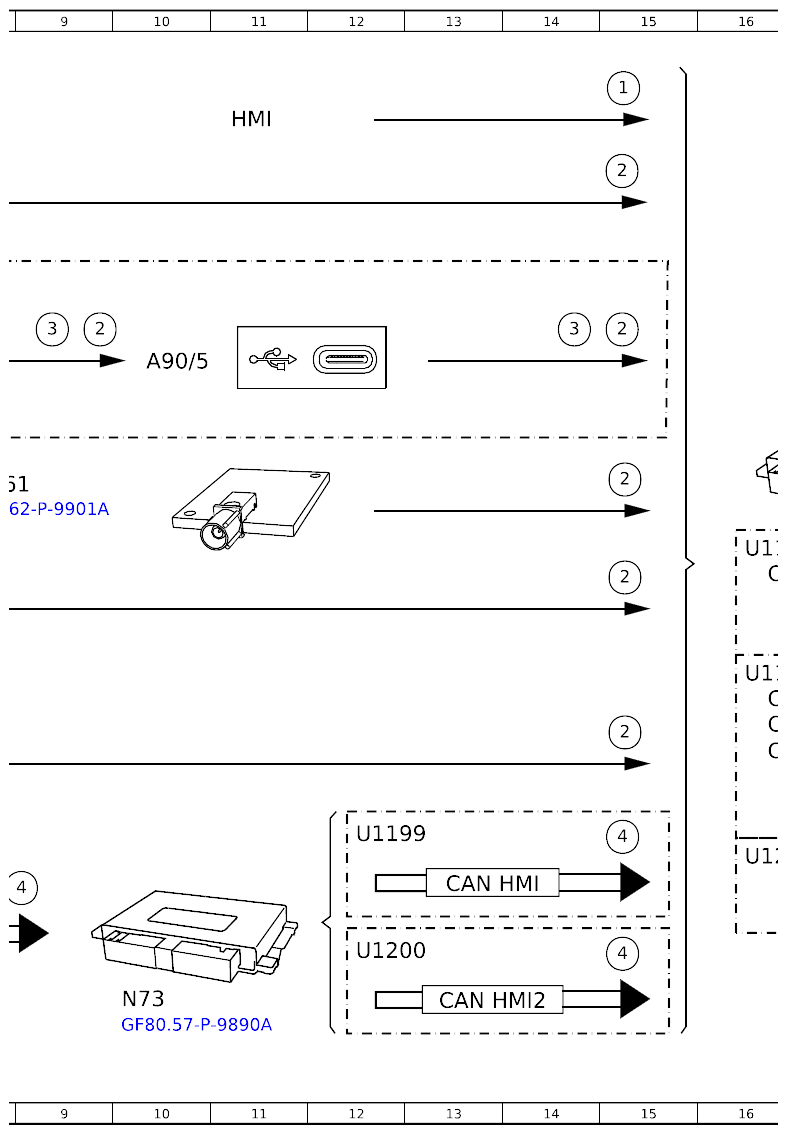

| N73 | EIS [EZS] control unit | 10L |

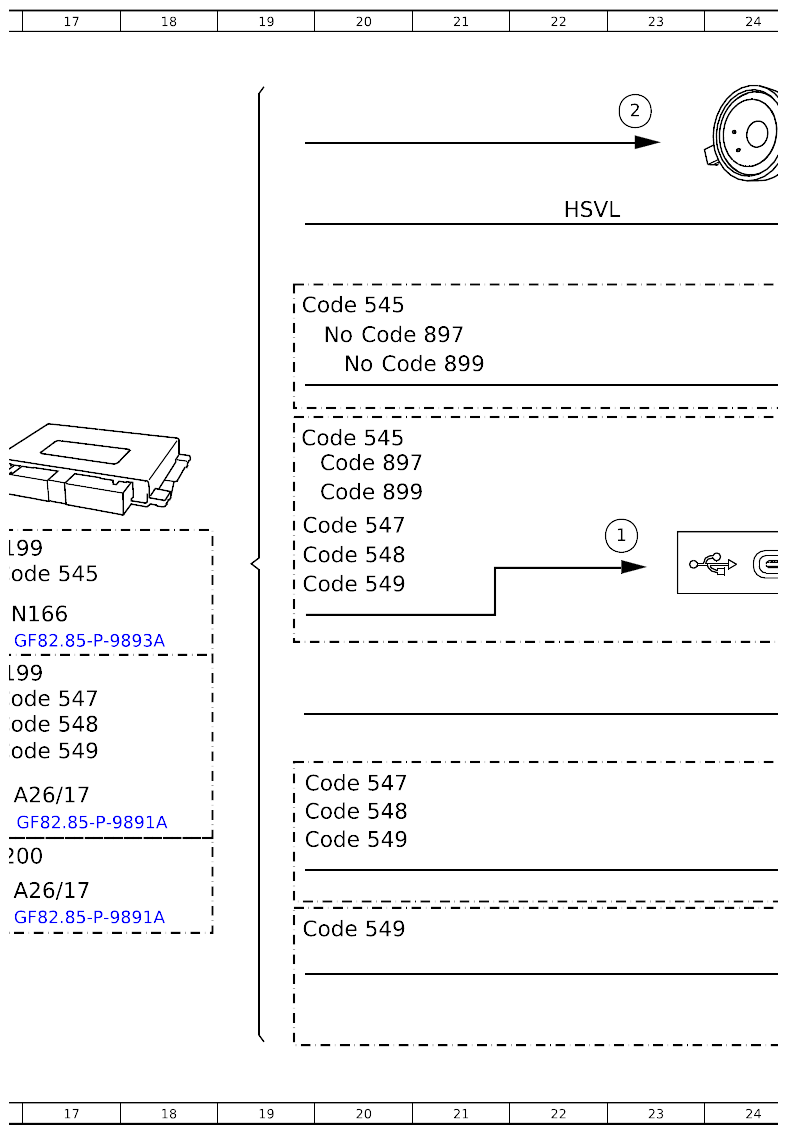

| N166 | Head unit/instrument cluster control unit | 17G |
| U1199 | Valid for vehicles up to facelift | 12J |
| U1199 | Valid for vehicles up to facelift | 16G |
| U1199 | Valid for vehicles up to facelift | 16F |
| U1200 | Valid for vehicles as of facelift | 12K |
| U1200 | Valid for vehicles as of facelift | 16J |
| X115/5 | Front center console USB connector | 3B |
| X115/5 | Front center console USB connector | 3D |
| X115/5 | Front center console USB connector | 30D |
| X115/5 | Front center console USB connector | 30F |
| CAN HMI | User interface CAN | 13J |
| CAN HMI2 | CAN 2 for user interface | 13L |
| Flex E | Chassis FlexRay | 7K |
| 1 | Operation, signal | 15A |
| 1 | Operation, signal | 27G |
| 1 | Operation, signal | 27J |
| 1 | Operation, signal | 27K |
| 1 | Operation, signal | 27D |
| 1 | Operation, signal | 27F |
| 1 | Operation, signal | 23F |
| 2 | Audio, signal | 15D |
| 2 | Audio, signal | 15E |
| 2 | Audio, signal | 15F |
| 2 | Audio, signal | 15H |
| 2 | Audio, signal | 23A |
| 2 | Audio, signal | 15B |
| 2 | Audio, signal | 9D |
| 3 | Video, signal | 27B |
| 3 | Video, signal | 14D |
| 3 | Video, signal | 9D |
| 4 | Vehicle speed, signal | 15J |
| 4 | Vehicle speed, signal | 9J |
| 4 | Vehicle speed, signal | 15K |
| A2/91 | Bluetooth antenna | 2F |
| A2/91 | Bluetooth antenna | 30J |
| A2/161 | Bluetooth®/Wi-Fi antenna | 8E |
| A2/161 | Bluetooth®/Wi-Fi antenna | 30G |
| A2/162 | Center Bluetooth®/Wi-Fi antenna | 2H |
| A2/162 | Center Bluetooth®/Wi-Fi antenna | 30K |
| A26/17 | Head unit | 17H |
| A26/17 | Head unit | 17J |

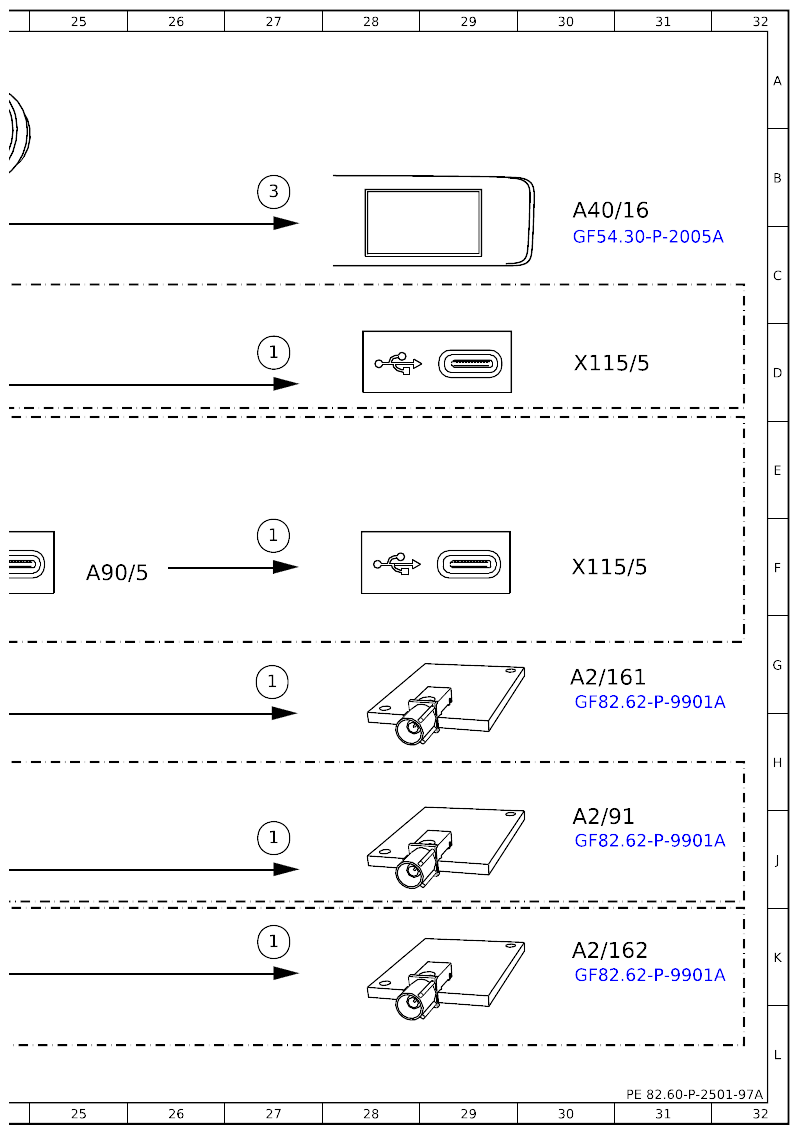

| A40/16 | Head unit/instrument cluster display cluster | 30B |
| A90/5 | Multimedia connection unit | 10D |
| A90/5 | Multimedia connection unit | 25F |
| Code 545 | Connect 5 (NTG6) | 1C |
| Code 545 | Connect 5 (NTG6) | 1B |
| Code 545 | Connect 5 (NTG6) | 19C |
| Code 545 | Connect 5 (NTG6) | 19E |
| Code 545 | Connect 5 (NTG6) | 16F |
| Code 547 | Connect 20 Entry (NTG6) | 1F |
| Code 547 | Connect 20 Entry (NTG6) | 1D |
| Code 547 | Connect 20 Entry (NTG6) | 19F |
| Code 547 | Connect 20 Entry (NTG6) | 19H |
| Code 547 | Connect 20 Entry (NTG6) | 16G |
| Code 548 | Connect 20 MID (NTG6) | 1F |
| Code 548 | Connect 20 MID (NTG6) | 1D |
| Code 548 | Connect 20 MID (NTG6) | 19F |
| Code 548 | Connect 20 MID (NTG6) | 19J |
| Code 548 | Connect 20 MID (NTG6) | 16H |
